Bass with jazz PU just below the neck heel ?

Discussion in 'Basses [BG]' started by boristhespider7, Oct 13, 2017.

  1. boristhespider7


    Jan 27, 2008
    Anyone made one? Any sound clips? Something with a jazz Pu around the 24th fret area
    Doesn't have to be a jazz bass, but something 34" scale, like the position of the neck PU on a Rick 4001

    Just wondering if i could get that "woody" 60's bass sound with it
  2. No reason why not. Makes perfect sense, as per the Allan Woody bass.

    All of the commercially available basses (past & present) with a pickup in that location will generate a rounder sound than pickups further from the neck.
    Using a Jazz pickup, you might have to be more careful in selecting one that supposedly has a "vintage" tone, with corresponding care in the choice of tone capacitor, to get the exact sound you're after.

    Also, be aware of possible problems due to the narrow spacing of the strings at that point.
    When Roger Glover of Deep Purple put a pair of Jazz pickups next to each other and close to the neck on a Rick, they were very slanted so the pole pieces would line up with the strings.
    You might be able to find info on which specific songs were recorded with that bass?

    I would use a humbucker, and a relatively narrow one at that.
    If it has to be a Jazz pickup, are there any with a blade pole? Never an alignment problem with those.
  3. The blade as opposed to pole type Jazz makes sense. Several companies make them (Bartolini and EMG are wo who do), they and others also make humbuckers with blades.
  4. Oops, "are two who do"
  5. Just a stupid question here - when placing a pickup so close to the neck joint, is there any risk of compromising the neck stability by routing so close to the neck pocket if your bass has a bolt on neck? I know it's been done on many basses, but the thought popped into my head just now.
  6. I can't see why it would be any more of an issue than with 6 string guitars where the majority have neck pickups right next to the neck pocket. I've built lots of 6 string electric guitars over the past 30 years, but few basses, so if I'm wrong I'll be happy to stand corrected. :)
    ajkula66 and Sartori like this.
  7. Korladis

    Korladis Inactive

    As long as all the strings are within the bounds of the outer pole pieces, lining up perfectly with the pole pieces doesn't matter that much. Still, if you're concerned about it, just use blade style pickups.
  8. spufman

    spufman Supporting Member

    Feb 7, 2005
    Central CT
    I'll bet a Dimarzio Ultra Jazz would be nice there. It will tend to be a relatively overpowering spot, with the wide string deflection. Could be cool.
  9. svlilioukalani

    svlilioukalani Supporting Member

    Sep 19, 2012
    Seattle, Wa

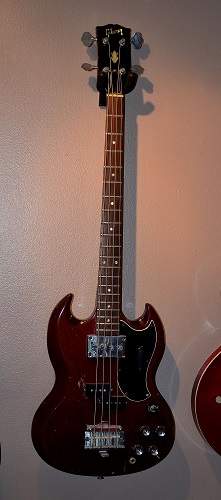

    The basses I have with a pickup in that position all have a nice deep tone. One of my secret weapons is this Gibson. It has a p-bass pickup along with a pickup in the position you are talking about. Billy Sheehan bass "the wife" is set up that way. It sounds awesome.

    The only problem I see with doing it is that the pickup will get in your way if you play slap style. bass18.jpg
    ajkula66 likes this.
  10. I've installed a Mudbucker - and these dig in pretty deep - in an early 70s Jazz Bass with no ill effects when it came to the stability of the neck. Had to perform additional body routing in order to set the electronics exactly the way I wanted to as well. It sounded glorious IMO. Yeah, I know that these are considered "vintage" nowadays and that the whole experiment would be viewed by many as a blasphemy but back then they were just old and beaten up, and pretty much dime-a-dozen in sunburst/rosewood...
    rllefebv likes this.
  11. Paulabass


    Sep 18, 2017 will produce LOTS of bass. I knew a guy who put a mudbucker there with a seperate output that went to two 18" p.a. subs. I think Billy Shehan does that too.
    ajkula66 likes this.
  12. dedpool1052


    Jan 10, 2011
    Seattle, WA
    Bluesman Vinatge did a JPJ bass similar to that. Here's TB's own @Jaymi demoing it
  13. Dluxe

    Dluxe Supporting Member

    Jan 9, 2011
    The late Mark Adams of Slave did this with his Jazz bass.
