Big E Speakers Part 4 - Quadraphenia
- Thread starter kesslari
- Start date
Mike A reached out to me in order to help clarify how the design works - here's what he said:
----------------
You have to realign the back wave so that there are no phase cancellations. That's what the last portion does.
The decorellation occurs because while the rear wave is in phase with the front it is delayed because there is acceleration and decelleration in the various chambers. In a true transmission line what comes out of the port is delayed from what comes out the front. The length of the transmission line does this. The ear puts things back together and because the delay is small, the brain doesn't notice. But a true transmission line is VERY long to go to 40hz. And--a transmission line really only reinforces the lowest octave.So--our "virtual" transmission line delays the sound waves as a long transmission line does---it behaves like a transwmission line but at a fraction of the length. So--we've delayed the sound waves but we need to get them in phase with the front. That's what the last chamber does. Now---since the vortex delays things a bit--it's not so much that the ear doesn't reintegrate the front and rear waves into a coherent whole. That's the de-correlation. The small delay between the front and rear waves are decorrelated in time while the ear doesn't perceive it. It's the small delay that does it.
----------------
Hope that helps everyone!
I'd be satisfied with "so the flux capacitor in the back does this magic decorrelate/recorrelate mojo... nah never mind, it's technical."
After talking with Mike, the Bodai sounds more like what I'm looking for in a cab. If any of you all are interested in a MAS 109 with mids switch and tweeter, let me know! I have one I'm looking to trade in towards a new Bodai.
- Apr 29, 2003
- 9,078
- 9,800
- Disclosures
- Contributor- Bass Musician Magazine | Marketing Manager- Trickfish Amplification
that looks seriously bad! Love the form factor, and it sounds like it moves more air than the 109. NICE!
All I've ever wanted was an updated Baby Blue (which I adored at the time). Looks like I've finally found it.
My original 48 is a hammer. This would no doubt be great for medium size gigs.

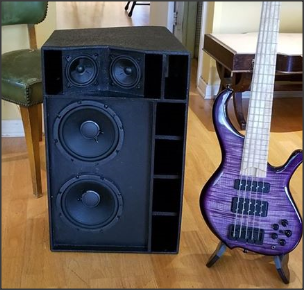

From Mike's FB post: 47lbs, 26" tall 16" wide 14 1/2 deep (the width and depth get progressively smaller as you move to the back of the cab) Around 780 cc's of air moved. To compare, the MAS46 or Bodai 110 are both 600 cc's.The Bodai 12 is around 900 cc's. A "super" 12 like Duke's, Barefaced or Fearless are a bit under 500 cc's. So---the B28 is halfway in between a single and 212 based on "super" 12's. It will likely beat any other 212's out there. The B28 will kill any 210---much closer to a 410. Deeper low end than any of my cabs. Two custom 8's, two Faital 4's and a Celestion compression driver. Deep, super punchy, VERY hifi from top to bottom.
When I visited Mike's place this summer, I liked the MAS 18 a lot and the bass with two stacked (the depth, amount available, and control) was ridiculous, but I liked the pristine, 3D mids of the Bodai 110 better. Mike mentioned then that he was thinking of doing a Bodai-format cab with two of the 8" woofers, but I had no idea that he'd move on it this soon (he and/or the Big E guys might have been further along in talks/prototyping than I realized, though).
Now that I think about it, the idea of a cab with two 8-inch speakers and vortex-loaded mids is something that came up in conversation a few years ago. I don't think it was practical at the time, for whatever reason -- and, had he attempted it then, it might not have been executed with the same degree of refinement which, from hearing the Bodai 110, I presume this one is -- but the wheels are always turning, it seems -- even more going on under the surface than in the rapidly evolving forefront.
I've played a bunch of cabs that I've liked, and am gaining a broader appreciation lately for what different gear (from different eras, different approaches) brings to the table -- and everyone will have their own preferences regarding voicing, etc. -- but, in a live setting, I've still never played anything that does quite what Mike's cabs do.
I think so, but I'm extrapolating from the conversation above. You would have to ask Mike to be sure.
Last edited:
I would have to agree. Every time I get the itch to try some new cab, I always end up preferring Mike's. They are something special.
- Dec 21, 2007
- 15,232
- 45,109
- Disclosures
- Lark in the Morning Instructional Videos; Audix Microphones
Yep, Mike sure makes some great cabs... He keeps innovating and improving, which is amazing considering how great the previous generation(s) were.
