How do the effects like od, flange, phase, chorus work with bass?Might sound funny but I'm on a crossroad of buying a gt100 or go the classic way and get an ODB-3 by boss. My wallet's choice is obvious
They work great, you get more options to tweak than you do on the single pedal that the GT-100 models.
You also get direct mix on most effects, parallel chains which you can drop any of the effects in any order (per each of the 200 user patches).
So at the stomp of a pedal, you can switch to a new sound with a completely re-arranged pedal order (of 15 effects/pedals in the chain at once).
With the OD/DS (overdrive/distortion) effect, you get to choose from 23 different types of Boss OD/DS pedal.

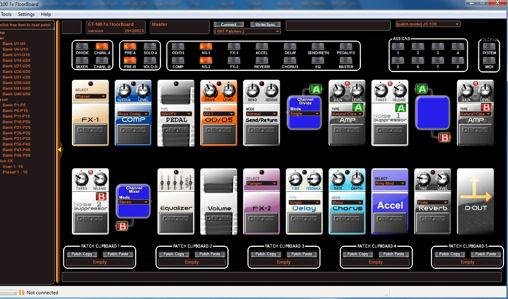

If you download the GT-100FxFloorBoard editor, it will give you a graphical view of what the GT-100 has to offer.
Download link below ....
GT Fx FloorBoard
Here is a listing of the settings in one of the 200 User patches.
Wed Jun 21 18:39:33 2017
Boss GT-100 Complete Patch Summary
a list of all parameters with-in this patch.
Patch name = default
Patch Mode Output Select = JC-120
**********Signal Chain**********
Input --> [FX-1]-[Comp]-[Pedal/Wah]-[Dist/ODrive]-[Send/Return]-[A/B Divider]
Channel A = [PreAmp A]-[N.Supp 1]-
Channel B = [PreAmp B]-[N.Supp 2]-
[A/B Mixer]-[EQ]-[Foot Vol]-[FX-2]-[Delay]-[Chorus]-[Accel]-[Reverb]-[USB]- -> L/R Output
**********Channel Mode***********
[DIV: Mode] = Single
[DIV: Channel] = Channel A
[DIV: Dynamic] = Off
[DIV: Dynamic Sens] = 50
[DIV: Filter] = Off
[DIV: Cutoff Freq] = 800Hz
[DIV: Dynamic] = Off
[DIV: Dynamic Sens] = 50
[DIV: Filter] = Off
[DIV: Cutoff Freq] = 800Hz
[MIX: Mode] = Stereo
[MIX: Balance] = Centre
[MIX: Spread] = 0
**********Pre Amp A***********
[PRE A: On/Off] = On
[PRE A: Type] = Natural Clean
[PRE A: Gain] = 50
[PRE A: T-Comp] = 0
[PRE A: Bass] = 50
[PRE A: Middle] = 50
[PRE A: Treble] = 50
[PRE A: Presence] = 0
[PRE A: Level] = 50
[PRE A: Bright] = Off
[PRE A: Gain SW] = Middle
[SOLO: On/Off] = Off
[SOLO: Level] = 50
[SPKR A: Speaker Type] = 1x12"
[SPKR A: Mic Type] = CND451
[SPKR A: Mic Dis.] = On Mic
[SPKR A: Mic Pos.] = 5 cm
[SPKR A: Mic Level] = 100
[SPKR A: Direct Mix] = 0
[PRE A Custom: Custom Type] = JC Clean
[PRE A Custom: Bottom] = 0
[PRE A Custom: Edge] = 0
[PRE A Custom: nul] = 0
[PRE A Custom: nul] = 0
[PRE A Custom: Pre Low] = 15
[PRE A Custom: Pre High] = 0
[PRE A Custom: Character] = 50
[SPKR A Custom: Spkr size] = 10 "
[SPKR A Custom: Color Low] = 0
[SPKR A Custom: Color High] = 3
[SPKR A Custom: Speakers] = x2
[SPKR A Custom: Cabinet back] = open
**********Pre Amp B***********
[PRE B: On/Off] = On
[PRE B: Type] = Natural Clean
[PRE B: Gain] = 50
[PRE B: T-Comp] = 0
[PRE B: Bass] = 50
[PRE B: Middle] = 50
[PRE B: Treble] = 50
[PRE B: Presence] = 0
[PRE B: Level] = 50
[PRE B: Bright] = Off
[PRE B: Gain SW] = Middle
[SOLO: On/Off] = Off
[SOLO: Level] = 50
[SPKR B: Speaker Type] = ORIGINAL
[SPKR B: Mic Type] = DYN421
[SPKR B: Mic Dis.] = On Mic
[SPKR B: Mic Pos.] = 5 cm
[SPKR B: Mic Level] = 100
[SPKR B: Direct Mix] = 0
[PRE B Custom: Custom Type] = JC Clean
[PRE B Custom: Bottom] = 0
[PRE B Custom: Edge] = 0
[PRE B Custom: nul] = 0
[PRE B Custom: nul] = 0
[PRE B Custom: Pre Low] = 15
[PRE B Custom: Pre High] = 0
[PRE B Custom: Character] = 50
[SPKR B Custom: Spkr size] = 10 "
[SPKR B Custom: Color Low] = 0
[SPKR B Custom: Color High] = 3
[SPKR B Custom: Speakers] = x2
[SPKR B Custom: Cabinet back] = open
**********Compressor***********
[CS: On/Off] = Off
[CS: Type] = Boss Comp
[CS: Sustain] = 50
[CS: Attack] = 50
[CS: Tone] = 0
[CS: Level] = 50
**********Distortion***********
[ODDS: On/Off] = Off
[ODDS: Type] = A-Dist
[ODDS: Drive] = 50
[ODDS: Bottom] = 0
[ODDS: Tone] = 0
[ODDS: Solo Sw] = Off
[ODDS: Solo Level] = 50
[ODDS: Effect] = 50
[ODDS: Direct Mix] = 0
[ODDS: Custom Type] = OD-1
[ODDS: Bottom] = 0
[ODDS: Top] = 0
[ODDS: Low] = 15
[ODDS: High] = 0
[ODDS: Character] = 50
**********Equalizer***********
[EQ: On/Off] = Off
[EQ: Lo Cut] = FLAT
[EQ: Lo Gain] = 0 dB
[EQ: Freq] = 500Hz
[EQ: Q] = 1
[EQ: Gain] = 0dB
[EQ: Freq] = 4.00k
[EQ: Q] = 1
[EQ: Gain] = 0dB
[EQ: Hi Gain] = 0dB
[EQ: Hi Cut] = FLAT
[EQ: Level] = 0dB
**********Delay***********
[DD: On/Off] = Off
[DD: Type] = Single
[DD: Time] = 296ms
[DD: Feedback] = 20
[DD: High Cut] = FLAT
[DD: Effect] = 50
[DD: Direct] = 100
[DD: Tap Time] = 50%
[DD: Delay1 Delay 1 Time] = 100ms
[DD: Delay1 Feedback] = 20
[DD: Delay1 High Cut] = FLAT
[DD: Delay1 Effect] = 50
[DD: Delay2 Delay 2 Time] = 400ms
[DD: Delay2 Feedback] = 20
[DD: Delay2 High Cut] = FLAT
[DD: Delay2 Effect] = 50
[DD: Modulate Rate] = 40
[DD: Modulate Depth] = 50
**********Chorus***********
[CE: On/Off] = Off
[CE: Mode] = Mono
[CE: Rate] = 40
[CE: Depth] = 50
[CE: Pre Delay] = 4.0ms
[CE: Low Cut] = FLAT
[CE: High Cut] = FLAT
[CE: Effect] = 70
**********Reverb***********
[Reverb: On/Off] = Off
[RV: Type] = Plate
[RV: Reverb Time] = 2.5 sec
[RV: Pre Delay] = 0 ms
[RV: Low Cut] = 160Hz
[RV: High Cut] = 4.00k
[RV: Density] = 8
[RV: Effect] = 35
[RV: Direct Mix] = 100
[RV: Spring Sens] = 50
**********Pedal FX***********
[Pedal FX: On/Off] = Off
[PB: Pitch] = 12
[PB: Pedal Position] = 0
[PB: Effect] = 100
[PB: Direct Mix] = 0
[WAH: Type] = CRY WAH
[WAH: Pedal Position] = 100
[WAH: Pedal Min] = 0
[WAH: Pedal Max] = 100
[WAH: Effect] = 100
[WAH: Direct Mix] = 0
[FV: Vol Curve] = Normal
[FV: Vol Min] = 0
[FV: Vol Max] = 100
[FV: Level] = 100
**********Accel FX***********
[ACL: Effect Type] = Ring Mod
[ACL: S-Bend Pitch] = +2 Octave
[ACL: S-Bend Rise Time] = 50
[ACL: S-Bend Fall Time] = 5
[ACL: Laser Beam Rate] = 50
[ACL: Laser Beam Depth] = 50
[ACL: Laser Beam Rise Time] = 50
[ACL: Laser Beam Fall Time] = 5
[ACL: RingMod Freq] = 70
[ACL: RingMod Rise Time] = 50
[ACL: RingMod Fall Time] = 5
[ACL: RingMod Ring Level] = 100
[ACL: RingMod Octave Level] = 50
[ACL: RingMod Direct Mix] = 50
[ACL: Twist Level] = 100
[ACL: Twist Rise Time] = 50
[ACL: Twist Fall Time] = 5
[ACL: Warp Level] = 100
[ACL: Warp Rise Time] = 50
[ACL: Warp Fall Time] = 5
[ACL: Feedbacker Mode] = Normal
[ACL: Feedbacker Depth] = 50
[ACL: Feedbacker Rise Time] = 70
[ACL: Feedbacker Octave Rise Time] = 85
[ACL: Feedbacker F.Back Level] = 50
[ACL: Feedbacker Octave F.Back Level] = 30
[ACL: Feedbacker Vibe Rate] = 85
[ACL: Feedbacker Vibe Depth] = 8
**********Misc Settings***********
[Accel/CTRL: Function] = Accel
[Accel/CTRL: Min] = Off (Stop)
[Accel/CTRL: Max] = On (Start)
[Accel/CTRL: Source Mode] = Moment
[EXP Sw: Function] = Pedal FX
[EXP Sw: Min] = Off (Stop)
[EXP Sw: Max] = On (Start)
[EXP Sw: Source Mode] = Toggle
[Sub CTRL1: Function] = Off
[Sub CTRL1: Min] = Off (Stop)
[Sub CTRL1: Max] = On (Start)
[Sub CTRL1: Source Mode] = Toggle
[Sub CTRL2: Function] = Off
[Sub CTRL2: Min] = Off (Stop)
[Sub CTRL2: Max] = On (Start)
[Sub CTRL2: Source Mode] = Toggle
[Pedal/Fx: Mode] = WAH/FV
[EXP Patch Level Min] = 0 %
[EXP Patch Level Max] = 100 %
[Sub EXP: Function] = Off
**********Master***********
[Master: Patch Level] = 100 %
[Master: Low] = 0 dB
[Master: Mid Freq] = 800Hz
[Master: Mid Q] = 1
[Master: Mid Gain] = 0 dB
[Master: High] = 0 dB
[Master: BPM/Tempo] = 120
[Master: Master Key] = C (Am)
[Master: Master Beat] = 4/4
[MM: Bank Up] = FX1
[MM: Bank Down] = FX2
[MM: Number Pedal 1] = Compressor
[MM: Number Pedal 2] = Distortion
[MM: Number Pedal 3] = Delay
[MM: Number Pedal 4] = Chorus
[MM: Phrase Loop] = Off
[MM: Accel/CTRL] = Accel
**********Noise Suppressor 1***********
[NS1: On/Off] = On
[NS1: Threshold] = 30
[NS1: Release] = 30
[NS1: Detect] = Input
**********Noise Suppressor 2***********
[NS2: On/Off] = On
[NS2: Threshold] = 30
[NS2: Release] = 30
[NS2: Detect] = Input
**********Send/Return***********
[SR: On/Off] = Off
[SR: Mode] = Normal
[SR: Send] = 100 %
[SR: Return] = 100 %
**********FX-1***********
[FX1: On/Off] = Off
[FX1: Type] = PHASER
[ODDS: Type] = OD-1
[ODDS: Drive] = 50
[ODDS: Bottom] = 0
[ODDS: Tone] = 0
[ODDS: Solo Sw] = Off
[ODDS: Solo Level] = 50
[ODDS: Effect] = 50
[ODDS: Direct Mix] = 0
[TW: Mode] = BPF
[TW: Polarity] = Up
[TW: Sens] = 50
[TW: Freq] = 30
[TW: Peak] = 50
[TW: Direct Mix] = 0
[TW: Effect] = 50
[AW: Mode] = BPF
[AW: Freq] = 30
[AW: Peak] = 50
[AW: Rate] = 50
[AW: Depth] = 50
[AW: Direct] = 0
[AW: Effect] = 50
[SWAH: Type] = CRY WAH
[SWAH: Pedal Pos] = 100
[SWAH: Pedal Min] = 0
[SWAH: Pedal Max] = 100
[SWAH: Effect Level] = 100
[SWAH: Direct Mix] = 0
[ACS: Type] = BOSS Comp
[ACS: Sustain] = 50
[ACS: Attack] = 50
[ACS: Tone] = 0
[ACS: Effect] = 50
[LM: Type] = BOSS Limiter
[LM: Attack] = 0
[LM: Thresh] = 60
[LM: Ratio] = 5:1
[LM: Release] = 20
[LM: Effect] = 25
[GEQ: 31Hz] = 0 dB
[GEQ: 62Hz] = 0 dB
[GEQ: 125Hz] = 0 dB
[GEQ: 250Hz] = 0 dB
[GEQ: 500Hz] = 0 dB
[GEQ: 1KHz] = 0 dB
[GEQ: 2KHz] = 0 dB
[GEQ: 4KHz] = 0 dB
[GEQ: 8KHz] = 0 dB
[GEQ: 16KHz] = 0 dB
[GEQ: Level] = 0 dB
[SEQ: Lo Cut Off] = FLAT
[SEQ: Lo Gain] = 0 dB
[SEQ: Lo Mid Freq] = 500Hz
[SEQ: Lo Mid Q] = 1
[SEQ: Lo Mid Gain] = 4dB
[SEQ: Hi Mid Freq] = 4.00k
[SEQ: Hi Mid Q] = 1
[SEQ: Hi Mid Gain] = 0dB
[SEQ: Hi Gain] = 0dB
[SEQ: Hi Cut Off] = FLAT
[SEQ: Level] = 0dB
[TM: Type] = Fat
[TM: Reson.] = 50
[TM: Low] = 0
[TM: High] = 0
[TM: Effect] = 50
[GS: Type] = S->H
[GS: Low] = 0
[GS: High] = 0
[GS: Effect] = 50
[GS: Body] = 50
[SG: Sens] = 40
[SG: Rise Time] = 50
[SG: Level] = 50
[DF: Tone] = 0
[DF: Sens] = 50
[DF: Attack] = 70
[DF: Depth] = 0
[DF: Reson.] = 50
[DF: Effect] = 100
[DF: Direct Mix] = 0
[WSY: Wave] = SAW
[WSY: Cutoff Freq] = 40
[WSY: Reson.] = 30
[WSY: FLT.Sens] = 40
[WSY: FLT.Decay] = 50
[WSY: FLT.Depth] = 50
[WSY: Effect] = 25
[WSY: Direct Mix] = 0
[STR: Tone] = 0
[STR: Sens] = 50
[STR: Depth] = 50
[STR: Reson.] = 32
[STR: Buzz] = 40
[STR: Effect] = 100
[STR: Direct Mix] = 0
[OC: Range] = 1
[OC: Octave] = 50
[OC: Direct Mix] = 50
[PS: Voice] = 1-Voice
[PS: Mode] = Medium
[PS: Pitch] = 0
[PS: Fine] = 10
[PS: Pre Delay] = 0ms
[PS: Voice 1] = 100
[PS: Mode] = Medium
[PS: Pitch] = 0
[PS: Fine] = -10
[PS: Pre Delay] = 0ms
[PS: Voice 2] = 100
[PS: Feedback] = 0
[PS: Direct] = 100
[HR: Voice] = 1-Voice
[HR: Harmony] = -3rd
[HR: Pre Delay] = 0ms
[HR: Voice 1] = 100
[HR: Harmony] = +1oct
[HR: Pre Delay] = 0ms
[HR: Voice 2] = 100
[HR: FeedBack] = 0
[HR: Direct] = 100
[Voice 1 User Scale C C] = C
[Voice 1 User Scale D flat D-FLAT] = Db
[Voice 1 User Scale D D] = D
[Voice 1 User Scale E flat E-FLAT] = Eb
[Voice 1 User Scale E E] = E
[Voice 1 User Scale F F] = F
[Voice 1 User Scale F# F#] = F#
[Voice 1 User Scale G G] = G
[Voice 1 User Scale A flat A-FLAT] = Ab
[Voice 1 User Scale A A] = A
[Voice 1 User Scale B flat B-FLAT] = Bb
[Voice 1 User Scale B B] = B
[Voice 2 User Scale C C] = C
[Voice 2 User Scale D flat D-FLAT] = Db
[Voice 2 User Scale D D] = D
[Voice 2 User Scale E flat E-FLAT] = Eb
[Voice 2 User Scale E E] = E
[Voice 2 User Scale F F] = F
[Voice 2 User Scale F# F#] = F#
[Voice 2 User Scale G G] = G
[Voice 2 User Scale A flat A-FLAT] = Ab
[Voice 2 User Scale A A] = A
[Voice 2 User Scale B flat B-FLAT] = Bb
[Voice 2 User Scale B B] = B
[SH: Hold] = Off
[SH: Rise Time] = 50
[SH: Effect] = 50
[AC: Type] = Medium
[AC: Bass] = 0
[AC: Middle] = 0
[AC: Mid.Freq] = 800Hz
[AC: Treble] = 0
[AC: Presence] = 0
[AC: Effect] = 50
[PH: Type] = 4stage
[PH: Rate] = 70
[PH: Depth] = 50
[PH: Manual] = 55
[PH: Reson.] = 0
[PH: Step Rate] = Off
[PH: Effect] = 100
[PH: Direct] = 0
[FL: Rate] = 25
[FL: Depth] = 50
[FL: Manual] = 75
[FL: Reson.] = 80
[FL: Separ] = 0
[FL: Low Cut] = FLAT
[FL: Effect] = 100
[FL: Direct] = 0
[TR: Shape] = 100
[TR: Rate] = 85
[TR: Depth] = 50
[TR: Level] = 50
[RT1: Speed] = Fast
[RT1: Rate (Slow)] = 30
[RT1: Rate (Fast)] = 85
[RT1: Rise Time] = 50
[RT1: Fall Time] = 50
[RT1: Depth] = 50
[RT1: Level] = 50
[UV: Rate] = 70
[UV: Depth] = 50
[UV: Effect] = 100
[PAN: Type] = Auto
[PAN: Position] = Centre
[PAN: Waveshape] = 0
[PAN: Rate] = 40
[PAN: Depth] = 100
[PAN: Level] = 50
[SL: Pattern] = P1
[SL: Rate] = 50
[SL: Trig.Sens] = 50
[SL: Effect] = 50
[SL: Direct Mix] = 0
[VB: Rate] = 80
[VB: Depth] = 45
[VB: Off/On] = On
[VB: Rise Time] = 80
[VB: Level] = 50
[RM: Mode] = Normal
[RM: Freq] = 50
[RM: Effect] = 100
[RM: Direct Mix] = 100
[HU: Mode] = Auto
[HU: Vowel 1] = A
[HU: Vowel 2] = I
[HU: Sens] = 50
[HU: Rate] = 50
[HU: Depth] = 100
[HU: Manual] = 50
[HU: Effect] = 100
[2CE: Xover Freq] = 800Hz
[2CE: Rate] = 30
[2CE: Depth] = 40
[2CE: Pre Delay] = 8.0ms
[2CE: Low] = 50
[2CE: Rate] = 40
[2CE: Depth] = 50
[2CE: Pre Delay] = 4.0ms
[2CE: High] = 100
[2CE: Direct] = 0
[SDD: Type] = Mono
[SDD: Delay Time] = 400ms
[SDD: Feedback] = 20
[SDD: High Cut] = FLAT
[SDD: Effect] = 50
[SDD: Direct Mix] = 100
[SDD: Tap Time] = 50%
[ACS: High] = 0
[ACS: Body] = 50
[ACS: Low] = 0
[ACS: Level] = 50
[RT2: Balance] = 0
[RT2: Speed] = Fast
[RT2: Rate (Slow)] = 50
[RT2: Rate (Fast)] = 50
[RT2: Rise Time] = 50
[RT2: Fall Time] = 50
[RT2: Depth] = 50
[RT2: Effect] = 50
[RT2: Direct] = 0
**********FX-2***********
[FX2: On/Off] = Off
[FX2: Type] = FLANGER
[ODDS: Type] = OD-1
[ODDS: Drive] = 50
[ODDS: Bottom] = 0
[ODDS: Tone] = 0
[ODDS: Solo Sw] = Off
[ODDS: Solo Level] = 50
[ODDS: Effect] = 50
[ODDS: Direct Mix] = 0
[TW: Mode] = BPF
[TW: Polarity] = Up
[TW: Sens] = 50
[TW: Freq] = 30
[TW: Peak] = 50
[TW: Direct Mix] = 0
[TW: Effect] = 50
[AW: Mode] = BPF
[AW: Freq] = 30
[AW: Peak] = 50
[AW: Rate] = 50
[AW: Depth] = 50
[AW: Direct] = 0
[AW: Effect] = 50
[SWAH: Type] = CRY WAH
[SWAH: Pedal Pos] = 100
[SWAH: Pedal Min] = 0
[SWAH: Pedal Max] = 100
[SWAH: Effect Level] = 100
[SWAH: Direct Mix] = 0
[ACS: Type] = BOSS Comp
[ACS: Sustain] = 50
[ACS: Attack] = 50
[ACS: Tone] = 0
[ACS: Effect] = 50
[LM: Type] = BOSS Limiter
[LM: Attack] = 0
[LM: Thresh] = 60
[LM: Ratio] = 5:1
[LM: Release] = 20
[LM: Effect] = 25
[GEQ: 31Hz] = 0 dB
[GEQ: 62Hz] = 0 dB
[GEQ: 125Hz] = 0 dB
[GEQ: 250Hz] = 0 dB
[GEQ: 500Hz] = 0 dB
[GEQ: 1KHz] = 0 dB
[GEQ: 2KHz] = 0 dB
[GEQ: 4KHz] = 0 dB
[GEQ: 8KHz] = 0 dB
[GEQ: 16KHz] = 0 dB
[GEQ: Level] = 0 dB
[SEQ: Lo Cut Off] = FLAT
[SEQ: Lo Gain] = 0 dB
[SEQ: Lo Mid Freq] = 500Hz
[SEQ: Lo Mid Q] = 1
[SEQ: Lo Mid Gain] = 0dB
[SEQ: Hi Mid Freq] = 4.00k
[SEQ: Hi Mid Q] = 1
[SEQ: Hi Mid Gain] = 0dB
[SEQ: Hi Gain] = 0dB
[SEQ: Hi Cut Off] = FLAT
[SEQ: Level] = 0dB
[TM: Type] = Fat
[TM: Reson.] = 50
[TM: Low] = 0
[TM: High] = 0
[TM: Effect] = 50
[GS: Type] = S->H
[GS: Low] = 0
[GS: High] = 0
[GS: Effect] = 50
[GS: Body] = 50
[SG: Sens] = 40
[SG: Rise Time] = 50
[SG: Level] = 50
[DF: Tone] = 0
[DF: Sens] = 50
[DF: Attack] = 70
[DF: Depth] = 0
[DF: Reson.] = 50
[DF: Effect] = 100
[DF: Direct Mix] = 0
[WSY: Wave] = SAW
[WSY: Cutoff Freq] = 40
[WSY: Reson.] = 30
[WSY: FLT.Sens] = 40
[WSY: FLT.Decay] = 50
[WSY: FLT.Depth] = 50
[WSY: Effect] = 25
[WSY: Direct Mix] = 0
[STR: Tone] = 0
[STR: Sens] = 50
[STR: Depth] = 50
[STR: Reson.] = 32
[STR: Buzz] = 40
[STR: Effect] = 100
[STR: Direct Mix] = 0
[OC: Range] = 1
[OC: Octave] = 50
[OC: Direct Mix] = 50
[PS: Voice] = 1-Voice
[PS: Mode] = Medium
[PS: Pitch] = 0
[PS: Fine] = 10
[PS: Pre Delay] = 0ms
[PS: Voice 1] = 100
[PS: Mode] = Medium
[PS: Pitch] = 0
[PS: Fine] = -10
[PS: Pre Delay] = 0ms
[PS: Voice 2] = 100
[PS: Feedback] = 0
[PS: Direct] = 100
[HR: Voice] = 1-Voice
[HR: Harmony] = -3rd
[HR: Pre Delay] = 0ms
[HR: Voice 1] = 100
[HR: Harmony] = +1oct
[HR: Pre Delay] = 0ms
[HR: Voice 2] = 100
[HR: FeedBack] = 0
[HR: Direct Mix] = 100
[Voice 1 User Scale C C] = C
[Voice 1 User Scale D flat D-FLAT] = Db
[Voice 1 User Scale D D] = D
[Voice 1 User Scale E flat E-FLAT] = Eb
[Voice 1 User Scale E E] = E
[Voice 1 User Scale F F] = F
[Voice 1 User Scale F# F#] = F#
[Voice 1 User Scale G G] = G
[Voice 1 User Scale A flat A-FLAT] = Ab
[Voice 1 User Scale A A] = A
[Voice 1 User Scale B flat B-FLAT] = Bb
[Voice 1 User Scale B B] = B
[Voice 2 User Scale C C] = C
[Voice 2 User Scale D flat D-FLAT] = Db
[Voice 2 User Scale D D] = D
[Voice 2 User Scale E flat E-FLAT] = Eb
[Voice 2 User Scale E E] = E
[Voice 2 User Scale F F] = F
[Voice 2 User Scale F# F#] = F#
[Voice 2 User Scale G G] = G
[Voice 2 User Scale A flat A-FLAT] = Ab
[Voice 2 User Scale A A] = A
[Voice 2 User Scale B flat B-FLAT] = Bb
[Voice 2 User Scale B B] = B
[SH: Hold] = Off
[SH: Rise Time] = 50
[SH: Effect] = 50
[AC: Type] = Medium
[AC: Bass] = 0
[AC: Middle] = 0
[AC: Mid.Freq] = 800Hz
[AC: Treble] = 0
[AC: Presence] = 0
[AC: Effect] = 50
[PH: Type] = 4stage
[PH: Rate] = 70
[PH: Depth] = 50
[PH: Manual] = 55
[PH: Reson.] = 0
[PH: Step Rate] = Off
[PH: Effect] = 100
[PH: Direct] = 0
[FL: Rate] = 25
[FL: Depth] = 50
[FL: Manual] = 75
[FL: Reson.] = 80
[FL: Separ] = 0
[FL: Low Cut] = FLAT
[FL: Effect] = 100
[FL: Direct] = 0
[TR: Shape] = 100
[TR: Rate] = 85
[TR: Depth] = 50
[TR: Level] = 50
[RT: Speed] = Fast
[RT: Rate (Slow)] = 30
[RT: Rate (Fast)] = 85
[RT: Rise Time] = 50
[RT: Fall Time] = 50
[RT: Depth] = 50
[RT: Level] = 50
[UV: Rate] = 70
[UV: Depth] = 50
[UV: Effect] = 100
[PAN: Type] = Auto
[PAN: Position] = Centre
[PAN: Waveshape] = 0
[PAN: Rate] = 40
[PAN: Depth] = 100
[PAN: Level] = 50
[SL: Pattern] = P1
[SL: Rate] = 50
[SL: Trig.Sens] = 50
[SL: Effect] = 50
[SL: Direct Mix] = 0
[VB: Rate] = 80
[VB: Depth] = 45
[VB: Off/On] = On
[VB: Rise Time] = 80
[VB: Level] = 50
[RM: Mode] = Normal
[RM: Freq] = 50
[RM: Effect] = 100
[RM: Direct Mix] = 100
[HU: Mode] = Auto
[HU: Vowel 1] = A
[HU: Vowel 2] = I
[HU: Sens] = 50
[HU: Rate] = 50
[HU: Depth] = 100
[HU: Manual] = 50
[HU: Effect] = 100
[2CE: Xover Freq] = 800Hz
[2CE: Rate] = 30
[2CE: Depth] = 40
[2CE: Pre Delay] = 8.0ms
[2CE: Low] = 50
[2CE: Rate] = 40
[2CE: Depth] = 50
[2CE: Pre Delay] = 4.0ms
[2CE: High] = 100
[2CE: Direct] = 0
[SDD: Type] = Mono
[SDD: Delay Time] = 400ms
[SDD: Feedback] = 20
[SDD: High Cut] = FLAT
[SDD: Effect] = 50
[SDD: Direct Mix] = 100
[SDD: Tap Time] = 50%
[ACS: High] = 0
[ACS: Body] = 50
[ACS: Low] = 0
[ACS: Level] = 50
[RT2: Balance] = 0
[RT2: Speed] = Fast
[RT2: Rate (Slow)] = 50
[RT2: Rate (Fast)] = 50
[RT2: Rise Time] = 50
[RT2: Fall Time] = 50
[RT2: Depth] = 50
[RT2: Effect] = 50
[RT2: Direct] = 0
[TER: Mode] = Mono
[TER: S Time] = 0
[TER: FeedBack] = 50
[TER: Tone] = 0
[TER: Effect] = 50
[TER: Direct] = 100
[TER: Hold] = Off
[OVT: DeTune] = 40
[OVT: Tone] = 0
[OVT: Upper] = 85
[OVT: Lower] = 100
[OVT: Direct] = 53
**********Assign 1***********
[Assign-1: On/Off] = Off
[Assign-1: Target] = OD: On/Off
[Assign-1: Min] = Off
[Assign-1: Max] = On
[Assign-1: Source] = Accel/CTL PDL
[Assign-1: Source Mode ] = Toggle
[Assign-1: Range Low] = 0
[Assign-1: Range High] = 127
[Assign-1: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-1: Int Pdl Time] = 30
[Assign-1: Int Pdl Curve] = Linear
[Assign-1: Wave Rate] = 20
[Assign-1: Wave Form] = Triangle
**********Assign 2***********
[Assign-2: On/Off] = Off
[Assign-2: Target] = OD: On/Off
[Assign-2: Min] = Off
[Assign-2: Max] = On
[Assign-2: Source] = Accel/CTL PDL
[Assign-2: Source Mode ] = Toggle
[Assign-2: Range Low] = 0
[Assign-2: Range High] = 127
[Assign-2: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-2: Int Pdl Time] = 30
[Assign-2: Int Pdl Curve] = Linear
[Assign-2: Wave Rate] = 20
[Assign-2: Wave Form] = Triangle
**********Assign 3***********
[Assign-3: On/Off] = Off
[Assign-3: Target] = OD: On/Off
[Assign-3: Min] = Off
[Assign-3: Max] = On
[Assign-3: Source] = Accel/CTL PDL
[Assign-3: Source Mode ] = Toggle
[Assign-3: Range Low] = 0
[Assign-3: Range High] = 127
[Assign-3: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-3: Int Pdl Time] = 30
[Assign-3: Int Pdl Curve] = Linear
[Assign-3: Wave Rate] = 20
[Assign-3: Wave Form] = Triangle
**********Assign 4***********
[Assign-4: On/Off] = Off
[Assign-4: Target] = OD: On/Off
[Assign-4: Min] = Off
[Assign-4: Max] = On
[Assign-4: Source] = Accel/CTL PDL
[Assign-4: Source Mode ] = Toggle
[Assign-4: Range Low] = 0
[Assign-4: Range High] = 127
[Assign-4: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-4: Int Pdl Time] = 30
[Assign-4: Int Pdl Curve] = Linear
[Assign-4: Wave Rate] = 20
[Assign-4: Wave Form] = Triangle
**********Assign 5***********
[Assign-5: On/Off] = Off
[Assign-5: Target] = OD: On/Off
[Assign-5: Min] = Off
[Assign-5: Max] = On
[Assign-5: Source] = Accel/CTL PDL
[Assign-5: Source Mode ] = Toggle
[Assign-5: Range Low] = 0
[Assign-5: Range High] = 127
[Assign-5: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-5: Int Pdl Time] = 30
[Assign-5: Int Pdl Curve] = Linear
[Assign-5: Wave Rate] = 20
[Assign-5: Wave Form] = Triangle
**********Assign 6***********
[Assign-6: On/Off] = Off
[Assign-6: Target] = OD: On/Off
[Assign-6: Min] = Off
[Assign-6: Max] = On
[Assign-6: Source] = Accel/CTL PDL
[Assign-6: Source Mode ] = Toggle
[Assign-6: Range Low] = 0
[Assign-6: Range High] = 127
[Assign-6: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-6: Int Pdl Time] = 30
[Assign-6: Int Pdl Curve] = Linear
[Assign-6: Wave Rate] = 20
[Assign-6: Wave Form] = Triangle
**********Assign 7***********
[Assign-7: On/Off] = Off
[Assign-7: Target] = OD: On/Off
[Assign-7: Min] = Off
[Assign-7: Max] = On
[Assign-7: Source] = Accel/CTL PDL
[Assign-7: Source Mode ] = Toggle
[Assign-7: Range Low] = 0
[Assign-7: Range High] = 127
[Assign-7: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-7: Int Pdl Time] = 30
[Assign-7: Int Pdl Curve] = Linear
[Assign-7: Wave Rate] = 20
[Assign-7: Wave Form] = Triangle
**********Assign 8***********
[Assign-8: On/Off] = Off
[Assign-8: Target] = OD: On/Off
[Assign-8: Min] = Off
[Assign-8: Max] = On
[Assign-8: Source] = Accel/CTL PDL
[Assign-8: Source Mode ] = Toggle
[Assign-8: Range Low] = 0
[Assign-8: Range High] = 127
[Assign-8: Internal Pedal Trigger] = Accel/CTL Pedal
[Assign-8: Int Pdl Time] = 30
[Assign-8: Int Pdl Curve] = Linear
[Assign-8: Wave Rate] = 20
[Assign-8: Wave Form] = Triangle
