Boss LS-2 how to's, do's and don'ts....

[CHILDISHGAMBINO]

I read in a review that the sample settings show some creative applications of the pedal. So I'm curious what I might be missing.

All I've ever seen are the diagrams in the manual showing how the modes work.



[gupjek]

Yea, I downloaded the manual you are talking about from the official website. I'm talking about the document mentioned Invalid Link Removed.



[CHILDISHGAMBINO]

You have to do some scrolling and put up with google translator or whatever but here are some:

Utilidades del Boss LS-2 (Line selector)



[CHILDISHGAMBINO]

@gupjek That was tough to find. I forgot about these diagrams. I had to do a google image search to find this - total fluke - it was set to images from my last search and I forgot to change it back.



[gfen]

Just got a 2nd hand LS-2. Can't wait to take to the rehearsal room.
But does anyone know where I can download a pdf of the sample settings? I only found dead links and it seems that the official websites (us and europe) only provide the manual.

It's not much of a "sample settings" selection, but I suppose you mean the one page in the manual with some diagrams:
Invalid Link Removed via Invalid Link Removed

It's a pretty fun tool, just remember while you're playing around that some pedals will output out of phase which will cause cancellation if you try to mix back in dry signal.



[gupjek]

@CHILDISHGAMBINO

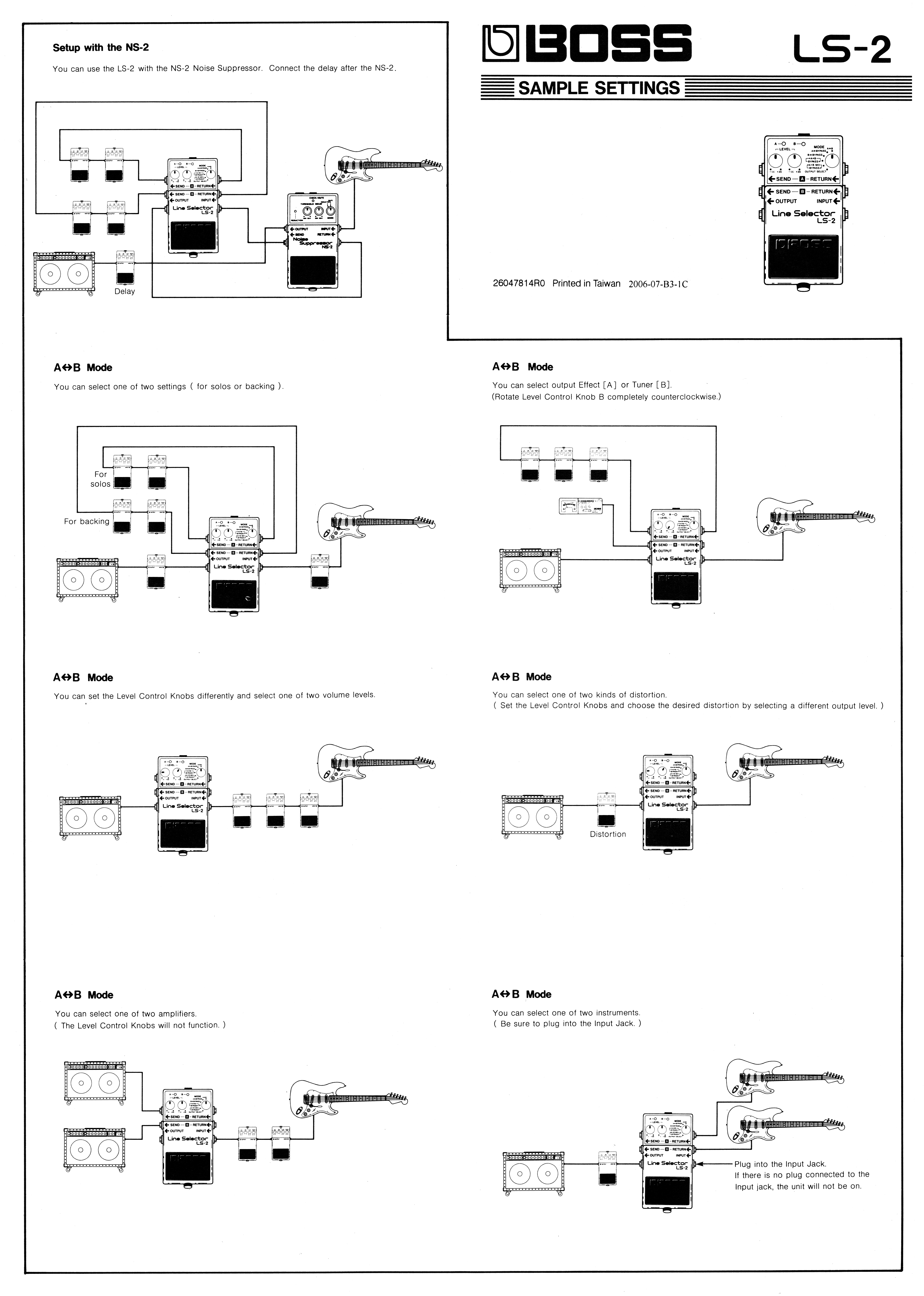

Hehe, damn. Just scanned a friend's copy. Thanks anyway! Here are my hi res scans:



[walbassist]

Hi guys

Is it possible to run my upright on one channel, my bass on another, and have a separate FX loop as well? Alternatively, a bass + FX channel would be okay.

Thanks

Gareth



[Mark Perry]

I’ve got a question... Are there any do’s and don’ts when using the LS-2 as a 2 channel mixer, as mentioned in the manual? Specifically sending the signal from 2 instruments to 1 amp, playing simultaneously? I’m thinking of situations like teaching (2 basses) or jam sessions (bass + guitar), outputting to a bass amp.

Btw this works in A+B mix > Bypass mode, with the instruments plugged into A / B Return And a jack lead plugged into the input.



[superheavyfunk]

I’ve got a question... Are there any do’s and don’ts when using the LS-2 as a 2 channel mixer, as mentioned in the manual? Specifically sending the signal from 2 instruments to 1 amp, playing simultaneously? I’m thinking of situations like teaching (2 basses) or jam sessions (bass + guitar), outputting to a bass amp.

Btw this works in A+B mix > Bypass mode, with the instruments plugged into A / B Return And a jack lead plugged into the input.

DO have fun.
DONT overload the amp

That's about it.



[Mark Perry]

DO have fun.
DONT overload the amp

That's about it.

Thanks for the reply! I’ve had mine for a few days and it’s fun to constantly be thinking of different ways to use it.



[crguti]

I use the ‘setup wih the NS-2’. It works great.



[jmwreck]

does the LS-2 work like this? I'll plug my bass to the input and out to amp, loop A will be my drive loop and loop B will be my modulation loop, my drive loop will always be on, and I wanted my loop B to be switchable via LS-2, so does it mean I can use the B/bypass mode? will my loop A still be part of the chain?



[crguti]

^no. Loop A is only available when Loop A is selected by the Mode Selector Switch, so 'B/bypass mode' is either B loop or bypass.
If you want your drives always on, they need to be before of after the LS-2 and not in the loops.
