Building 7 Fan Fret Basses

[Jay Jillard]

Hey everyone, i know my last build thread sorta..died.. and that's because videos are too time consuming, so i'm going back to the old fashioned way of doing things. Pictures!

So basically i'm building 5 of my 'Armada' Model, four of them are five strings, one is a four string.

Ash bodies
walnut tops (except a couple)
birdseye or wenge fretboards
fan frets 34-36.75" for a 5 string
custom bridges
all oil finishes

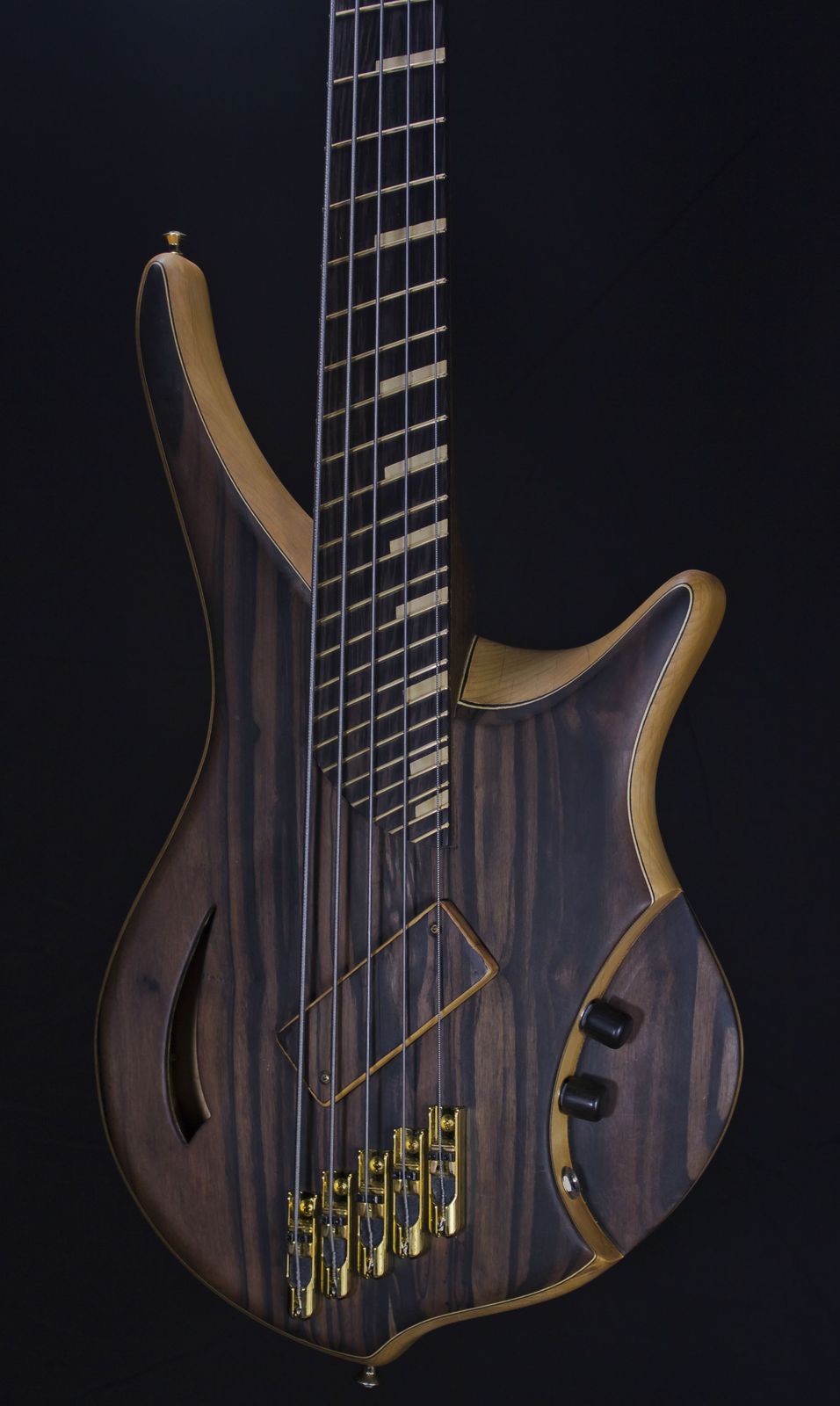

here is what we're shooting for (have't decided on the last two, since they are not claimed)

and here's what we've got done so far.

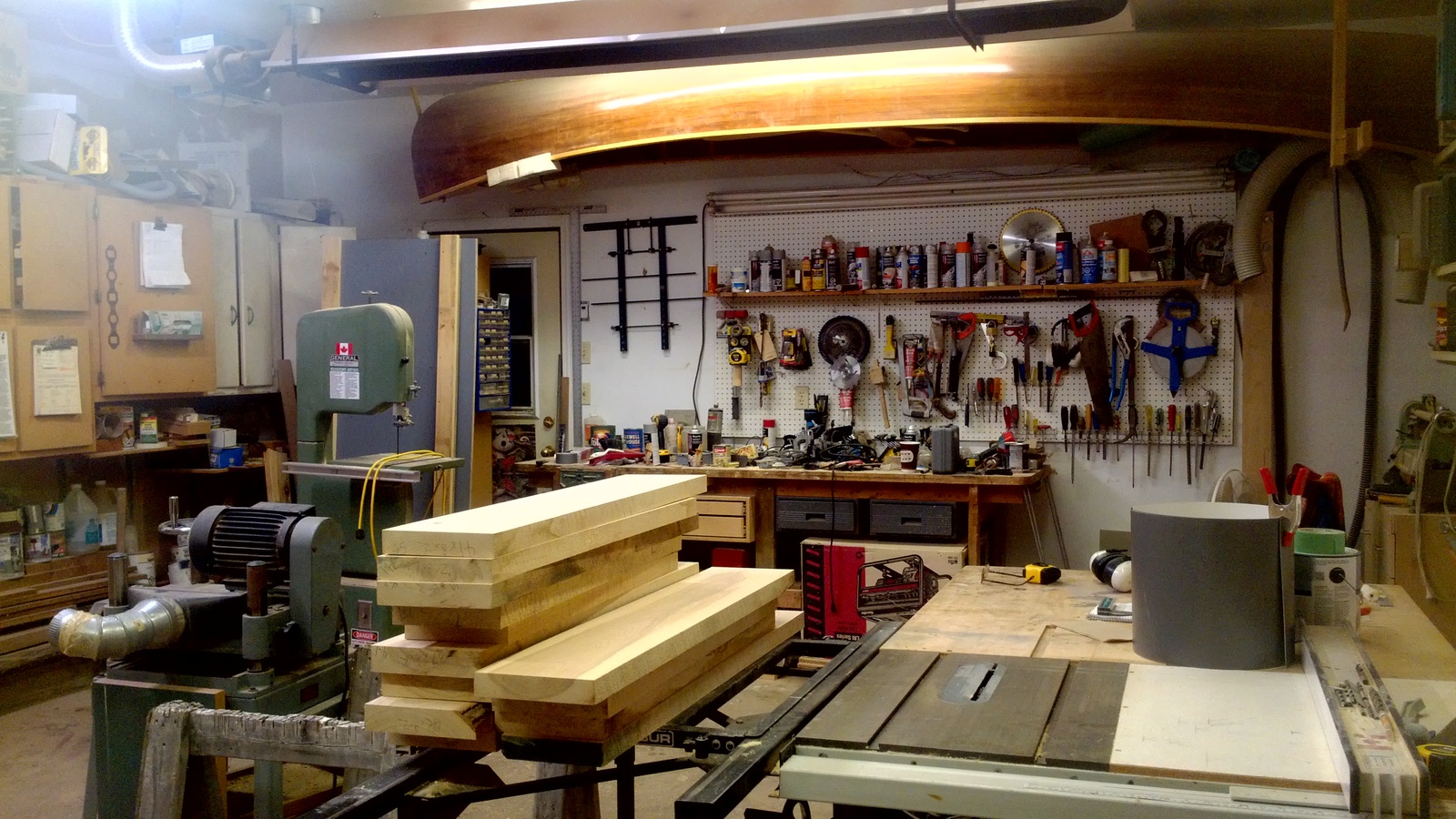

picked out a bunch of amazing ash (bought it from fbass' overstock)

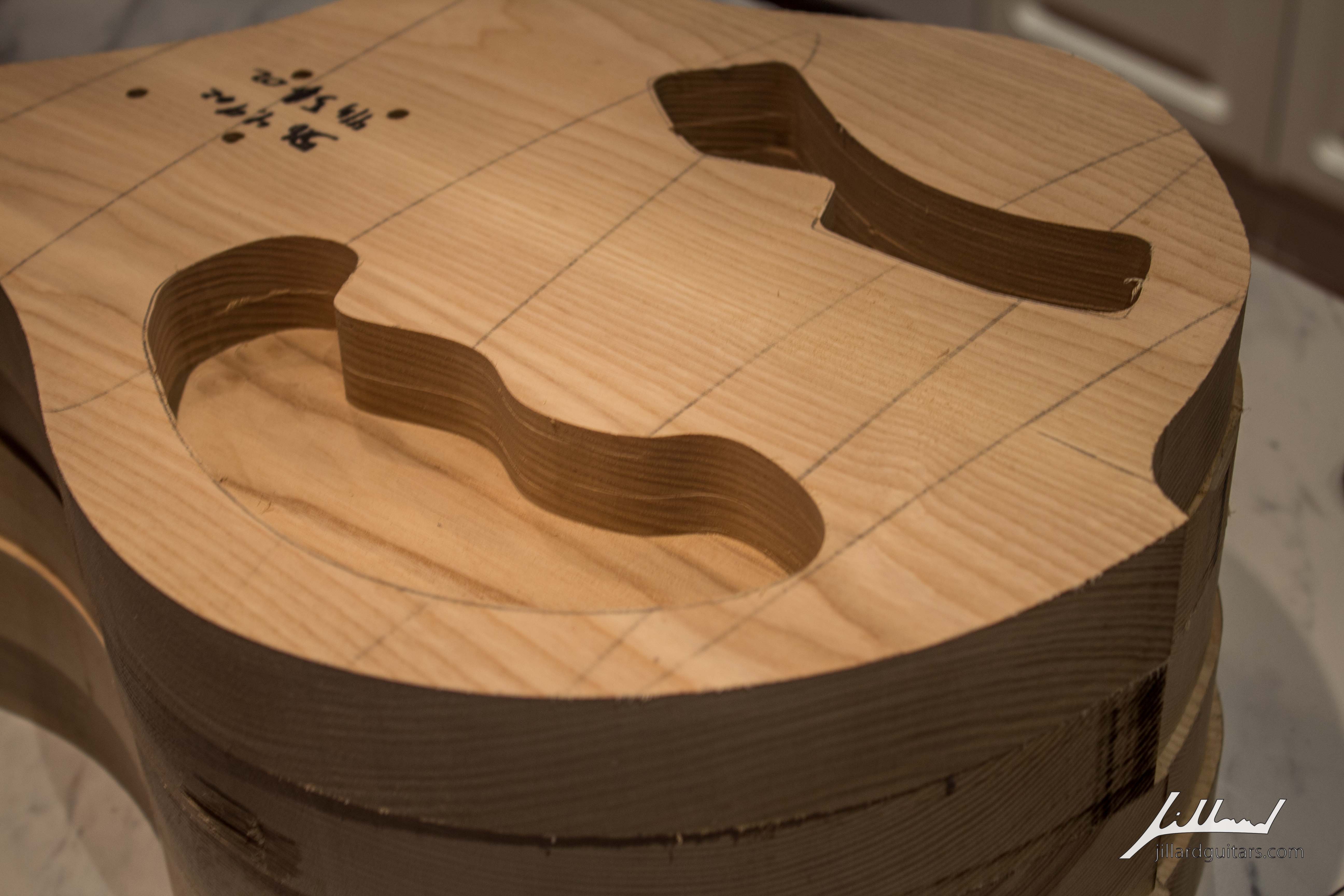

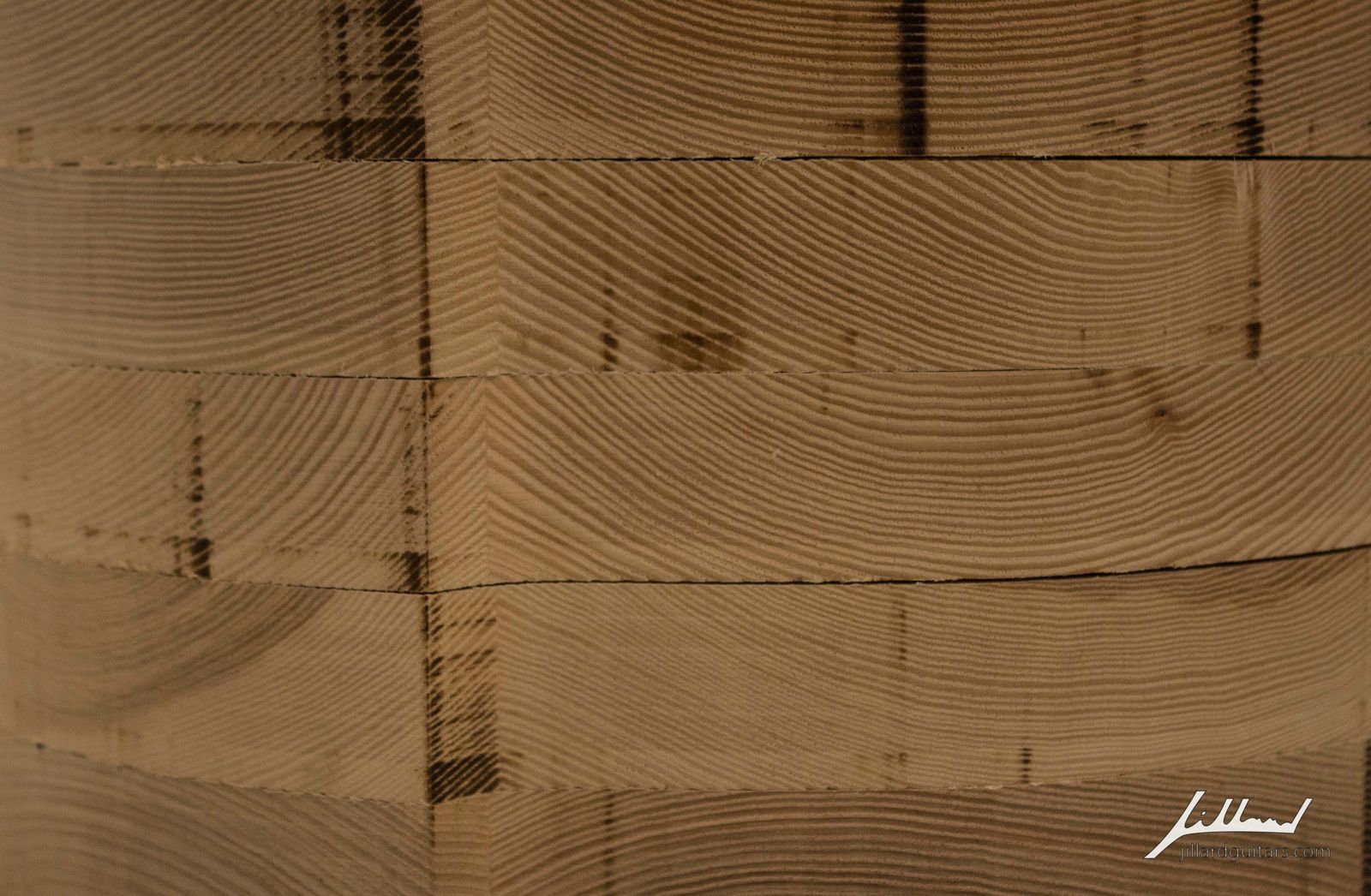

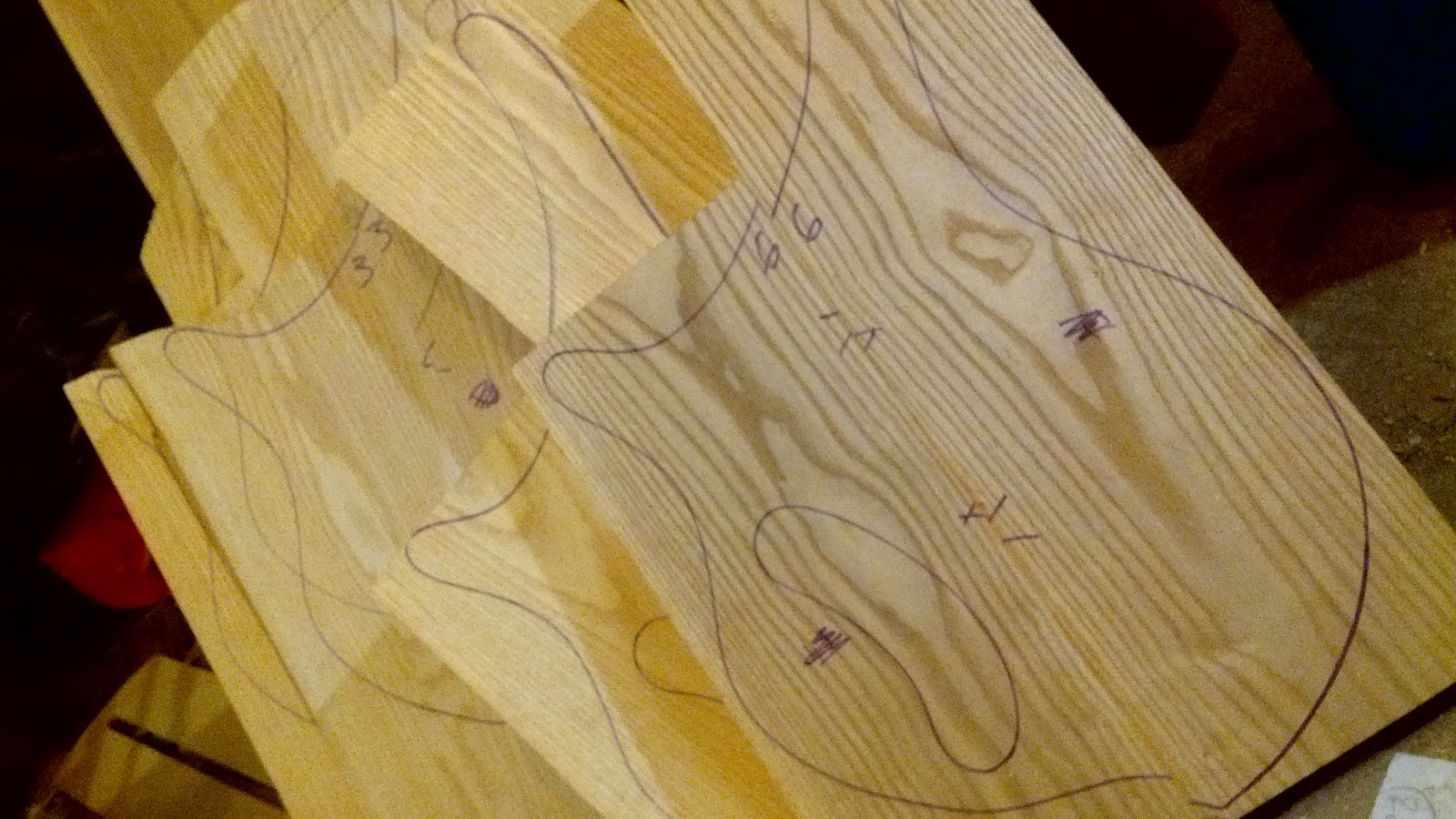

planned them down and glued them up

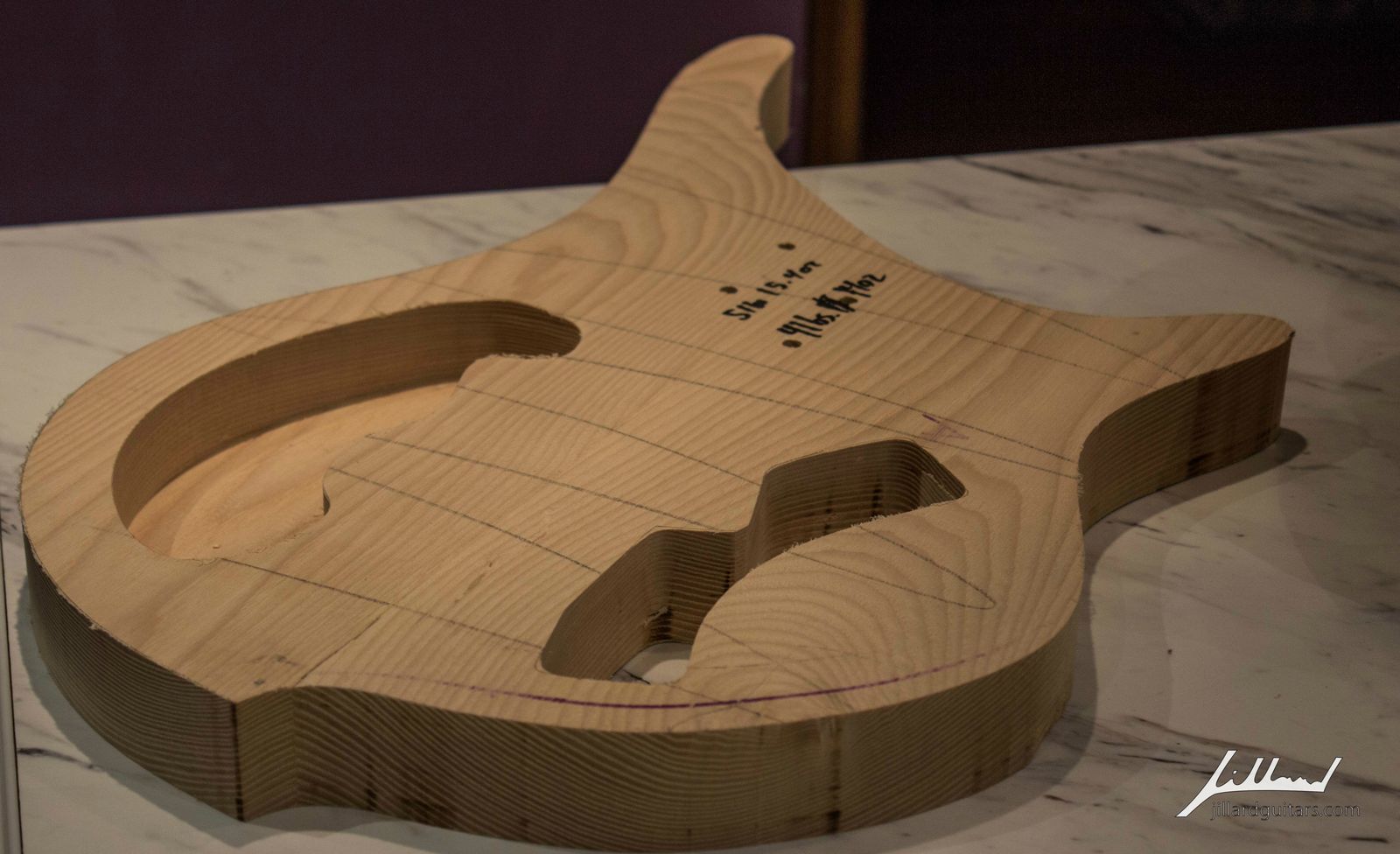

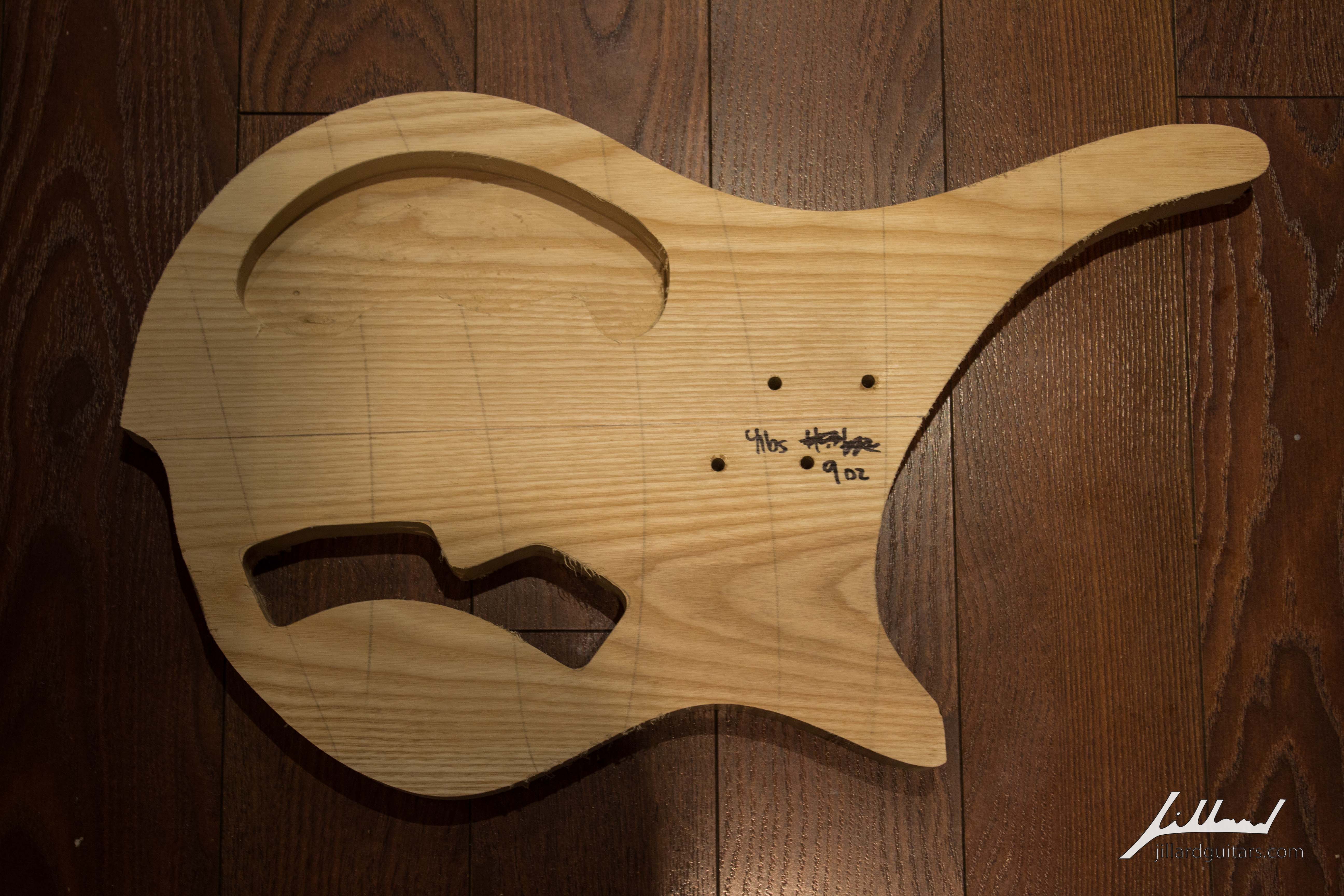

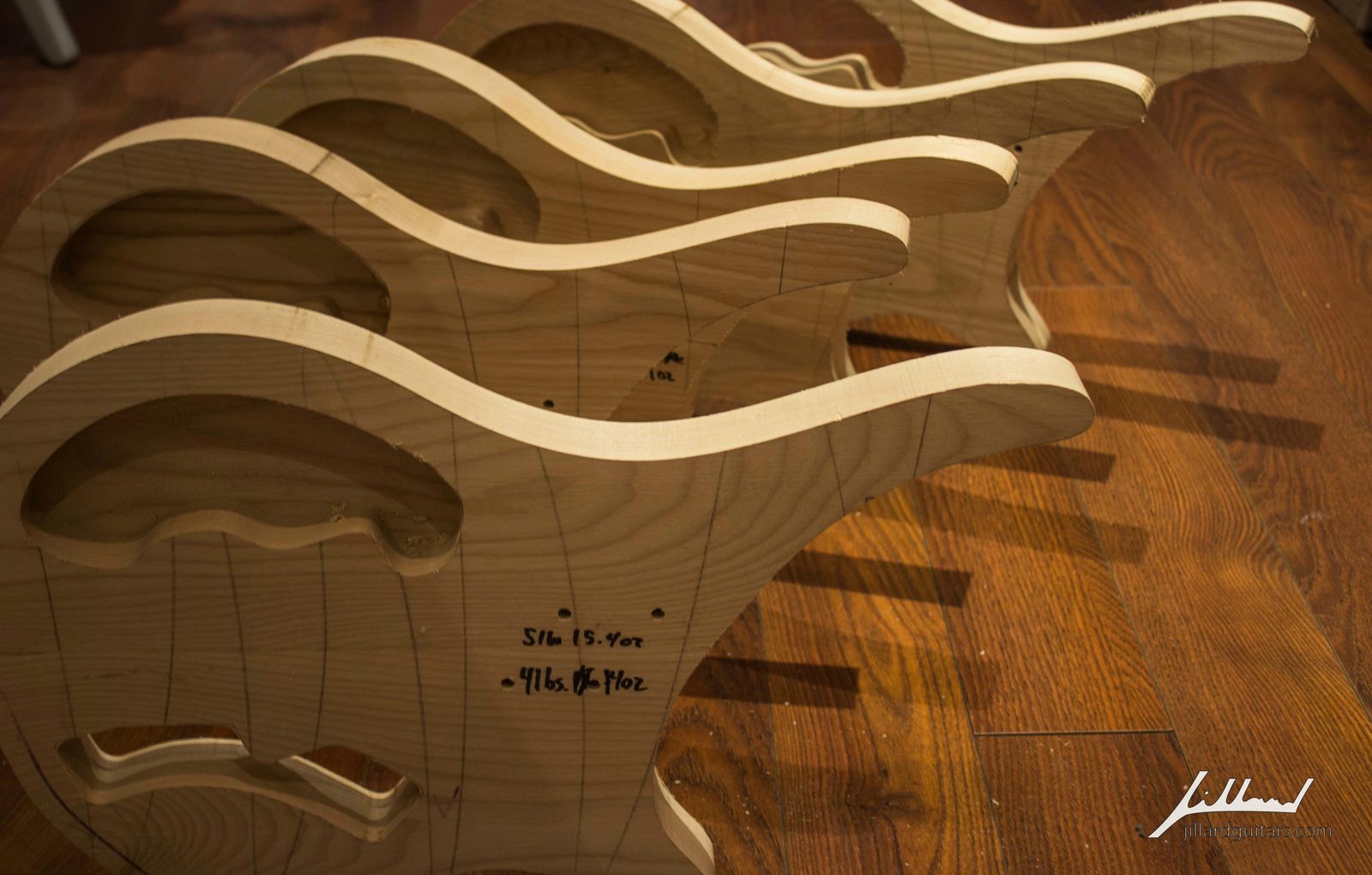

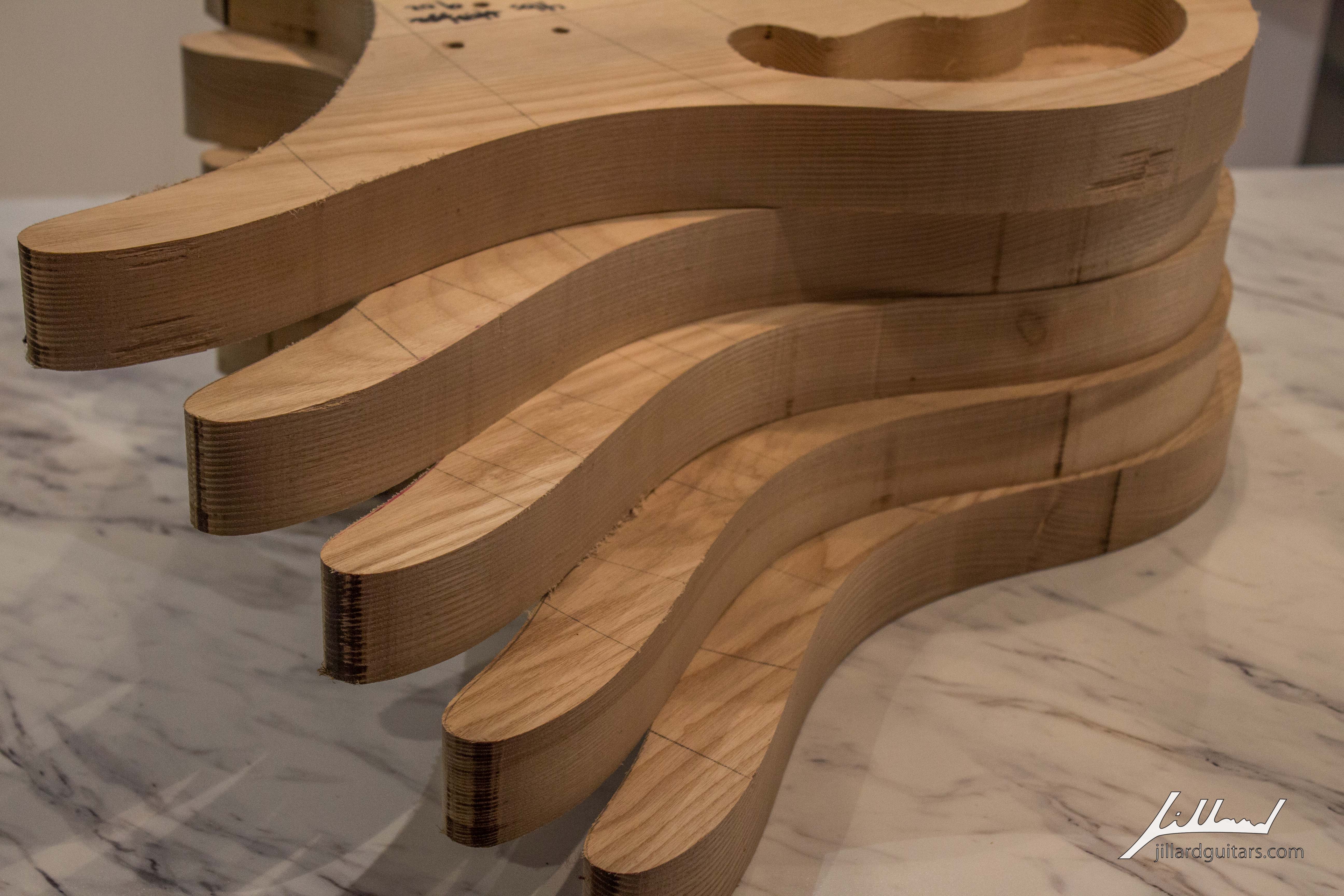

all bodies are weighed before and after chambering, hitting that 4.5ishlb sweet spot.

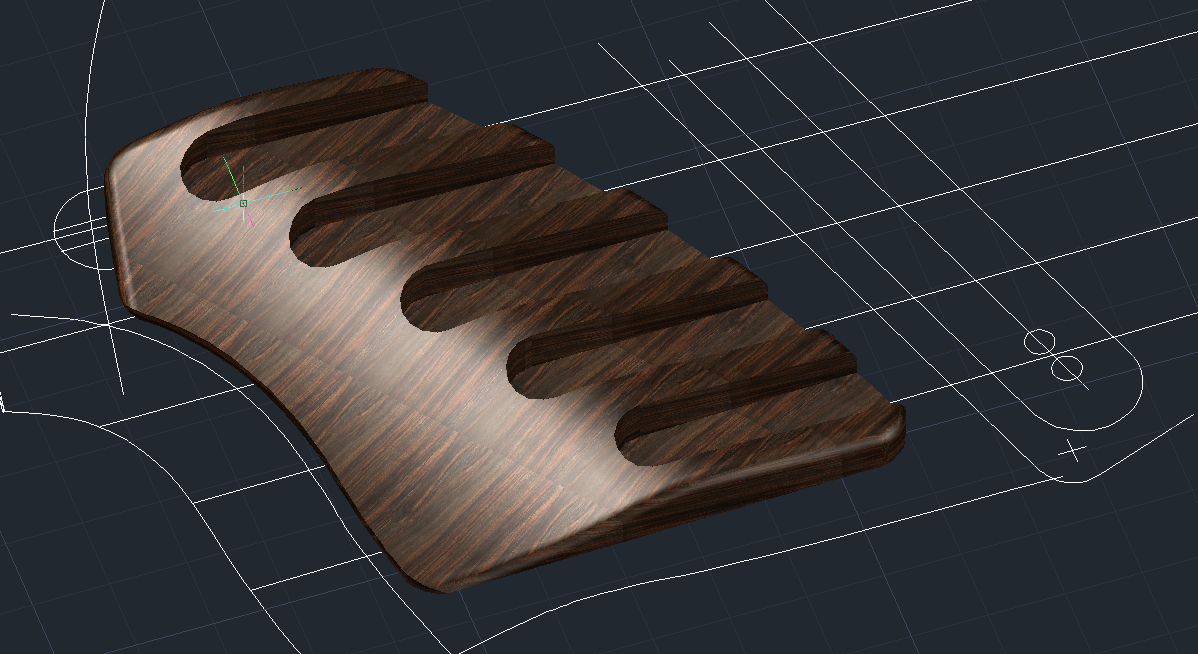

and here's where i'm at with bridge design.. still a lot of work to do... basic abm style, but ff and from wood. need to figure out the string anchor system from brass that will sit underneath this.

Also, I've been trying out a new template system, where most templates index off the 4 neck bolt holes, until i route the neck pocket, which indexes on the pickup cavities. so far they are working extremely well.

Feel free to ask any questions!



[Hopkins]

I just came back down with another case of shop envy. Its quite contagious around here.



[mapleglo]

I just came back down with another case of shop envy. Its quite contagious around here.

I suffer from it as well. And it's getting worse.

Looking forward to your progress!



[HaMMerHeD]

Jay, did you build that boat?



[thebassbuilder]

I like that blue one! Great design!



[Joshua Pickenpaugh]

These look cool, I dig the square knobs. Subbed.



[Jay Jillard]

I just came back down with another case of shop envy. Its quite contagious around here.

haha, me too! because that isn't actually my shop lol. That is a family friend of mine who has been a woodworker for 30 some-odd years. My shop is a little less glorious, due to it being my parents garage.

This year i'm working towards buying a house with a full basement shop, so that will be part of my adventure soon!

Jay, did you build that boat?

also no, it was the guy who owns the shop. =]

These look cool, I dig the square knobs. Subbed.

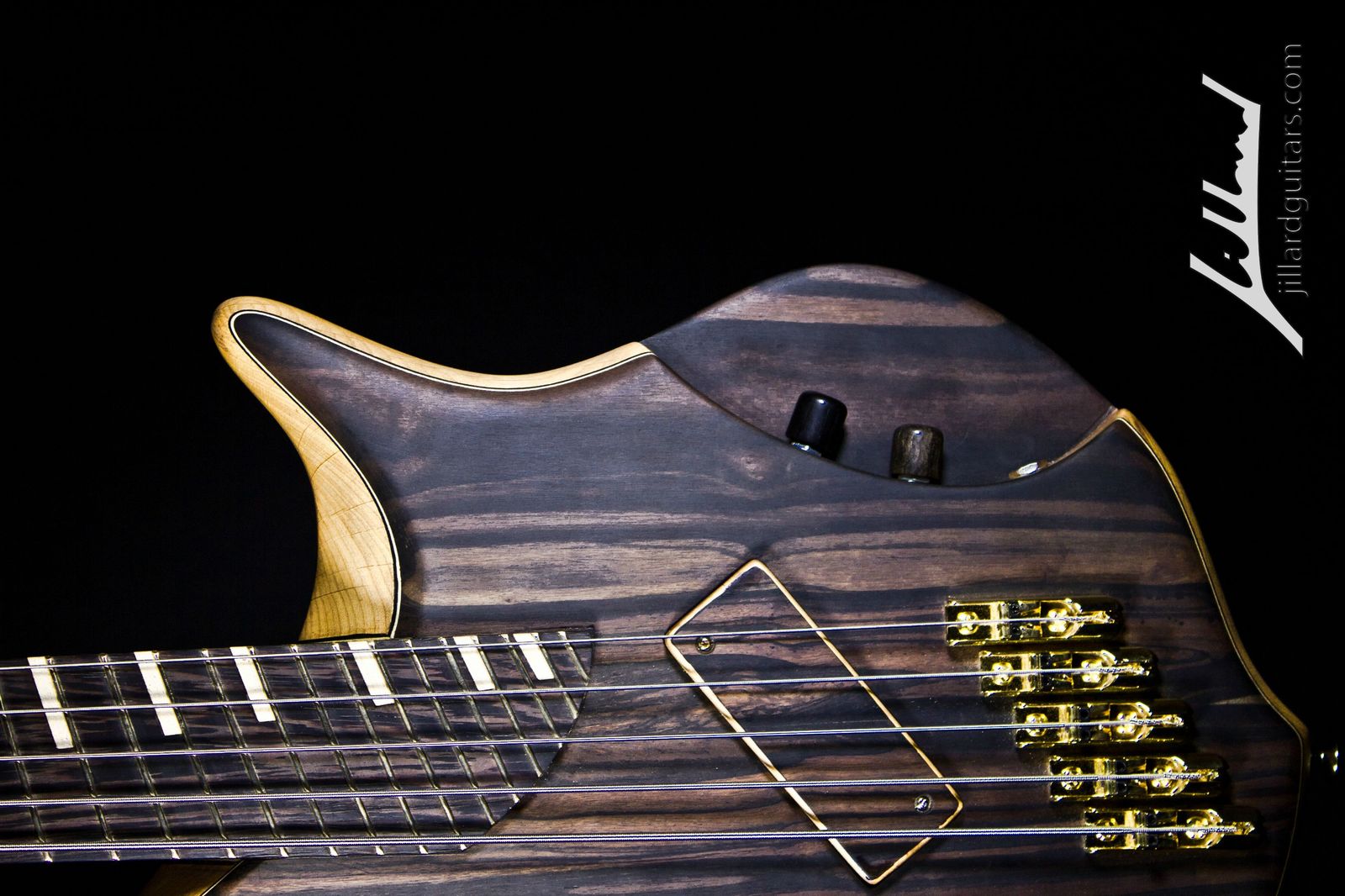

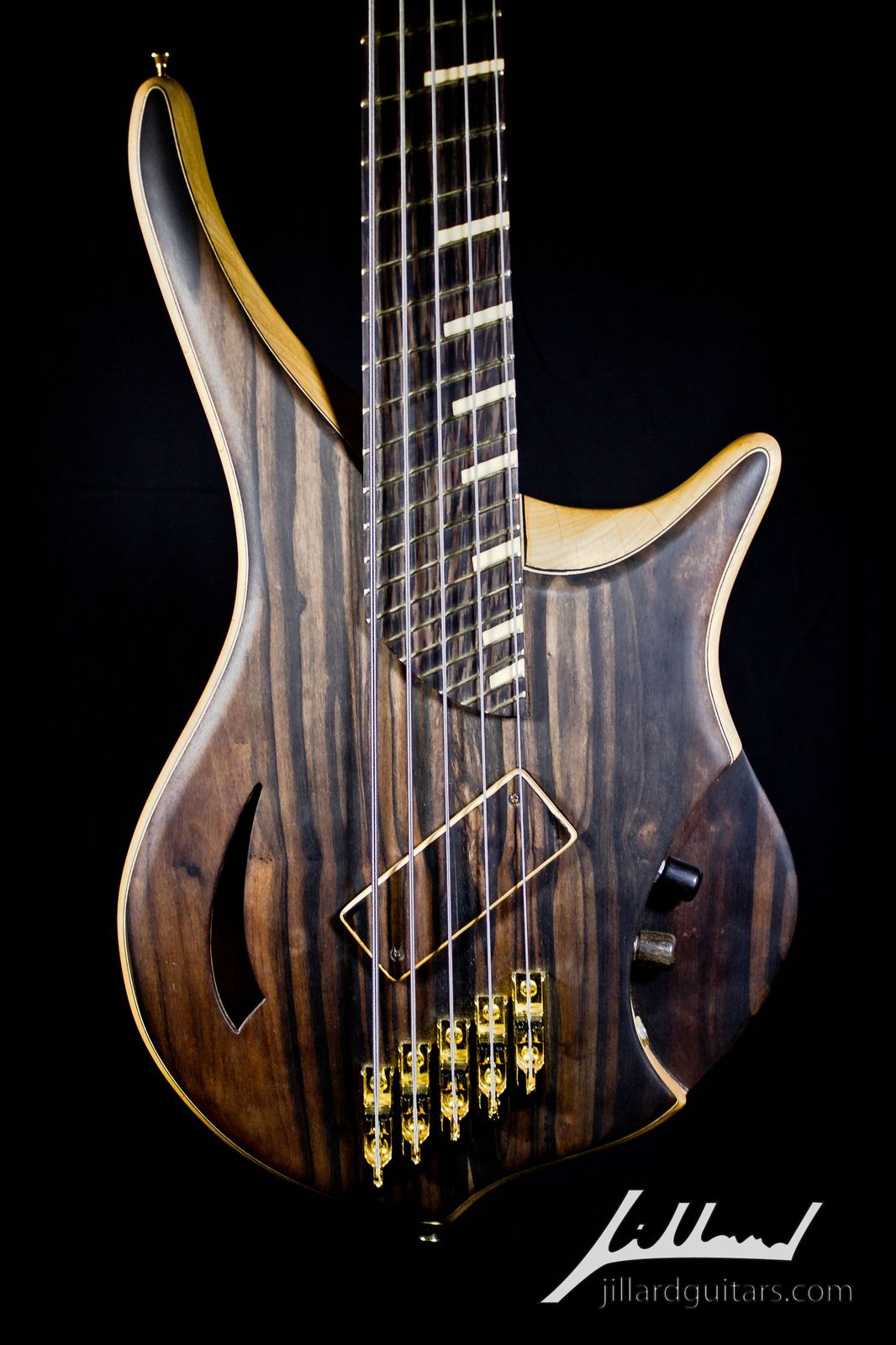

thanks, the knobs arent actually squares, they are just sideways, here's the prototype to show what i mean: *the mods asked that i remove the other photos of the prototype, except one to show the controls:
