I’m a bit of a gear-head, and also a casual tinkerer who digs cool DIY projects. So when my beloved Carvin AG300 combo amp died last month, I saw an opportunity to A ) salvage the high-quality 3-way speaker cabinet, and B ) take my Oktoberfest bass/tuba gig rig to the next level.
The Carvin AG300 is an interesting, versatile unit. It’s a 250W 3-channel combo amp designed to function as an acoustic guitar amp, small bass amp, or small PA/speaker. The cabinet holds a 12” 300w woofer (angled down), 6.5” 150W midrange, and 1” titanium tweeter. This particular AG300 had been my gig companion for over a decade, seeing heavy use on trombone, vocals, bass… often all three on the same gig. Carvin discontinued this model years ago, so when the internal class-D amplifier failed I couldn’t find any replacement parts. Therefore, on to Plan B!

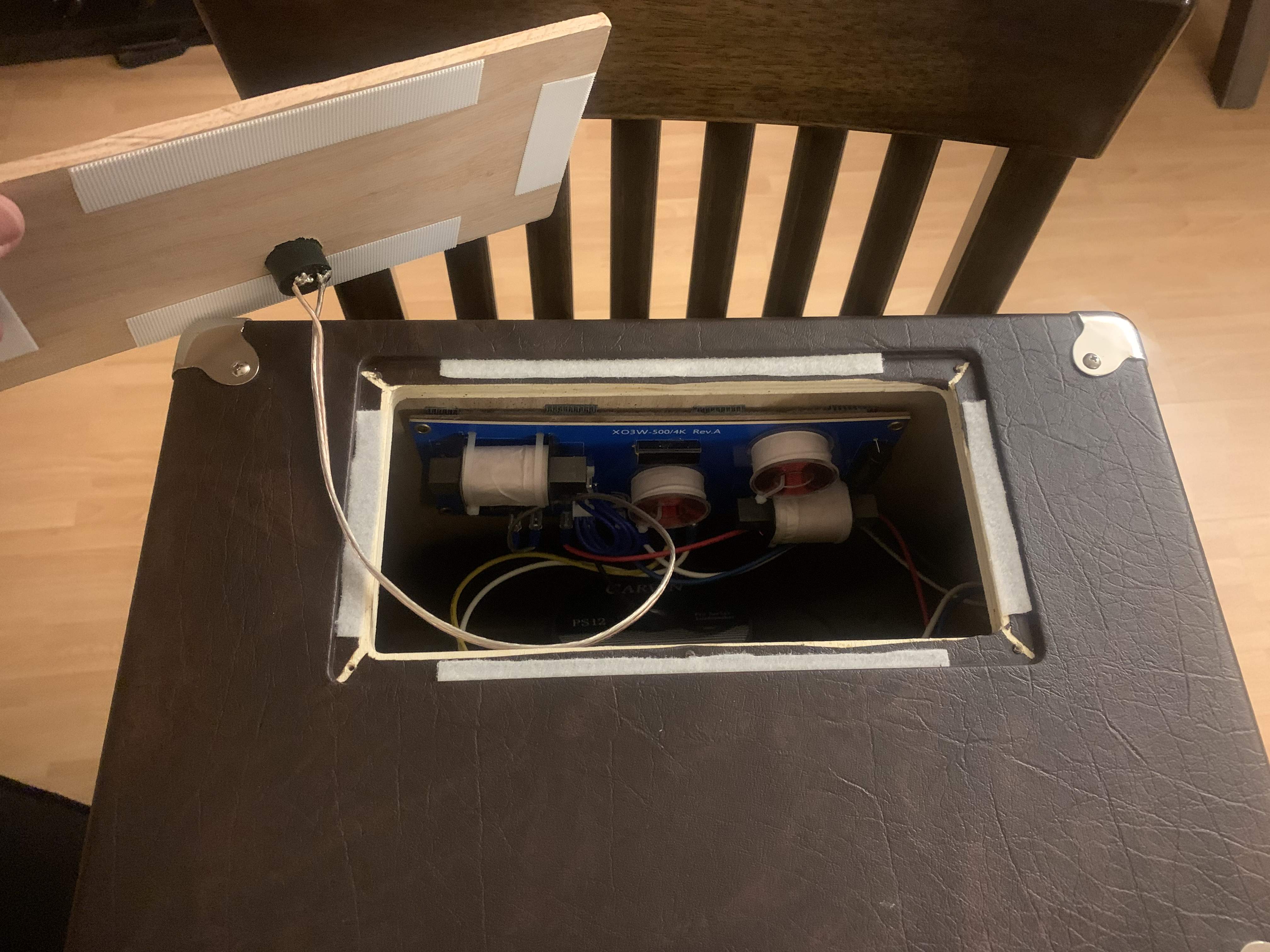

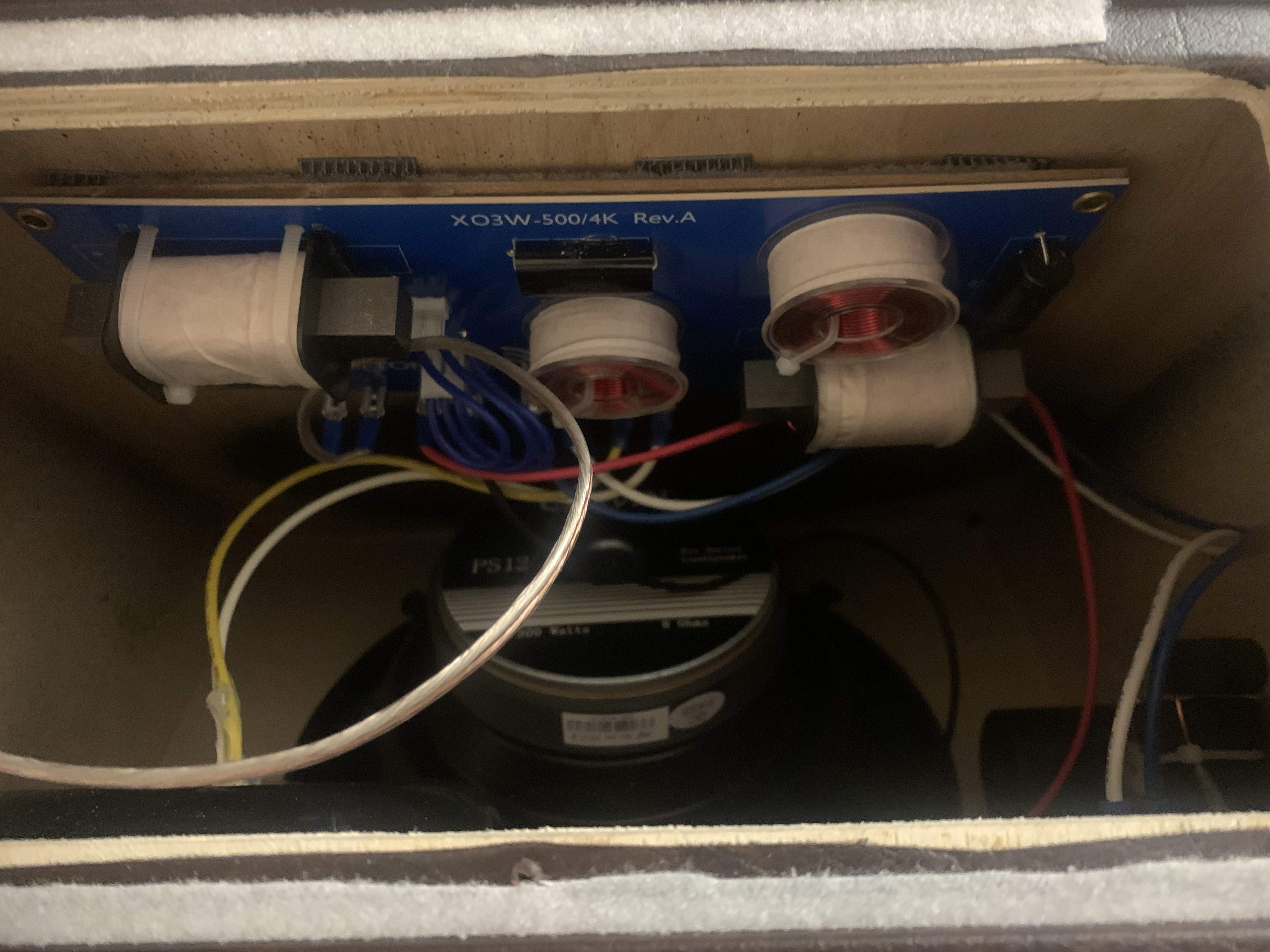

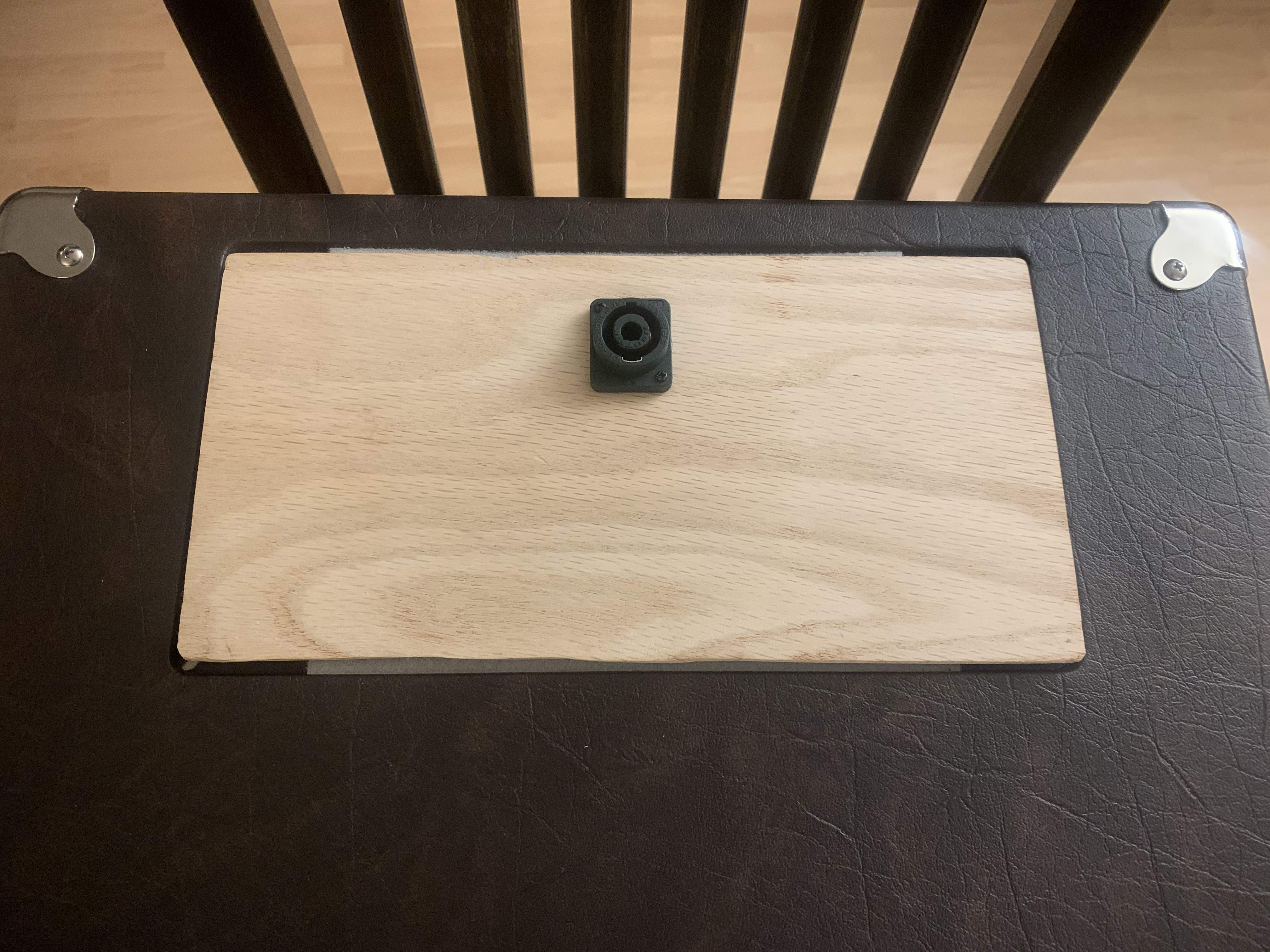

I started by removing the broken built-in amp head/mixer and disconnecting it from the speakers. Next, I made a simple, easily removable cover for the hole using a solid oak panel and strips of velcro tape. I drilled a 1” hole in the panel and installed a Neutrik speakOn & 1/4” combo jack. Next, I installed a 300W 500Hz/4KHz 3-way crossover from Dayton Audio, secured inside the cabinet using industrial strength velcro tape - easy to remove it for service if needed. The crossover is responsible for distributing appropriate frequencies to each speaker - lows to the woofer, highs to the tweeter, mids to the midrange, At this point, I soldered the +/- wires to the back of the new jack, and used 16-14 spade connectors to attach them to the crossover board. I also installed spade connectors on the +/- speaker wires and connected those to the crossover board. Close it up and it’s done! About 2 hours of work and ~$100 in parts.

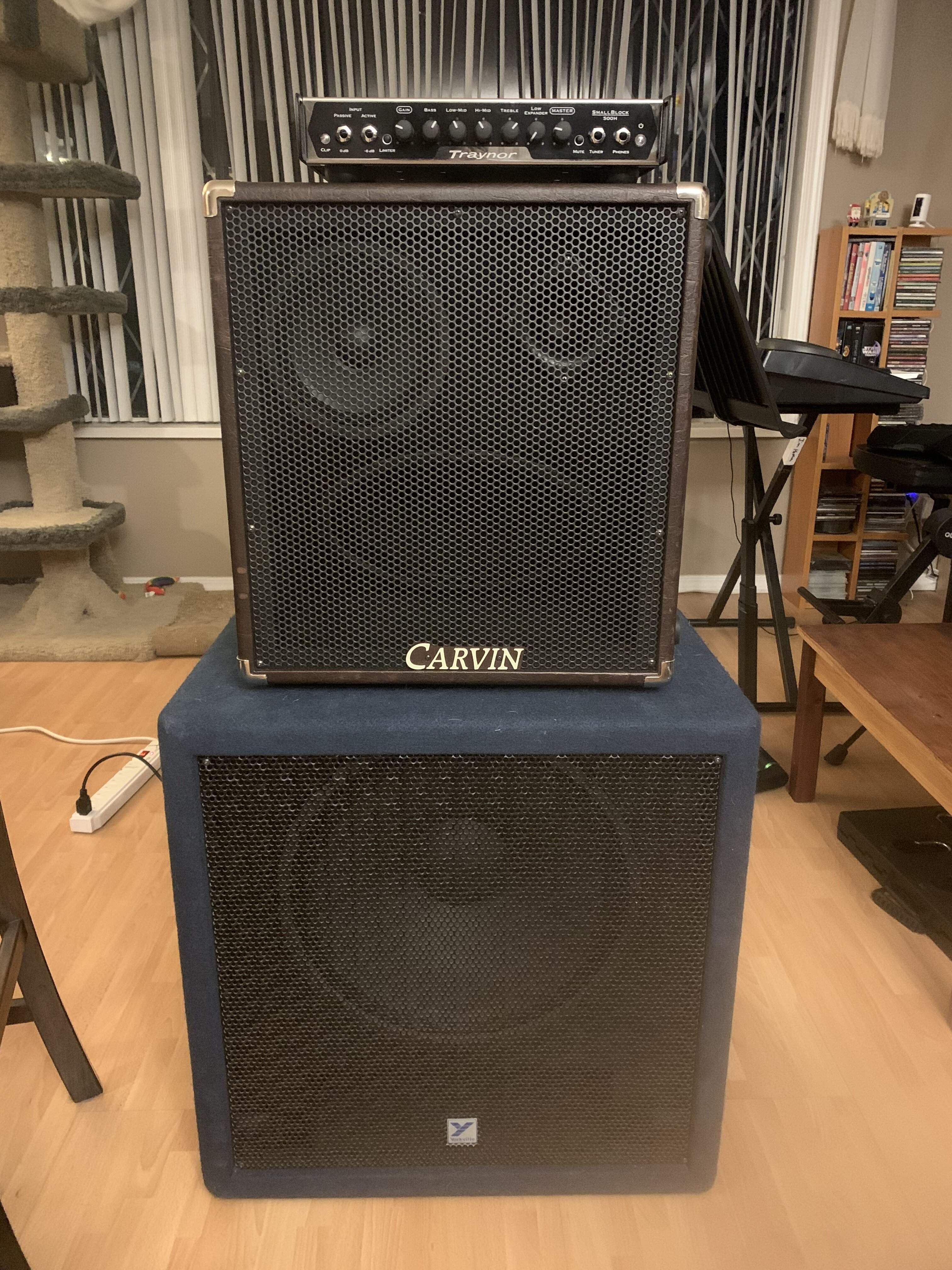

So how does it work/sound? Same clear, warm sound, and in some ways it’s even more versatile than it was before. Hook it up to a powered mixer and it’s a cool little 300W passive PA/speaker. Hook it up to a bass amp head and it’s a cool little bass cab for small gigs. Stacked on top of a vintage Yorkville 1X15 300W bass cabinet, in parallel output from a bass amp head (Traynor SB500H here), and it’s ready for prime time - the warm mids and clear highs of the Carvin complement the punchy lows of the 1X15 beautifully. On Oktoberfest gigs with www.sbahnmusic.com, I usually run both my tuba (wireless mic) and bass signals through a Radial Bassbone V2 switching pedal into a bass amp. This dirty old mostly-Canadian-made stack reproduces the highs/mids/details of the tuba signal much better than my previous amplification setup, and I’m looking forward to putting some miles on this rig!
