Cepheid 5: Ripthorn Builds a Bass

#162
ctmullins said:
Whaaaaat?!?!?

You’re not whipping up your own jewel-like brushed aluminum tuners, in between your other masterpieces??
Click to expand...
Oh, don't think I didn't think about it. Problem is that I don't have the tooling for worm gears. Otherwise, I probably wood. I stripped down a set of Schaller DaVinci tuners a few weeks ago and learned exactly how one would make them, but worm gear tooling is very pricey.

I've done tuners before, but for headless. I've also done custom buttons. I just don't care to do the worm gears :)

  • Like
Reactions: Matt Liebenau, Dark Horse and ctmullins
#165
Ripthorn said:

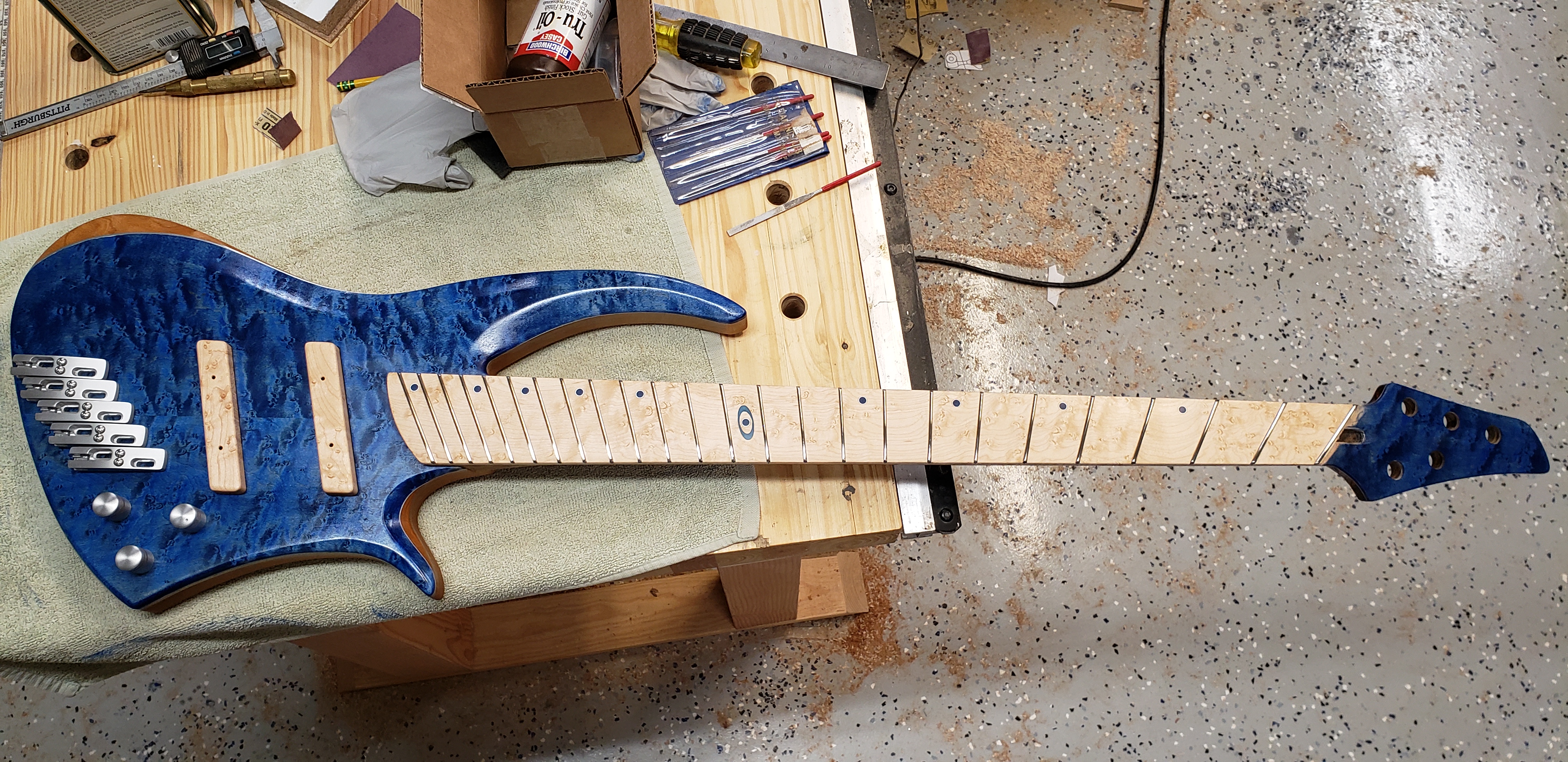

I got the fret job done today. Extremely little leveling/crowing to be done. One fret had a bit of a janky slot that resulted in a high fret, but got him sorted in short order. After a 320 grit crowning file, it was 400 grit paper followed by maroon then gray scotch brite. After getting the masking off, I had to do a mockup. I mean, look at this:

View attachment 3817011

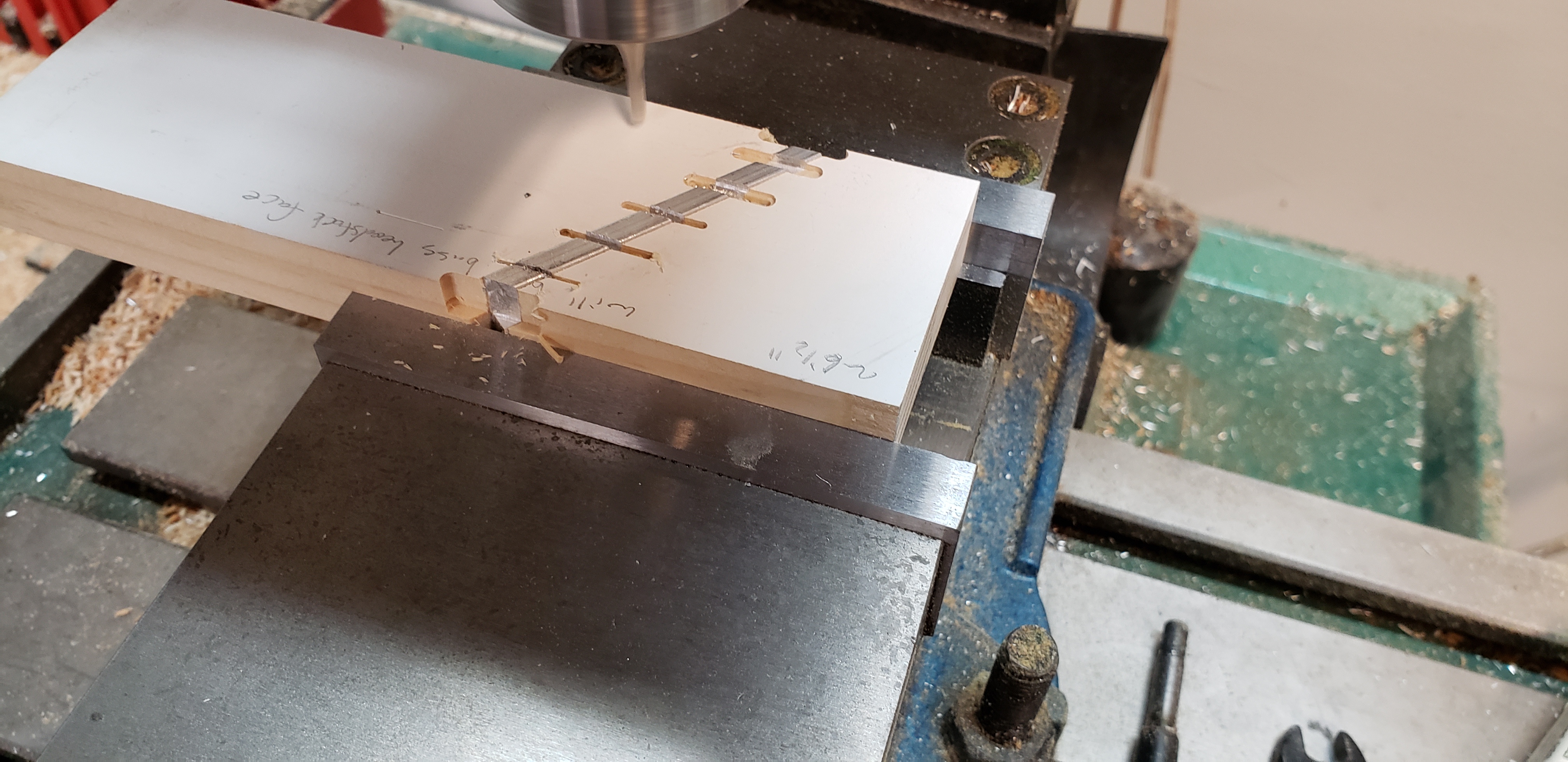

Then I got to work on the "nut". Since there is a zero fret, this guy will just act as a string spacer/guide, so the slots are supposed to be a little deep. Because of the slant, I cut a couple of guide blocks, put it in the mill, and roughed in the slots with end mills (1/8", 1/16", and 1/32"):

View attachment 3817012

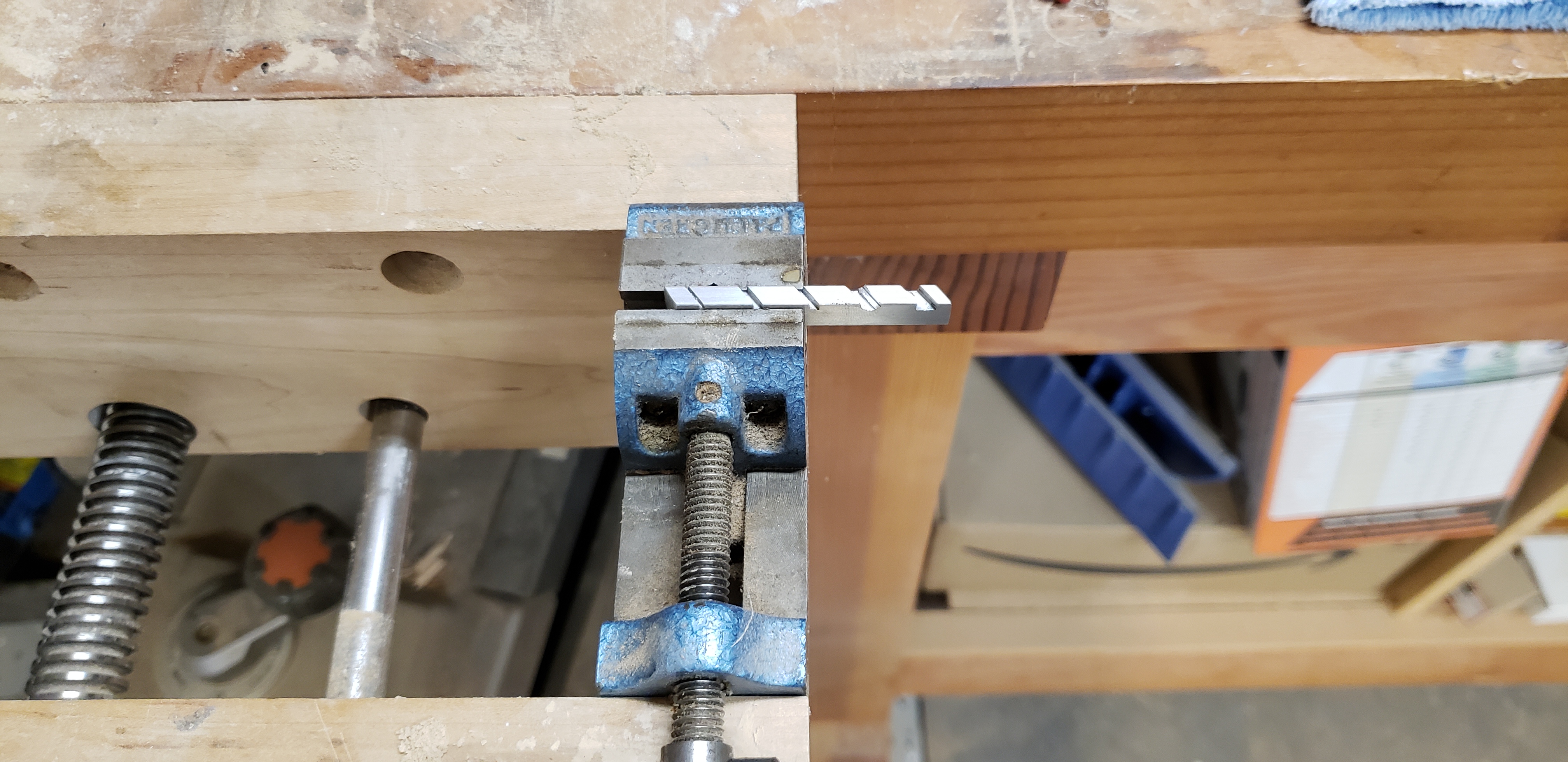

Then a little file work in a small vise inside of a bigger vise:

View attachment 3817013

I also ordered the tuners: licensed Hipshot Ultralites in satin chrome. I still need to wind the pickups and buy pots. And keep oiling the body. I'm going to go with Tru Oil to get some nice sheen on it, since the figure pops amazingly.
Click to expand...


I quit.

seriously.

Daaaaanng !

:drool:

  • Like
Reactions: TerribleTim68, Reedt2000, Beej and 1 other person
#168
TerribleTim68 said:
:drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool: :drool:
Click to expand...
Somewhere out there @Fat Freddy felt a great disturbance in the force...

As if millions of people all drooled at once...

:smug:


  • Like
Reactions: EddiePlaysBass, Chris Todd, Ethereal Thorn and 7 others
#172
Ripthorn said:
Thanks, guys! I hope to get pickups wound today, but we'll just have to see. I use my metal lathe as my pickup winder, so I have to get it all set up.
Click to expand...

That makes me think I should maybe look At what it would take to make my wood lathe be able to function as a pickup Winder. Any chance you could take a couple of photos for me when you get your set up in place?

  • Like
Reactions: Reedt2000
#173
Dark Horse said:
That makes me think I should maybe look At what it would take to make my wood lathe be able to function as a pickup Winder. Any chance you could take a couple of photos for me when you get your set up in place?
Click to expand...
Sure thing. I have an old piece of steel scrap that is polished that I use as a guide rod. My lathe has a DC variable speed so I can start very slowly and then ramp up. I will be using an inductive proximity sensor that I got off ebay for like $5 or something as a counter. I'll take photos once it's set up and ready to roll (or wind, whatever :) ).

  • Like
Reactions: wraub, Reedt2000, TerribleTim68 and 2 others
#174
Ripthorn said:
Sure thing. I have an old piece of steel scrap that is polished that I use as a guide rod. My lathe has a DC variable speed so I can start very slowly and then ramp up. I will be using an inductive proximity sensor that I got off ebay for like $5 or something as a counter. I'll take photos once it's set up and ready to roll (or wind, whatever :) ).
Click to expand...


Thank you !

  • Like
Reactions: Reedt2000
