Hello to you all. May this year be a happy and productive musical year.
I'm new on this forum and I have a problem.
A Dearmond Pilot V5 came in for repair.
The electronics have been removed, connectors snapped and an attempt is made to change it to a passive bass.
Finally it landed on my bench.

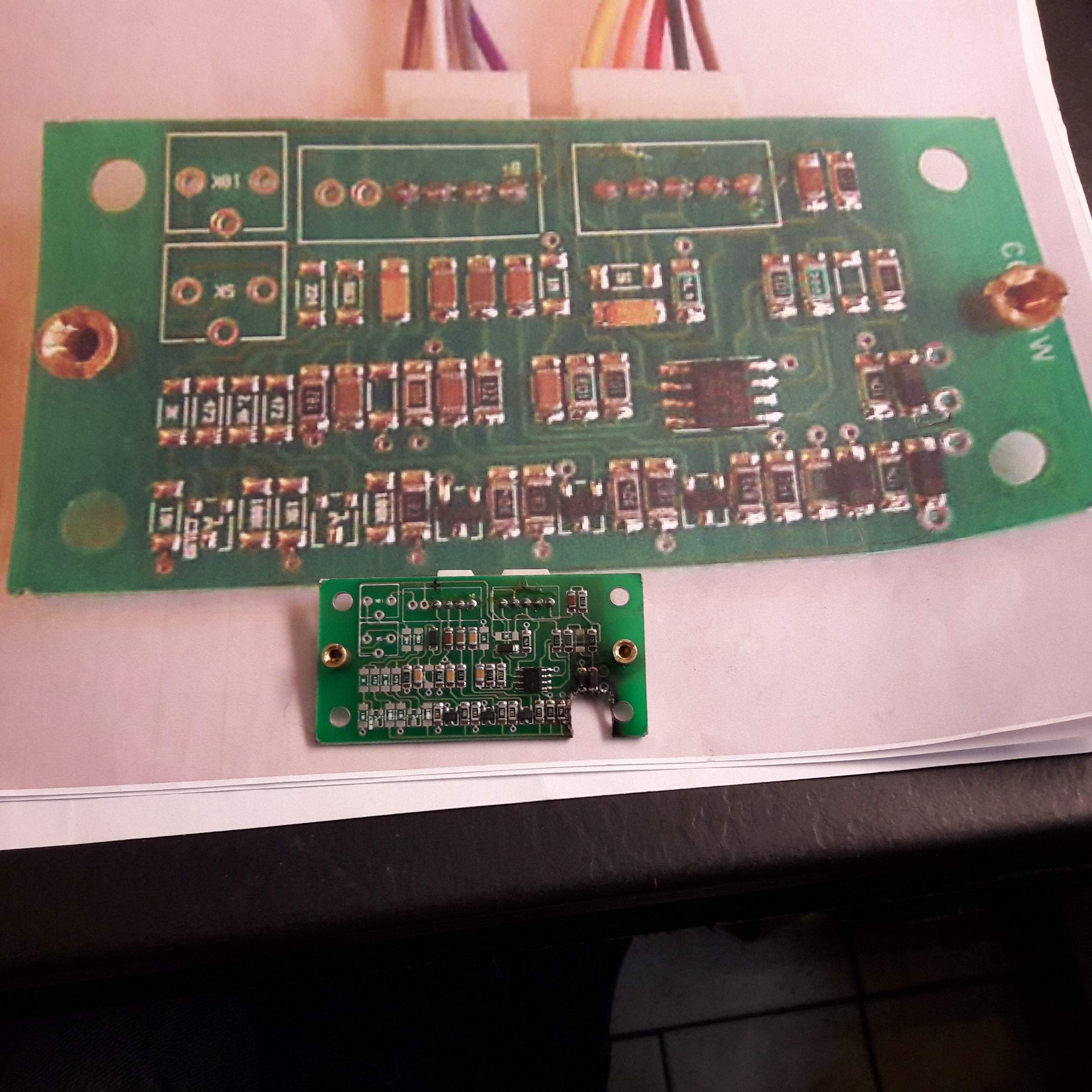

I attached a file of the pcb with the burned part. The wiring diagram is available but it's the electronic schematic I need.
If unavailable, a picture of the pcb, front and rear would help me a lot to repair that part.
If anyone could provide me with a close up picture of the part that's burned, I will be very happy.
Thank you very much.
Cheers,
I'm new on this forum and I have a problem.
A Dearmond Pilot V5 came in for repair.
The electronics have been removed, connectors snapped and an attempt is made to change it to a passive bass.
Finally it landed on my bench.
I attached a file of the pcb with the burned part. The wiring diagram is available but it's the electronic schematic I need.
If unavailable, a picture of the pcb, front and rear would help me a lot to repair that part.
If anyone could provide me with a close up picture of the part that's burned, I will be very happy.
Thank you very much.
