DIY 212 S2012 Basslite

Bill Staudt

Commercial User
Jun 18, 2002
845
566
Disclosures
Luthier @ Novo Guitars
Hi Talkbass,

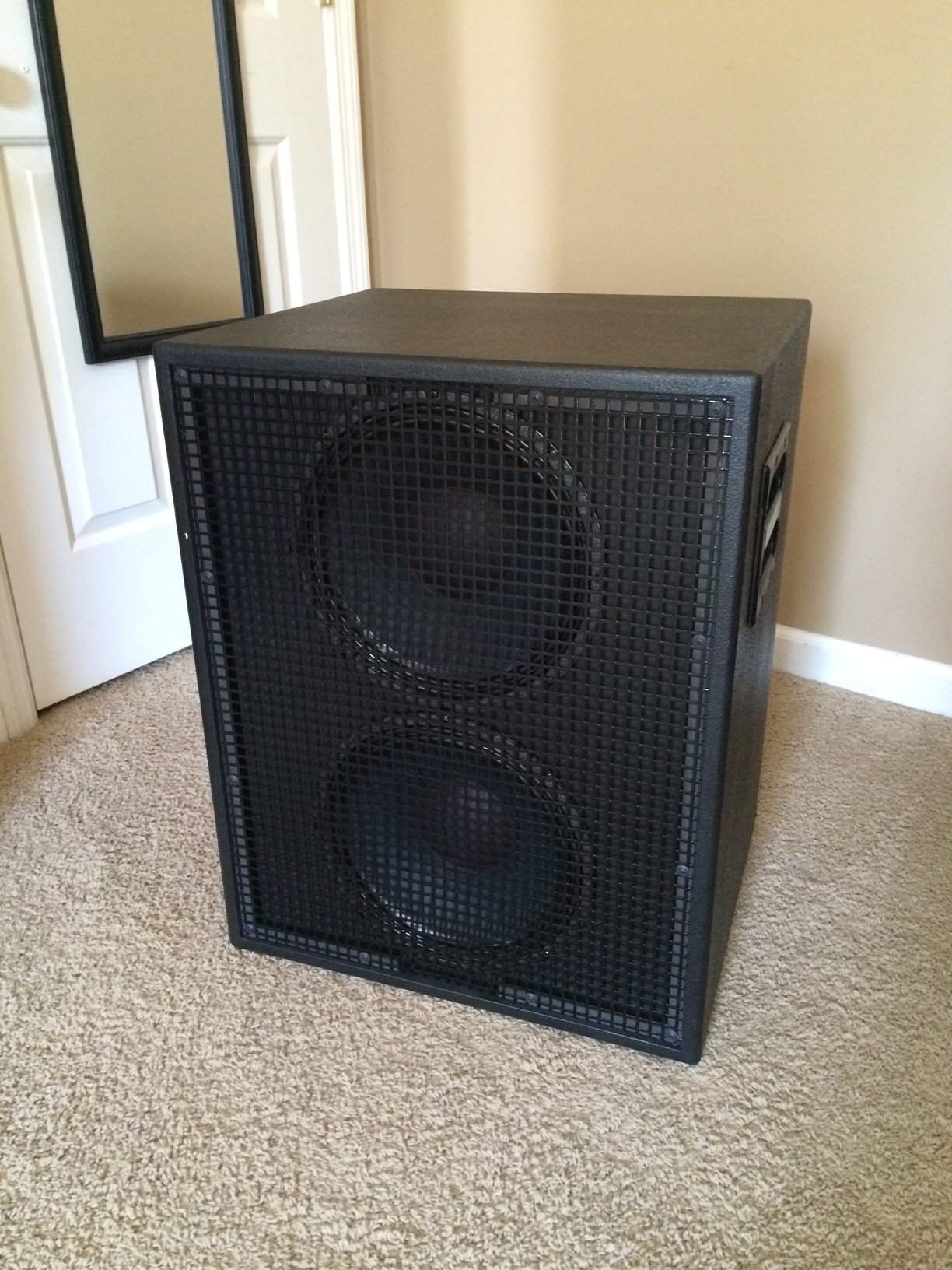

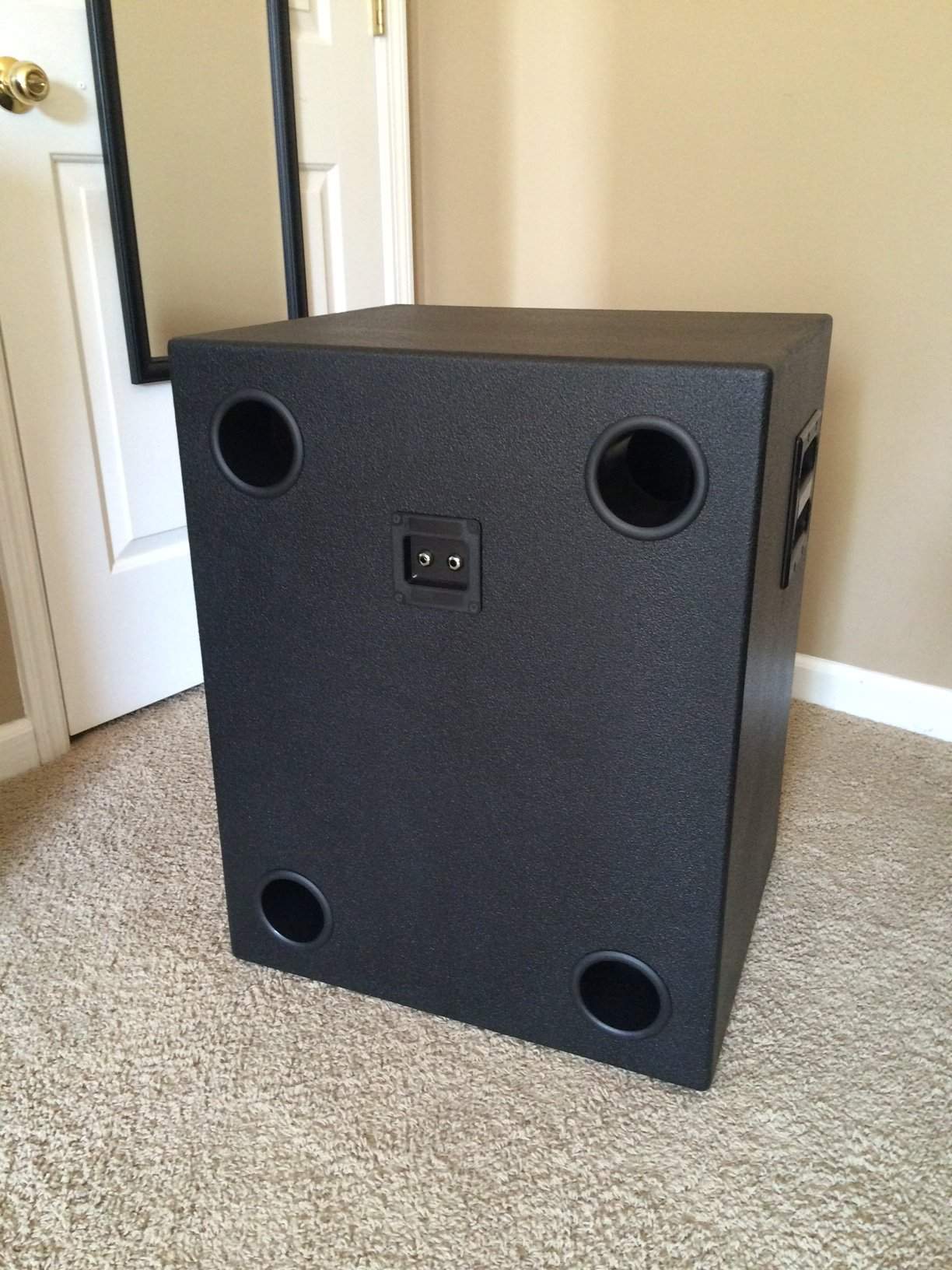

I wanted to share some pics of my recently completed 212 built around the Eminence S2012 Basslite drivers. The cab was designed around Duke LeJeune’s info from this thread:

2x12 need design help


Thanks to Duke, and everyone here for all the info that made this DIY possible for me!


Attachments

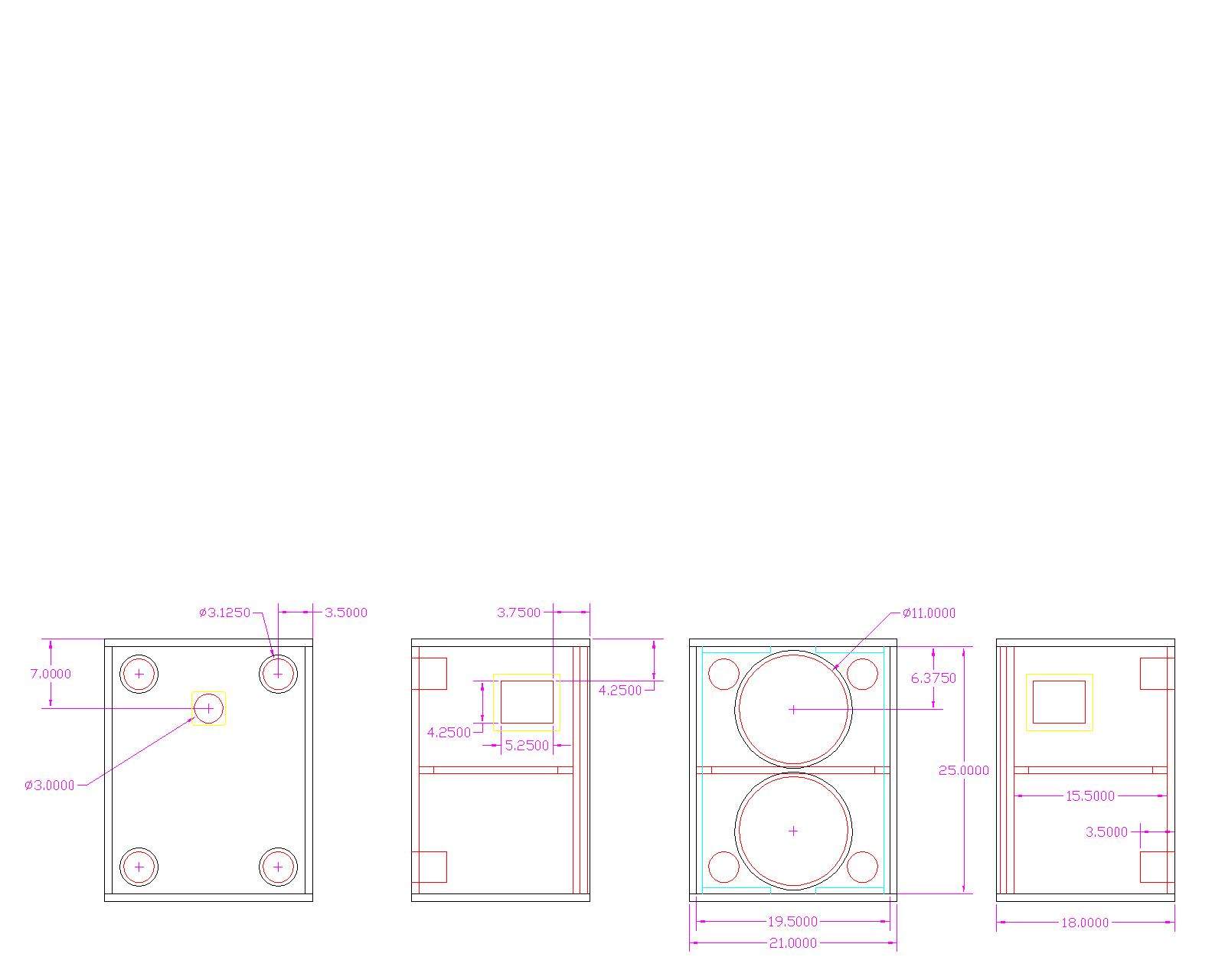

  • Duke S2012 212-Model.jpg
    Duke S2012 212-Model.jpg
    68.3 KB · Views: 491
  • IMG_1948.JPG
    170 KB · Views: 502
  • IMG_1945.JPG
    195.9 KB · Views: 559
  • IMG_1946.JPG
    200.2 KB · Views: 477
Thanks! I'm really pleased with the way it turned out.
I've used that driver as a replacement before, and always liked it. I thought it could really shine in a properly designed cab. It didn't disappoint.

Nice work. I have one in small diy 1.4cf @ 55hz box. Been a workhorse and sounds great. Doesn't have the output capability of more expensive drivers but it's no slouch and I'm sure two can cover a lot of ground for a lot of people.

The other driver I have tried in this box is an 18 Sound 12MB700.

Hey TB, I wanted to do a follow up on my cab after using it over the past year.


Background:

I’m a finger style “pocket” player. I don’t slap, or tap, or do anything that would require any HF information.


The S2012 driver rolls off around 3-4K. This was good for me. That being said, I think this cab could benefit from a HF driver if your needs dictated it. The extended high frequency response of the S2012 should blend nicely into a correctly designed crossover and HF driver.


Lining:

I experimented with different lining configurations. Fully, half (back, top, one side), and unlined. For me, I chose unlined. Lining smoothed out the upper mids, but I chose to go with a little more aggressiveness for my needs.


Power:

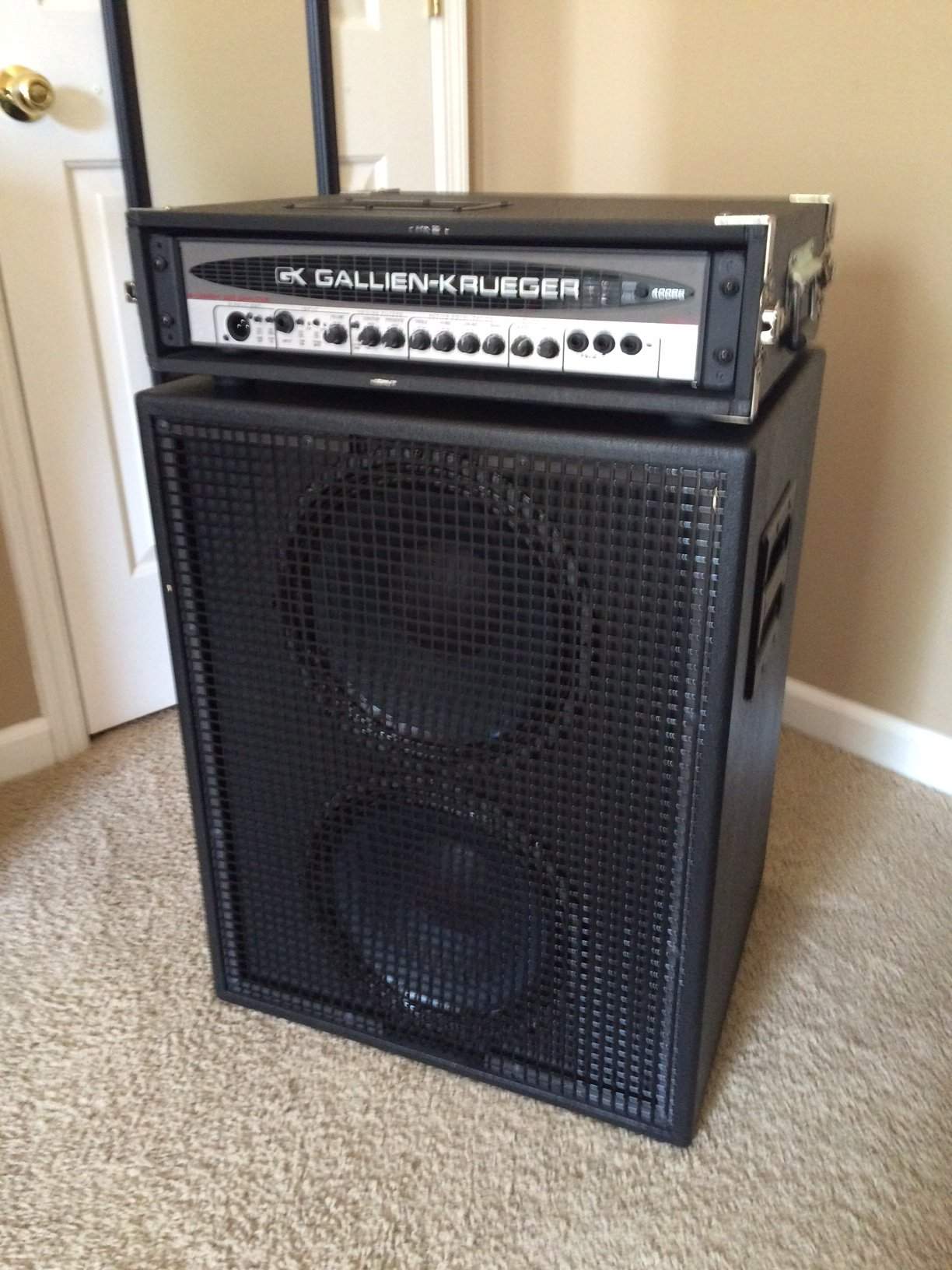

The S2012 driver is rated at 150 watts, giving this cab a rating around 300 watts. I drive it with a GK 400RB MK IV. This is a perfect combination for me. In fact, it’s more than I would ever need. I could see a scenario of wiring the drivers in series for 16Ohms, and using a pair with a high powered amp, but that’s just ridiculous.


Tone:

This is a tough one, but I’ll give it my best shot.

I would classify this cab as a hybrid between Vintage, and Hi-Fi. The extended low frequency response is right inline with any modern high-tech cab. The smooth roll-off of the highs is consistent with vintage styled cabs. I wouldn’t describe this cab as “punchy” or “boomy”. I would say it’s a pretty neutral cab, with a ton of ass, a little somethin’ in the upper mids, and dies at 5k.


Conclusion:

This is the perfect cab for me. It may not be the perfect cab for you.
