Double P-bass pickup, coils select and series parallel wiring help

[Maxbass22]

Hi folks, I need some help / advice on how to wire double-P pickups with a 3-way on-on-on toggle sw. and a p/p switch on an RD build. There was another thread with a 4-way rotary and a p/p but it too confusing for me. Just want to use 1 Master volume and 1 master tone pot the 3-way and p/p. I've tried for several days now to figure if it's even possible. I've made a mock up but can't seem to figure out how to tie them both together, any help / suggestions greatly appreciated. TY



[NKBassman]

Following to see the answer.



[Maxbass22]

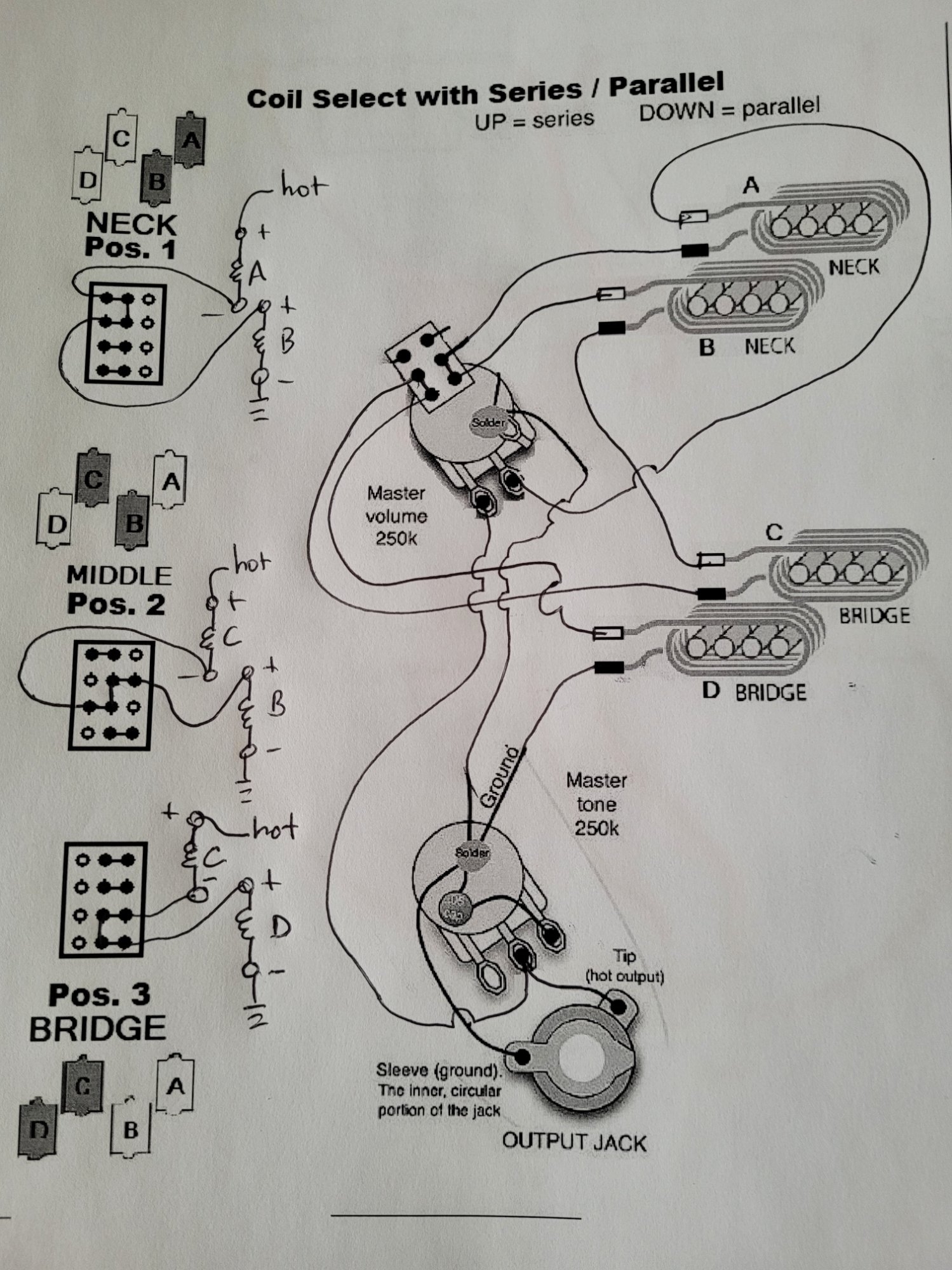

Looks Like I've stumped AI as well.. So, I've redrawn the Coil selector sw. and p/p, but in order to use the series option on the p/p, I'll have to leave the selector in position 3 to make the connections between the south/north coils of each set, otherwise I don't think this setup can do both coil select and series/parallel
any thoughts...?
