Drop in tuners for Squier Classic Vibe Jazz?

[Hawaii 5-0]

Sorry if it has been asked before...
I'm looking for a drop in replacement tuners for my CV 60s Jazz. I measured approx. 11/16 bottom and 13/16 top screw hole spacing with a tape masure. I don't have precision measuring tools. I am thinking Schaller BMLs would fit, and would like to confirm the measurement. Thanks.



[shadewind]

Schaller has measurements for all their products on their website so you can check there.



[The Birdman]

I'm intending the same thing for my Squier 50s CV P-Bass, and found that Hipshot HB-1s are the correct dimensions. Since they are both made in China, you might check the dimensions for the HB-1 to see if they are a replacement for yours as well. The dimensions you've taken sound close.

Roger



[The Birdman]

I installed the Hipshot HB1 tuners today. Here's pictures so you can decide if you can do this, too:

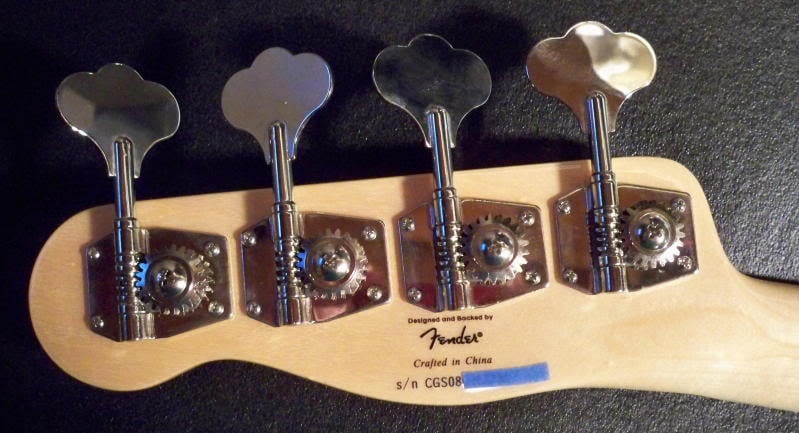

Before, with original tuners:

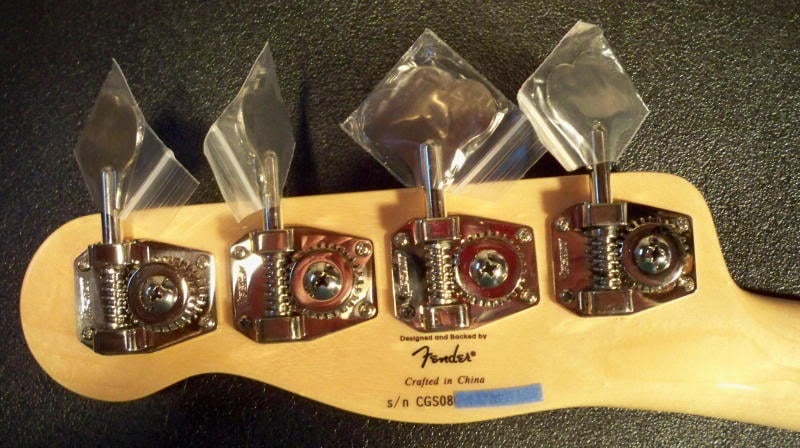

After, with Hipshot HB1 tuners:

Best of luck!

Roger



[impactwrench]

Nice job. E tuner a little crooked from the factory but thats squier for you. Good to know you can easily upgrade without drilling them to bits!



[bassyeah]

nice baggies!



[The Birdman]

nice baggies!

That's the way the tuners came from Hipshot! They are like little zip-lock bags....I took them off and kept them if I ever need to protect the knobs again during work.

Roger



[robbie23uk]

An 8 year update for those searching for Drop-In tuners on a Squier CV Bass.
So far, up to 2018, all CV Bass models use the same Tuners.
Hipshot HB-1 are a direct replacement. Screw holes align & the original Squier Ferrules fit well & look great.
But....the post height on the "regular" size is short.
Although it doesn't foul the headstock, it just isn't right.
Fortunately good guys at Hipshot can supply a "long post" HB-1 which fits perfectly & looks the biz!

Added bonus for those with Pre-CBS style CV's is the long posts's come with reverse tuning.
They also sit just a tad higher...all more in keeping with Pre-CBS tuners.

PS Hipshot also do a "short" size HB-1 to fit Musicman

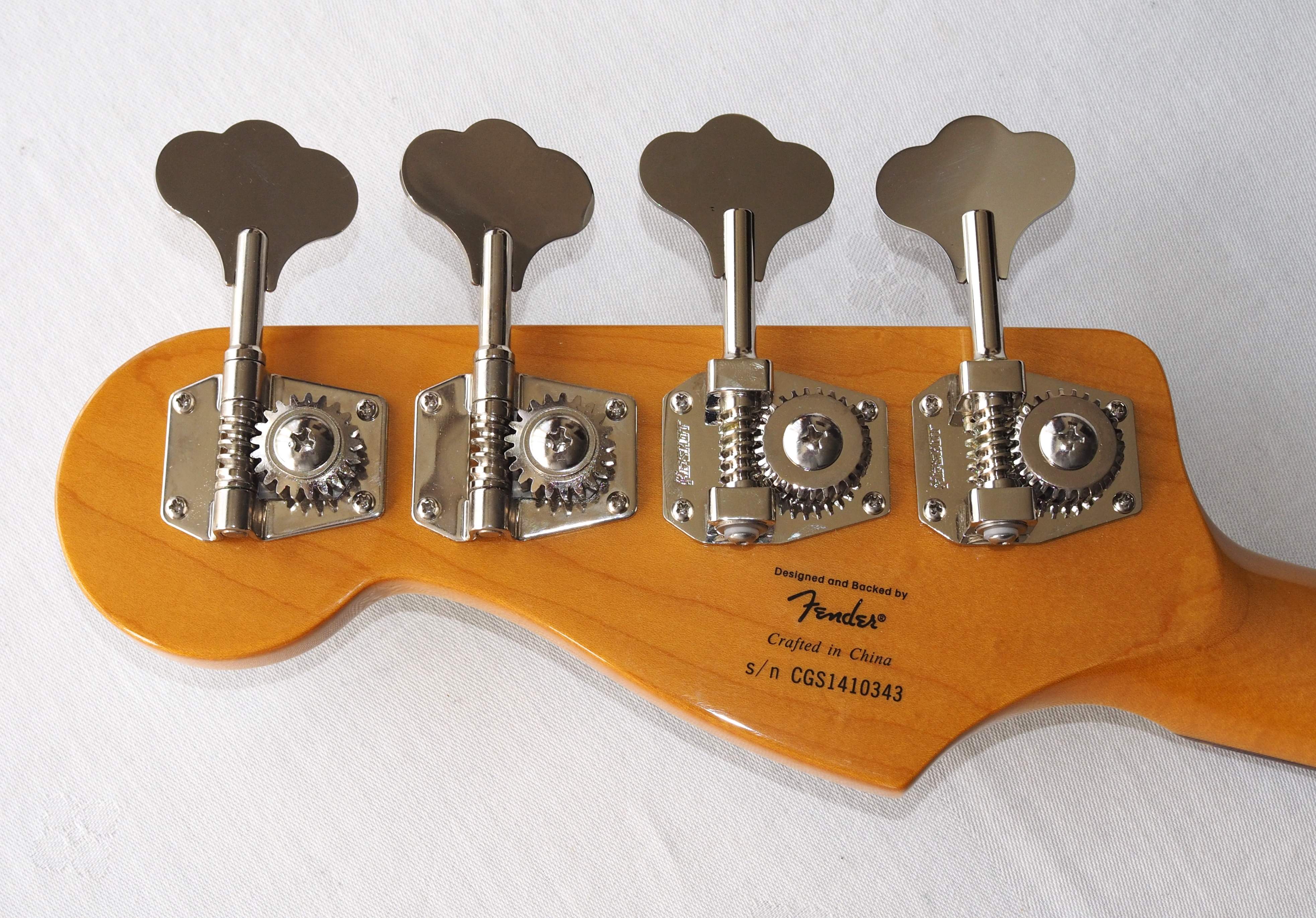

"Regular" vs Squier Originals

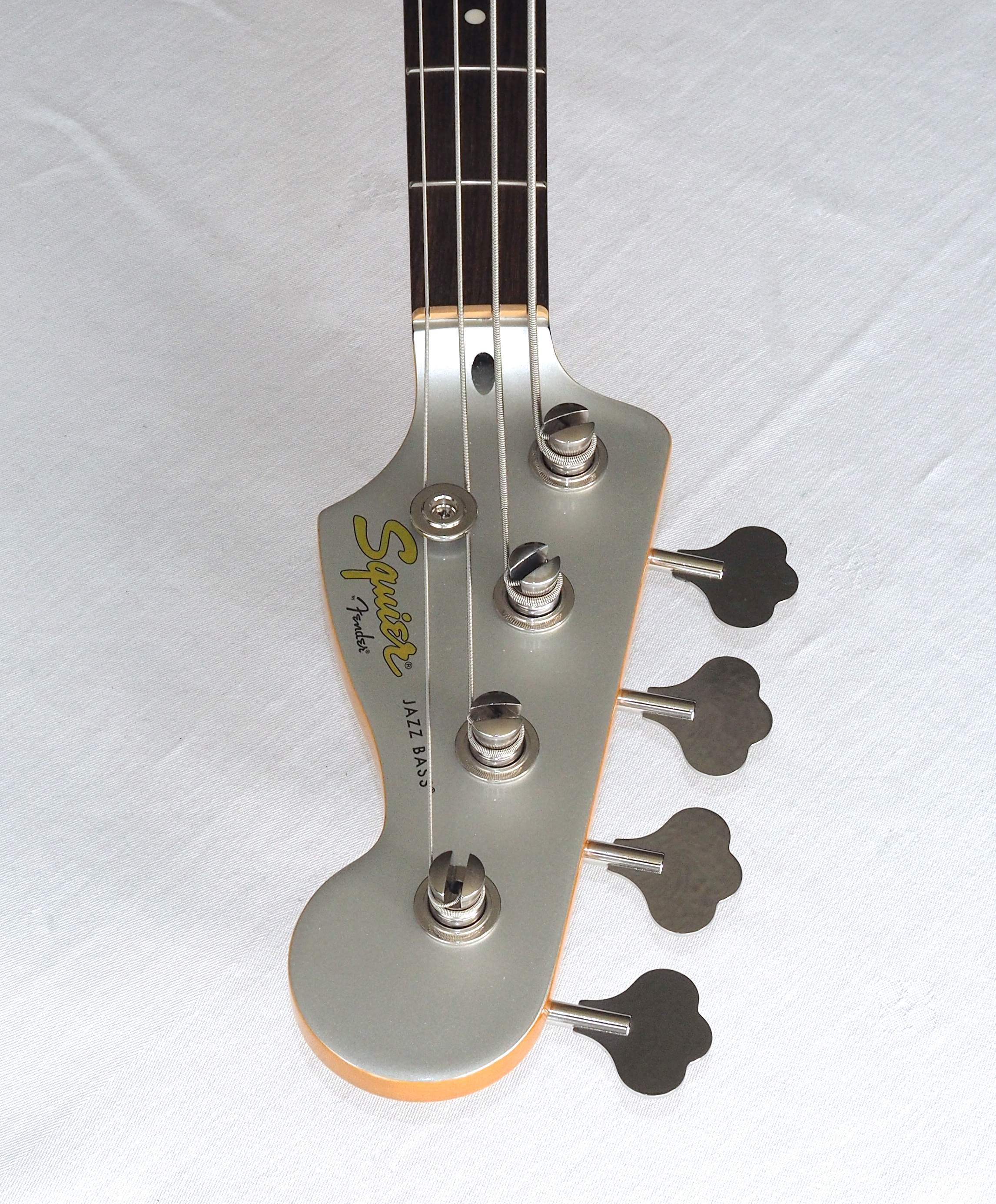

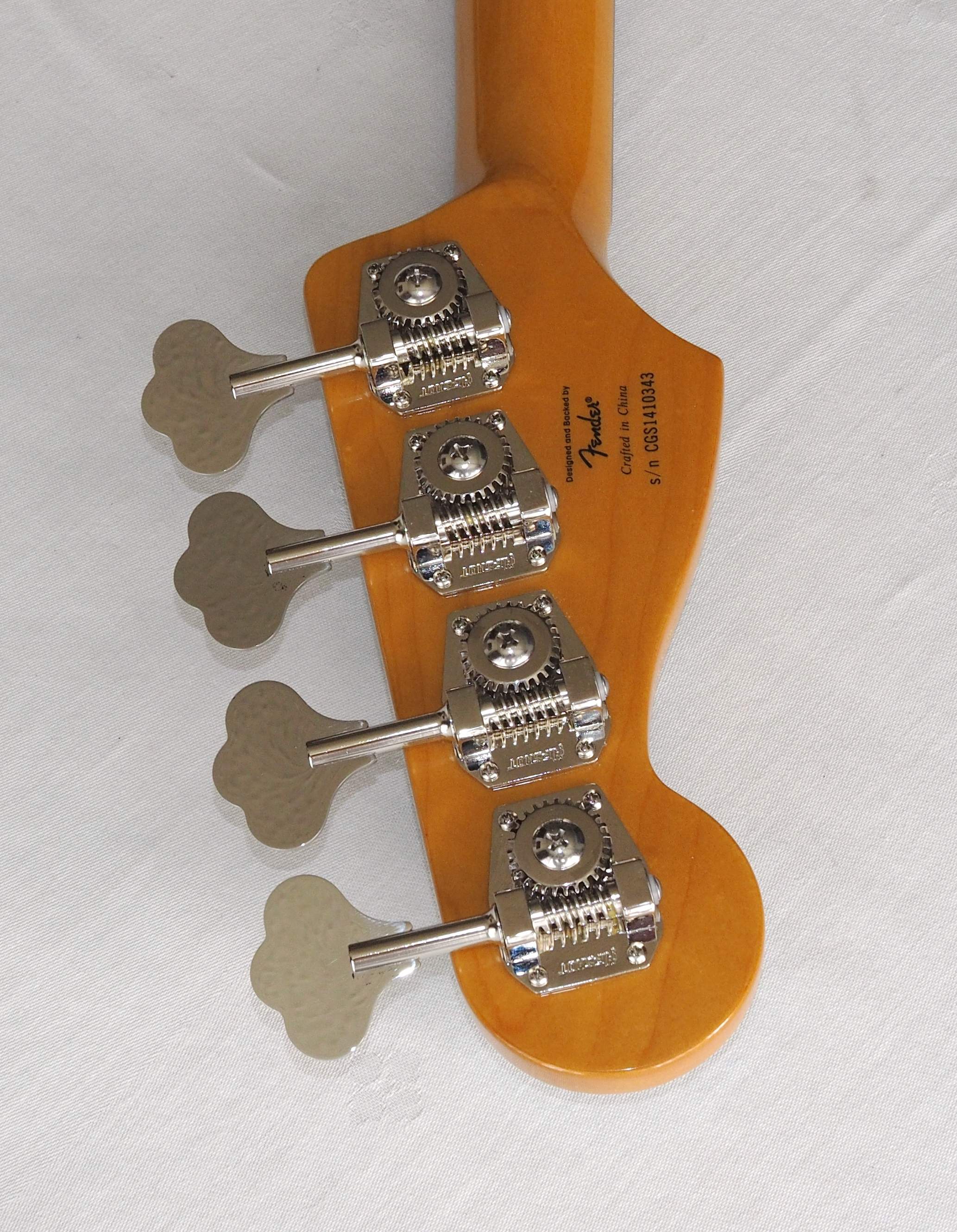

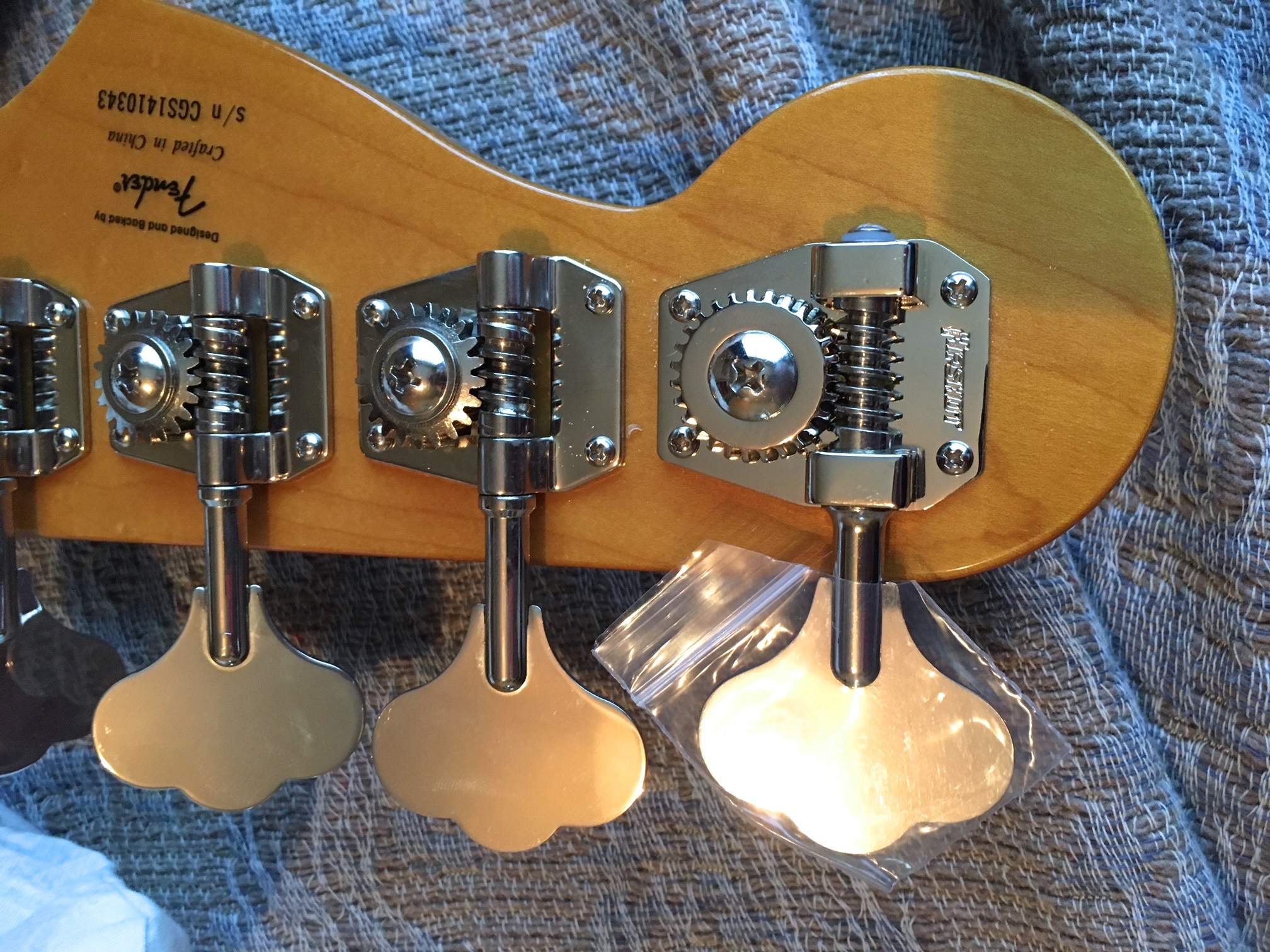

"Long" vs Squier Originals



[nerkoids]

A bit late to the party and all, but you wouldn't still be holding onto your Classic Vibe bass tuners perchance?



[robbie23uk]

I would...haven't got around to listing the originals on eBay yet.
UK to Canada is expensive postage tho.



[Texican]

Now that the CV lineup has moved to Indonesia for 2019, does anyone know if the Hipshot HB1’s are STILL a direct replacement?

I’m not certain, but I think I read here that the new CVs use a different (lower grade) tuner than the older Chinese Classic Vibes.



[brushfirewolf]

Now that the CV lineup has moved to Indonesia for 2019, does anyone know if the Hipshot HB1’s are STILL a direct replacement?

I’m not certain, but I think I read here that the new CVs use a different (lower grade) tuner than the older Chinese Classic Vibes.

I’d like to know as well. And I assume the same tuners are used for the p version so HB1 would drop in?



[Rallypoint_1]

I measured the screw holes from the 2018 and below CV compared to the 2019 and seems like the 2019’s have different spacing.

2019 = 23mm & 19mm
2018 and below = 21mm & 18mm

Still pretty close I guess.



[Rallypoint_1]

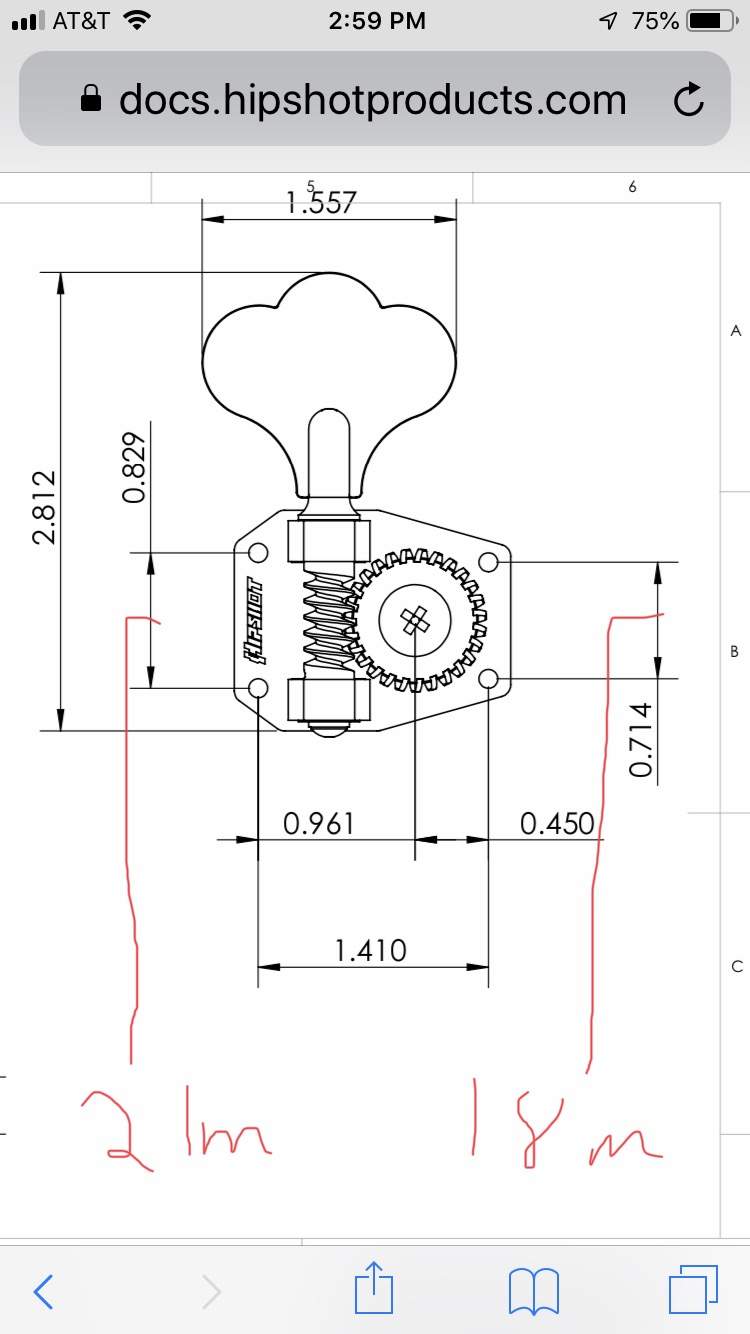

Here is a better description:



[brushfirewolf]

Thanks for measuring. Is that the hb1?



[Rallypoint_1]

Thanks for measuring. Is that the hb1?

Sure thing!! Yes that’s the HB1



[brushfirewolf]

Sure thing!! Yes that’s the HB1

Awesome. Might have to order these. Stock tuners don't look great.



[Texican]

I measured the screw holes from the 2018 and below CV compared to the 2019 and seems like the 2019’s have different spacing.

2019 = 23mm & 19mm
2018 and below = 21mm & 18mm

Still pretty close I guess.

Would say it was close enough that they are interchangeable and that the difference is negligible?



[a-37]

Did one of you do this exact HB1 into a 2019 CV swap? Or find a direct match somewhere? (I am interested in the new CV Precision in particular if it turns out they used different parts for some reason.)



[LkS]

An 8 year update for those searching for Drop-In tuners on a Squier CV Bass.
So far, up to 2018, all CV Bass models use the same Tuners.
Hipshot HB-1 are a direct replacement. Screw holes align & the original Squier Ferrules fit well & look great.
But....the post height on the "regular" size is short.
Although it doesn't foul the headstock, it just isn't right.
Fortunately good guys at Hipshot can supply a "long post" HB-1 which fits perfectly & looks the biz!

Added bonus for those with Pre-CBS style CV's is the long posts's come with reverse tuning.
They also sit just a tad higher...all more in keeping with Pre-CBS tuners.

PS Hipshot also do a "short" size HB-1 to fit Musicman



"Regular" vs Squier Originals


View attachment 2915974



"Long" vs Squier Originals

View attachment 2915978 View attachment 2915981 View attachment 2915982

Where did you find the "Long" Key version? On their website they offer only a short version (with virtually no post) and a standard version (like the one in your first picture). I've been browsing for an hour but can't find anything.
