EMG/Sadowsky Pre Connector

[LightForce104]

Hi folks, I recently acquired a pre-Warwick Sadowsky pre that appears to utilize the same quick connector system as the EMG solderless stuff. Unfortunately, the pre didn't come with the battery clip. The bass I'm planning on putting it in already has a battery clip, so I don't need to get another one, but I'm trying to find the connector part. Does anyone know where I could get it, or what it's called?



[dwizum]

If it's literally the same as EMG's parts, you can get all sorts of spares and harnesses from them:

Invalid Link Removed

But that said, they're just standard issue .1" pin connectors which are available all over the place (check hobby electronics vendors, R/C servos, etc).



[LightForce104]

If it's literally the same as EMG's parts, you can get all sorts of spares and harnesses from them:

Invalid Link Removed

But that said, they're just standard issue .1" pin connectors which are available all over the place (check hobby electronics vendors, R/C servos, etc).

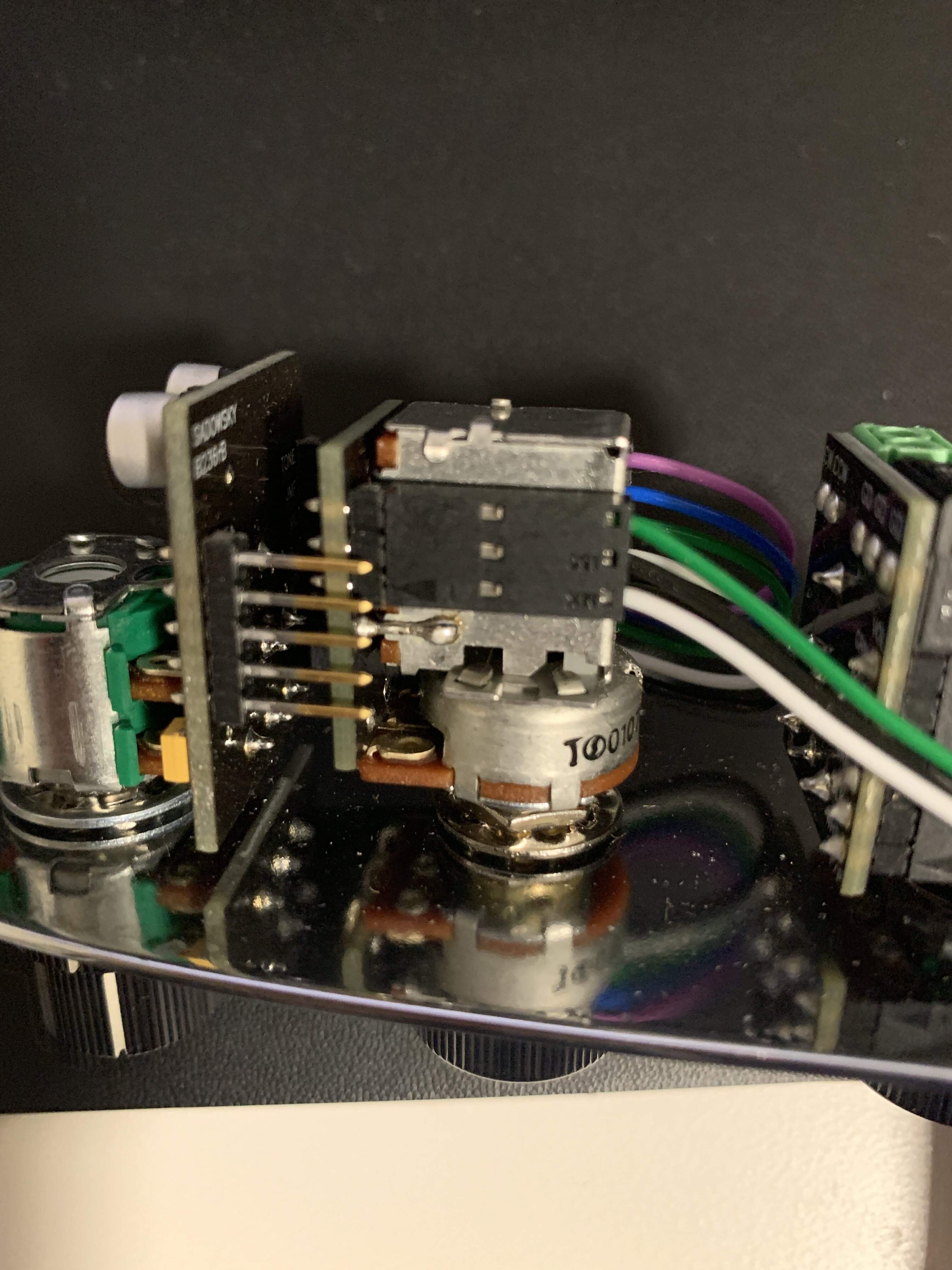

Awesome! I've attached a picture of one of the connectors just for confirmation. It certainly looks like the EMG system. The jack connectors even look the same. Willing to bet that Sadowsky just contracted out the manufacturing to EMG.



[ABtheBassPlayer]

@LightForce104 you could use something like this:
Pololu - 0.1" (2.54mm) Crimp Connector Housing: 1x2-Pin 25-Pack


You’ll also need the crimps:
Pololu - Female Crimp Pins for 0.1" Housings 100-Pack



[LightForce104]

@LightForce104 you could use something like this:
Pololu - 0.1" (2.54mm) Crimp Connector Housing: 1x2-Pin 25-Pack


You’ll also need the crimps:
Pololu - Female Crimp Pins for 0.1" Housings 100-Pack

I'm glad you think so, because that's exactly what I bought.
