EUB --Blondie

[scojack]

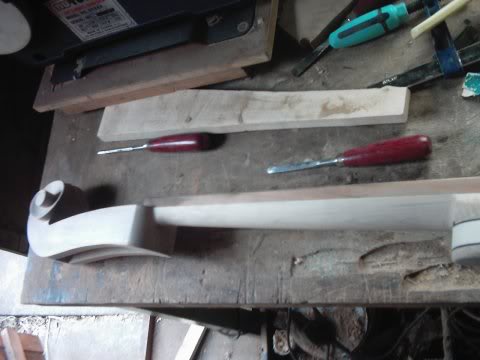

Carving the neck....

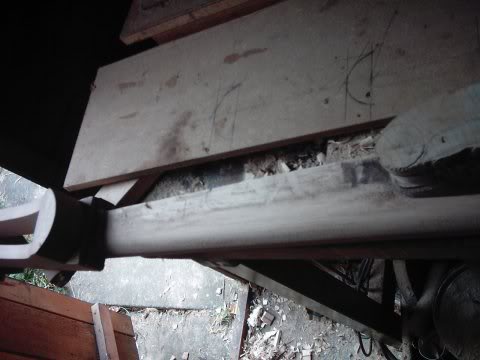

I trace out the neck section on a board, then draw in a 60 & 30 degree tangent. This is transfered to the neck and both sections taken out, then the whole thing is rounded off.

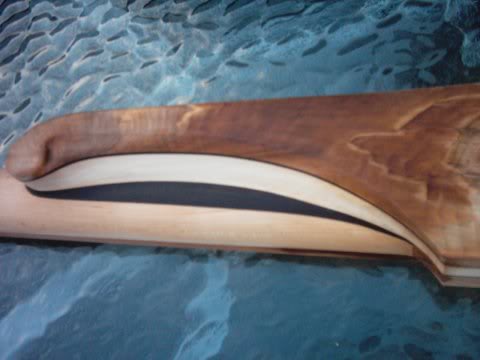

Hogging out the top 'horn'.

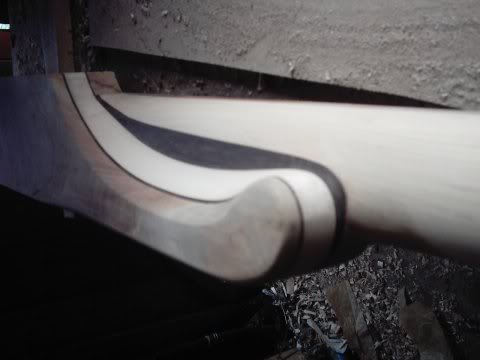

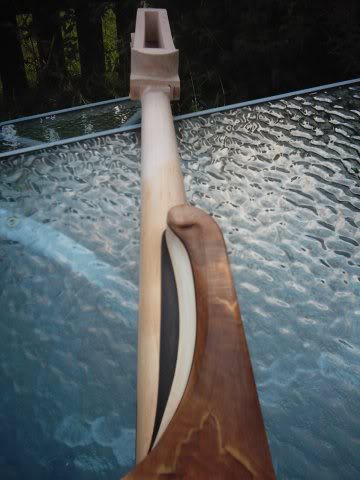

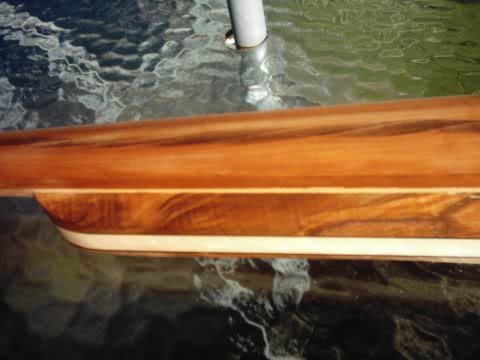

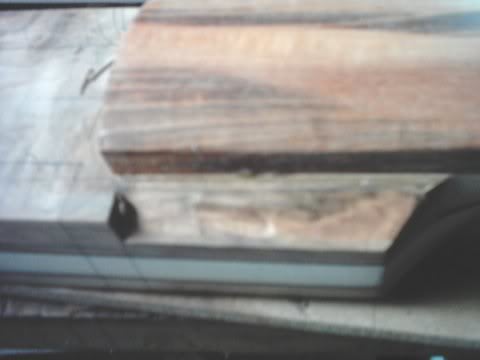

There is a 7mm sandwich of rosewood between the neck & body wood which is carved as part of the neck.

It raises the FB above the body and i thought it would look cool.

Sorry about the poor photos ..it was getting dark!
Still bit of tidying up to do, but you can see what im trying to achieve



[scojack]



[trayner1]

I am currently masturbassing to your work. I so wanna EUB right now.



[scojack]

Thanks trayner
Wouldn't go doing that near any live electrical appliances



[scojack]



[LGT]

Beautiful work Ian.



[scojack]

Thanks m8, appreciate it
Further News ... Have had an enquiry from a very good DB player here in the UK about a possible commission for one of these beauties...so im dead chuffed (happy)



[rgarcia26]

u are blowing my mind ur EUB is amazing, mine isnt looking that good, but I'm happy with my results for now… Im working on the action setup right now, I will take some pictures today to show you



[scojack]

u are blowing my mind ur EUB is amazing, mine isnt looking that good, but I'm happy with my results for now… Im working on the action setup right now, I will take some pictures today to show you

Thanks m8!
Oh ..... i'll pop over to the dark side later for a look



[rgarcia26]

Thanks m8!
Oh ..... i'll pop over to the dark side later for a look

Hey jack or (should I call you sith lord jejeje), Im already thinking on the next project Lol… I was wondering if it worth to make my own Fingerboard I can find a Double bass FB for between $70 and $90, considering ebony prices and the amount of work and precision required for that job, it makes me wonder



[scojack]

Yes i know what you mean, if i remember correctly there is only about £20 difference between a pre-machined FB and a large piece of ebony from David Dyke here in the UK. Not really worth the bother trying to plane your own TBH.

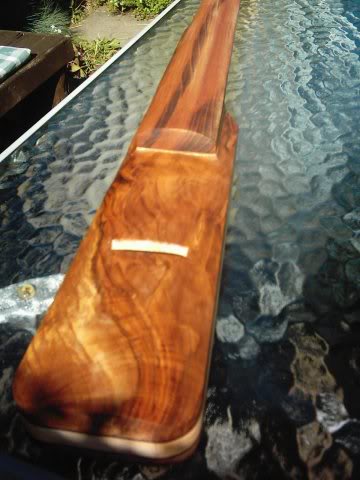

Trouble comes when you want something a bit different like the Goncalo Alv i used on this one, had to plane this myself but hey i enjoy the challenge.



[scojack]

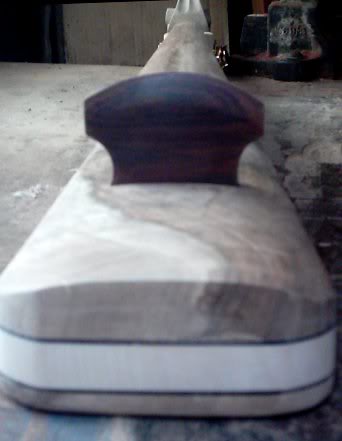

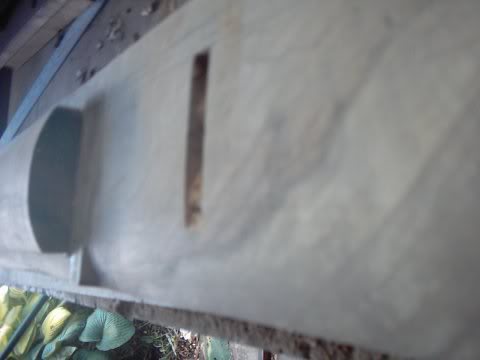

Fair bit of carving to do..
I want the FB to feel higher from the body, so i want to carve a slope down from the FB
to the edge of the body wings.

Starting on the smallest side first.

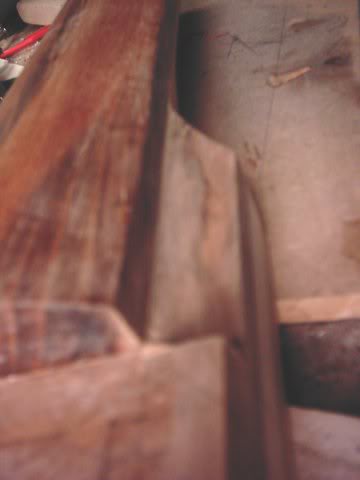

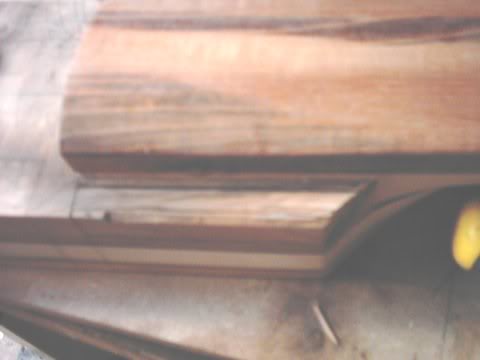

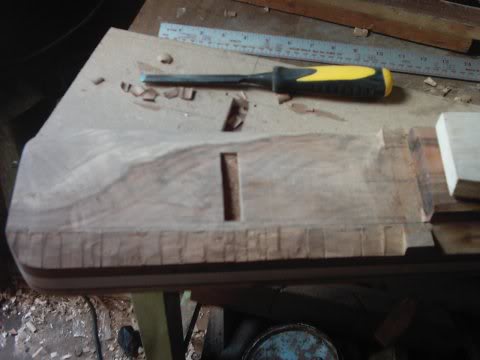

Roughing out a bevel.

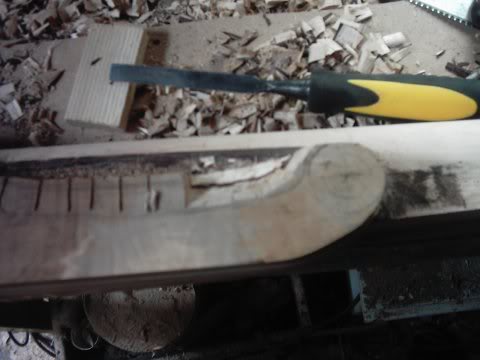

Gouging out to make concave ..

Step 1 done



[scojack]

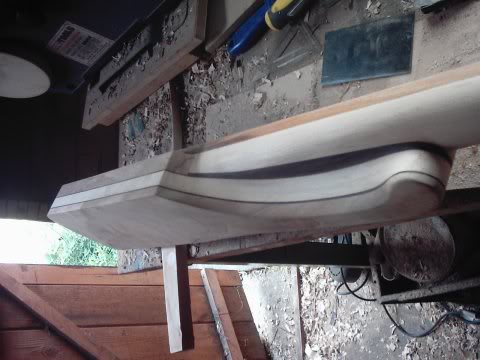

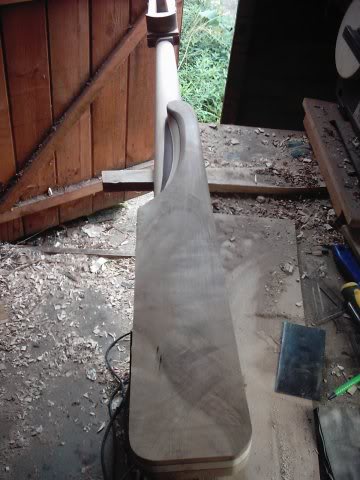

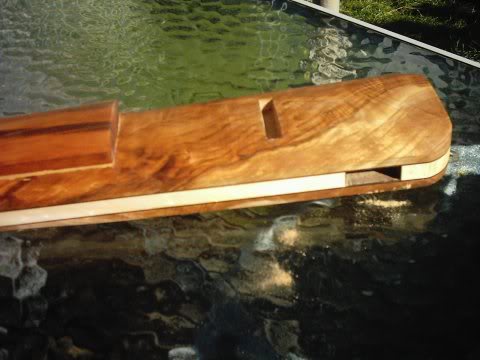

One side done

Hogging out .

So near ....but ran out of time, have to leave the last wee bit till next



[scojack]



[scojack]

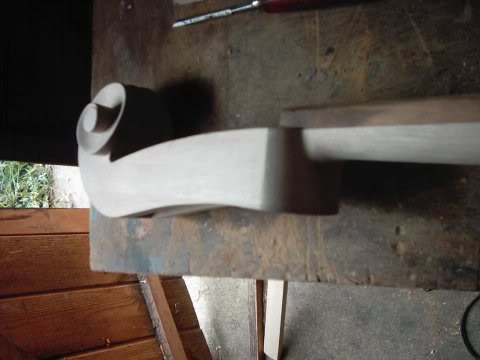

Finishing off the last wee bit of the pegbox and generally tidying up.
Decided to reshape the pegbox..looks much better i think ..



[s_mcsleazy]

wow.

and your in scotland right



[scojack]

cheers mcsleazy
aye central



[s_mcsleazy]

remind me if i ever have a spere couple bob lying around one day for you to make me one

every time i ask to try a upright in the stores i get thrown out



[scojack]

Using the last of my scrap cocobolo for the bridge.
It wont be so tall when i set it up ..eventually.

Plan is to put a transducer underneath.



[LGT]

Me likey.
