Factorbird Fretless

#21
JIO said:

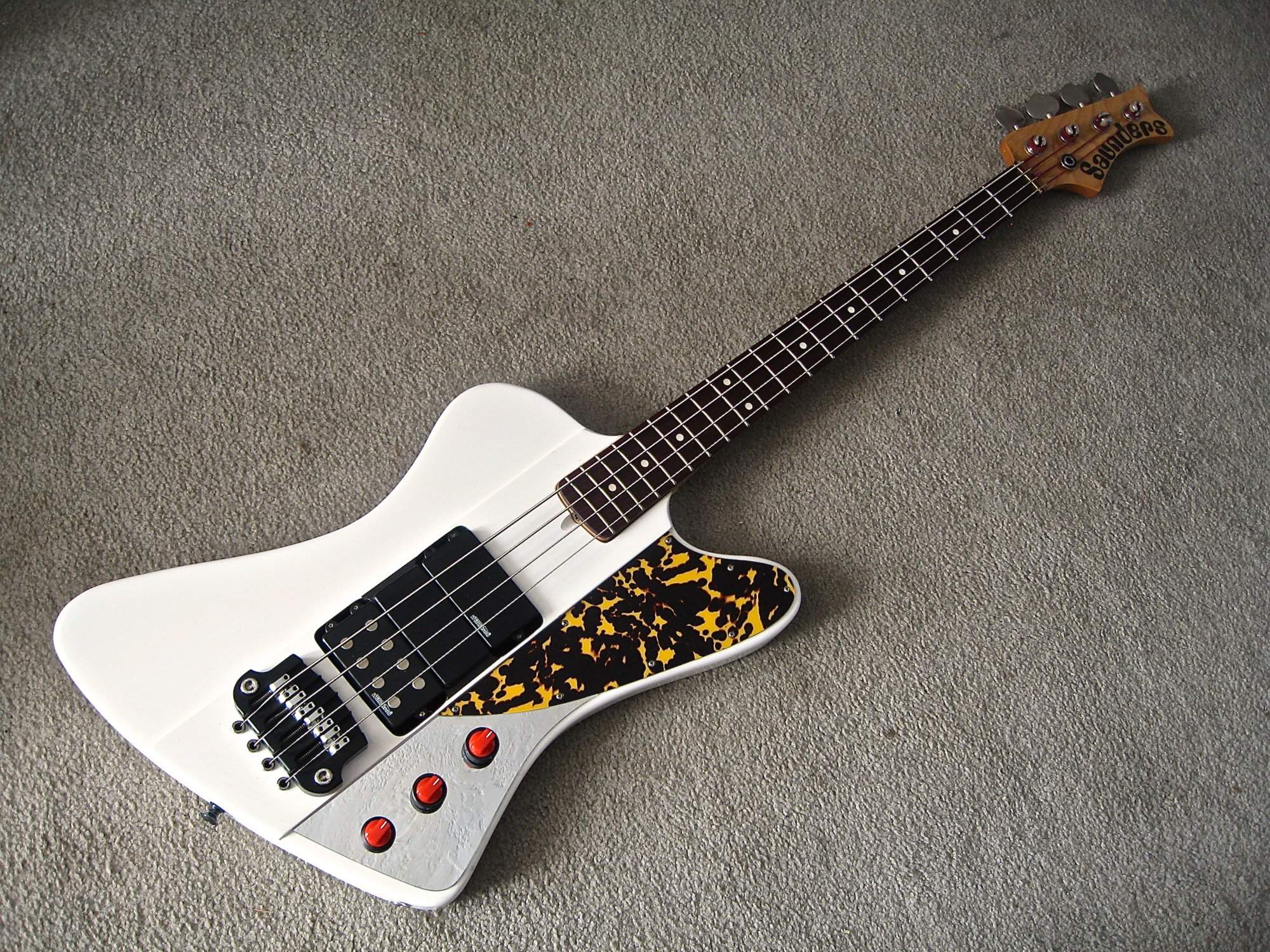

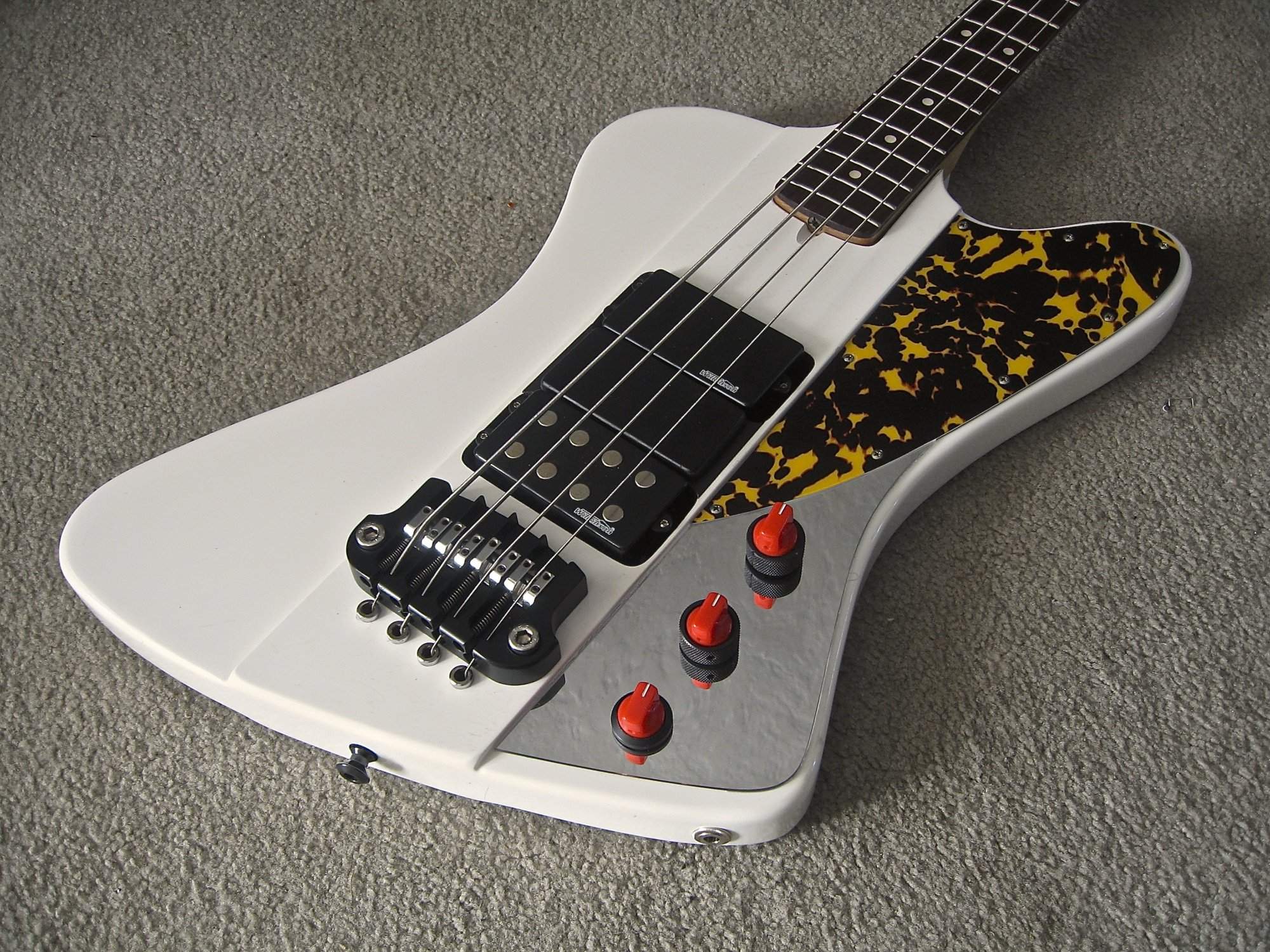

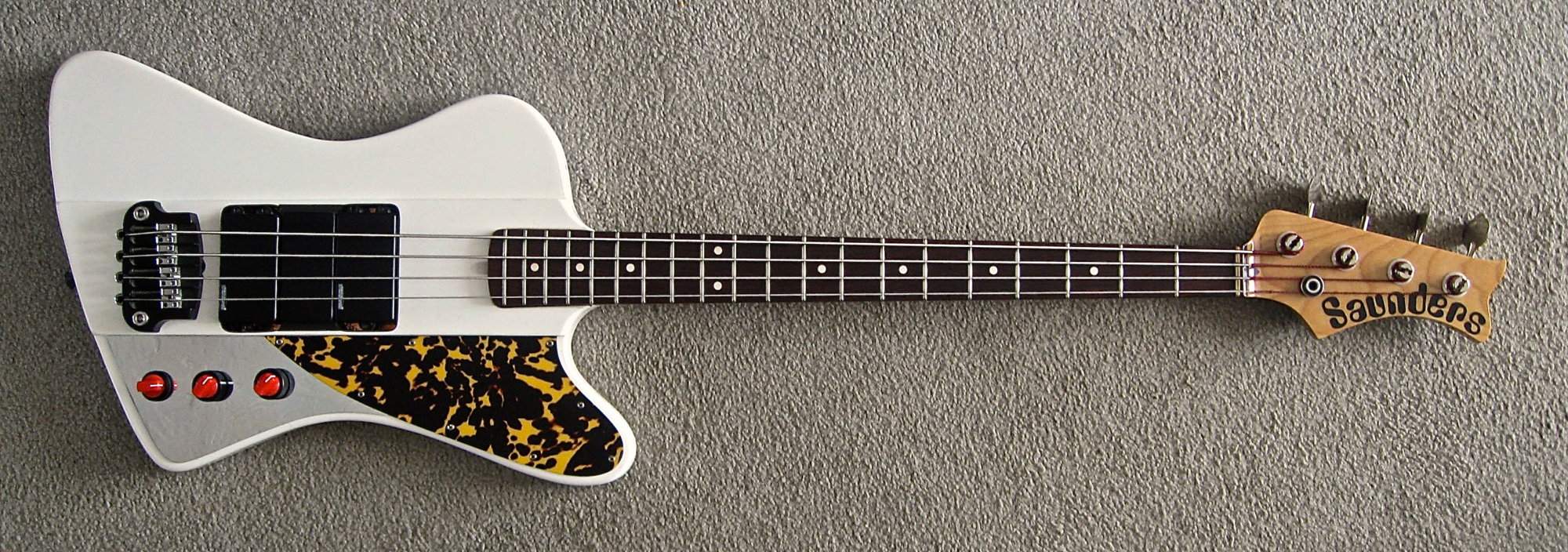

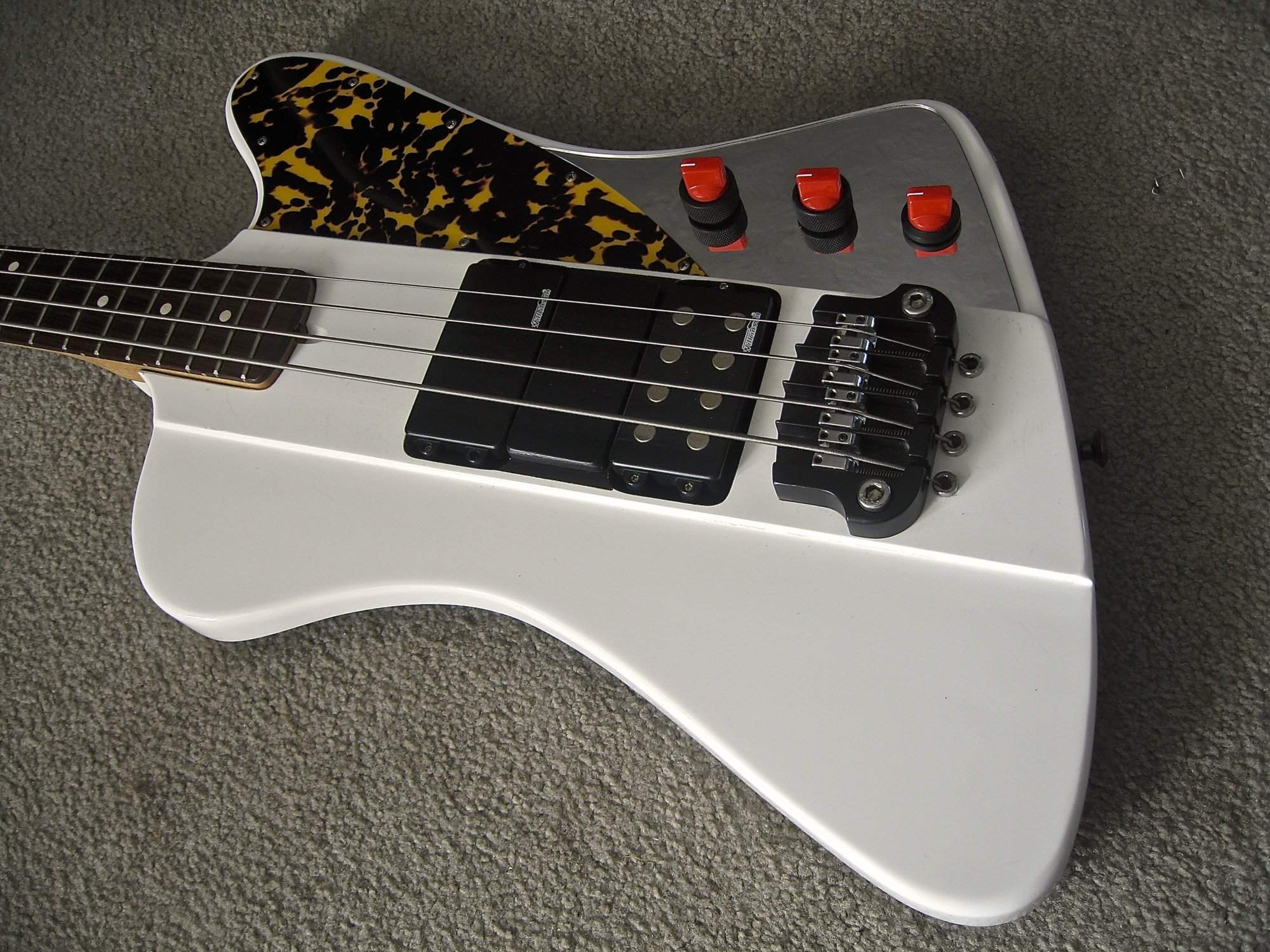

Might as well show all my T-bird related basses - this is my Sauderbird - Epi T-bird body, Wilkinson buckers, Fender/Kubicki 9v pre, Hipshot Supertone bridge (string-thru) and a late 80's Saunders P-width neck and 80's Fender small-plate big-clovers tuners. The Saunders neck was made at the just began FCS as a commission to get his biz started. Saunders made a couple of basses but I've never seen one. The biz either never went into production or just ran out of steam. I bought it for $80 (I think) NOS on eBay, taking a chance and wow- it's been a great neck! (I cut a brass nut for it) This bass roars like a Factor - it's h-u-g-e :D... a total R&R animal!

View attachment 2796600

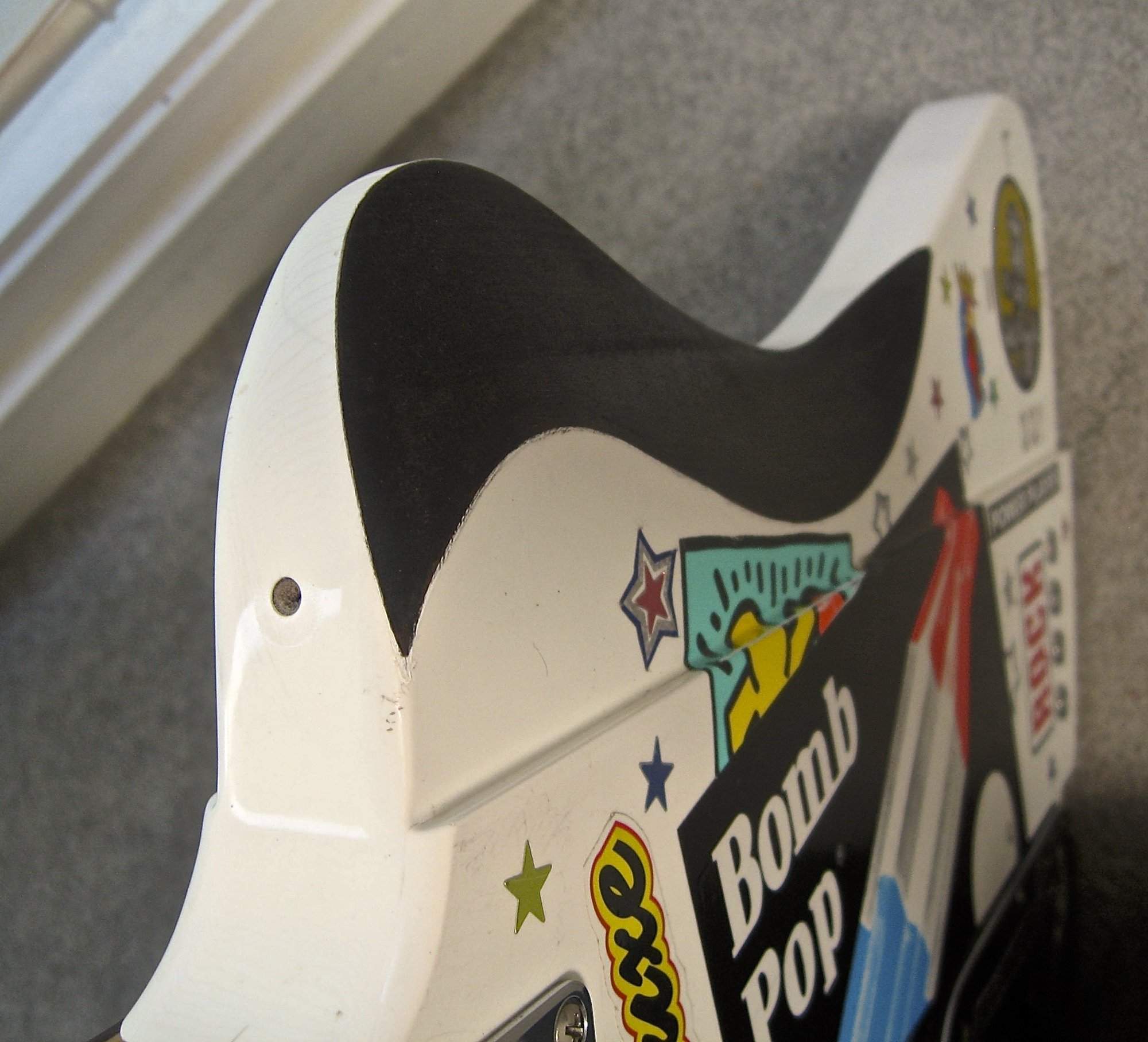

I carved the back of the upper horn for ergonomics like I did the FB.
View attachment 2796603

View attachment 2796613

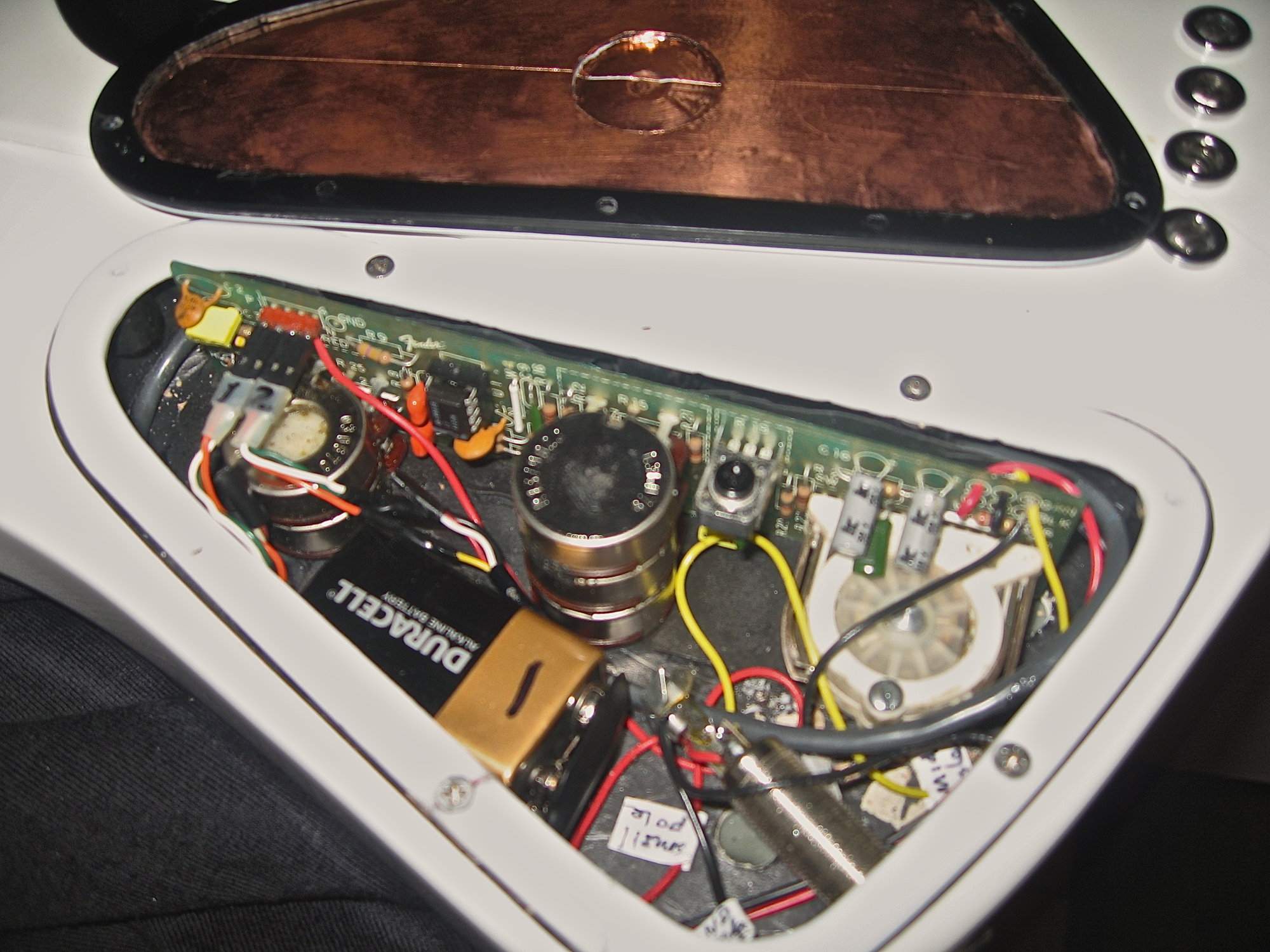

Again, you can see how I adapted my control cover to accommodate the high-rise circuit board. Sort of like when Magnum would drive Robin Masters Ferrari and his head was higher than the roof! (removable roof panels off!) :laugh:
View attachment 2796615

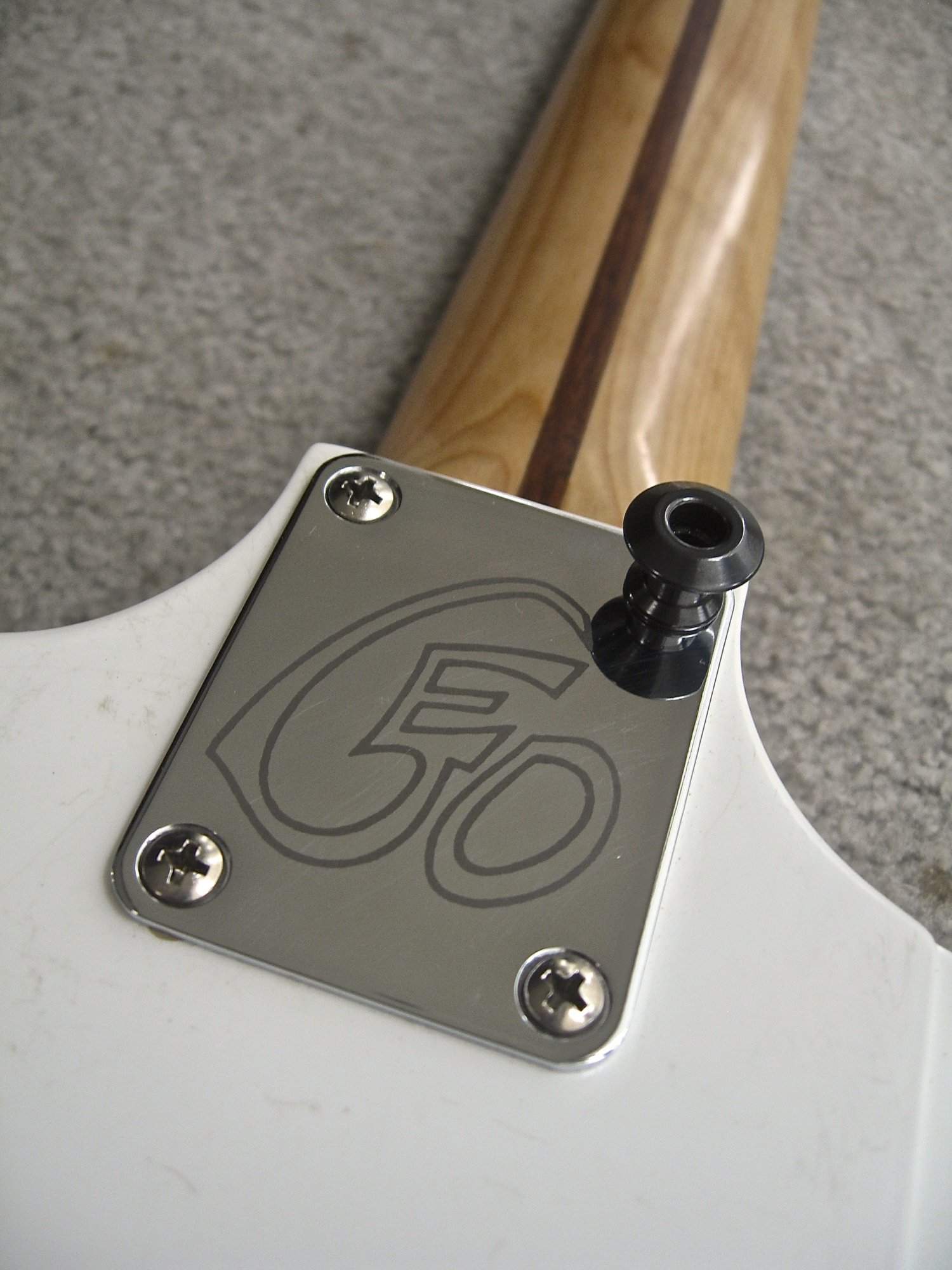

A friend etched a GEO logo I came up with on the neck-plate
View attachment 2796617

View attachment 2796624

View attachment 2796625
Click to expand...
Hey Jio what's up with that pickguard? My dad and I have been trying to find a piece of that leopard-tort large enough to fit a '72 style tele and are coming up extremely short.

  • Like
Reactions: JIO
#22
T_Bone_TL said:
Hmm - so being the isolated trombone-playing hick I am at times, I had seen that Kubicki headless bridge/tuner setup before but never knew what it was. I suspect I though it was a Steinberger, until I looked at Steinbergers and said "But this is not what I remember??"

With a patent date of 1986, it should be out of patent protection since roughly 2006?
Click to expand...

Yes, the Kubicki tuner/bridge is unique as far as headless basses go. Before I got my parts Factor, I tried to buy a bridge from Phil which was on his parts sale-list, but at that point he told me he only had enough to finish the basses he had and wasn't likely to have more produced. I didn't know it then but I think he was winding it down due to his health problems at that point. It worked pretty well but was a bit fussy sometimes and at one point I sent my very-used '86 bridge/tuner to him and he replaced one of the wheels which was slipping. With 2017 technology, a new version could be made and probably a bit better.

  • Like
Reactions: Fab Superlative, son_of_mogh and T_Bone_TL
#23
scourgeofgod said:
Hey Jio what's up with that pickguard? My dad and I have been trying to find a piece of that leopard-tort large enough to fit a '72 style tele and are coming up extremely short.
Click to expand...

It was one I got on eBay from a British pg company (the sheet of plastic) - I cut it myself. They are probably still there and they had a lot of wacky stuff along with the usual suspects. Go on eBay and type in "pickguard blanks" and hopefully they will come up. Not sure if they will have a sheet large enough for a Tele Bass (I've made a few of those also) but it's worth a try. Good luck!

updated: Blank Pickguard Sheet scratchplate material 44 x 29cm various colours 1 3 4 ply | eBay

Last edited:
As an eBay Associate, TalkBass may earn a commission from qualifying purchases.
  • Like
Reactions: scourgeofgod
#24
JIO said:
I get frequent requests to post details about this bass so I decided to create a thread for it so I don't keep high-jacking threads! It does have a story and this is my chance to extrapolate - I'm always welcome to any comments or questions. :)

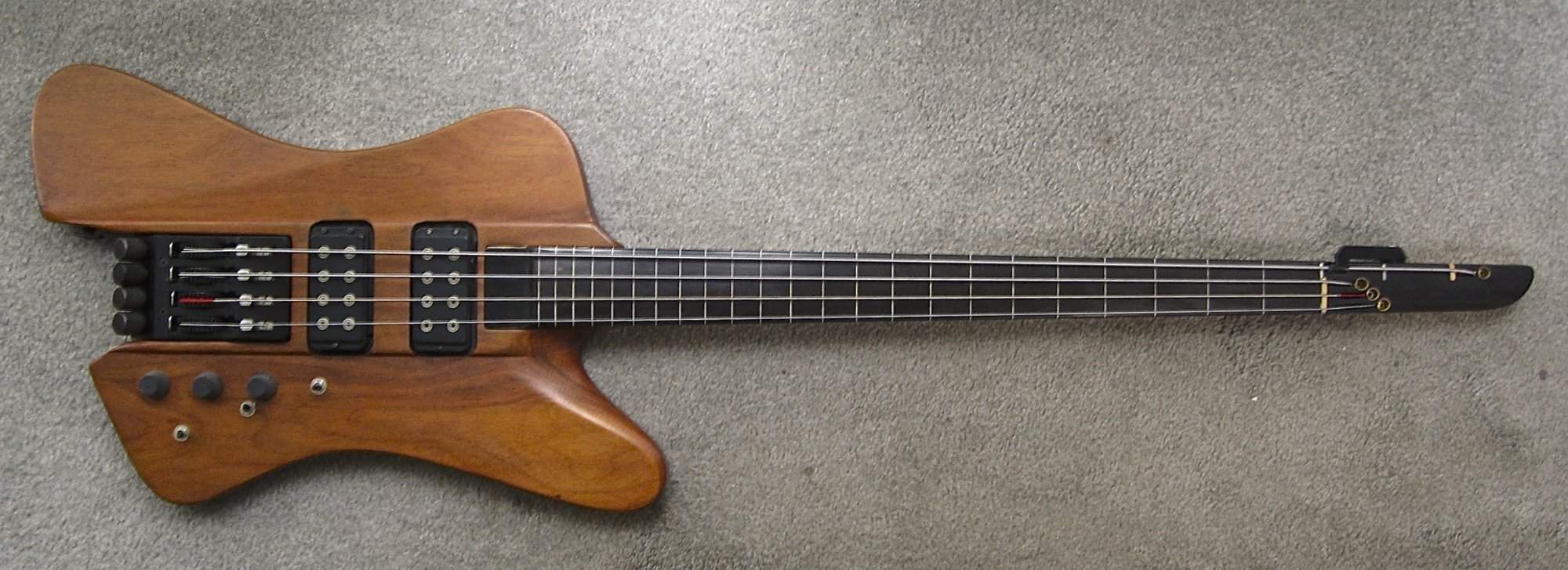

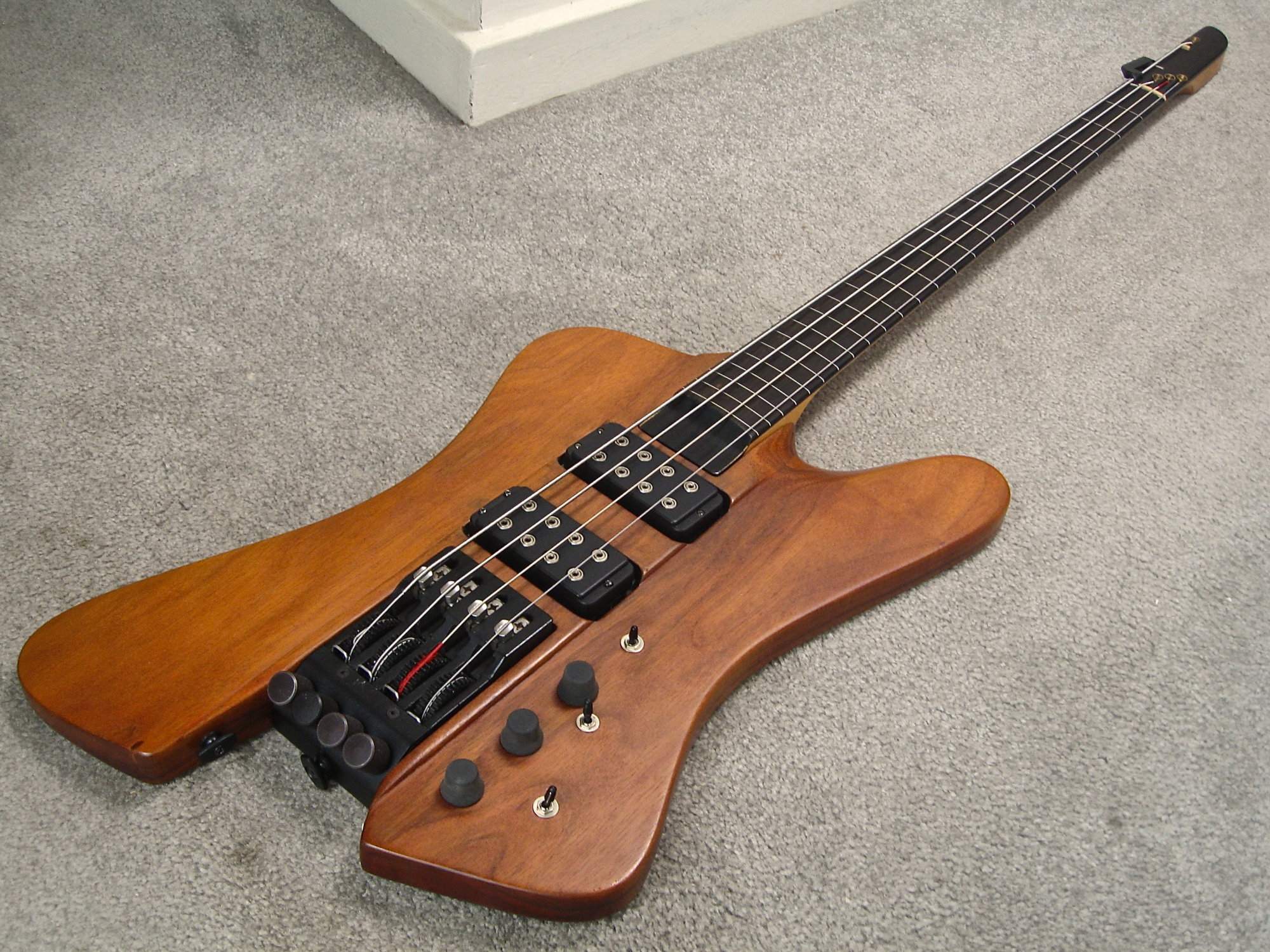

I've owned a few Factors over the years and bought this lined fretless neck from Phil in '94 for my '86 Ex-Factor. (since sold with its original fretted neck) The unique Kubicki tuner/bridge was off another 'parts bass' Factor I found on eBay long ago. I've been a T-bird player since the 70's and own a '64 II which I still perform with. As a dyed-in-the-wool T-bird devotee I wanted to make my own bass based on one. So this was my first foray into creating my own bass in the late 90's. (in this case a hybrid) I used exact specs from my '64 making this 3 piece Koa body with help from a skilled woodworker friend. As far as ergonomics - my version is all about that and when I design basses it's a top priority always. It's currently strung BEAD. Needless to say, no neck dive.

View attachment 2796330

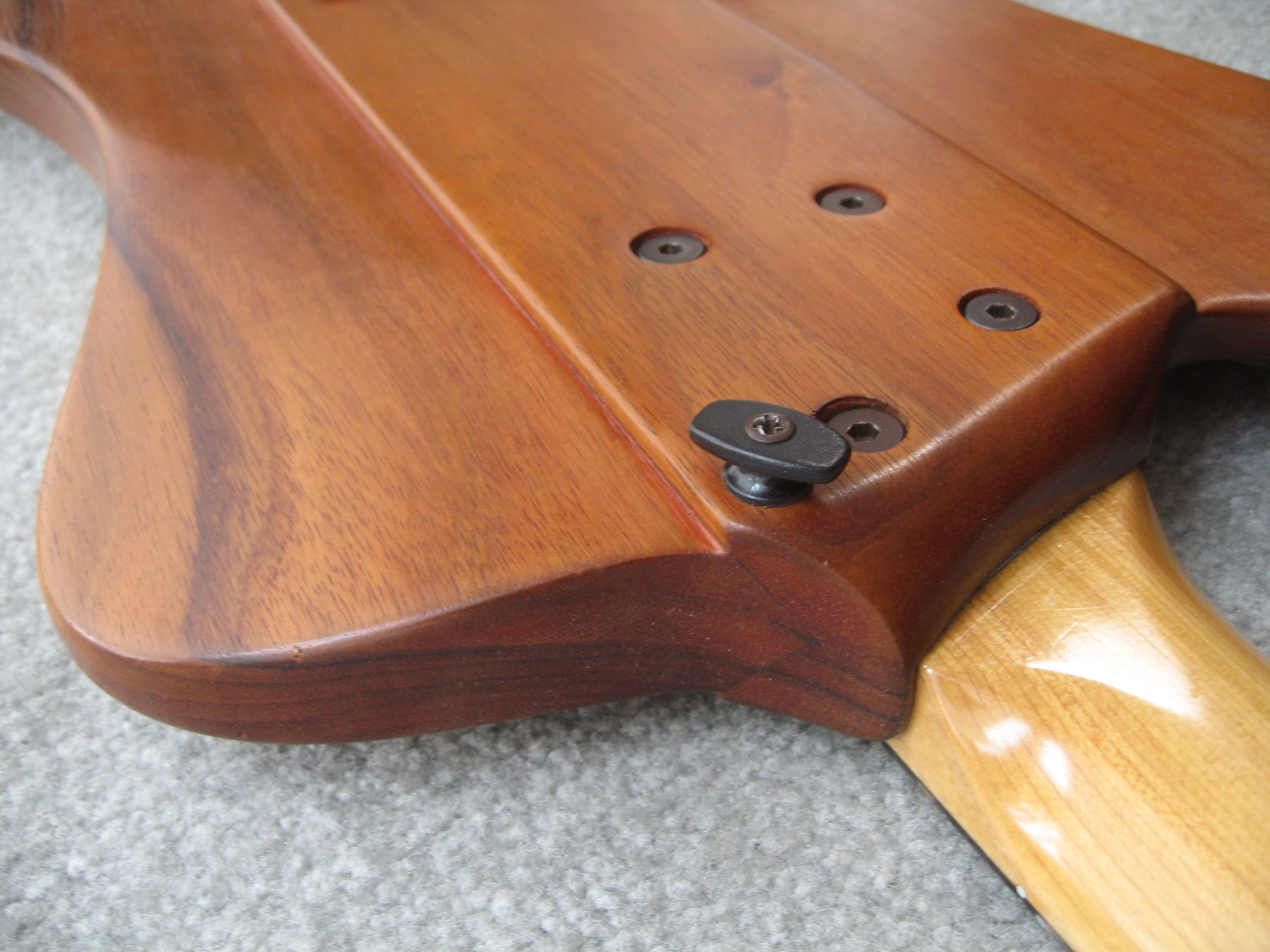

In this detail you can see the V-joint which mimics my '64 construction. The wings are tapered to match my '64 - unlike any T-bird since.
View attachment 2796339

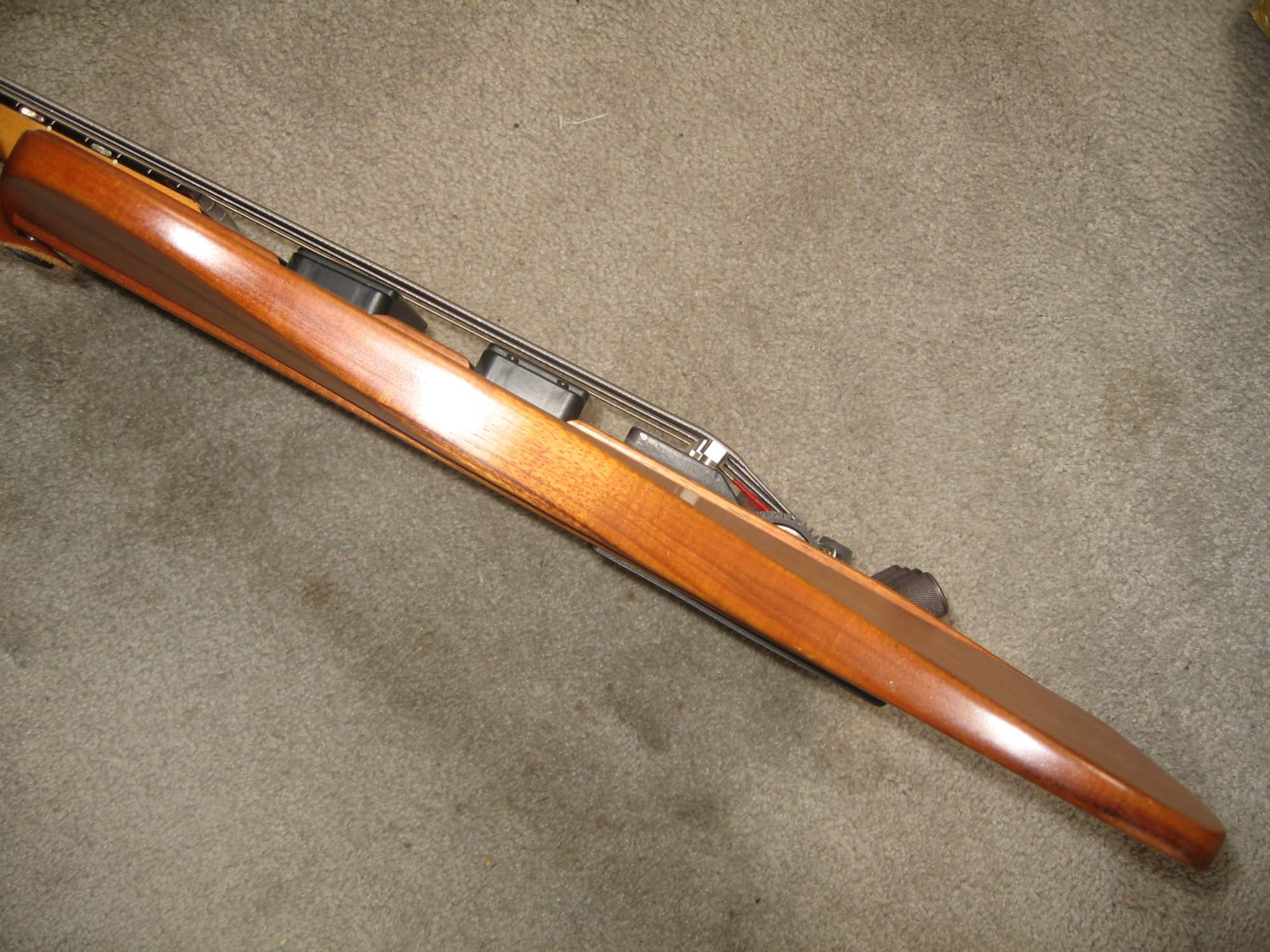

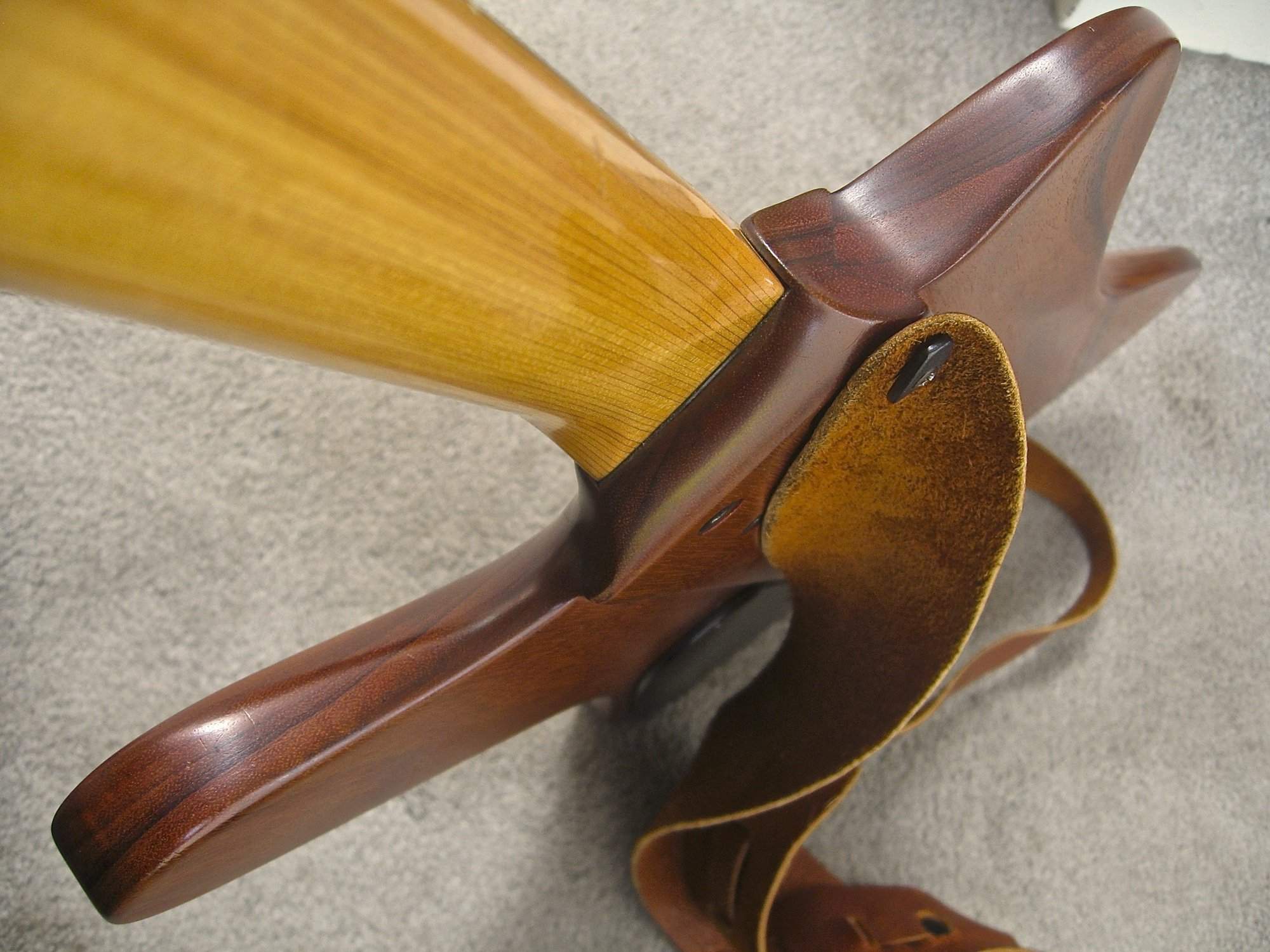

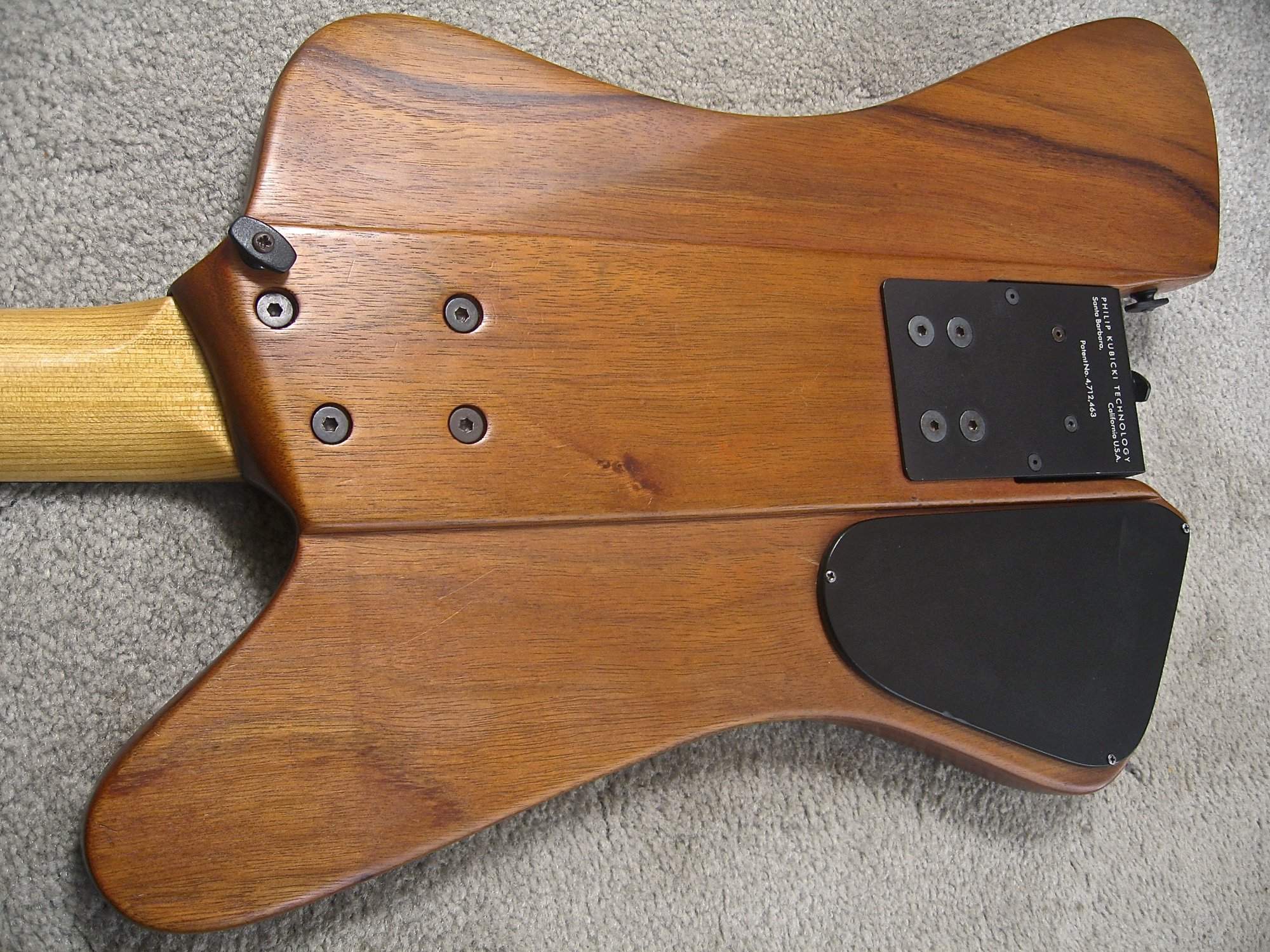

I scalloped/beveled the upper back horn as I ride my birds with the upper part of the body against my body. T-birds were not designed with ergonomics in mind and I've adopted a few ways of comfortably playing them. I scalloped the lower neck area to help getting to the higher frets w/o changing the original outline of the body. T-birds are very restrictive there. I also radically tapered the lower bout as seen in this and the next pics.
View attachment 2796321

View attachment 2796322

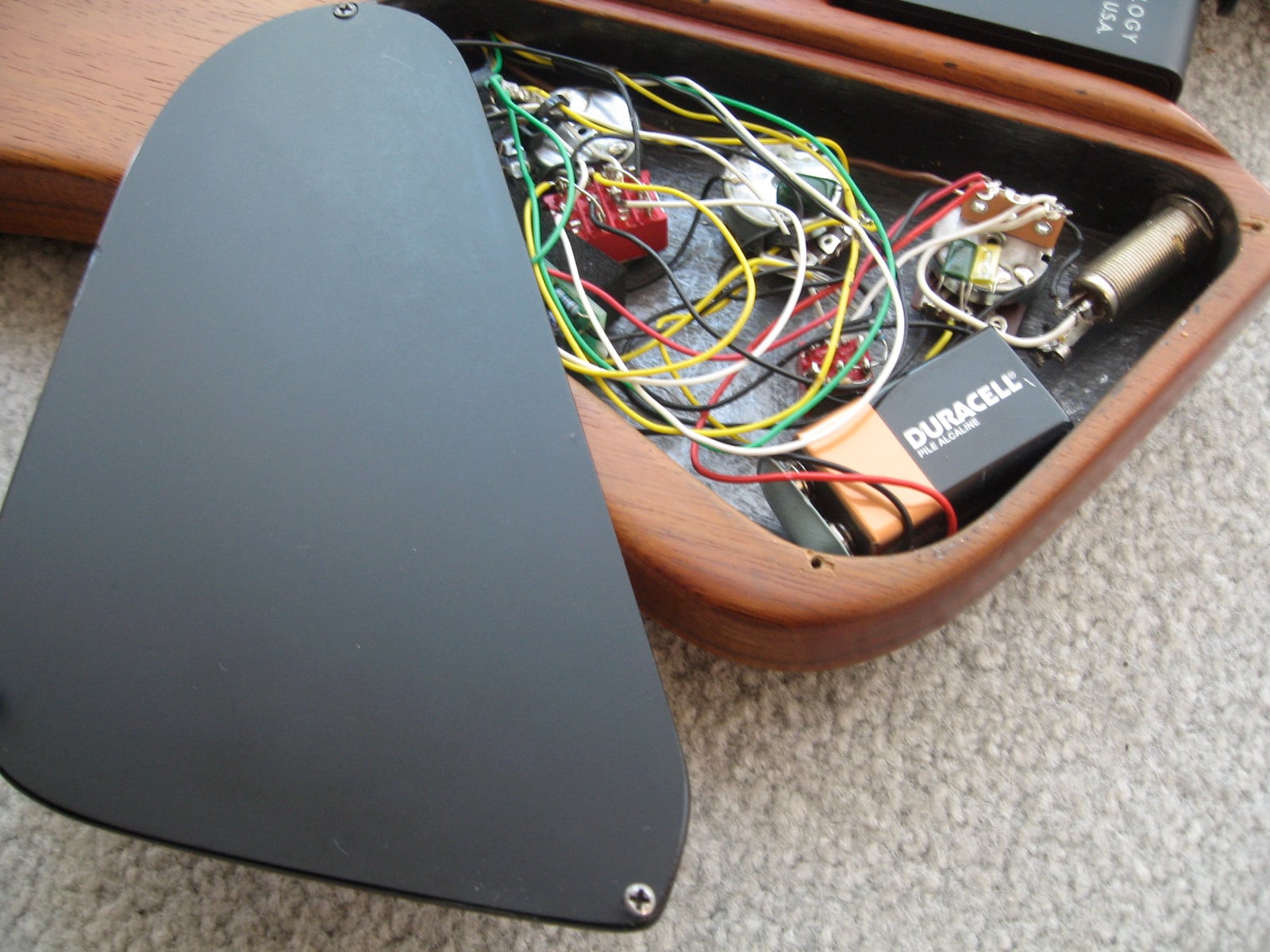

The FB started out with EMG J pu's/pre and over time I went to Wilkinson buckers and finally to G&L L-2000 pu's/pre. Had to create a non-recessed control cover that allowed space for the deeper electronics as the body like my '64 is very thin.
View attachment 2796320

View attachment 2796328

View attachment 2796331
Click to expand...



Love the guitar but my hand likes a headstock.

The popsicle stick neck is gorgeous. Always liked those, kept one from years ago from a Tiesco guitar. Put it on a partsCaster.

#25
Ross W. Lovell said:
Love the guitar but my hand likes a headstock.

The popsicle stick neck is gorgeous. Always liked those, kept one from years ago from a Tiesco guitar. Put it on a partsCaster.
Click to expand...

? - are you referring to the Kubicki Ex-Factor neck? :cautious: It's the furthest thing from a Teisco guitar, although - the multi-lam rock maple construction Phil Kubicki used was not revolutionary as it was used on those inexpensive guitars/basses from Japan in the 60's. Maybe that was what you were referring to...

#26

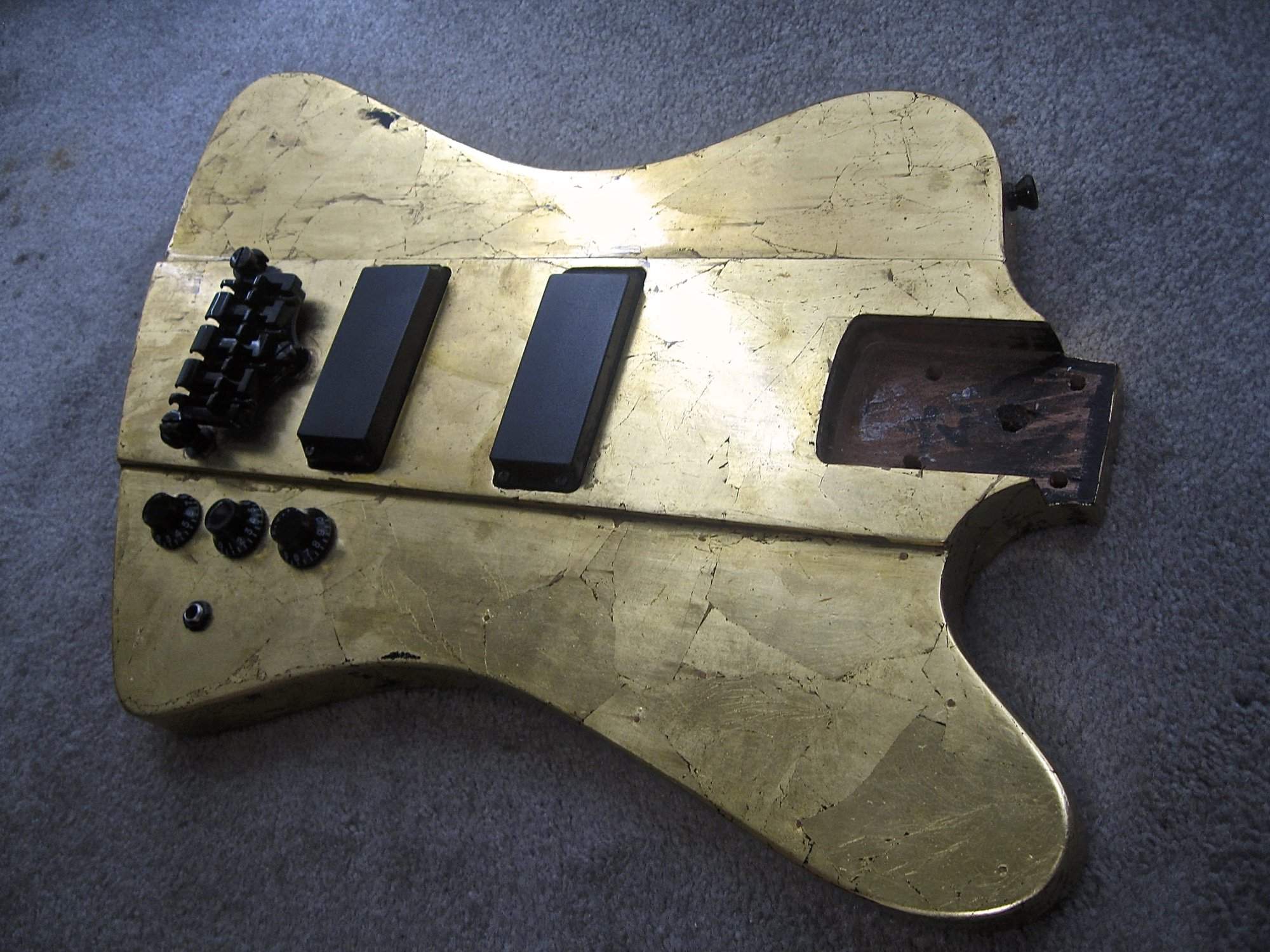

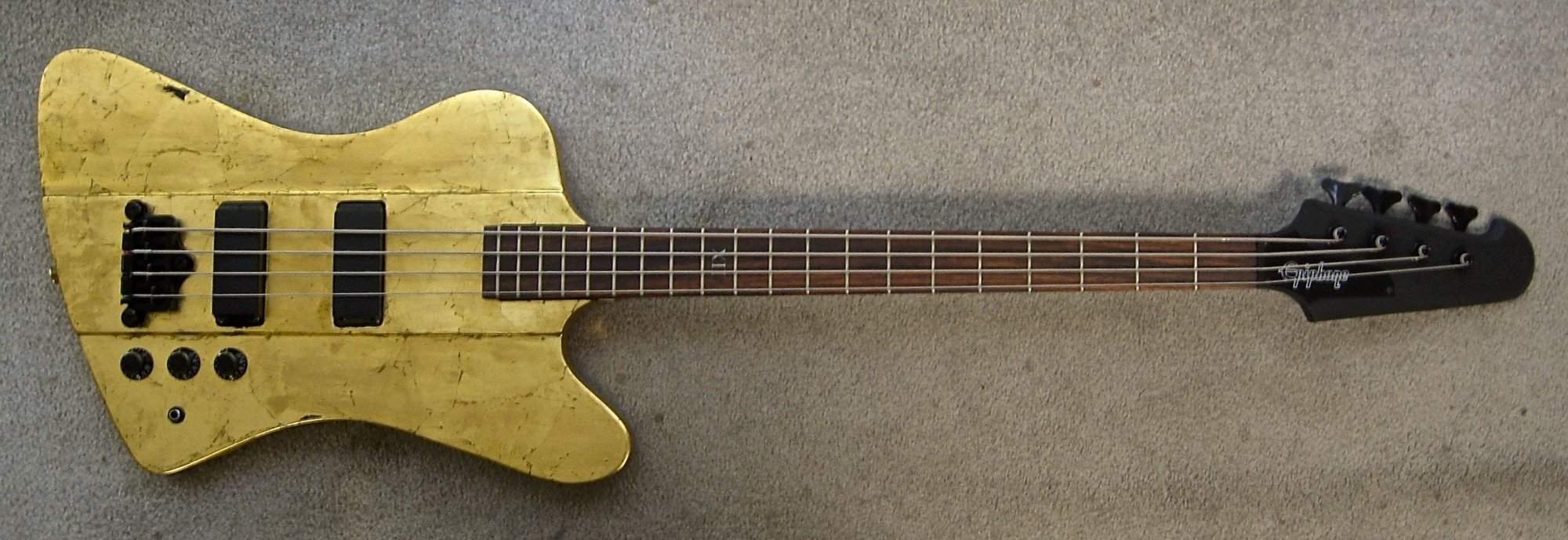

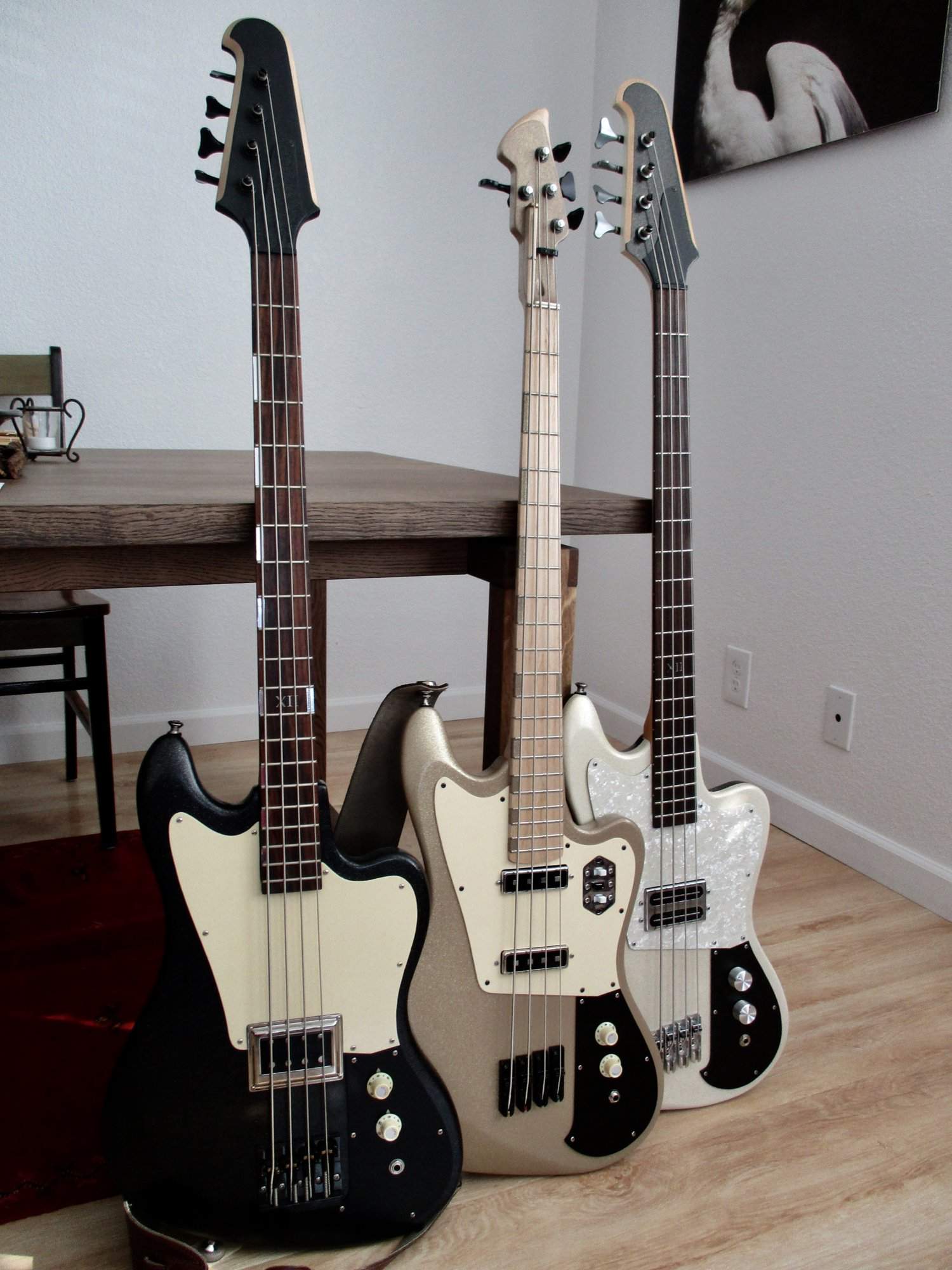

Some more recent T-bird/Kubicki reference builds - Teiscobird - L, TeiscoT45bird - R (both have Epi Goth T-bird necks) The middle one is in progress and I'm developing a Kubicki-like capo for it right now. I call it the XD (eXtended D)


  • Like
Reactions: Fab Superlative, JJR58, Dadagoboi and 2 others
#29

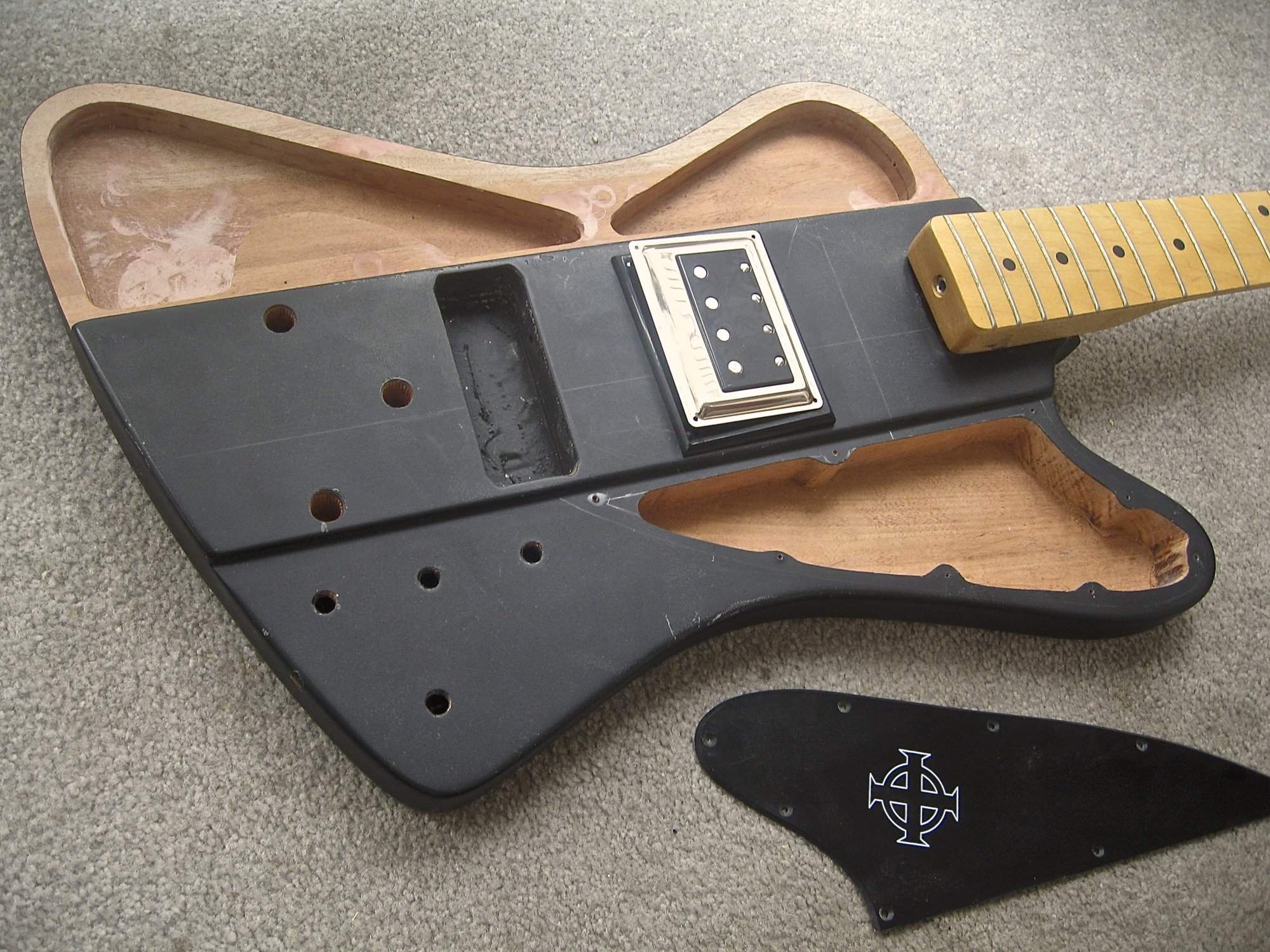

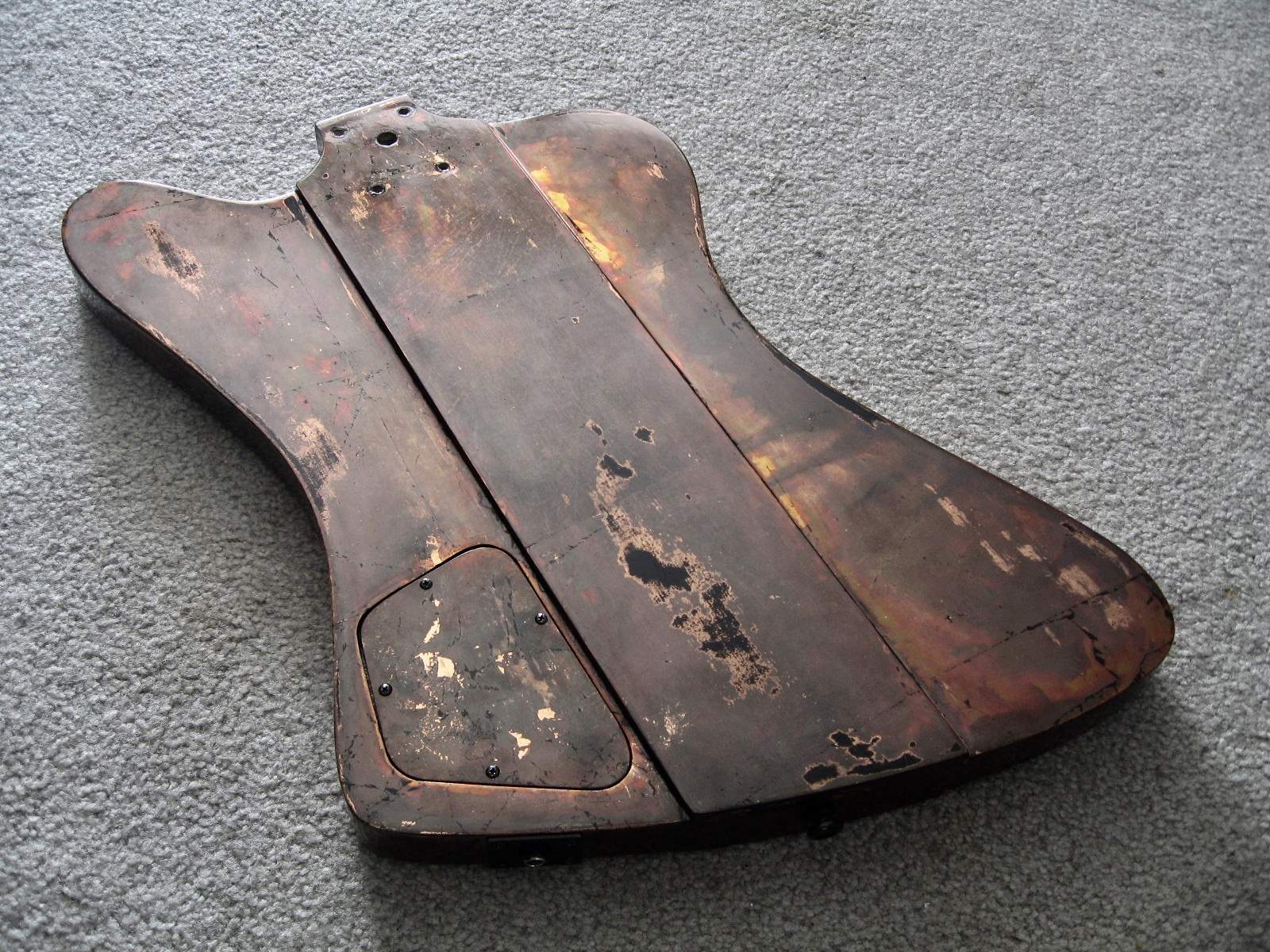

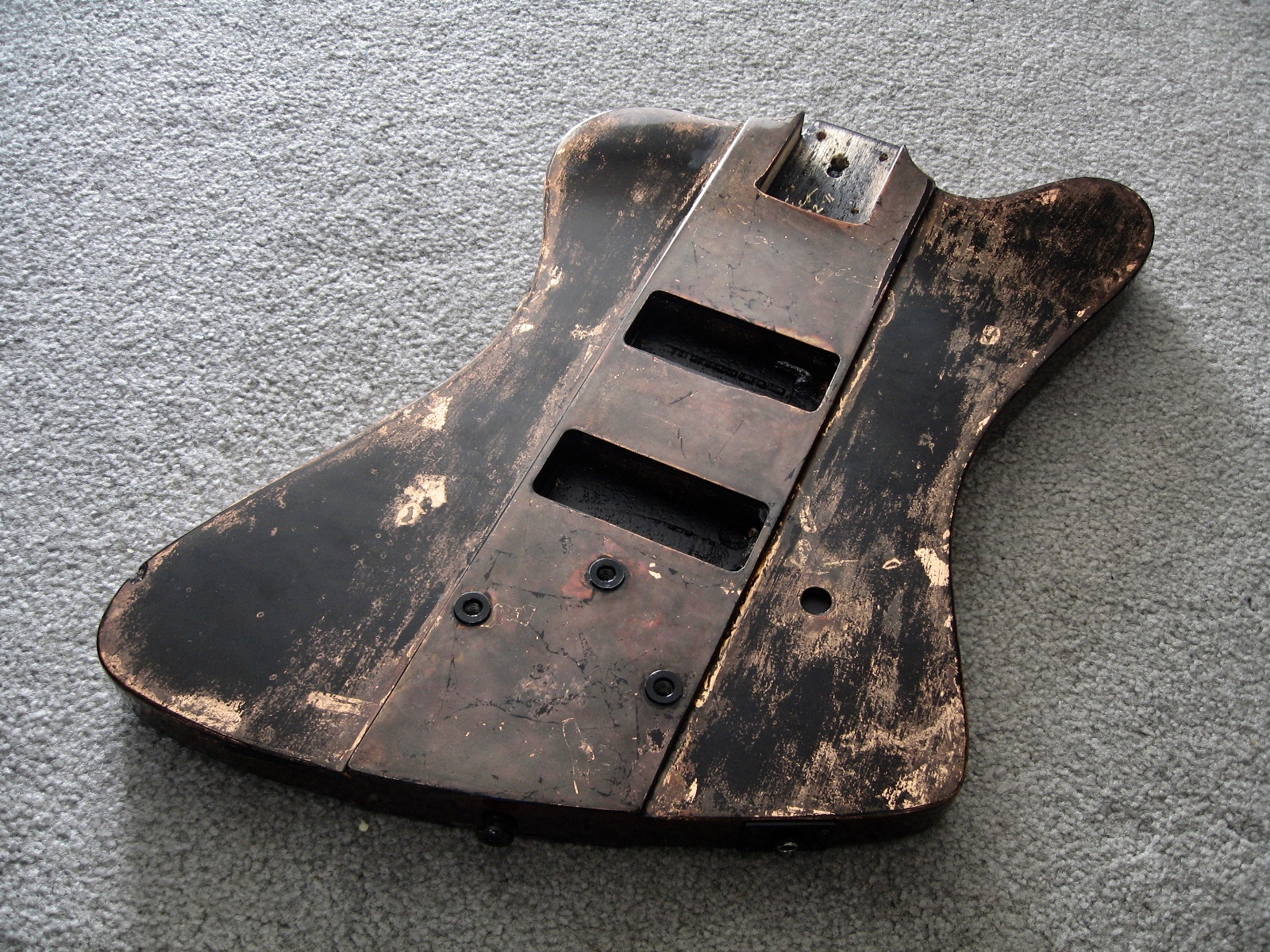

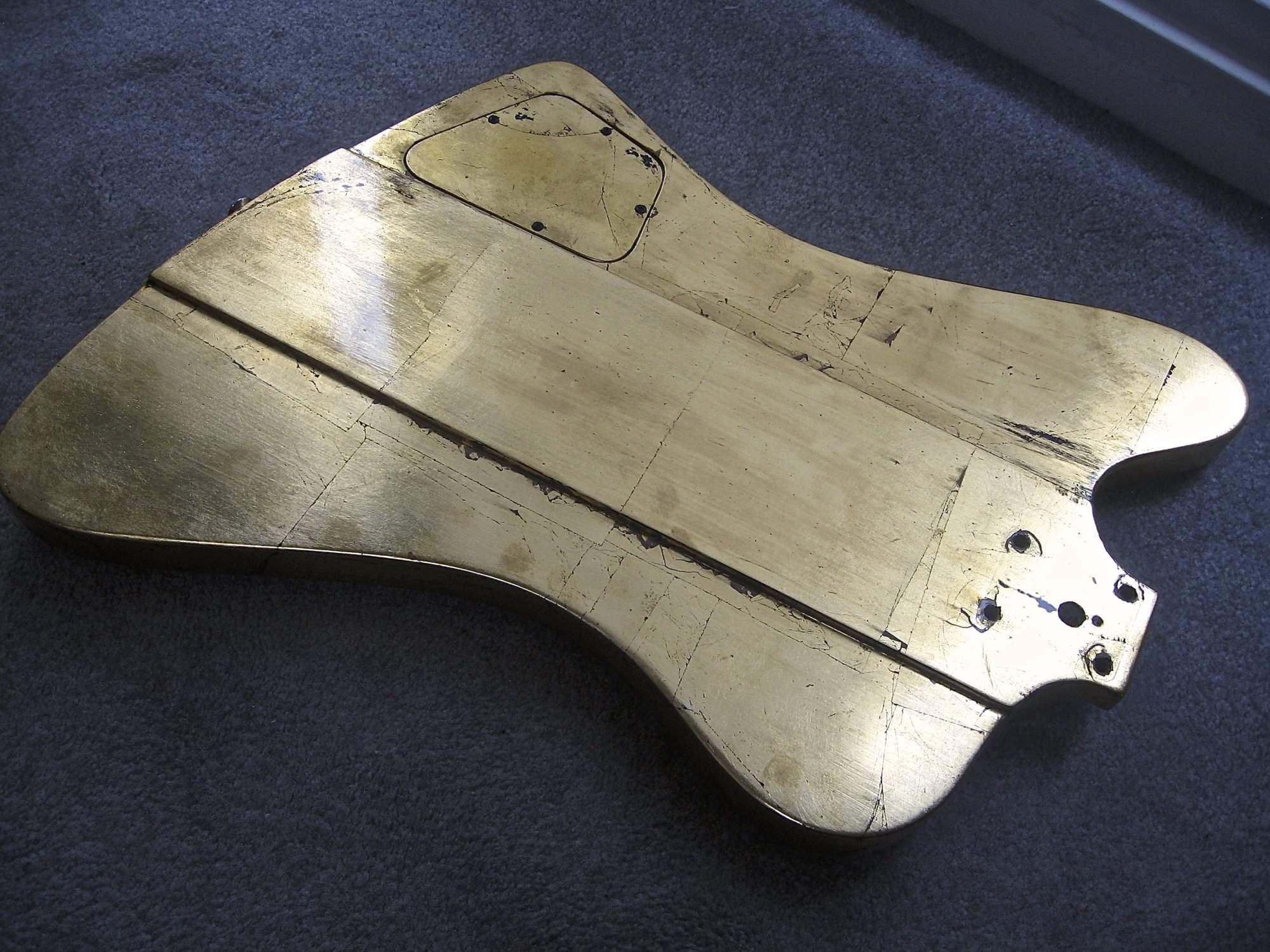

And lastly, a (stalled) project Epi Goth solid mahogany body that I routed to house an active lighting system with plans for a translucent sheet of dark brown lucite over the upper section and the space for it's controls under the pg. The Guild Darkstar PU is a consideration for it - would do two of the hot singles. Just need to get motivated to continue work on it.


  • Like
Reactions: Fab Superlative and dukeorock
#30
JIO said:
? - are you referring to the Kubicki Ex-Factor neck? :cautious: It's the furthest thing from a Teisco guitar, although - the multi-lam rock maple construction Phil Kubicki used was not revolutionary as it was used on those inexpensive guitars/basses from Japan in the 60's. Maybe that was what you were referring to...
Click to expand...



Just referring to the construction style, no offense meant.

#31
Ross W. Lovell said:
Just referring to the construction style, no offense meant.
Click to expand...

No offense taken! :) I thought that's what you meant. I was at the bar of a club my band played at last Thurs night and I ordered a scotch with one rock (ice-cube) The bartender said he didn't have a rock, and asked if one ice-cube was ok. I thought.., ok fine - not wanting to complicate matters. Later, I saw a product called SPARQ - "the original soapstone whiskey rocks"... and it's possible this is what he thought I wanted. Even in person communication can be tricky! ;)

Last edited:
  • Like
Reactions: JeffC23 and dukeorock
#34
gjohnson441496 said:
I like it. That headstock gives the bass an extra dose of WOW.
Click to expand...

The Saunderbird? Yes, I was drawn to the funkiness of it's shape, the crazy wood grain and the bold 'futuristic" graphics. Took the concept of Fenderbird to the next level! :bassist:

  • Like
Reactions: Fab Superlative and gjohnson441496
#36
gjohnson441496 said:
I was referring to the Factorbird fretless. The Saunderbird is cool, but I dig the heck outta that Factorbird especially because of the headstock.
Click to expand...

Well yah, that is the design genius of Phil Kubicki. The Kubicki Ex-Factor is an iconic modern classic.

  • Like
Reactions: gjohnson441496
#38
JMacBass65 said:
That Factorbird is simply one of the coolest things I have ever seen!
Click to expand...

:) Thanks man! A woman bass player at a show I played it at came up afterwards and asked where she could get one. This is one bass that would be difficult to reproduce, mostly because of the Kubicki Factor parts.

  • Like
Reactions: JMacBass65
