Fender Blacktop Club
- Thread starter Stranger Danger
- Start date
-
- Tags
- club
I not. I think the stock pickups are ok.

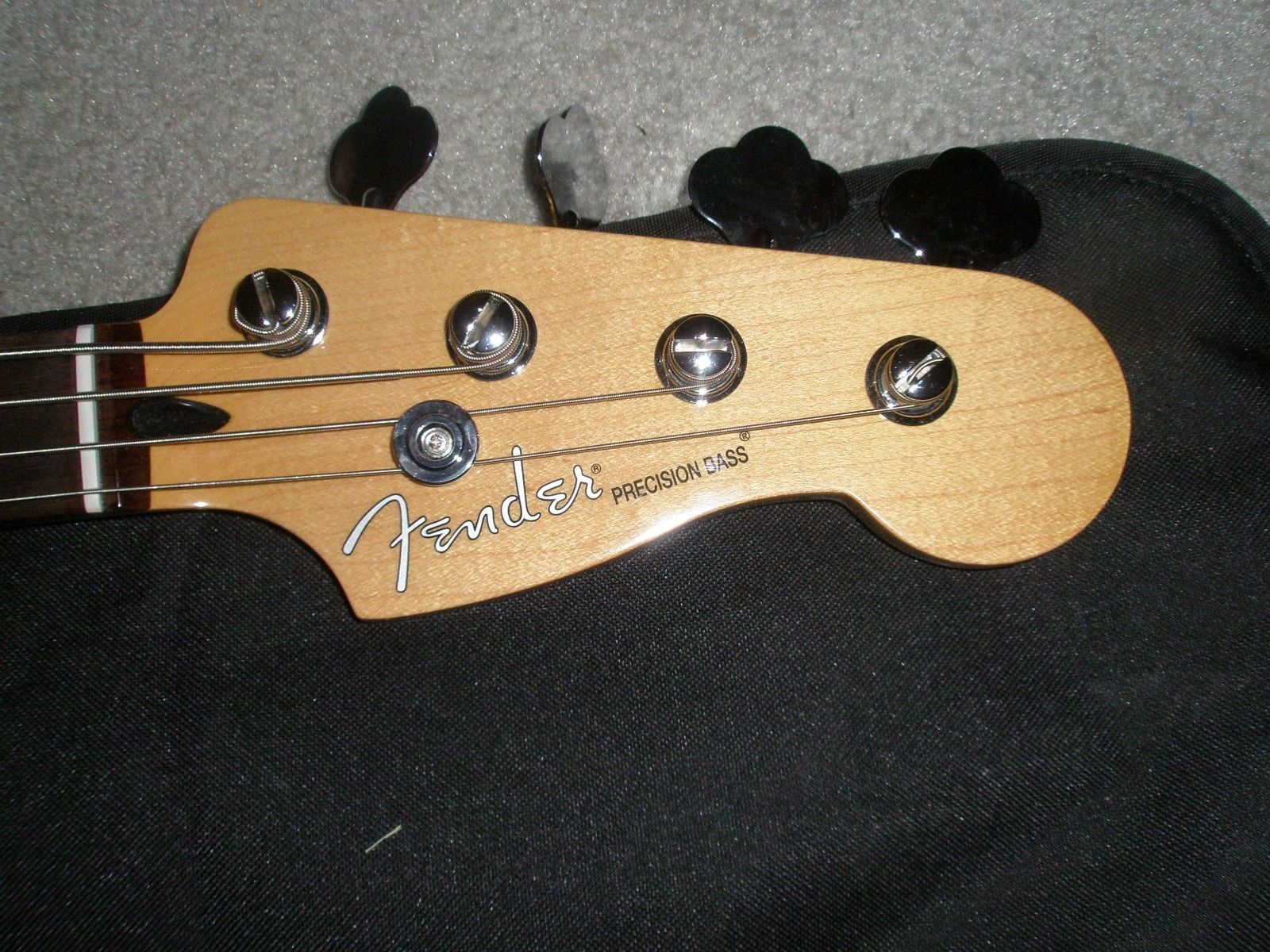

I wouldn't even think of replacing the stock pickups in my Precision Blacktop.

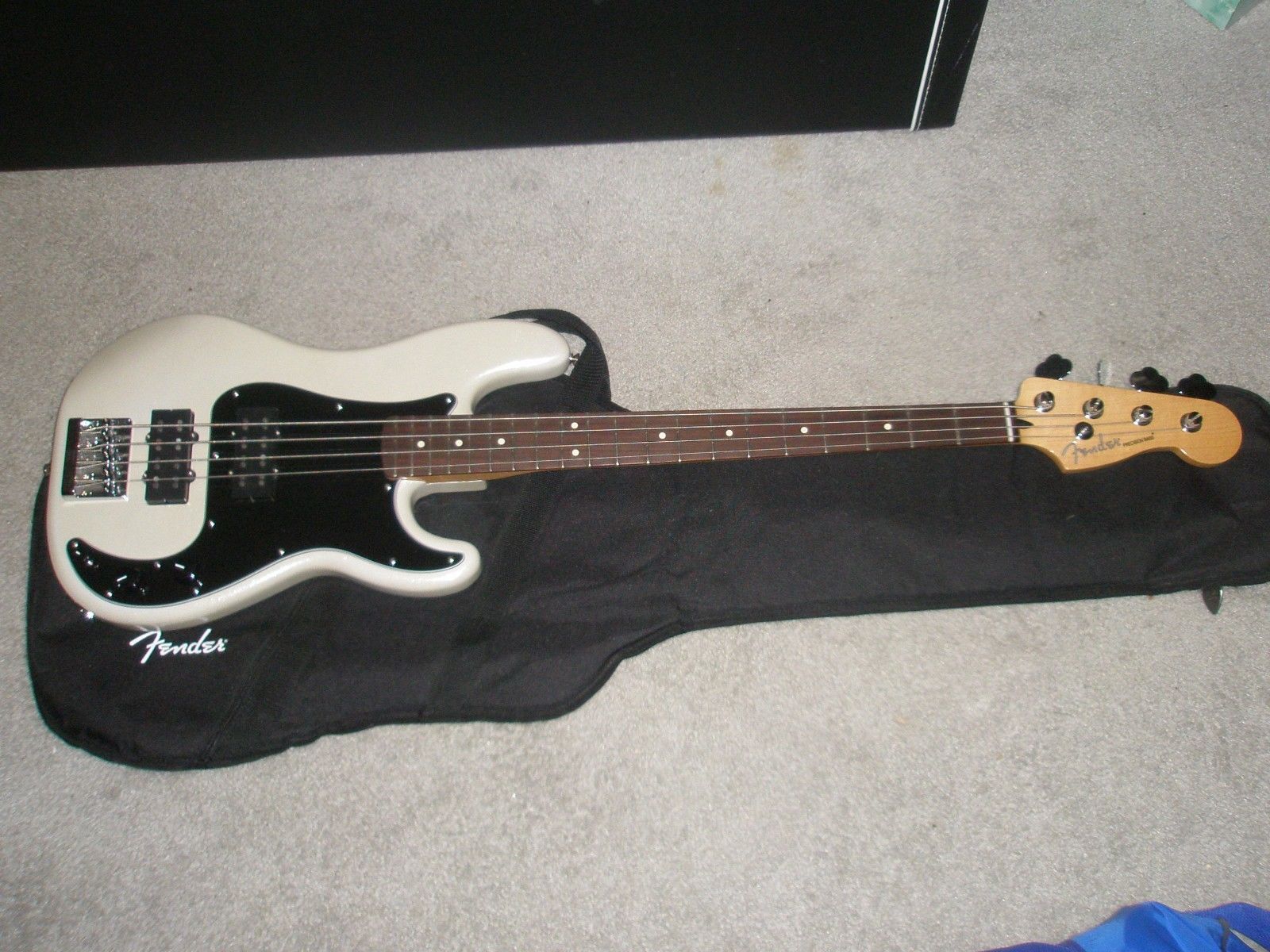

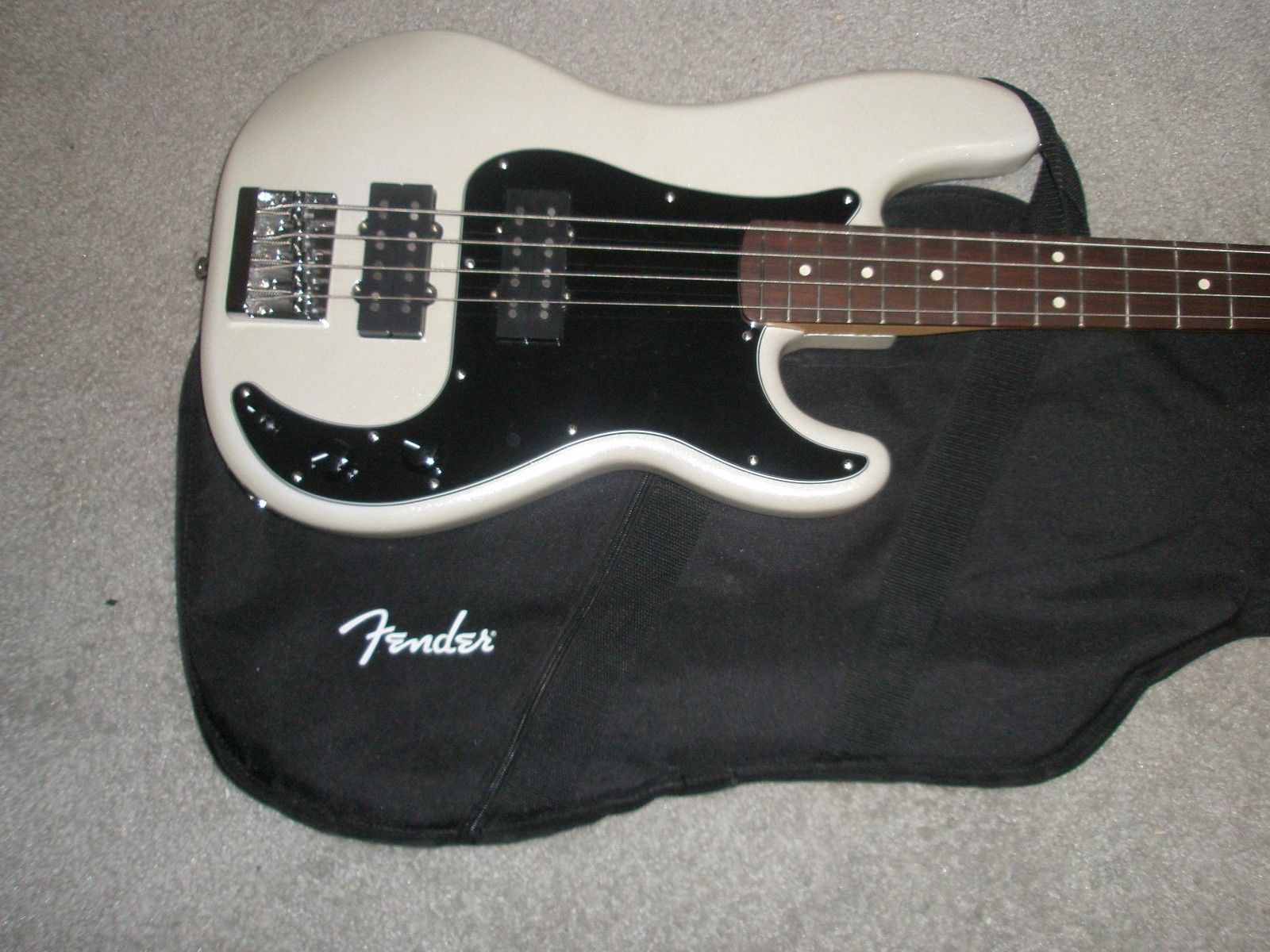

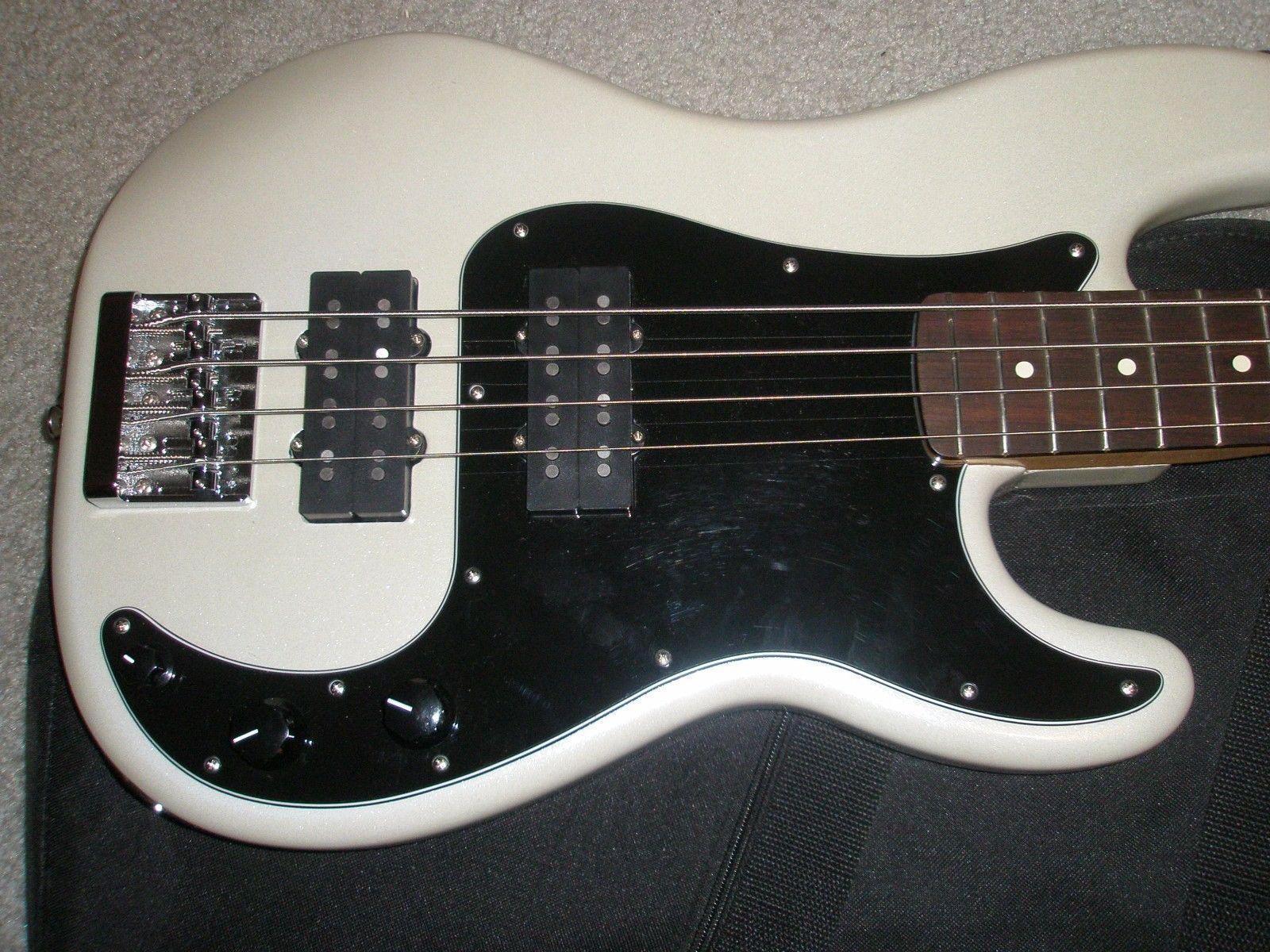

Good choice and great photos!
Congratulations, subgrave! Not only have you scored an amazing instrument, but you've also earned yourself a big, fat Number 78!
By the way, I love your avatar. Who and/or what is it?

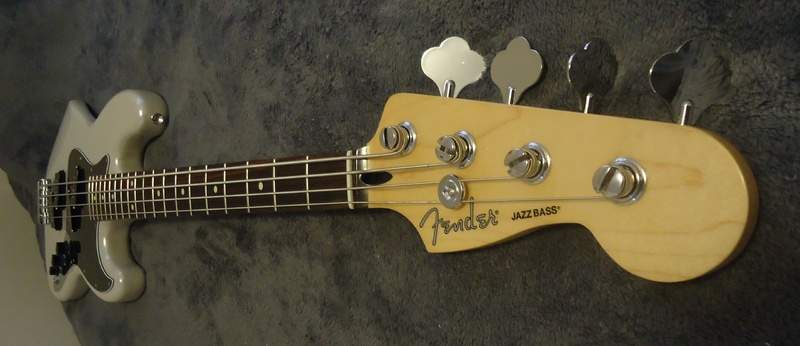

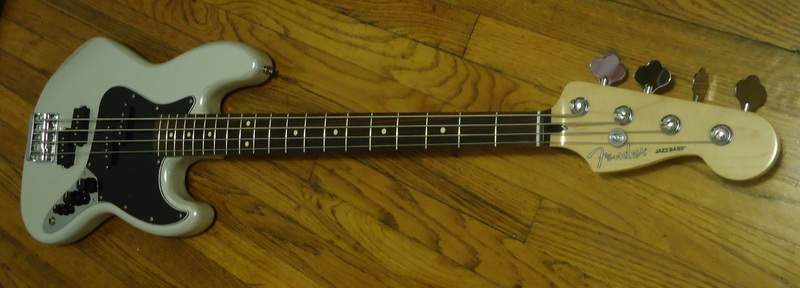

What they said. My BT-Jazz is already beastly enough. Anymore ferocious and I might be in violation of some kind of U.N. weapons-sanction or an international arms embargo!
He is a history teacher, working in a beer advertisement, worth watching but I think you will not understand:
Please tell whomever baked that awesome, and hopefully "delicious" cake they get an honorary Number 77.5 for their efforts. Well done!
Dammit…now I want cake. drool I'll be right back.
Thanks, twas the wife, and it was a delicious red velvet! She'll be greatfull of the honor!

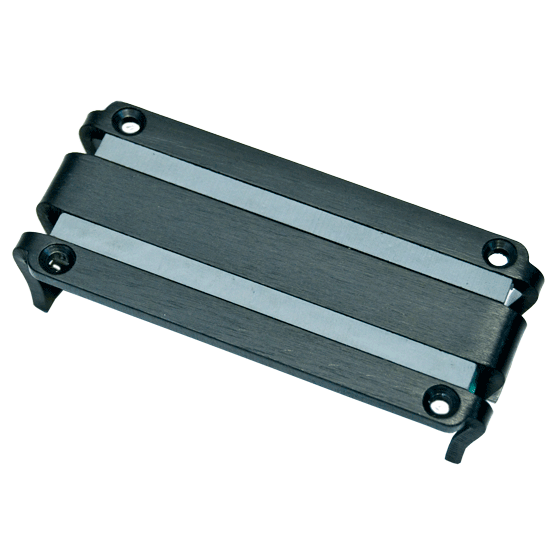

I think if I were to replace the pups in mine, it would have to be something from Lace.
Metal and Rock Guitar Pickup | The Bassbar by Lace. Hi Definition bass pickup made special for low noise and huge output, gain and sound. for 4, 5, and 6 string basses.
Metal and Rock Guitar Pickup | The Bassbar by Lace. Hi Definition bass pickup made special for low noise and huge output, gain and sound. for 4, 5, and 6 string basses.
You could always get one of their pickguards and use it as a template.
That's a good idea, I didn't think of that. Do you know if the neck pickup is the same size as the bridge pickup?
Relinquishing my number, no longer own either model. Great basses, just hated the Chrome White Pearl color once I got it. And foolishly sold my black Jazz.
I took mine to the local Fender dealer today to see if he'd give me a price to take it off my hands. He declined.
LOL, remembering that story now. You lucked out on that one, in that you wanted the one there.
I probably will take it to Sam Ash next week, providing the Rickenbacker is all I hoped it would be.
I probably will take it to Sam Ash next week, providing the Rickenbacker is all I hoped it would be.
I mentioned how noisy mine is today, and it was suggested that the coils in those pickups are not in parallel, but in series. That would explain why they're so powerful.
Has anyone ever measured the resistances between the pairs on all four wires?
Has anyone ever measured the resistances between the pairs on all four wires?
Well, I took off the strings & the pickguard, desoldered the neck pickup connections to the volume pot & took the shrink wrap off of the white & green.
White to Black = 7k Ohms
Green to Red = 7k Ohms
Tomorrow, I'm going to re-wire the neck pickup to this configuration:
Black & Green to ground
White & Red to volume
Then, I will compare if it's quieter than the bridge pickup.
If that works out, I will look into wiring both pickups in parallel, but then in series with one another.
White to Black = 7k Ohms
Green to Red = 7k Ohms
Tomorrow, I'm going to re-wire the neck pickup to this configuration:
Black & Green to ground
White & Red to volume
Then, I will compare if it's quieter than the bridge pickup.
If that works out, I will look into wiring both pickups in parallel, but then in series with one another.

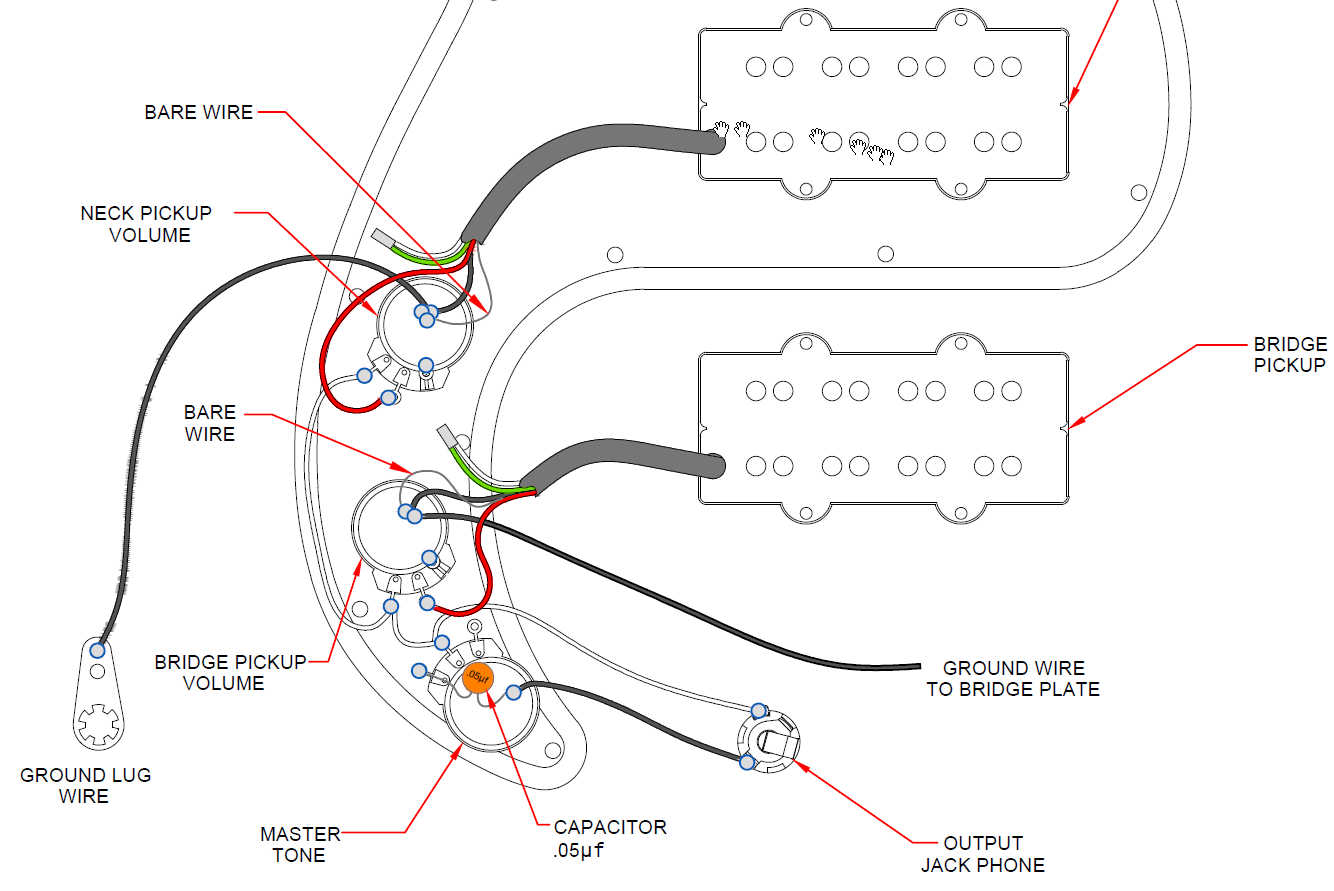

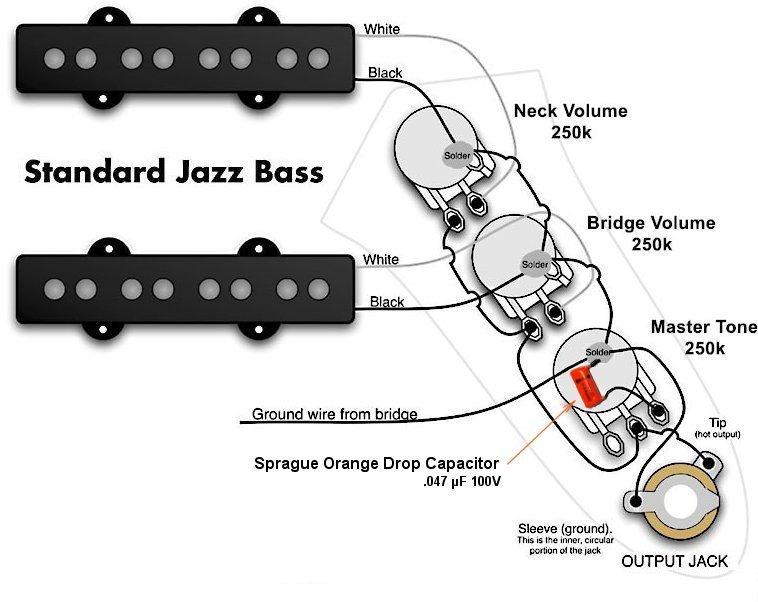

Is a little strange those red wires going to the middle pin of the volume pots... Always I saw this wires going to the pin number 3 and the middle pin going to the hot jack.
The wire from the pickup needs to go to the center lug, because that's where the wiper is connected.
When you roll the volume back, the wiper goes towards the grounded pin 1 and thus shorts out the signal.
It would work with the lead from the pickup to pin 3, but might not completely shut off the signal when the volume is rolled back.
When you roll the volume back, the wiper goes towards the grounded pin 1 and thus shorts out the signal.
It would work with the lead from the pickup to pin 3, but might not completely shut off the signal when the volume is rolled back.
