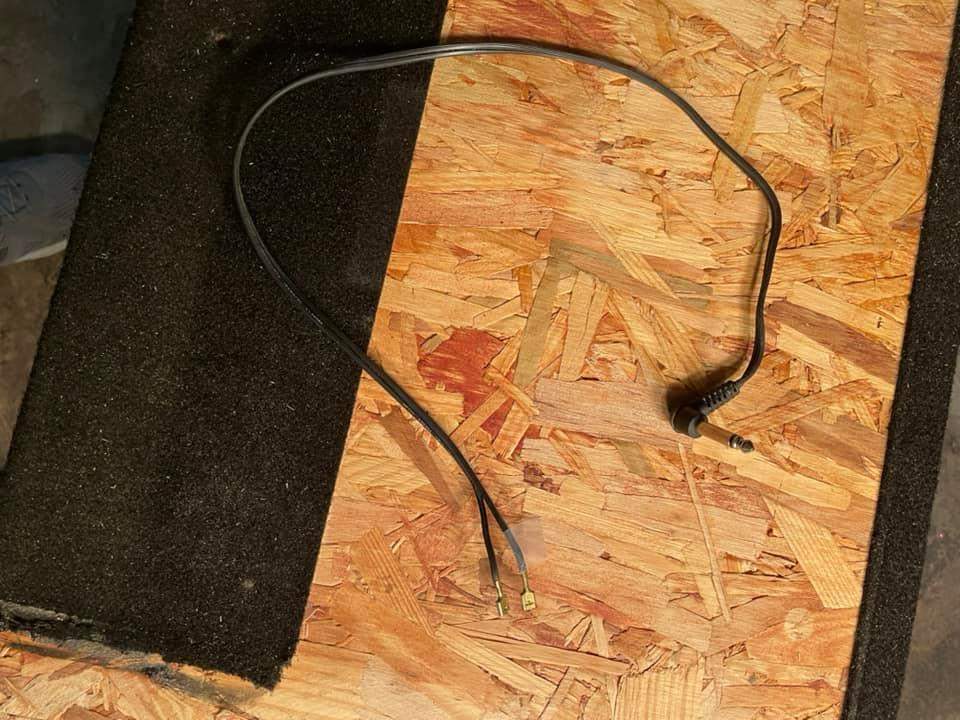

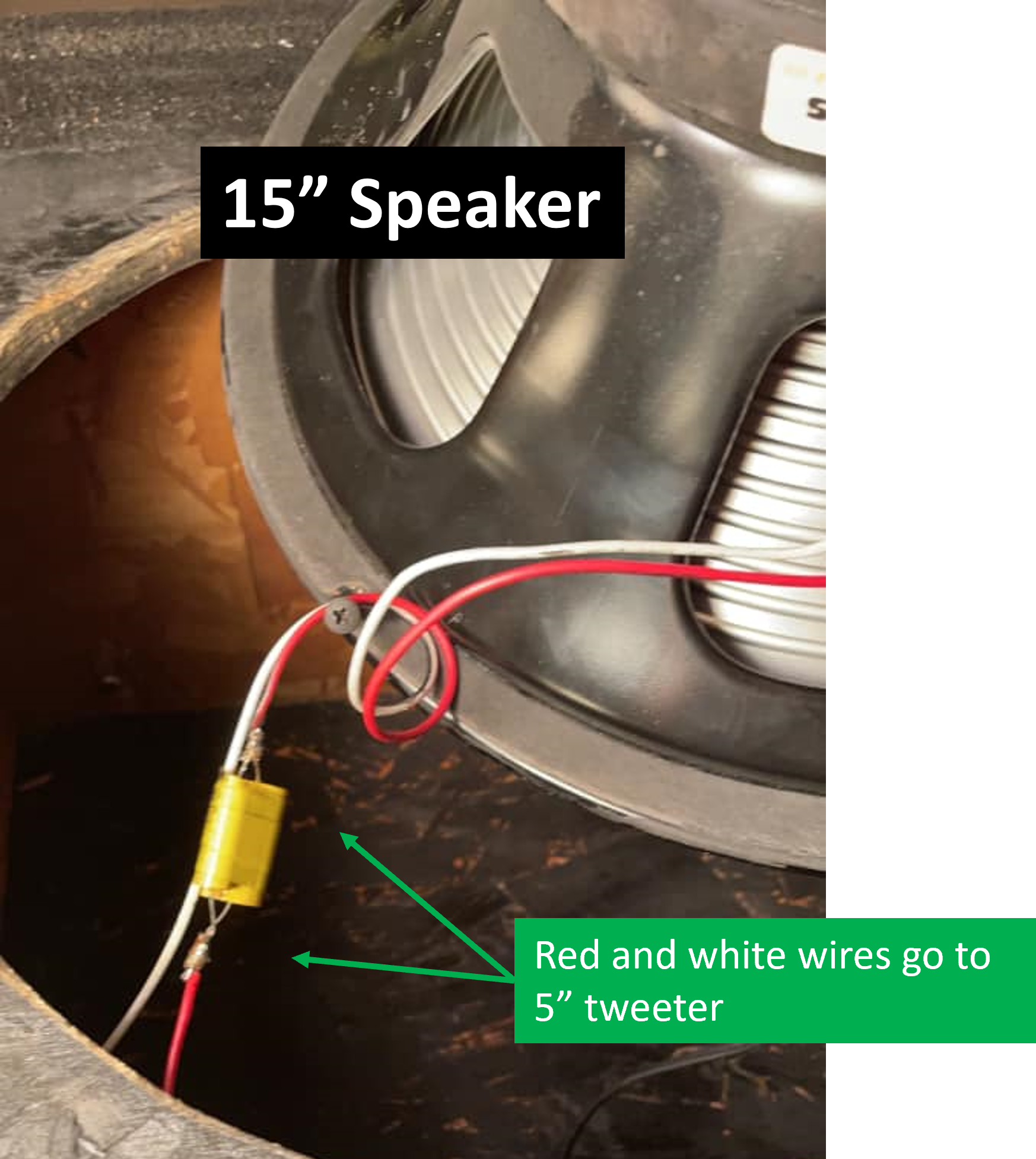

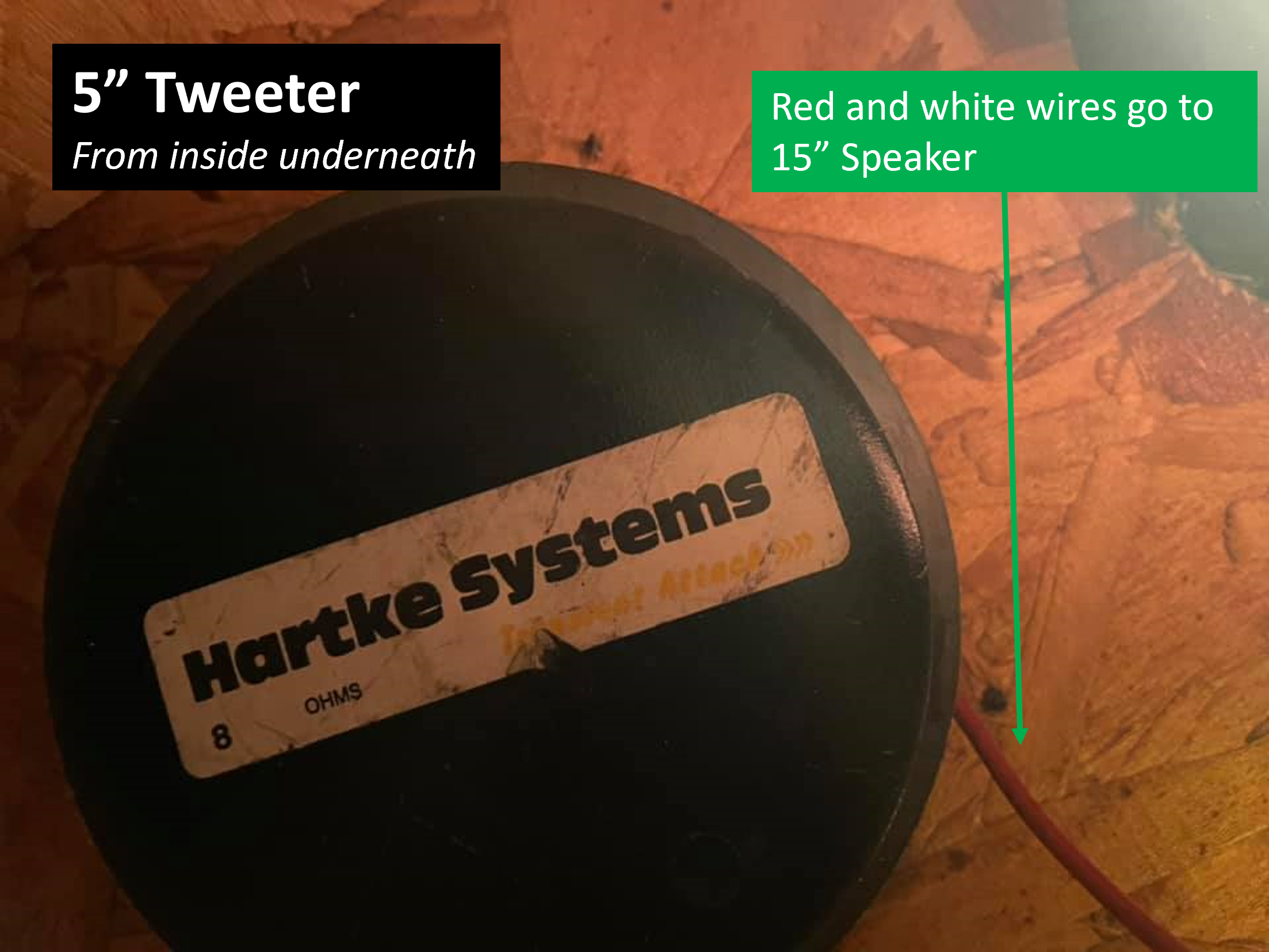

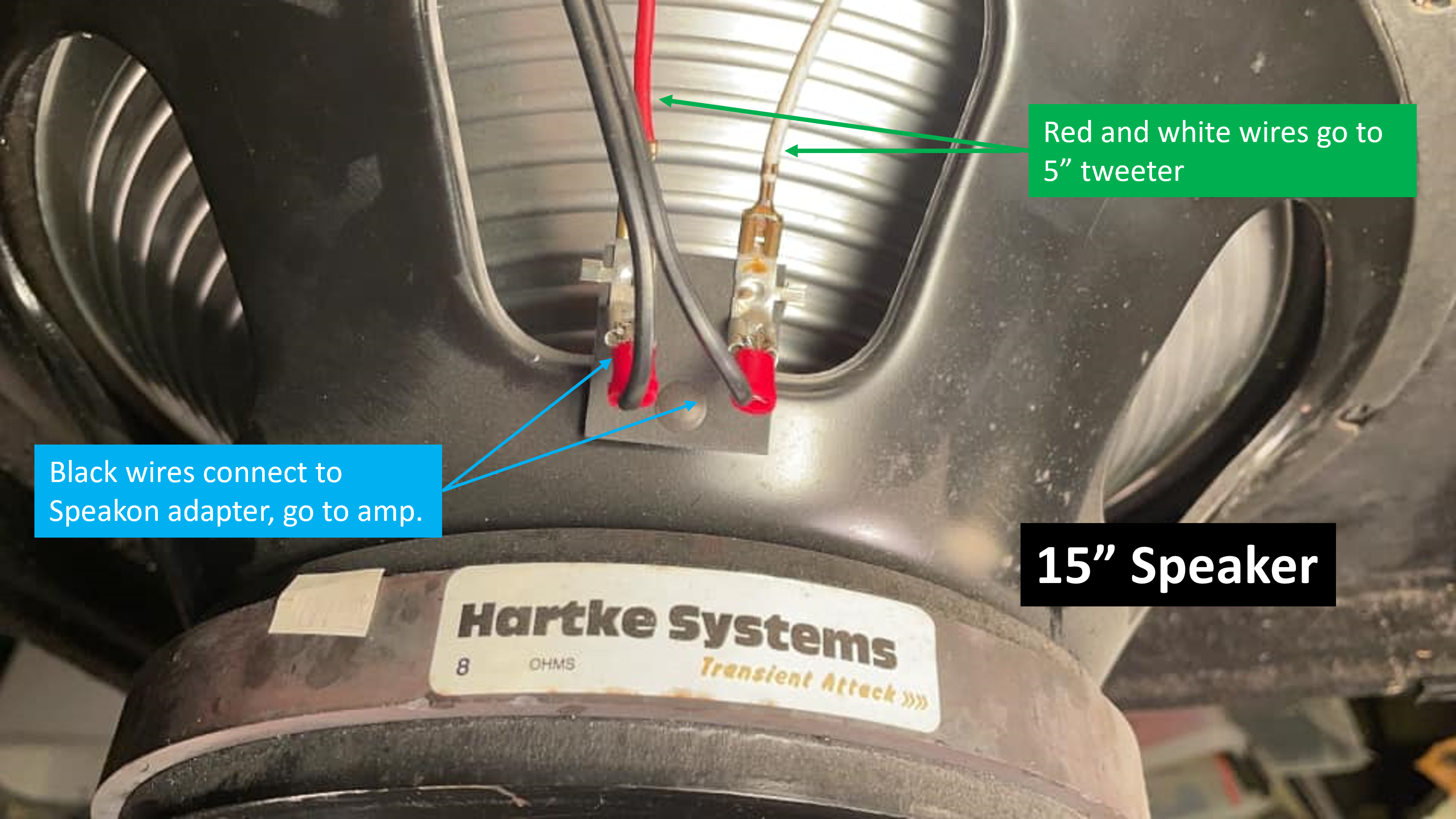

Ok, I took some more photos. The tweeter (5") has a sticker thats says 8 ohms, the 15" also has a sticker that says 8 ohms. The tweeter is connected to the 15" with the red and white wires.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Agree... Like this:
Simple Speaker Crossover Circuit Diagram
Due to the crossover capacitor in series with the tweeter, the ohm-meter will only measure the 15'' speaker resistance.
Last edited:
Congratulations, tony!
Looks like you got yourself an actual 4 ohm 15"+5" Hartke cab there, buddy! It'll draw up to the maximum 350 watts out of that Hartke amp head all by itself, so it must be rated at least 350 watts, maybe even slightly more. And it will not play nice with any other speakers when connected to a 4 ohm minimum amp, such as your Hartke head or a Rumble head.
So, you can use it with the Hartke head, but not with any other cabs. You can use the 8 ohm Rumble 115 cab alone with the Hartke head to get up to 240 watts.
You cannot use it with the Rumble 500 combo, since that would be a total load on the amp of 2.67 ohms and the magic smoke, while pretty, could ensue along with amp damage.
But, you can use your Rumble 115 cab with the Rumble 500 combo and get the full 500 watts out of it that way! By itself the R500c is "only" 350 watts with its internal speakers.
You could even run an instrument cable from the FX Send of one amp to the FX Return of the other amp for an awesome 500 + 350 = 850 watts thru (2x10"s + 2x15"s + 5") from the Rumble + Hartke rigs!!!
That's all. Enjoy!
.
Last edited:
Thanks again. So if I disconnect the tweeter, I can use it with anothe 8 ohm cab? I mean I can use this cab with the Rumble 115 ONLY if I disconnect the tweeter, right? Then it would be 4 ohms and 4 ohms?Congratulations, tony!
So, you can use it with the Hartke head, but not with any other cabs. You can use the 8 ohm Rumble 115 cab alone with the Hartke head to get up to 240 watts.
You cannot use it with the Rumble 500 combo, since that would be a total load on the amp of 2.67 ohms and the magic smoke, while pretty, could ensue along with amp damage.
But, you can use your Rumble 115 cab with the Rumble 500 combo and get the full 500 watts out of it that way! By itself the R500c is "only" 350 watts with its internal speakers.
That's all. Enjoy!
.
Also, what doea a crossover do?
Thank you! What does the crossover do? Why would the ohn meter not measure both speakers?
One more question...I did run both the cabs for a few minutes before i realized I could have a problem. Could I have damaged the coabs? Or would that kind of thing affect the amp and NOT the cab?Congratulations, tony!
So, you can use it with the Hartke head, but not with any other cabs. You can use the 8 ohm Rumble 115 cab alone with the Hartke head to get up to 240 watts.
You cannot use it with the Rumble 500 combo, since that would be a total load on the amp of 2.67 ohms and the magic smoke, while pretty, could ensue along with amp damage.
But, you can use your Rumble 115 cab with the Rumble 500 combo and get the full 500 watts out of it that way! By itself the R500c is "only" 350 watts with its internal speakers.
You could even run an instrument cable from the FX Send of one amp to the FX Return of the other amp for an awesome 500 + 350 = 850 watts thru (2x10"s + 2x15"s + 5") from the Rumble + Hartke rigs!!!
That's all. Enjoy!
.
D
Crossovers limit the frequencies sent to a given speaker. You wouldn't want to hit your tweeter with a low B. Severe damage! (EDIT: think of it as a crossover routing certain frequencies to certain speakers (the one most appropriate for the frequency range being routed to it).)
The capacitor blocks DC (the battery in the meter), so the tweeter is invisible to it..
Last edited:
D
No cab damage (that comes from TOO much power). If you didn't see smoke, you should be OK.
For technicalities previously stated, such as compromising the design performance of the cab, I would not recommend that. Of course, what you do with your stuff is your business.
The crossover is supposed to send the higher frequencies to the tweeter. With the tweeter disconnected the sound may not be as pleasant as before.
You were lucky running both cabs before at low volume for short times. I wouldn't press my luck on that. Amp damage is far more likely than speaker damage.
.
So if I did the meter check myself, I would have thought it was 8 ohms and not 4?!
D
D
Except for wacky tabacky.
Just to add my own experience. And this is mine so please take with a grain of salt.
I had this combo way back in the day. I bought it new with a Hartke 210 cab (8 ohm). I remember the combo itself being rated at 8ohms and able to take an additional 8ohm cab into the head. I ran the 210 with this combo 100s of times at loud volumes and never had any issues.
With that being said. I also researched and couldn't find the manual online for this specific combo - Hartke 1115. But i did find this for sale post and in the thread it is specifically asked if the combo is 4 or 8 ohms and the seller states 8.
For Sale - Hartke 3500 MOSFET 1115 Combo
I had this combo way back in the day. I bought it new with a Hartke 210 cab (8 ohm). I remember the combo itself being rated at 8ohms and able to take an additional 8ohm cab into the head. I ran the 210 with this combo 100s of times at loud volumes and never had any issues.
With that being said. I also researched and couldn't find the manual online for this specific combo - Hartke 1115. But i did find this for sale post and in the thread it is specifically asked if the combo is 4 or 8 ohms and the seller states 8.
For Sale - Hartke 3500 MOSFET 1115 Combo
I may be wrong, but the way this circular conversation is going, I'm getting the impression there is an insistence on doing something with this amp that God never intended. Seems the simple/safe/logical bottom line here is limited to 1. leave the Hartke wires the way you found them and run the thing as a 350W 115+105, or 2. do the extension "thing" with a Rumble combo/cab or C. "piggyback" as suggested by Mr. Dog using the FX circuitry. Anything else is playing with fire...
Tim
Tim
I no longer have any intention of using the Hartke other than by itself. The questions I have been asking are helping me to understand how this all works. Not intending make the convo circular, but rather to ask follow ups that help develop understanding.
Thank again to all of those that helped me with all this.
Yeah man. You are all good. We all got some good information that anyone of us can use and enjoy. Thank you for this part of the thread.
