Fender Urge I (Stu Hamm Signature). What does each knob do ?

F

fory

Feb 20, 2009
12
0
#1
I`ve just bought one of this in Sherwood Green.

It comes with 2 concentric knobs (volume/pan and bass/treble) but the 4 position rotary knob and 3 way mini toggle switch got me confused.

Does anyone know how it works or have a diagram ??

#3
Congrats ! Show us a pic. I've always want to play one of those.

I don't know anything about these basses and I've never played one but there is one on E-Bay and the below is from the listing:

Controls:
Master Volume, Dynamic (Pan) Control, 3-Band Active EQ with:
Treble Boost/Cut
Bass Boost/Cut
Mid Boost/Cut

Pickup Switching:
3-Position Mini-Toggle with Dynamic (Pan) Control:
Position 1:
Pan Control Full Clockwise: Front Jazz Bass Pickup
Pan Control at Mid Point: Front and Rear Jazz Bass Pickups
Pan Control Full Counterclockwise: Rear Jazz Bass Pickup
Position 2:
Pan Control Full Clockwise: Front Jazz Bass and P Bass® Pickup
Pan Control at Mid Point: All Three Pickups
Pan Control Full Counterclockwise: Rear Jazz Bass and P Bass Pickup
Position 3:
P Bass Pickup Only

#4
Don`t have a camera right now, but looks exactly like this:

Invalid Link Removed

I`m not sure if that Ebay description is from the Urge II model.
This one seems to have a 2band preamp.

#7

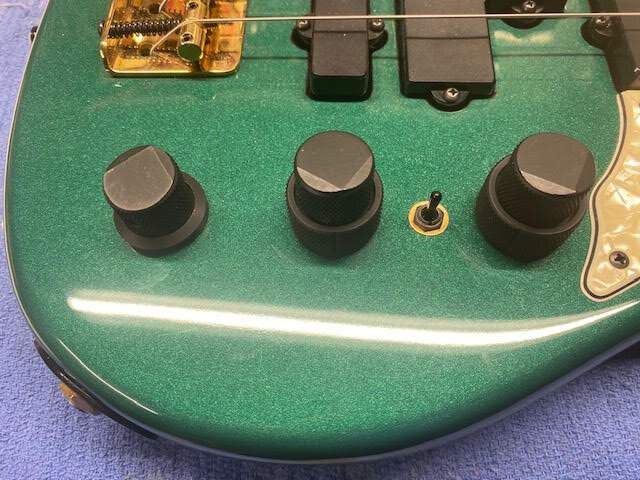

The mini toggle switch in middle position activates all pickups (as shown).
