Figured Mexican Ebony 5 string
- Thread starter BassCycle
- Start date
So far yes. It's actually not an uncommon method. The seam on top will be covered with veneer.
Musiclogic
Commercial User
- Aug 6, 2005
- 6,505
- 73
- 60
- Disclosures
- Owner/Builder: HJC Customs USA, The Cool Lute, C G O
David, this type of join was very popular with acoustic guitar builders, Many builders do a stacked scarf like this. I also do headstocks in this fashion to save wood when doing set necks and bolt ons, it's very efficient, and there is less chance of movement during glue up, and it takes out the ugly angular seam under the 2nd fret. IMO
A little more progress:
Slotting the fb
Invalid Link Removed
Doing the inlays
Invalid Link Removed
Prepairing to radius the fb
Invalid Link Removed
Radiusing the fb
Invalid Link Removed
Installing the binding
Invalid Link Removed
Invalid Link Removed
Slotting the fb
Invalid Link Removed
Doing the inlays
Invalid Link Removed
Prepairing to radius the fb
Invalid Link Removed
Radiusing the fb
Invalid Link Removed
Installing the binding
Invalid Link Removed
Invalid Link Removed
- Aug 21, 2008
- 10,386
- 252
- 68
- Disclosures
- Owner, SGD Music Products
But... that's not a normal way to do a Spanish Luthier's Joint. Normally the headstock section is glued on at an angle when you do a scarf. This is more like a laminated band sawn hard stock.
It loses the advantages of a scarf joint because when you cut a headstock out on a band saw you now have short grain across the headstock. This is why Gibson heads break when you drop them.
When I do a scarf, my headstock blank is already at close to final thickness and it's glued onto the neck scarf at the angle it's going to be. Then I glue the "ears" on the head stock. After that I glue front and back veneer "back strapping" to hind the joint and make it stronger.
That's the typical way to do a scarf joint as seen on Alembics and some acoustics.
The other way has the joint under the third fret on the back of the neck.

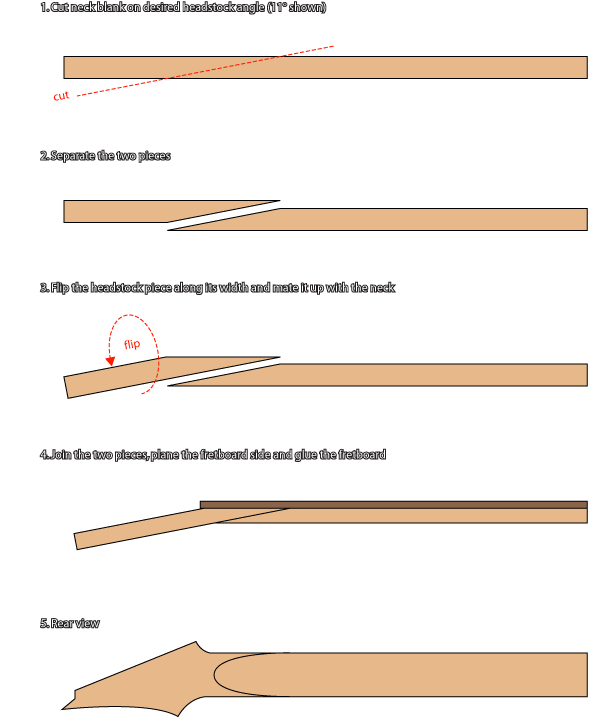

Here's a good explanation I found on how to do it. I do it this way, and then glue on the back strapping.
...did you use a belt sander to sq ur blocks or by hand..(flat surface with sand paper on top)...
...
...did you use a belt sander to sq ur blocks or by hand..(flat surface with sand paper on top)...
...
By hand.
It's plain to see where this is headed now. That little bit of white sapwood found it's way onto the headstock.
Invalid Link Removed
Walnut back
Invalid Link Removed
Invalid Link Removed
Walnut back
Invalid Link Removed
I think the lighting in the photo made the top look like it had a blue-ish tint. This bass is going to be stunning, I can't wait to see the finished product!!
headlikeahole
Commercial User
I would have put the angle at the end of the finger board the opposite way. Just to allow more room for your fingers to get under the D and G strings.
...uhmm,,, well I think he needs to change his film in his camera...
... ops
, 2011 righttttt
I cut my necks this way to maximize the wood to wood contact between the neck and the body. Also, reversing the angle would eliminate the 24th fret at the G and D strings. The other reason is that I like the way it looks. BTW, I've never had trouble slapping on my basses.
Uhm . . . well, thanks for asking. I've been taking a little break from grinding because I'm soooo busy with gigs and dayjobs and wives and stuff. Actually, there's only one wife, but she still deserves a little bit of my time. I am jonesin for some sawdust, so this and other dead threads will be revived soon. Thanks for asking.
