Footswitches for Fender Rumble 40 Studio

T

toughluck

Mar 18, 2025
463
530
44
#1
I searched for this today and couldn't find an answer.

I bought a used Fender Rumble Studio 40 recently. The amp is upgraded to the latest firmware and runs great, I'm really happy with it. If I were to upgrade, I'd be looking hard at the Rumble Stage 800 before considering another amp.

I don't own any footswitches for the amp and I started exploring the options. The manual (and the addendum to the firmware-upgraded amps) mentions two options: MGT-4 and EXP-1 pedals. The manual goes to some length explaining how they can be used. But I looked at the menu and the Footswitch submenu also offers GTX-7 as an option and this got me wondering which footswitch is the best.

The GTX-7 is a bit more expensive than MGT-4, but has 7 buttons instead of 4 (it's in the name, duh), and from their labels, it seems that it might be more flexible. That is, if the amp actually supports them all.

I think I'd like to have the option to use an expression pedal as well, but it seems that only one footswitch is supported at a time. I guess it's unreasonable to expect two of them to work at once? I mean, the EXP-1 pedal appears to actually support a through mode with MS-4, but maybe it's too much to hope for? I know MGT-4 is essentially MS-4 with different labels (and Fender offers/used to offer a magnetic overlay free of charge).

So I have three questions, all concerning Rumble Studio 40/Stage 800:
1. Is GTX-7 fully supported and will all buttons work as designed?
2. Does GTX-7 actually offer anything over MGT-4 or is there no point overpaying for it?
3. Will EXP-1 support through mode with MGT-4/GTX-7, or is it just one footswitch only?

  • Like
Reactions: Submutha63
#2
EXP-1 controls parameters/volume (as assigned) when plugged into a GTX-7 into the Rumble Stage 800/Studio 40. Both work perfectly with my Rumble Stage 800. The "extra" GTX-7 switches can be used to enable/disable effects in the chain.

Relevant thread:

ddarrell2

Thread 'Fender GTX-7 footswitch compatibility'

I'm trying to track down if the newer Fender GTX-7 footswitch can be used fully with a Rumble Studio 40. I know the MGT-4 footswitch works, but really like this other pedal better.
  • Like

  • Like
Reactions: toughluck
#3
Ah, makes sense. I guessed that I'd probably have to look in the Mustang guitar amp manual to get more information on what extra functions GTX-7 offers.
I'll have to think on whether it offers anything I'll actually need.

If I may, I have two more questions:
1. Does the menu option select which footswitch is in use or is it just to set up the relevant footswitch/assign functions to the buttons and the amp automatically recognizes what's plugged in?
2. So I plug in the EXP-1 to the amp, then the footswitch (GTX-7/MGT-4) to the EXP-1 and everything works perfectly?

#4
1. It detects what's plugged in, but the Menu (at least for me), shows all 3 options (including MGT-4 even though it's not plugged in). You'd select the footswitch model on the amp's menu (Menu, Footswitch) to configure them. I wish I could do that in the Tone app.

2. Yes, the EXP-1 plugs into the amp. GTX-7 plugs into the EXP-1. So it's GTX-7 > EXP-1 > Amp's Footswitch connector.

As for "everything works perfectly", my answer is yes with the caveat that everything was set up properly. The EXP-1 must be configured for EVERY SINGLE PRESET to control whatever aspect you want it to. Again, I wish I could do that in the Tone app.

  • Like
Reactions: toughluck
#7
Oh yeah, I started wondering about the options and I see some used multieffect pedals, mainly from Zoom and I hear a lot of good about them, start thinking about getting one of them and either a FRFR cab or a compact head and a neutral cab... then realize that because having a cab, a compact head and a separate DI box is exactly the reason why I migrated to Studio 40 and that it offers so many different options that I really don't need to faff around with all the complexity, and really the only thing I do need is access to the looper, an easy way to control some parameters on the fly and immediate access to the tuner.

  • Like
Reactions: Submutha63
#8
Yes, @toughluck, the older ULT-4 and MS-4 footswitches can both work like the newer MGT-4 footswitch for the Rumble Stage & Studio. But, as you're aware, their button labels are wrong. And, I'm not sure Fender has anymore free magnetic overlays to give away. If you find that to be the case I can send you the PDF file to print a paper one. Maybe you can glue it to a magnetic sheet for a DIY project if you get one of those older footswitch es.

You should come join the TalkBass Fender Rumble Club to learn more about this versatile amp!

  • Like
Reactions: agedhorse
#12
As I said before, I ordered the GTX-7. I agonized a moment because the MGT-4 has the quick access function and I'm wondering if it wouldn't be more useful than direct access to five effects or separate buttons for the looper (since I'm unsure if I will ever use it), but buy once, cry once, I guess.

#13
I finally unboxed the GTX-7 and I don't know if there's something wrong with it, but the "Mode/Hold Tuner" button doesn't seem to do anything.
If I turn on the tuner from the amp menu, it shows up on the pedal as well.

I tried it with and without the EXP-1 pedal (which works, btw).

When booting, the display shows "u-4". I thought it may have been recognized as an MGT-4, but all five buttons work and the Bank Up/Hold Down button works as intended, so it seems like the amp recognized the pedal just fine.

Is there something I need to activate somewhere or is the pedal broken?

#14

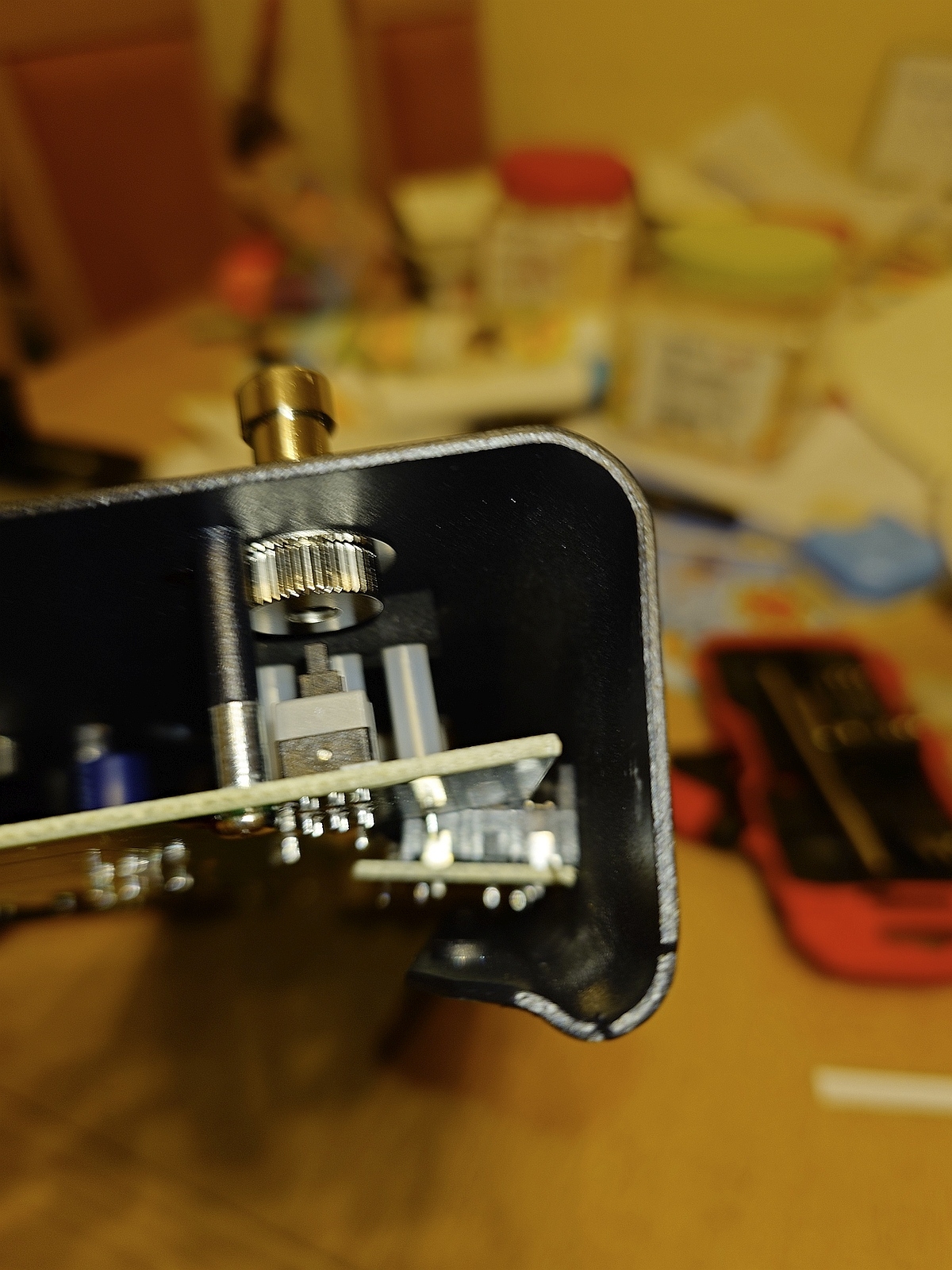

Okay, found out the reason. Sloppy Fender QC. The spring that pushes on the switch fell off:
missing spring.jpg

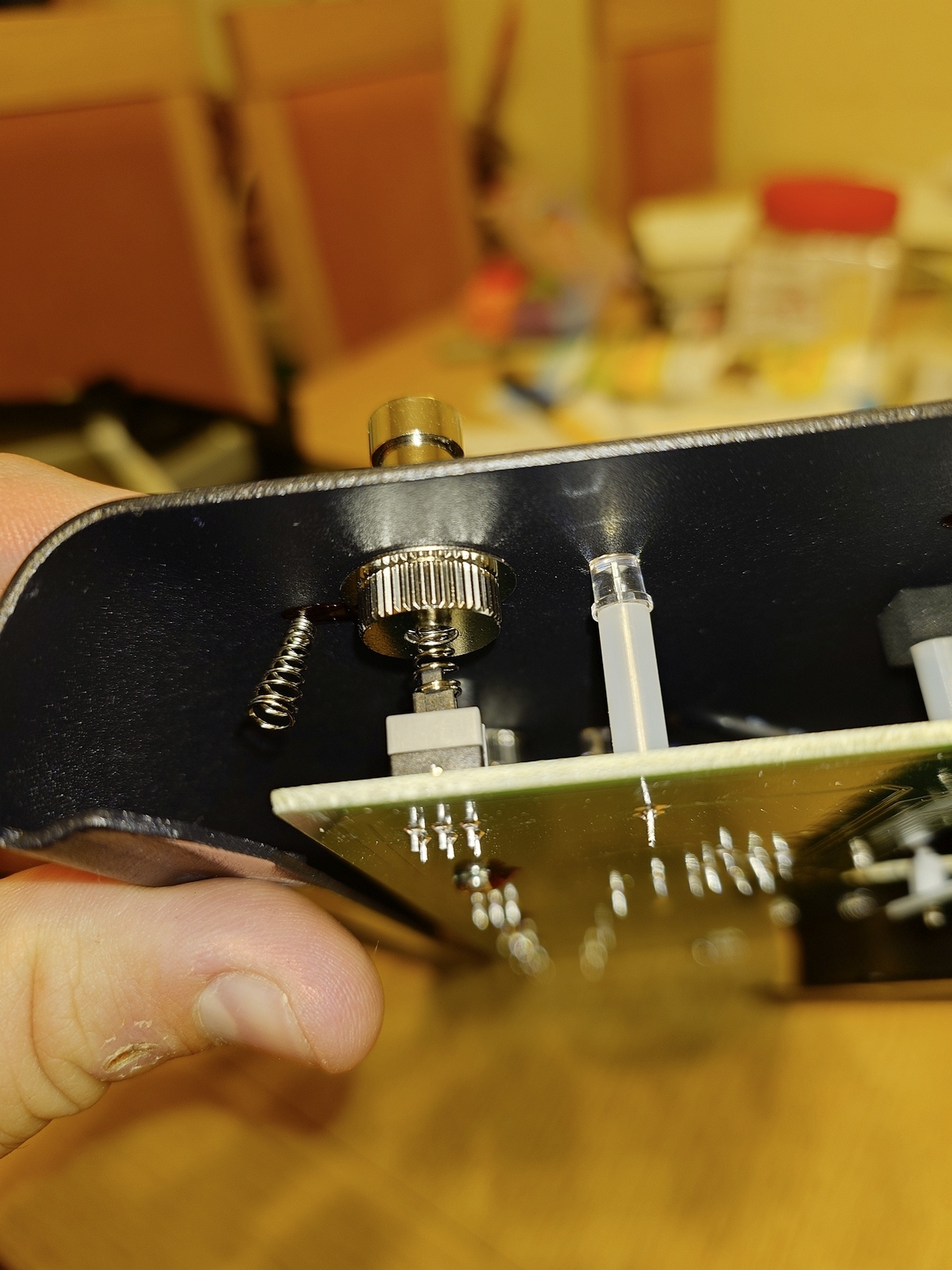

and attached itself to an exposed glue pad:

On the other side, the bank up/bank down spring was also misaligned (not around the plunger, but next to it), sorry, no picture.

I successfully manipulated that other spring into position, but the mode/tuner one turned out to be tricky.

When trying to put it on the switch, it sprang off the tweezers and flew off… somewhere.

Hooray for jury-rigging, though, I took a spring out from a pen, cut off some unnecessary length and it fits. It makes a slightly different sound, and I'm sure it's going to bug me, but at least it should work now… not that I have tested it since it's too late to try it out.
