G&L L-2000 help needed

[cjp54]

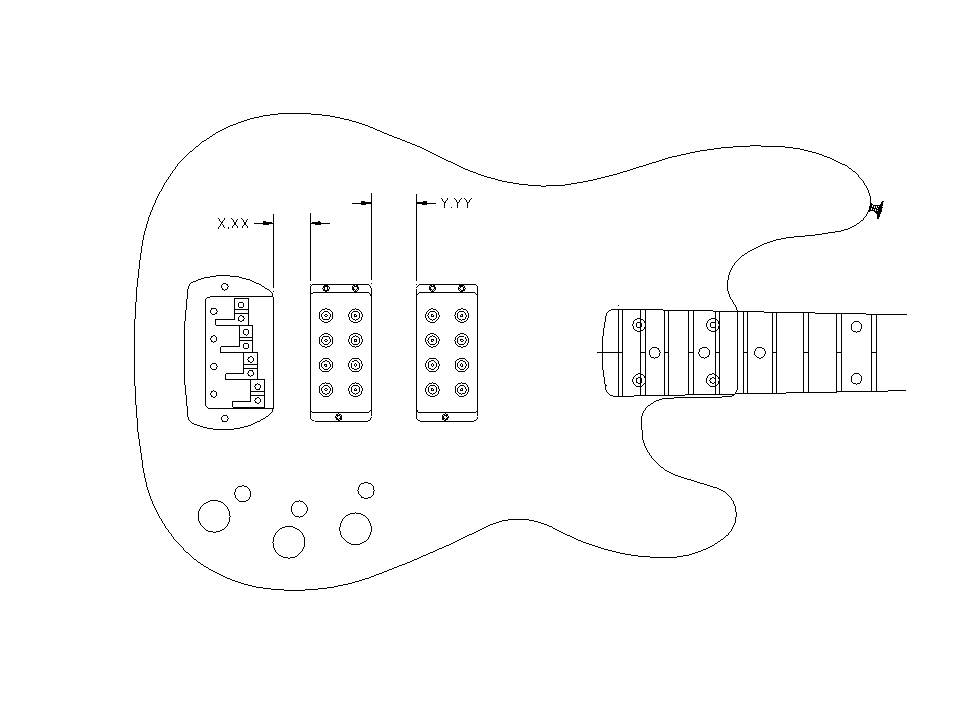

I'm building a 32" scale L-2000 for a friend and need a few dimensions from someone with an L-2000 and a set of calipers. If someone would take a couple of dimensions as shown on my sketch I would greatly appreciate it! I want to scale the dimensions I get from your 34" scale bass and ratio them for a 32" scale. I'm assuming this would put them in the same relative position. THX!



[Gilmourisgod]

If I remember to do it, I'll measure mine tonight.



[cjp54]

@Gilmourisgod Thank you!
Much appreciated!



[Gilmourisgod]

"x.xx" (bridge to rear pickup) = 1.17"
"y.yy" (pickup to pickup) = 1.14"

The pickups themselves are 3.74" long dimension, x 1.70" short dimension.

The dimensions were taken off my circa 1983 L2k, don't know if they ever changed the spacing, that's what I got. Good luck with your build!



[Gilmourisgod]

BTW, I'm mathematically challenged. What formula are you using to correlate 32" spacing to 34"? I'm building an Alembic clone, same issue, converting known 34" spacing to 32" scale.



[cjp54]

The spacing should be smaller with a shorter scale so I’ll take 32/34ths of each dimension. Thank you so much!!!
