Just finishing a bespoke build of a single PU Stingray bass and have got to the fun stuff. Controls.

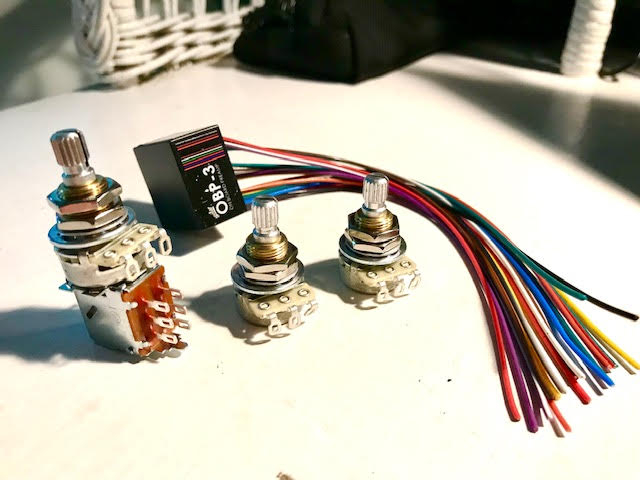

Invested in an Aguilar AG4M pick up and a OBP-3TK/PP preamp with stacked tone pot (no switch). Struggling a bit with the Aguilar wiring diagram.
On the Ag wiring diagram am I right in thinking that the Mid Select switch is simply eliminated and its four wires ?
On the Ag wiring diagram am I right in thinking that the Blend Pot is eliminated and the AG4M pick up will connect straight to the volume pot ? Ground wire then connected to bridge ground ?
On the Ag wiring diagram the Stacked Tone Pot is shown as having 6 connector pins. My OBP-3TK/PP push pull pot has 6 plus 3. Which six of the connector pins on my stacked pot I should use ?
On the Ag wiring diagram it shows 2 x 9 Volt batteries. My bass has a single 9 volt battery. Anything extra I will need to do ?
As can be seen I am no electronics expert so thanks in advance for your patience in reading this.
Cheers.
Paul
