Has Anyone Delved Into Microtones?

I have been experimenting with ways to make a normal 12TET bass guitar microtonal by using a special small-interval tuning (usually thirds) then micro-retuning every odd-numbered (or even-numbered) string.
(No recordings yet though, before you ask).

///////////

My first system allows 24 tone / quartertone music to be played:

The tuning is 3.5 semitone intervals (neutral thirds) instead of fourths. 2 of these intervals equals a fifth, so it is actually 2 interlaced fifths tunings, where one fifths tuning is shifted by a quartertone.
For example F Av C Ev G Bv, where 'v' means 'quarter flat'. This being FCG interlaced with AEB, then AEB is detuned a quartertone.
The smaller intervals means a 6+ string bass guitar is ideal to maintain pitch range.

You play the 'normal' notes on strings 2, 4, 6 and the quartertones on strings 1, 3, 5. This obviously requires more shifting along the string, which is why i use a small-interval tuning of thirds, which results in no more shifting than playing a fifths tuning.

Because the strings are in a thirds tuning, it works well for playing chords, nice chord shapes.
Only 12 frets per octave, so no narrow fret spacing, no special guitar or modification needed, does not even look different.

Trauma Triad independently discovered this system and released an album using it Visceral Defects, by Trauma Triad

///////////

My second system is a small retuning of the first system and allows various Just Intonation (JI) scales to be played:

For playing JI major or minor scales the tuning is alternating JI major thirds (3.86 semitones) and JI minor thirds (3.16 semitones).
In all other ways it is like the first system.

///////////

You can retune a normal fourths tuning in the ways above, but the larger intervals make it more difficult to play.
For both systems above, all you need is custom set of gauges chosen for equal tension in neutral thirds, a cheap and reversible modification.

Hm i did not explain my second system very well, try again ...

My second system can play various Just Intonation (JI) scales according to how the open strings are tuned.
Usually with microtonal guitars, to play a different tonal system you need either a separate guitar with a different fretting, or you need to move movable frets around.
To play JI major or JI minor scales, the system is as follows:

The intervals between open string pitches are tuned to alternating JI major thirds and JI minor thirds.

However, my systems require that 2 adjacent intervals add to a 12 Tone Equal Temperament (12TET) fifth (7 semitones). If you add a JI major third (3.86 semitones) and a JI minor third (3.16 semitones) you get a JI fifth (7.02 semitones) which is 2 cents sharp.
So, the intervals between open string pitches alternate between an exact JI major third of 3.86 semitones and a 2 cent flat JI minor third of 3.14 semitones.

Again this results in 2 interlaced fifths tunings, one of which is microtonally shifted in pitch.

To play these JI scales, the JI second, JI fourth and JI fifth are played on the normal 12TET strings, and the JI major/minor thirds, sixths and sevenths are played on the microtonal strings.
The result is that JI major and JI minor scales can be closely approximated to within 4 cents, a tuning error that only causes a slight and pleasant chorus effect.

Additionally, I know that there is a production guitar that comes equipped with microtonal frets, (22 tone I believe). Does anyone know of a production microtonal bass? Or a company that would be willing to make one?

Heres the guitar:
'22 tone' usually refers to a guitar which plays in a tonal system called 22EDO (Equally Divided Octave), where the octave is divided into 22 equal divisions of pitch.
That Eastwood guitar has the King Gizzard fretting, which is the normal 12 Tone Equal Temperament frets plus a few quartertone frets inbetween, so it is a partially-quartertone (partial-24EDO) guitar.

I recommend full-quartertone (24EDO) instead (if quartertones is what you want), as the King Gizzard fretting is very limiting in terms of what scales you can play, it limits how many quartertones you can use in a scale, and what scales you can play is dependent on the tuning of the guitar, with standard tuning being even more limiting.

Many of the microtonal guitars currently in use are made by Metatonal Music Metatonal Music
They have replacement P-bass necks in the King Gizzard fretting.
But they also do a lot more than that, you can order any tonal system, any fretting, as complete guitars, modifications or replacement necks.

There are a large number of possible tonal systems, i encourage you to listen to many.

Last edited:

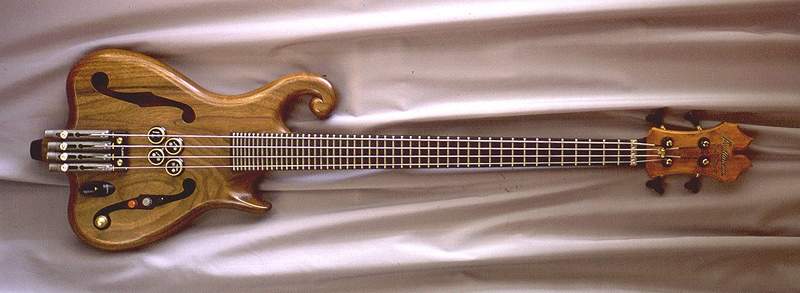

A quartertone bass guitar by Atlansia Product Information Basses and Guitars (16) - Atlansia Guitars
