Headless four string ”Brucefied”

Discussion in 'Luthier's Corner' started by MPU, Feb 24, 2018.


Tags:
  1. Triad

    Triad Commercial User

    Jul 4, 2006
    Europe
    Luthier - Prometeus Guitars
    Kinda surprised you went for wood instead of carbon fiber this time. :laugh:

  2. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland
    It’s easier to try different ideas with wood. Carbon fiber needs molds and it requires lot more time and money to do different versions. And to be honest I like working with wood more than with composites.

    pudge, reverendrally and MovinTarget like this.
  3. Triad

    Triad Commercial User

    Jul 4, 2006
    Europe
    Luthier - Prometeus Guitars
    Yeah, working with composites must be a pain... and the dust is much worse than wood's.

    pudge likes this.
  4. Right there are most of the reasons I hate composites... and the mess... and not getting the right amount of catalyst in the resin... ever... no matter how hard I tried... :(

  5. T_Bone_TL

    T_Bone_TL

    Jan 10, 2013
    SW VT
    One reason (besides the smell, which is a huge reason) Epoxy >> Polyester.

  6. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland

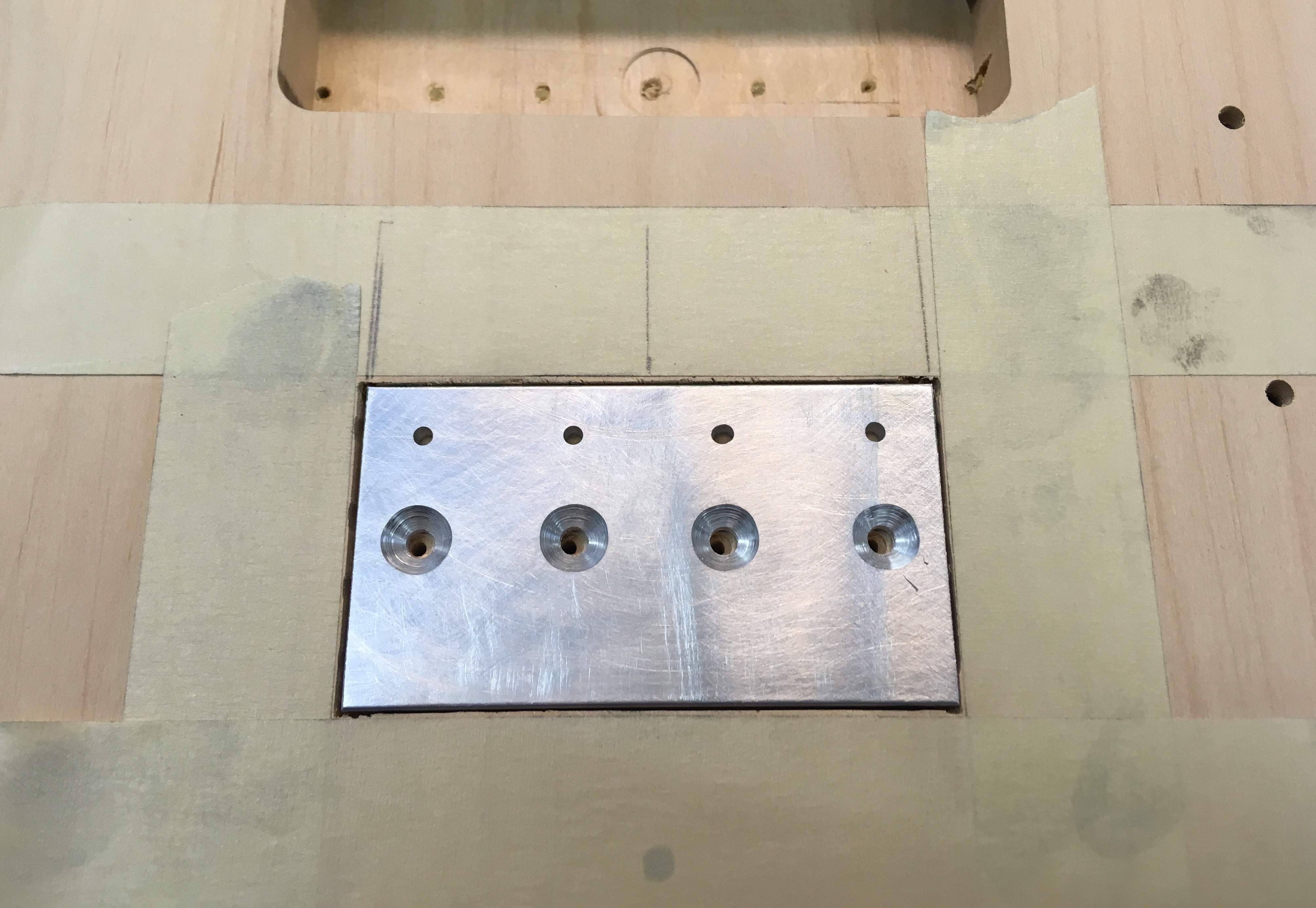

    5B8F5D4E-744A-4ABA-AC54-630681E1B17B.jpeg Today was good for bass building. Son was at swimming rehearsals and wife at work.
    So what else could I, a leftalone do?
    I routed the cavity for bridge block, made the block and epoxied it in the cavity. Bridge screw threads will be made after the epoxy has cured.




    Last edited: Mar 10, 2018
  7. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland

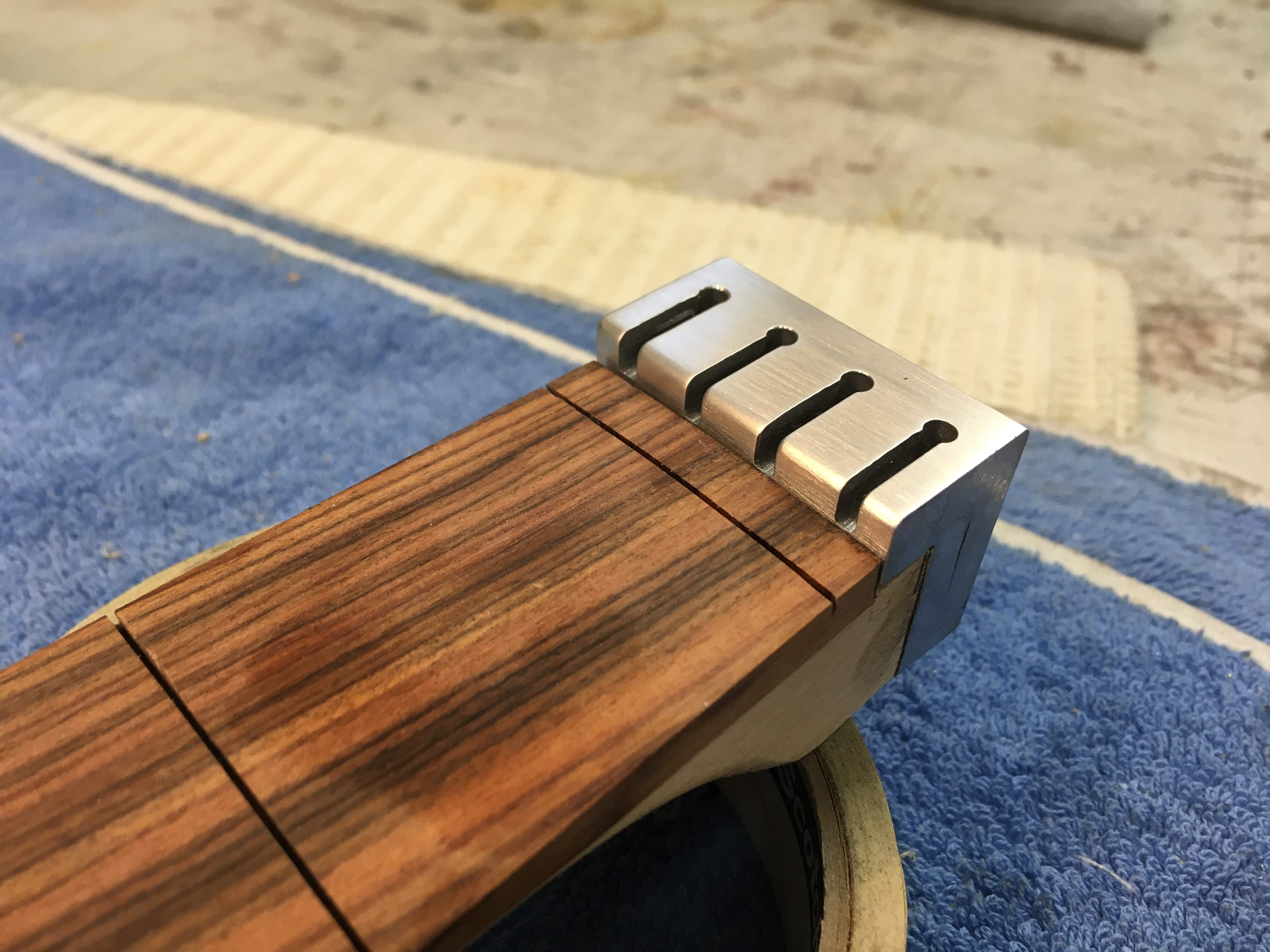

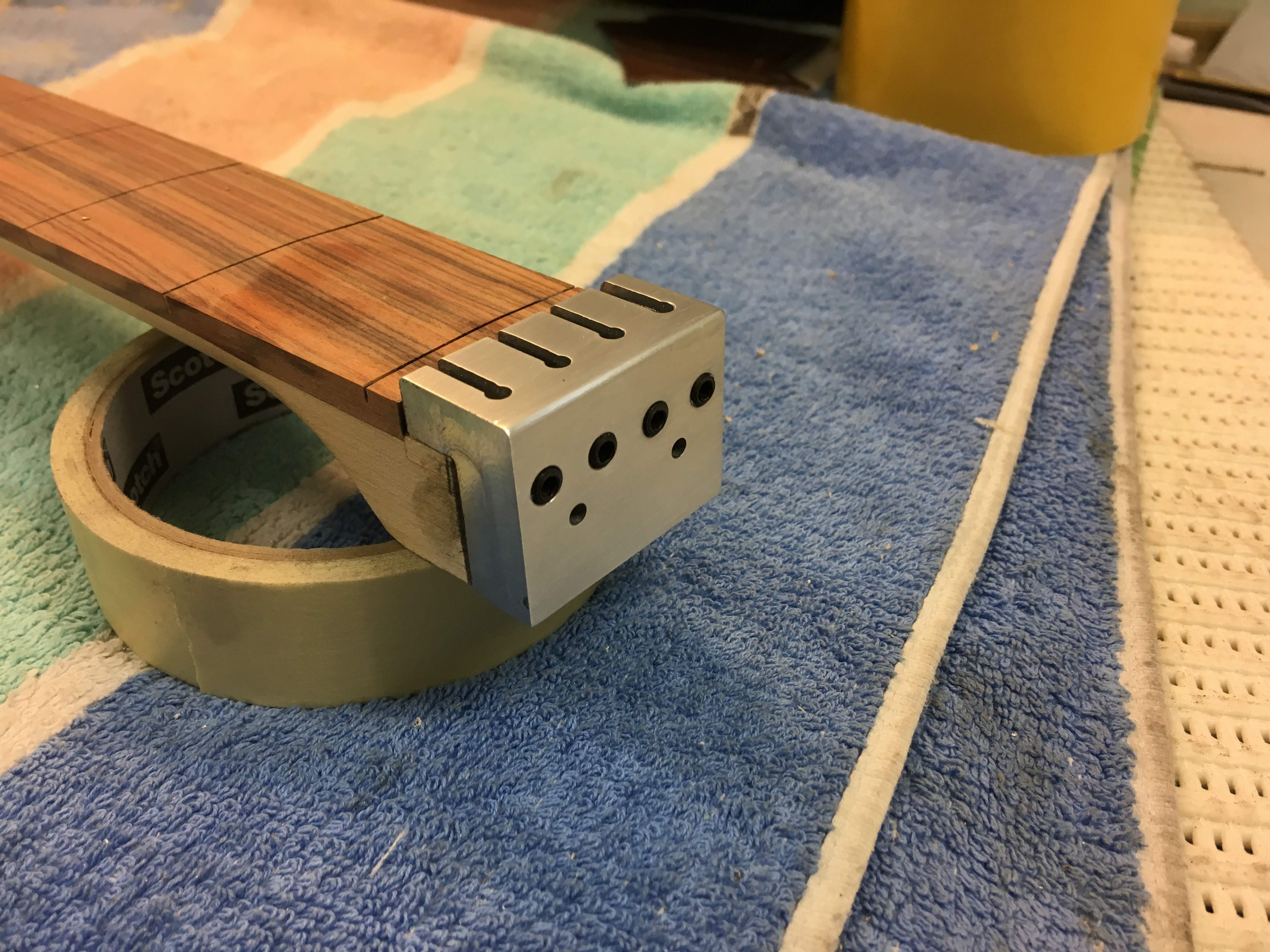

    And after making lunch for us boys (son went back to swimming) I made a new headpiece. Sides will be trimmed after the headpiece is bolted to the neck. I try to drill holes for inserts and glue the inserts tomorrow.

    1D55F911-4D62-4F3B-89F2-863844EC214C.jpeg FEF511E2-5B62-41DE-BD4C-FC6E3E90CA41.jpeg

    reverendrally, JIO, b3e and 6 others like this.
  8. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland

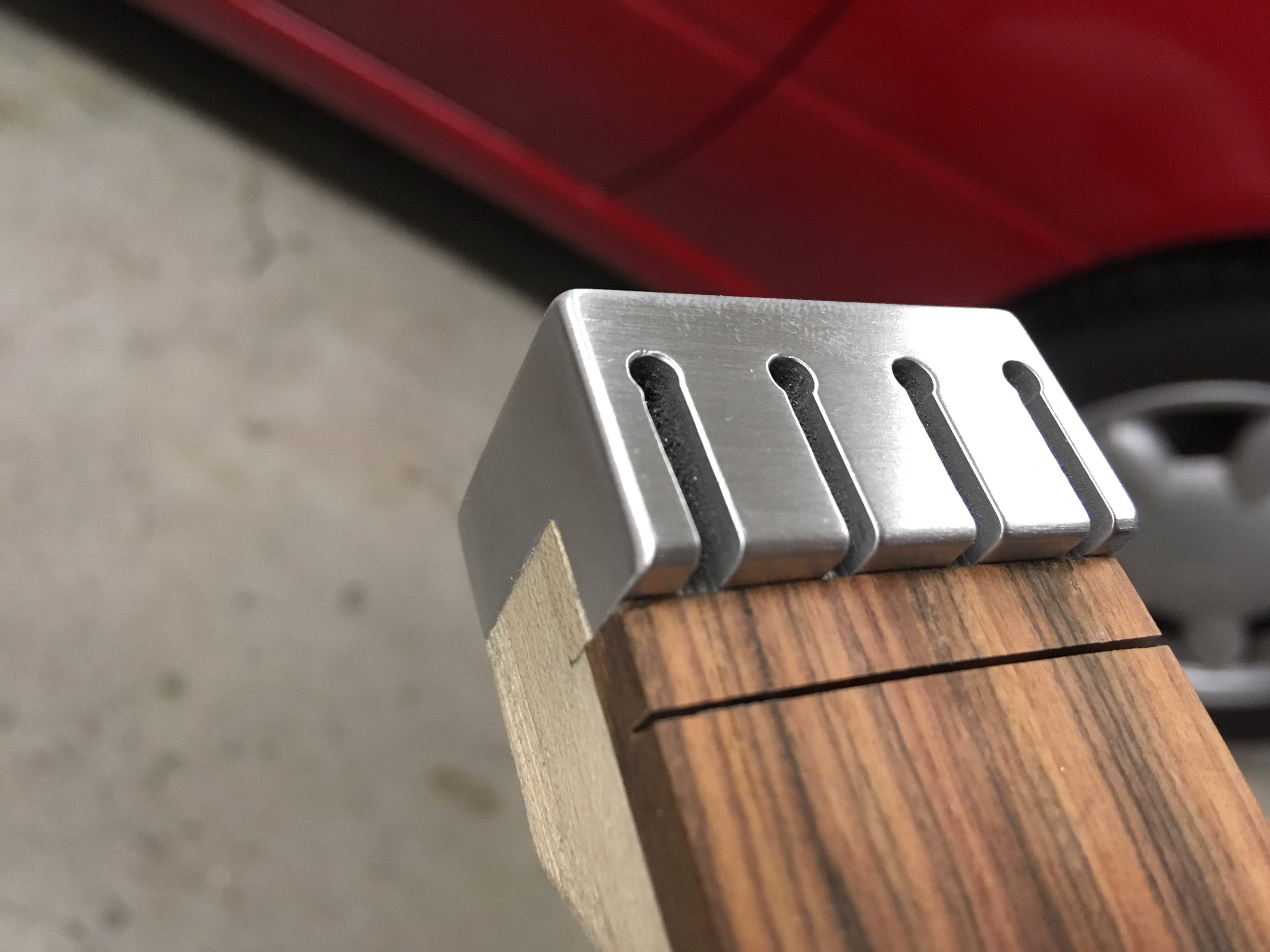

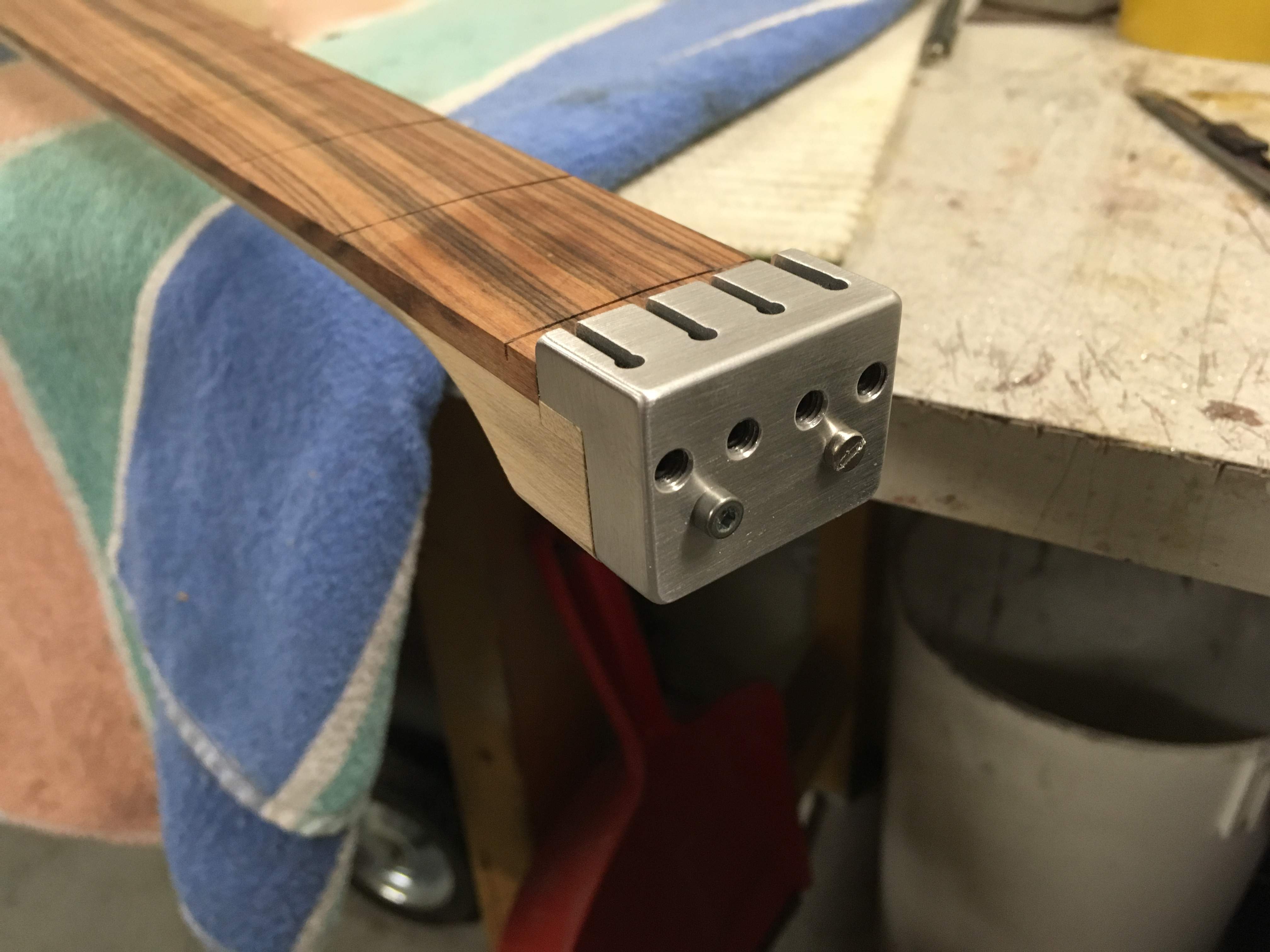

    A36B669B-1593-4E69-A6F8-DCFA15A5A8A8.jpeg AC74E3C8-5A1A-4E82-BFCF-52E1E882527E.jpeg Well, mrs went to meet her friend so even more progress. I drilled and glued the inserts and shaped the headpiece. After I have proper bolts I’m going to sink the bolt ends.

  9. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland

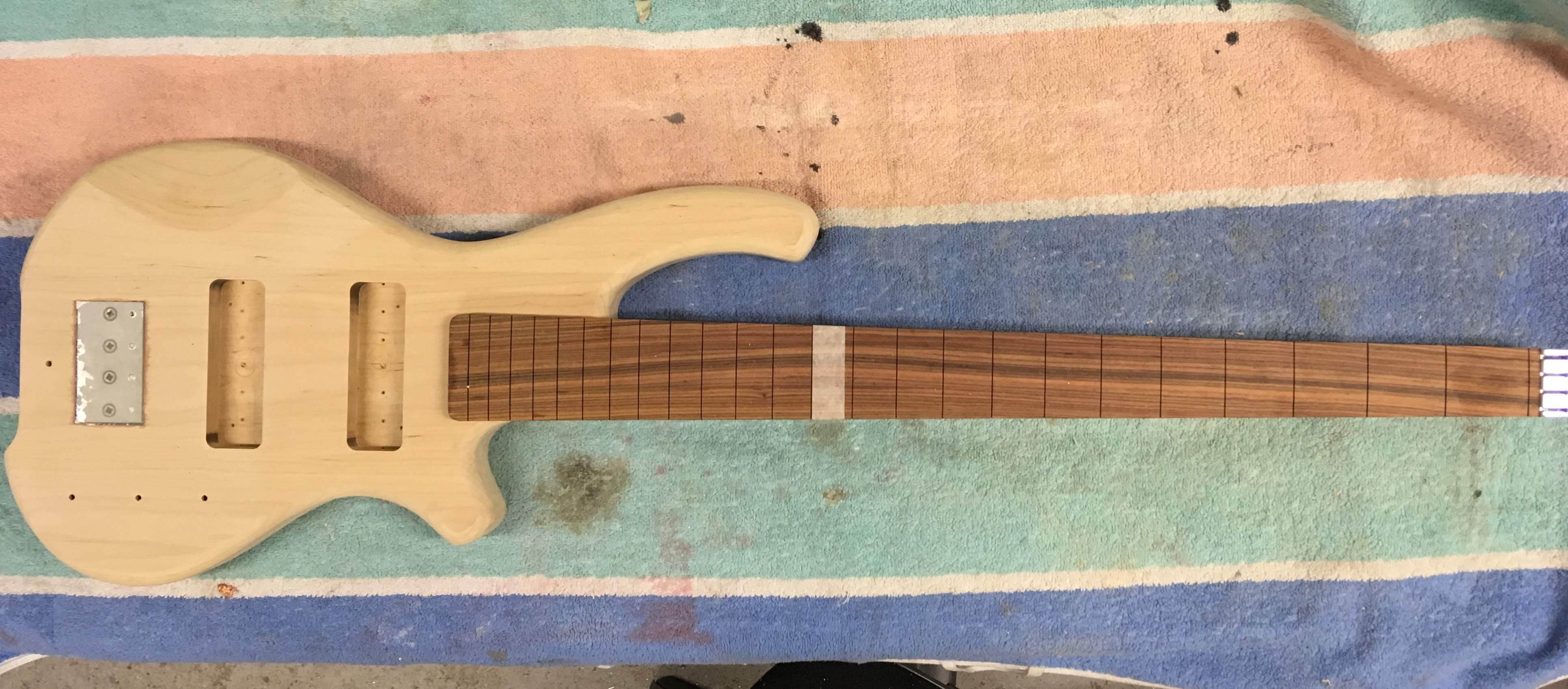

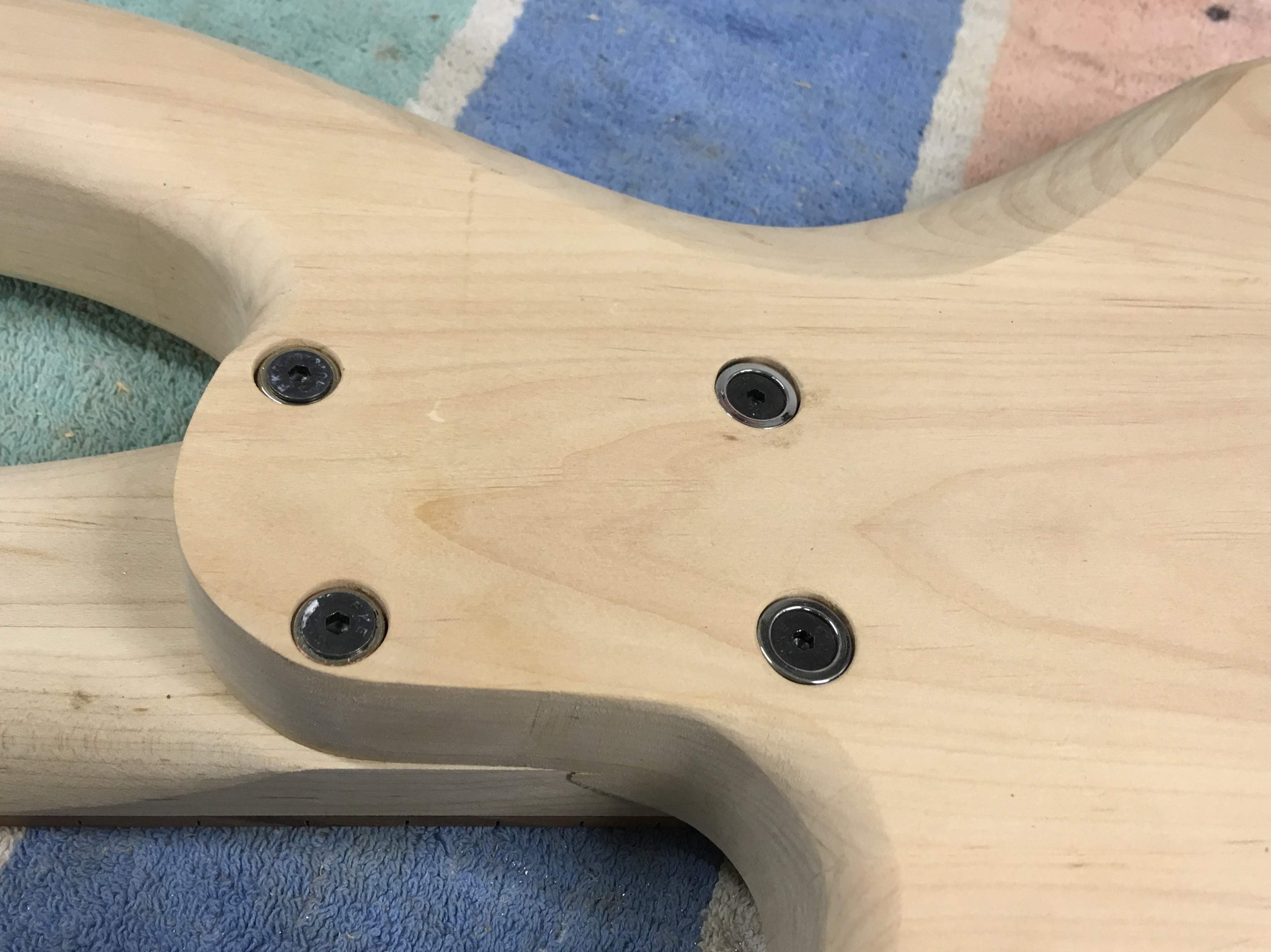

    I drilled the neck ferrule holes and bolted the neck on the body. Bridge plate is also sanded flush to the top.


    Fretting is next. I have all sorts of fret wire but none enough for a whole neck. I have to call my guitarist friend and ask if he sells me some.

  10. MovinTarget

    MovinTarget Supporting Member

    Jan 30, 2018
    Maryland, USA
    Jumbo fret?

  11. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland
    I think something smaller. I’ve tried fret sizes from jumbo to small and medium is my favourite.

  12. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland

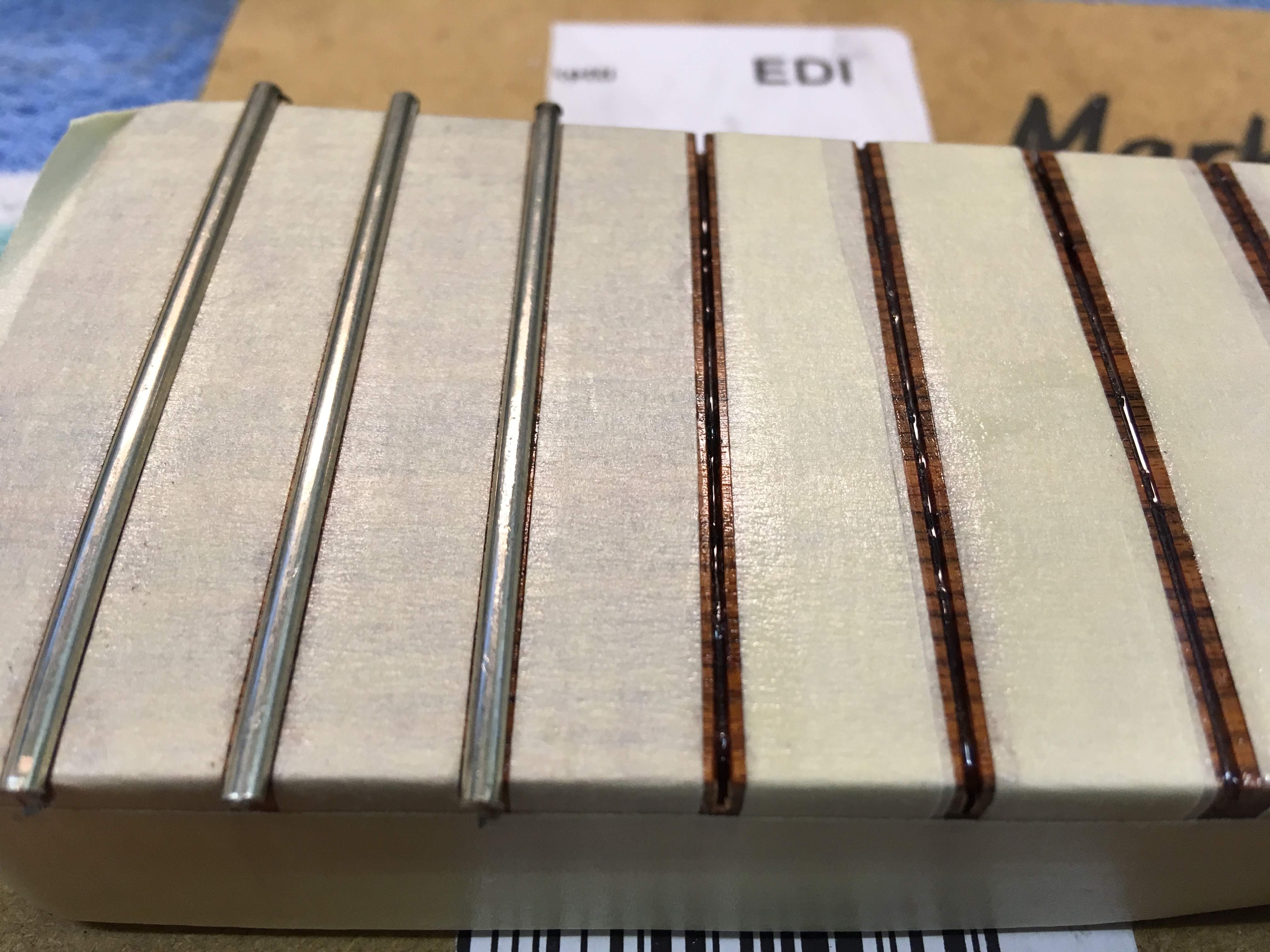

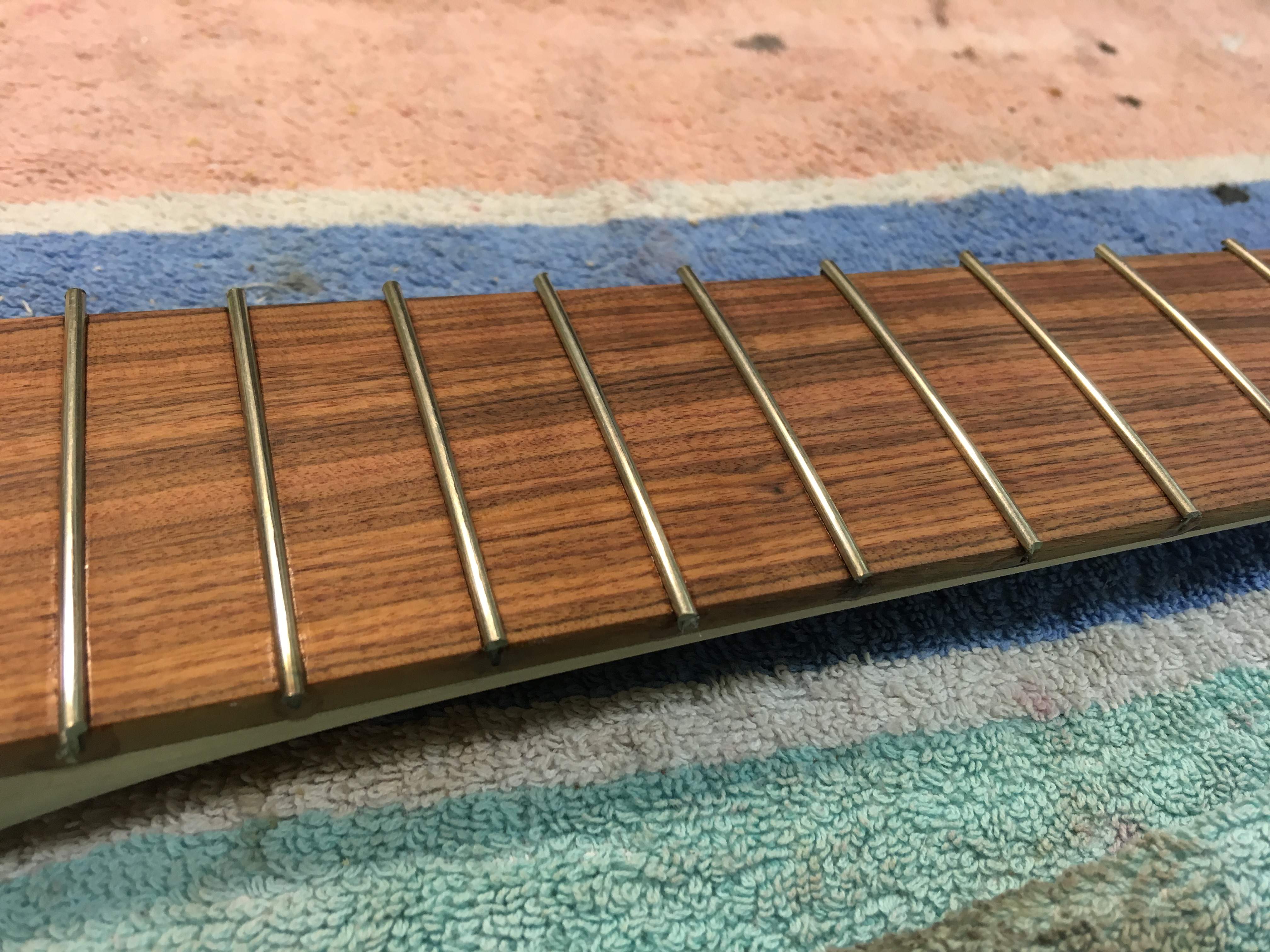

    I got the neck fretted. I glued the frets with epoxy.


    I used alcohol to wipe the epoxy off the fretboard.

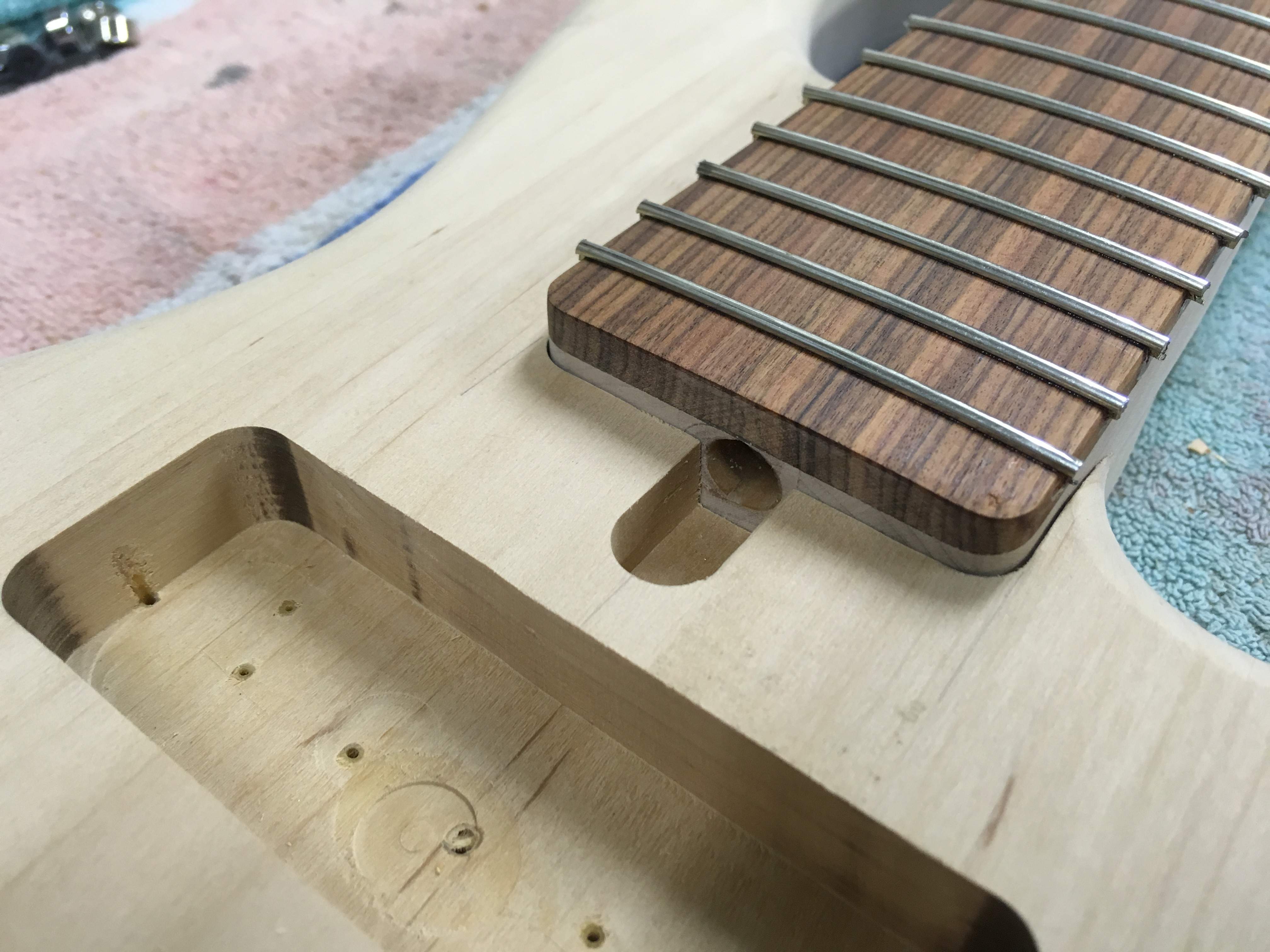

    Earlier today I routed the truss rod adjuster cavity.

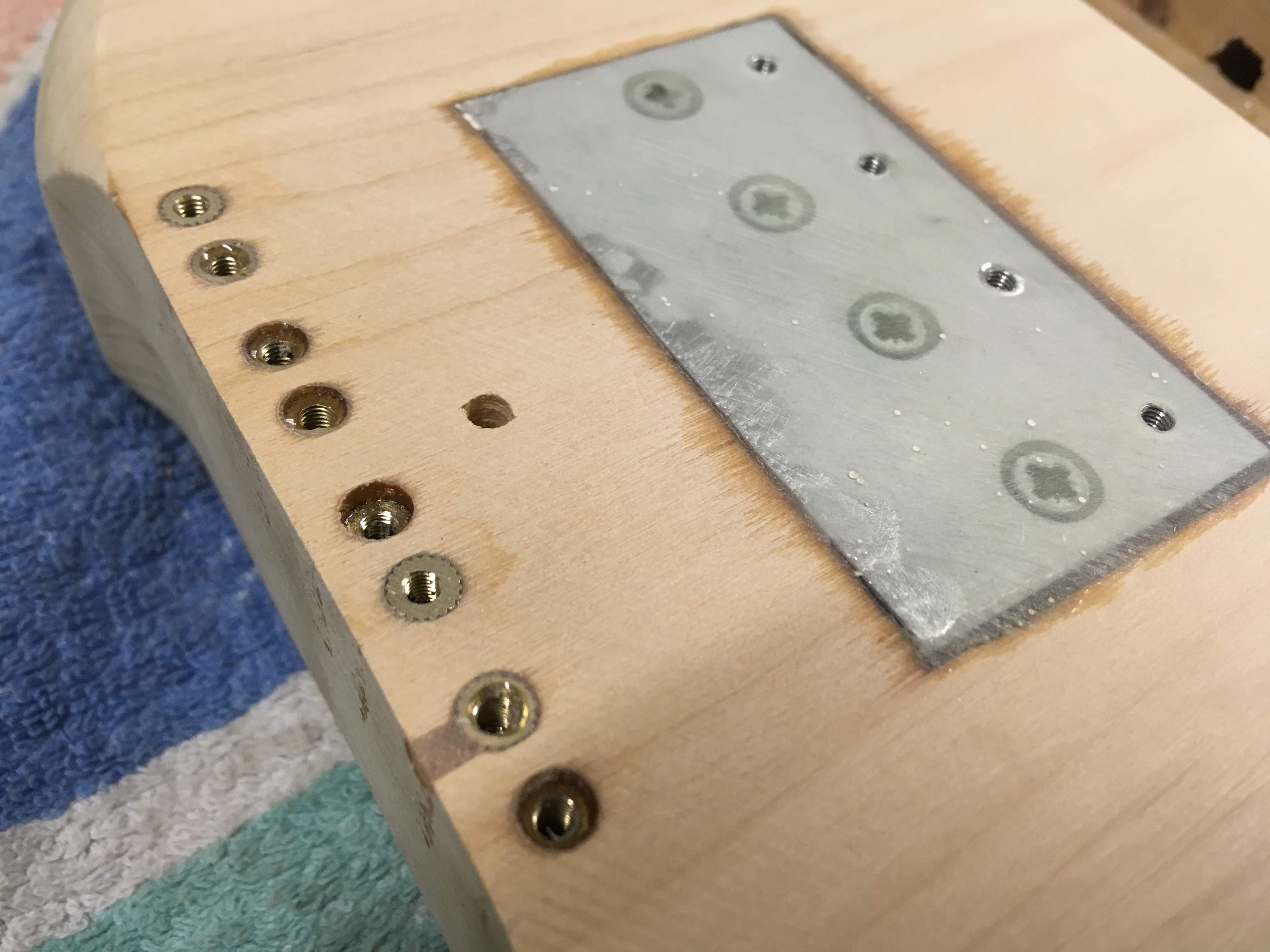

    And threaded inserts for tuners were epoxied in their holes.

    Joshua, BassHappy and T_Bone_TL like this.
  13. Bruce Johnson

    Bruce Johnson Commercial User

    Feb 4, 2011
    Fillmore, CA
    Professional Luthier
    Solid, tight connections at every point that metal hardware meets wood...and then softening the wood frame a bit to let it move more. That's the underlying theme of Brucification! This bass is going to sing.

    Gilmourisgod, Joshua, rojo412 and 3 others like this.
  14. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland
    I believe if there’s something bad about the sound it’s not the bass, it’s the player :)
    Today was just boring sanding, sanding, sanding... I filed the frets flush to the sides of the neck and drilled and glued the side dots as well. I sanded the neck to 320 and wiped the first coat of Tru oil on it. Body is sanded to 240 and wiped with damp rag to raise the grain.
    Sorry no pics as there is nothing to show.

  15. MovinTarget

    MovinTarget Supporting Member

    Jan 30, 2018
    Maryland, USA
    I love Tru Oil on the neck...

    rojo412 likes this.
  16. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland
    Me too. And it’s a joy to work with. No matter how dusty shop you have you always get a nice, smooth finish as long as you wipe the excess oil off.

    rojo412 and MovinTarget like this.
  17. MovinTarget

    MovinTarget Supporting Member

    Jan 30, 2018
    Maryland, USA
    Yup, I need to look into how to work with it using stains and/or dyes so I can do body work...

  18. MPU

    MPU

    Sep 21, 2004
    Valkeala Finland
    You may see something here tomorrow about stains and Tru oil...

  19. MovinTarget

    MovinTarget Supporting Member

    Jan 30, 2018
    Maryland, USA
    AWWWWWWWWWWWWWW YISSSSSSSSSSS!!!!!

    If it's informative like your other posts I'll be pretty thrilled!

  20. Could someone please point me towards some information about the Brucified truss rods?
    Tried searching but couldn't find anything :(
