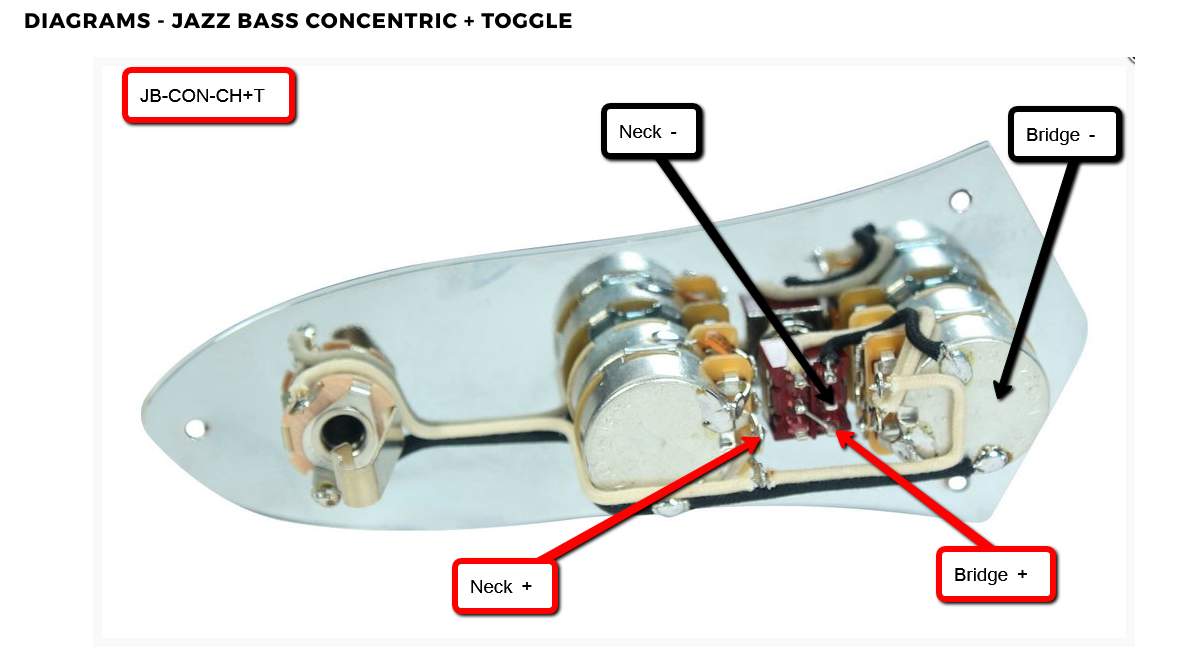

Installing a new dual concentric control plate on my Jazz and this is the "wiring diagram" provided by the manufacturer. It seems that it's backwards between where the bridge and neck are connecting to the pots. It has a parallel/series switch in the middle but I don't think that would require the bridge to be wired to the front pot and the neck to be wired to the middle. Is my thinking directionally correct and all I need to do is reverse them or is there something else going on here?
Your advice/direction is appreciated!
