help? put a push/pull on my ibanex GSR-100EX

[JMAN-pro]

anyone have evey wiring diagrams or anything? because i want to install a push/pull pot on my ibanez GSR-100EX normal wiring, 1 volume pot and one tone pot Music man pickup, with passive eletronics



[line6man]

Actually, copying word for word from an identical thread I replied to yesterday:

I'd be glad to draw you a diagram, but you didn't explain what you wanted the push/pull to do?

Series/parallel, killswitch, different capacitor values, what?



[JMAN-pro]

like a killswitch i guess



[JMAN-pro]

Actually, copying word for word from an identical thread I replied to yesterday:

I'd be glad to draw you a diagram, but you didn't explain what you wanted the push/pull to do?

Series/parallel, killswitch, different capacitor values, what?

ah, a killswitch, but i dont think you can do Series/parallel on my bass, because its one pickup, i dont think it has seperate coils



[JMAN-pro]

this is what the wiring looks like:

http://s863.photobucket.com/albums/ab198/JMAN-pro/?action=view&current=wiring5667.jpg



[line6man]

ah, a killswitch, but i dont think you can do Series/parallel on my bass, because its one pickup, i dont think it has seperate coils

Ok, if you just want a killswitch, I can explain that without a diagram.

Pick one side of the switch and connect the middle (common) terminal to ground.
Now connect the terminal that is closest to the shaft of the pot to the tip terminal on the output jack.



[JMAN-pro]

Ok, if you just want a killswitch, I can explain that without a diagram.

Pick one side of the switch and connect the middle (common) terminal to ground.
Now connect the terminal that is closest to the shaft of the pot to the tip terminal on the output jack.

do you do this with a push/pull pot? , i installed a killswitch on my guitar before and it really screwed my guitar up.



[line6man]

this is what the wiring looks like:

http://s863.photobucket.com/albums/ab198/JMAN-pro/?action=view&current=wiring5667.jpg

No bridge ground?



[JMAN-pro]

Ok, if you just want a killswitch, I can explain that without a diagram.

Pick one side of the switch and connect the middle (common) terminal to ground.
Now connect the terminal that is closest to the shaft of the pot to the tip terminal on the output jack.

would you beable to draw up a dragram fror 2 push/pull pots, one pot volume/tone secound pot like bass and mid or something


thanks.



[JMAN-pro]

Ok, if you just want a killswitch, I can explain that without a diagram.

Pick one side of the switch and connect the middle (common) terminal to ground.
Now connect the terminal that is closest to the shaft of the pot to the tip terminal on the output jack.

could you draw me a diagram? because when i installed a killswitch on my guitar i hooked it up to both of the wires going to the output



[line6man]

do you do this with a push/pull pot? , i installed a killswitch on my guitar before and it really screwed my guitar up.

You can do it with a push/pull or a mini toggle, it doesn't matter, the wiring is identical.

How did it screw up your guitar?



[JMAN-pro]

You can do it with a push/pull or a mini toggle, it doesn't matter, the wiring is identical.

How did it screw up your guitar?

like everytime i put my hand on the string, the bridge or turn the tone up theres a really loud electrical buz it sounds like when ur cord is loose in the output jack



[JMAN-pro]

You can do it with a push/pull or a mini toggle, it doesn't matter, the wiring is identical.

How did it screw up your guitar?

if you want to chat about this add me, [email protected] if you have instant messager



[JMAN-pro]

how do i set up a push/pull pot to me my volume and tone control? and maybe another push/pull pot for bass and mid/grain or w/e



[line6man]

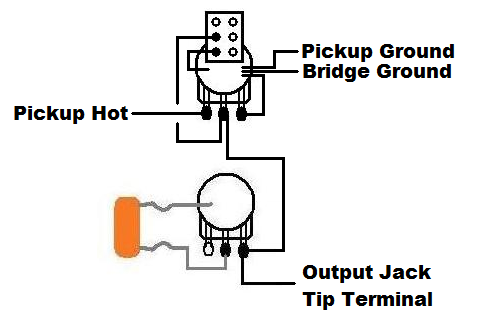

As discussed via IM, here is your diagram:
