Help wiring a Fender Jazz

[Fleece3]

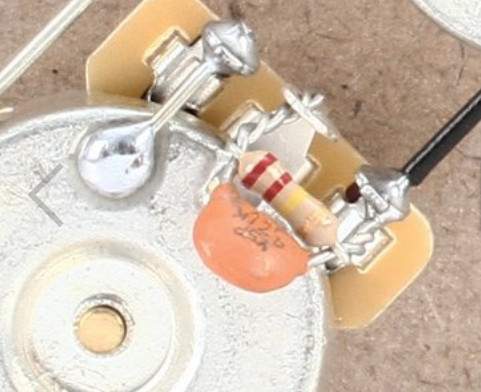

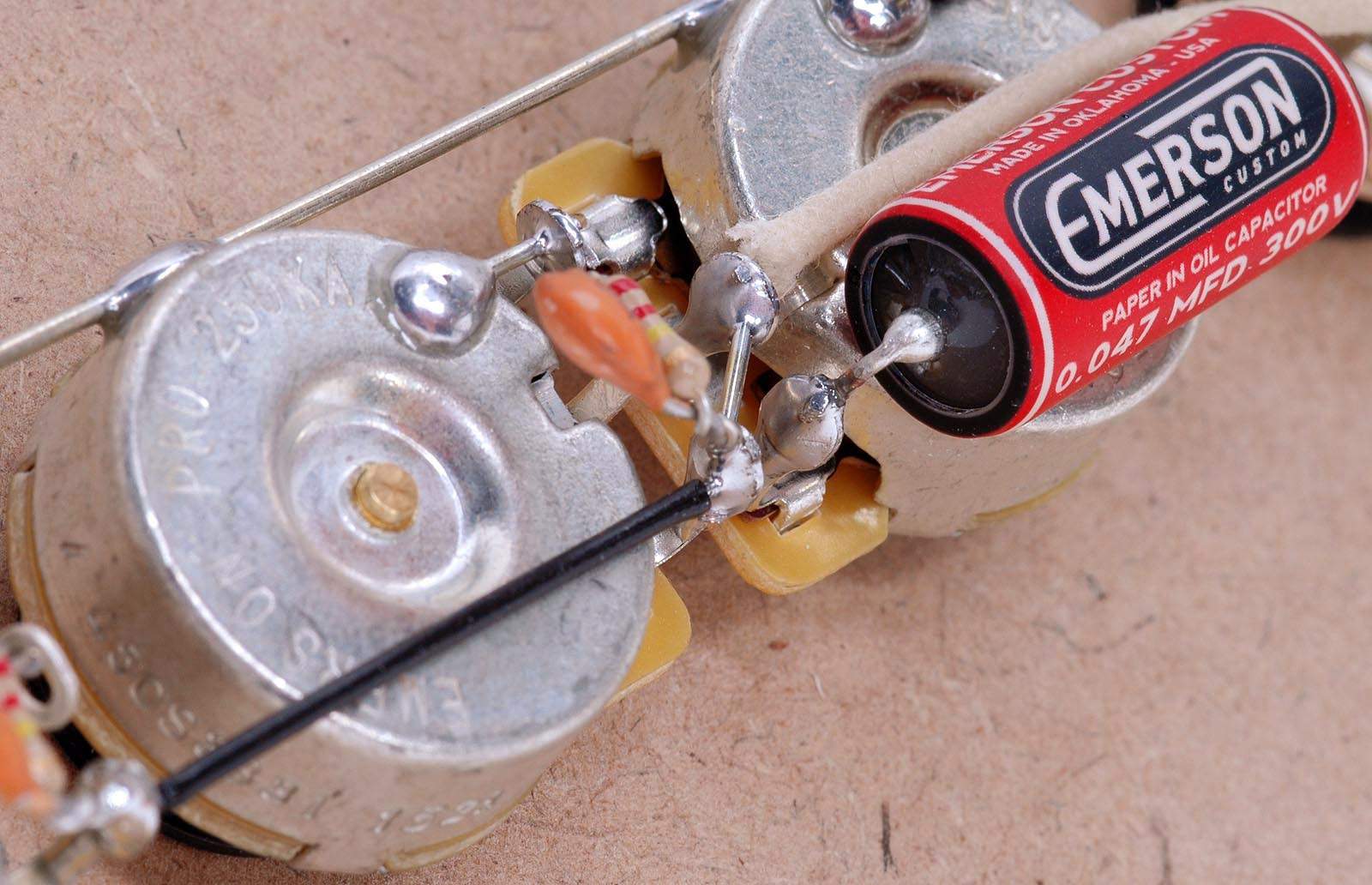

Hey Fam, I am looking to construct the same wiring found on an Emersion Custom J-Bass Prewired Kit. I am a novice to this, but I am learning. I have what I need, with the exception on the resistors used. I am posting a pic. PLEASE don't tell me theory, options, etc.. Just what resistors these are. Not that I am being a jerk, it is just that anything else and you are talking over my heard!! A this point I am just building. I am sure as I learn more, I will be able to discuss more. For how, please tell me what these resistors are. How many K Ohm, How many watts?

While, I am learning here. I have settled on 250k pots. Are there any advantages using 500k pots? and why.

Thanks



[Gothic]

Well it's a treble bleed but I can't tell the values and I'm not knowledgeable enough to recommend anything, sorry. As for pots, I personally prefer 500k on a JB, I find it "opens up" the tone and brings a bit extra oomph to it. And more highs.



[johnson79]

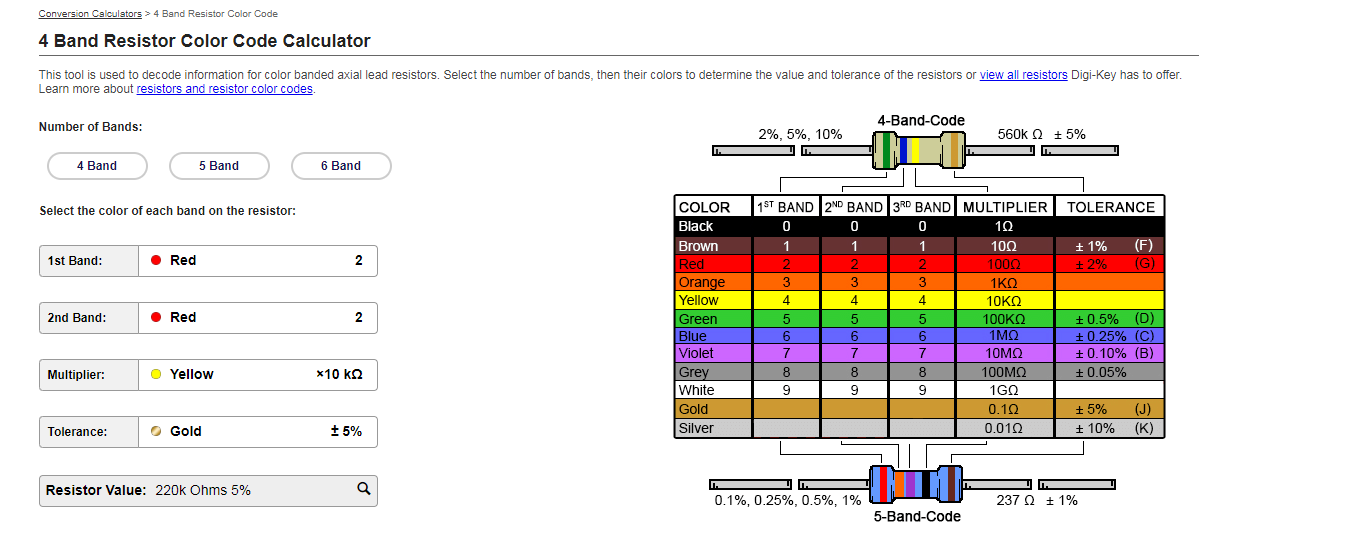

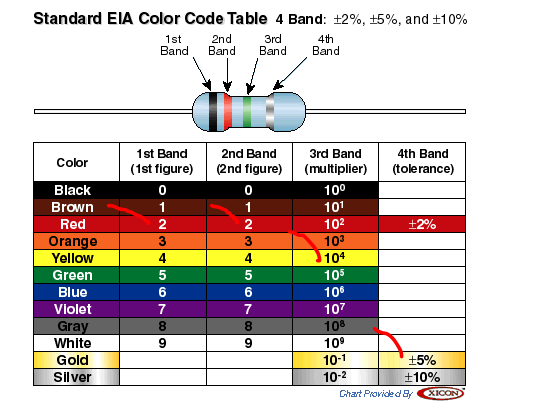

Here's a calculator to determine what the color-coding represents. Not sure what the small orange cap is rated.
.047 is the standard value for the larger capacitor.
Invalid Link Removed



[Fleece3]

Well it's a treble bleed but I can't tell the values and I'm not knowledgeable enough to recommend anything, sorry. As for pots, I personally prefer 500k on a JB, I find it "opens up" the tone and brings a bit extra oomph to it. And more highs.

Thank you sir. I just learned a little bit!
