Help with wiring a pickup

[huwnyc]

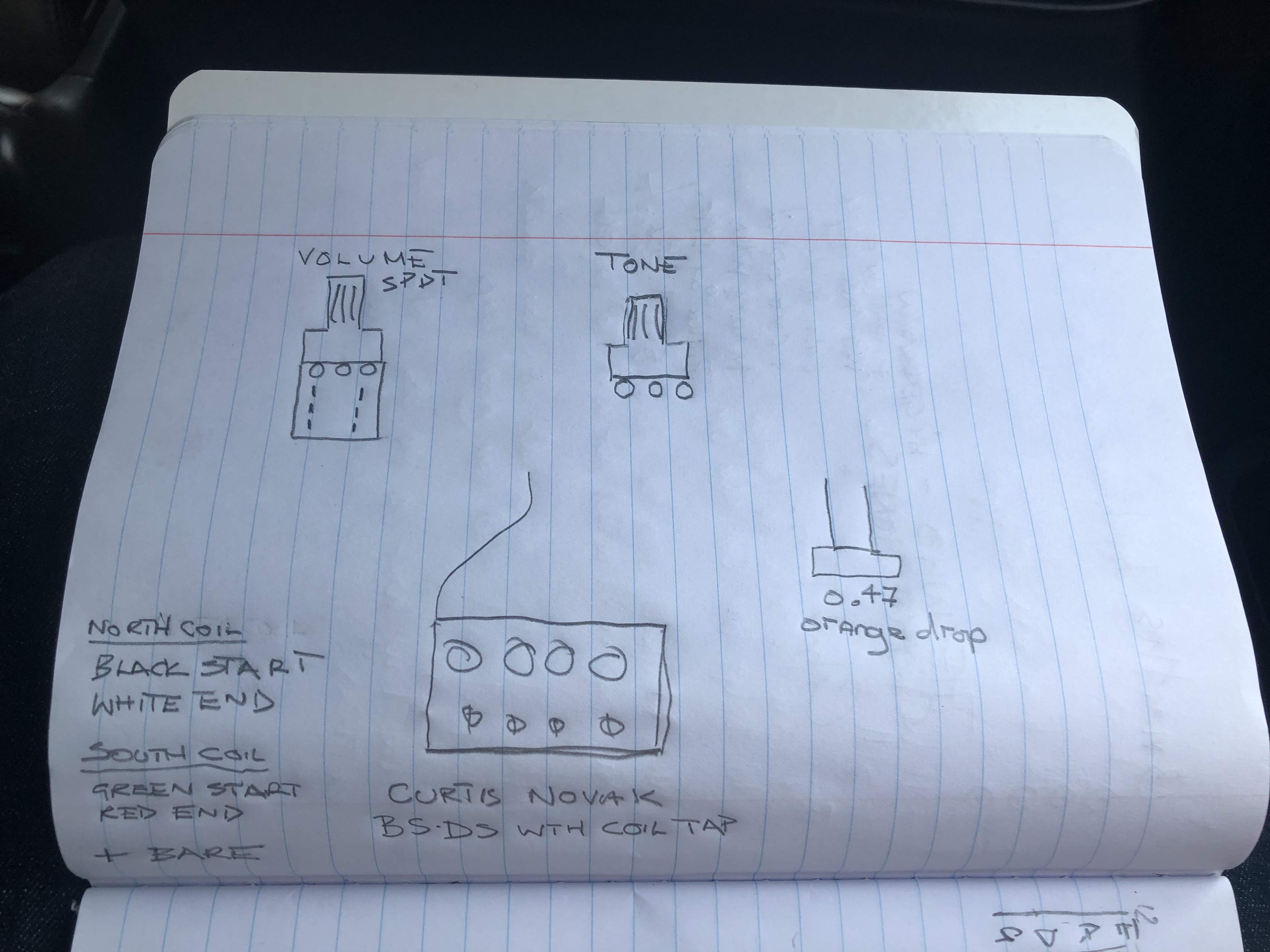

Hi, I have the above and can’t seem to find any wiring diagrams to help me make this baby sing, I think I would wire the north coil to one side of the switch then the south to the other and put the tone in between both but I am unsure of how to do this and then there is the orange drop that confuses me totally any help or link to help me would be much appreciated
Thank you in advance



[Killed_by_Death]

You'll be coil-splitting, & that capacitor value is too high. The drawing of the switch looks like a DPDT.
Those wires coincide with S.D.'s, so you're in luck, you can use S.D.'s diagrams to figure this out:

Wiring Diagrams



[Huw Phillips]

Thanks
