High Pass Filter (HPF) and Low Pass Filter (LPF) Mega Thread

[Old Garage-Bander]

He has the v3 up there now. There's also the German kit that's been linked in this thread and a few other places. Haven't seen the price tag on that one yet. I've considered doing an open source one similar to my variable LPF onboard preamp, but right now I have a very full plate with commercial design work and it wouldn't be all that different from @fdeck's anyway. View attachment 3149903

Oh! Thanks for the update. I'll check it out though will probably just toss by biz to @fdeck



[mesaplayer83]

Oh! Thanks for the update. I'll check it out though will probably just toss by biz to @fdeck

I don't think you'll regret it - the sound and build quality are outstanding - quite the value, given what he charges, IMO...



[boamedt]

I have been incredibly happy my my broughton h+lpf



[dabis]

FYI, According to the website, it's out of stock right now.

In stock again! Just ordered mine.

Is anyone making a cheaper HPF - Behringer or Joyo for example (can't seen anything on their sites)? I've only come across Fdeck clones custom built or Broughton. I'm not a fan of clones per say, but I'd rather spend £30 on one or a cheaper brand than £90+ for a custom build just to see if it helps smooth out things in our rehearsal space. I can only think of one venue I've had an issue with my sound.. and it's closed now.

Hi! I've benn reading this post the lasts months, and now it's time to try. I've seen the Von-Filterung kit. Does anyone built and played that?

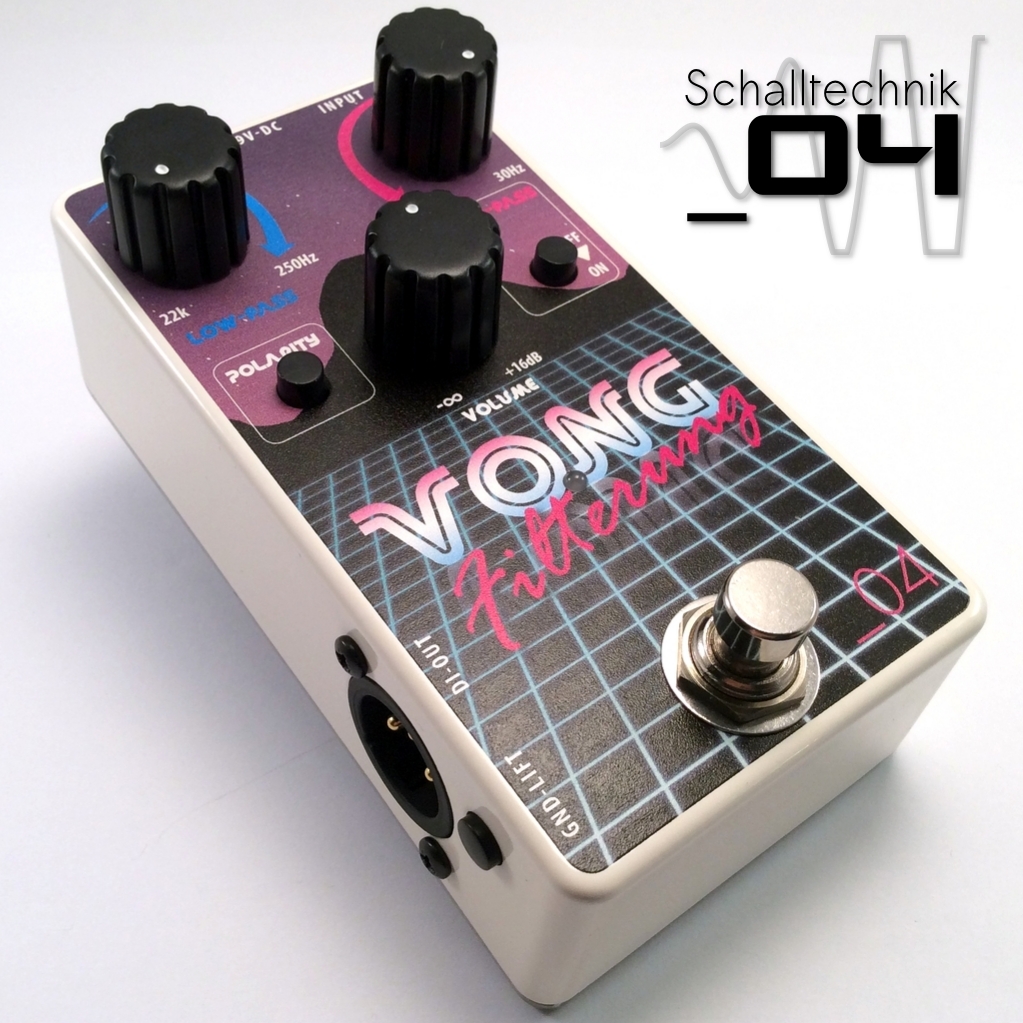

VONG-Filterung – Schalltechnik_04

The VONG-Filterung features:

• adjustable HighPass-Filter (30-140Hz)
  • 4th Order-Filter -> -24dB/Oct.
    • -12dB/Oct. fixed at 30Hz
    • -12dB/Oct. adjustable
• adjustable LowPass-Filter (.250-22kHz)
  • 2nd Order-Filter
    • -12dB/Okt. adjustable
• DI-Out
  • with Ground-Lift-Switch
• adjustable Boost (up to +16dB) for the 1/4″-Output
• Polarity-Switch (180°-Phase) for the 1/4″-Output

View attachment 3123470



[AREA]

I have the VONG on my Board. It's a great Tool. I use it in Front of my Mesa D800 and so I have the same Features as the D800+ plus an LPF, Polarity Switch, DI Out and an adjustable Boost....



[TheBass]

I have the VONG on my Board. It's a great Tool. I use it in Front of my Mesa D800 and so I have the same Features as the D800+ plus an LPF, Polarity Switch, DI Out and an adjustable Boost....

View attachment 3150485

When I am playing InEar I use the VONG as a stage DI-Box. A perfect solution for me if I want to use minimum equipment on stage. No stage amps, no wall plug adapters needed. Just the VONG and a small personal monitor body pack (Behringer P1). That's it.



[Stumbo]

v

@glocke1:

I never thought I'd like a cabinet with horn, much less a midrange driver...F212 content.


Gig report time...

This thing along with the Mesa 800 kicks butt and doesn't take names.

The house PA had subs for bass, but the feedback i was getting from people is that when i turned up on stage the bass sounded better as did the overall sound of the band, so the PA guy ended up turning me down in the mains/subs.

Im still working on finding a sound I really like with Mesa..I think it is in there, I just need to dig around for it.

Turning the HPF up helps all towards that goal.

This cabinet is downright amazing, it had the drummer smiling non stop because he could hear and I think some extent feel the bombs i was able to drop.



[basst scho]

[Invalid or Expired Link Removed]

60 Euro Hotone?

edit: dang, someone bought the last one from Thomann?

greetings

Wise(b)ass

Ah nice one, it's showing as unavailable on Thomann but I'll have a look around! Thanks!

Decided to buy one of those little Hotone Gate units - not to replace my primary HPF/LPF unit, but the size is just so convenient for a quick, throw it in your gig bag for rehearsal, etc.

Plus, noise gate and the cool, green LED knob - what's not to like? I can always return it if I don't like it.

The LPF range is a little high for bass, but still low enough to maybe put some tame on an active bass if needed. But the meat-n-potatoes HPF range looks good - just wish there were more info on the HPF slope it is using.

i think i´ve got thomanns last one . wasn´t availlable anymore after i ordered it.

still very happy with it.
as for the lpf...i´ve yet to try it with my active bass, but with my passives i didn´t hear any difference turning the knob.



[Microbass]

i think i´ve got thomanns last one . wasn´t availlable anymore after i ordered it.

still very happy with it.
as for the lpf...i´ve yet to try it with my active bass, but with my passives i didn´t hear any difference turning the knob.

Cheeky!

I'm tempted to go with building the Vong for 60euro all in - as mentioned I've never had a problem with uncontrollable low end except for recently in our practice space. Some floor boards were replaced just after we moved in and the bass freq's have been totally messed up!



[TheBass]

I'm tempted to go with building the Vong for 60euro all in -

I recommend to buy the complete set, incl. drilled and printed housing and knobs. Then you just need to populate the PCB and assemble it. It took me less than 3hrs to complete everything. And Julian was very helpful to fix errors due to my cheesy soldering.



[Microbass]

I recommend to buy the complete set, incl. drilled and printed housing and knobs. Then you just need to populate the PCB and assemble it. It took me less than 3hrs to complete everything. And Julian was very helpful to fix errors due to my cheesy soldering.

This I would do. I can't afford the graphic case though which is a bummer because his tutorial and instructions are great and I'd be happy to show off his kit!

I'm finding it quite bizarre that the filters aren't a big deal in the UK, compared to what is talked about here. Only a handful of cats I can see are having local builders custom build the fdeck design..



[TheBass]

I'm finding it quite bizarre that the filters aren't a big deal in the UK, compared to what is talked about here. Only a handful of cats I can see are having local builders custom build the fdeck design..

May be because many people are reluctant for DIY and don't want to end up in a non-functional mess. But with the complete set and his detailed tutorial Julian has set the hurdle for DIY quite low. I think it's a good deal.



[basst scho]

Cheeky!

I'm tempted to go with building the Vong for 60euro all in - as mentioned I've never had a problem with uncontrollable low end except for recently in our practice space. Some floor boards were replaced just after we moved in and the bass freq's have been totally messed up!

I'm finding it quite bizarre that the filters aren't a big deal in the UK, compared to what is talked about here. Only a handful of cats I can see are having local builders custom build the fdeck design..

seems to be an us-thing. couldn´t find anything other than the hotone and the vong either on our side of the atlantic.

would have gone with the vong too, if i couldn´t get the hotone. just would have to annoy a friend to help me soldering.



[glocke1]

@glocke1:

I never thought I'd like a cabinet with horn, much less a midrange driver...F212 content.


Gig report time...

This thing along with the Mesa 800 kicks butt and doesn't take names.

The house PA had subs for bass, but the feedback i was getting from people is that when i turned up on stage the bass sounded better as did the overall sound of the band, so the PA guy ended up turning me down in the mains/subs.

Im still working on finding a sound I really like with Mesa..I think it is in there, I just need to dig around for it.

Turning the HPF up helps all towards that goal.

This cabinet is downright amazing, it had the drummer smiling non stop because he could hear and I think some extent feel the bombs i was able to drop.

Yup...The HPF on the mesa only has min/max markings on the HPF, but if I were to guess I'd say I had it dialed in to 45-50 Hz. It was nice to get down and hit those low notes without all that muddiness in there.



[agedhorse]

The frequencies on the Subway HPF are linearly proportional to the rotation of the knob.



[Stumbo]

Yup...The HPF on the mesa only has min/max markings on the HPF, but if I were to guess I'd say I had it dialed in to 45-50 Hz. It was nice to get down and hit those low notes without all that muddiness in there.

Even with a 2x12 fEARless cab the HPF cleans the mud! Wow!

See @JimmyM !

That's my experience with a much smaller rig.



[jb90]

Where I can find HPF for bass ? It would be very good addition to my gear because most of the freqs below 40hz is just useless especially on stage when you don't need that rumble but good monitor bass sound. It's sometimes hard to get that clean but still bass sound without turn down the lows.



[Stumbo]

Where I can find HPF for bass ? It would be very good addition to my gear because most of the freqs below 40hz is just useless especially on stage when you don't need that rumble but good monitor bass sound. It's sometimes hard to get that clean but still bass sound without turn down the lows.

Do you solder or know some one who can?
Invalid Link Removed

Not a kit: Broughton Audio ships from Canada to Europe. I have the always-on HPF. It requires a power supply. It's stellar.
[email protected]



[jb90]

No. I just want to know where Can I buy HPF for bass. My combo has HPF but my big rig not and it would be very usefull to get rid of useless rumble down below



[Stumbo]

No. I just want to know where Can I buy HPF for bass. My combo has HPF but my big rig not and it would be very usefull to get rid of useless rumble down below

You mean, a store?

Please read a few posts up. TBrs from Europe are having trouble finding one.
