Horn / Strap Button Extender (to prevent neck dive)?

[Doc Mojo]

I would take a balanced 12 pound bass over a neck heavy 6 pound bass anytime.



[Matt Salas]

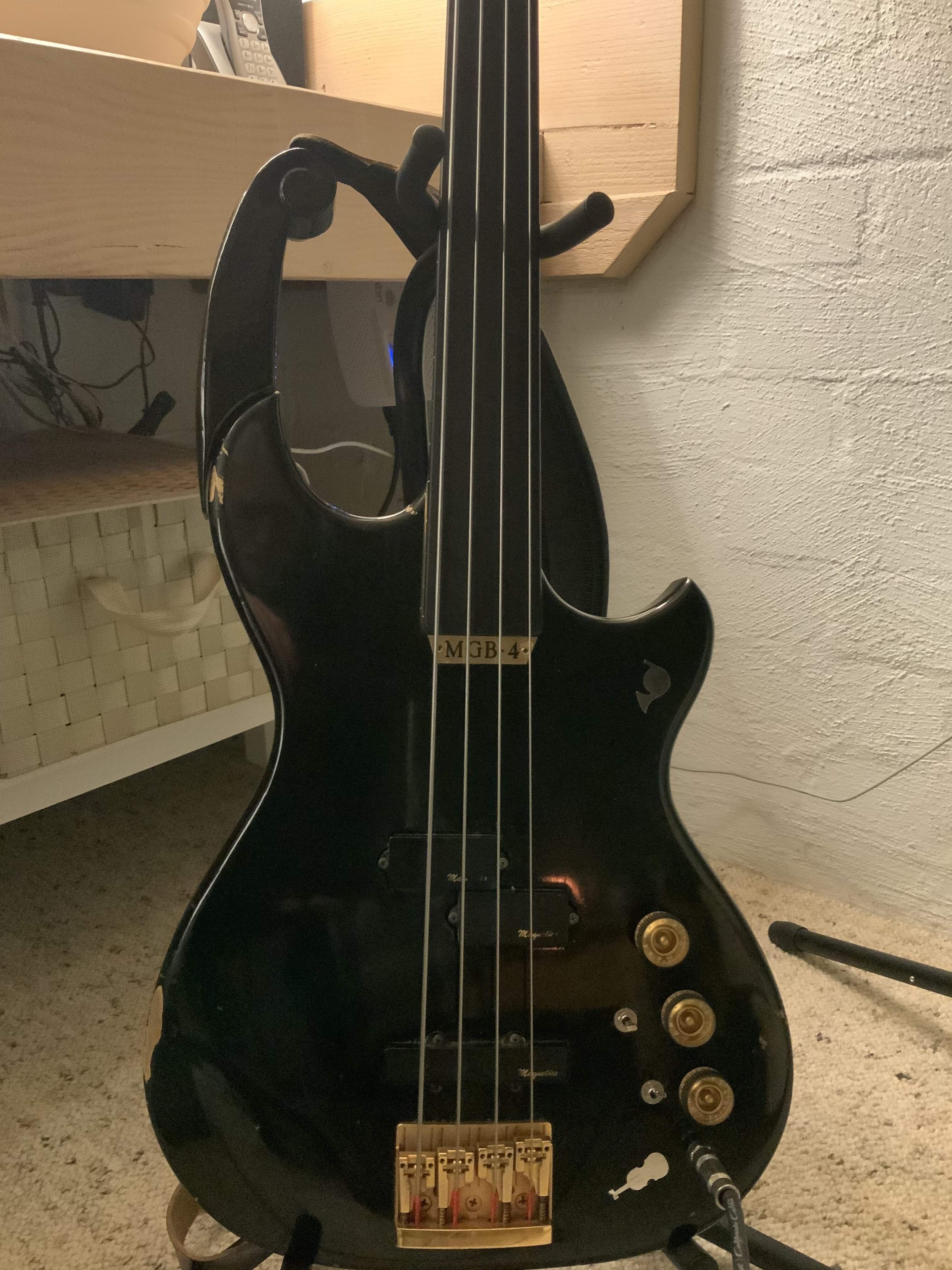

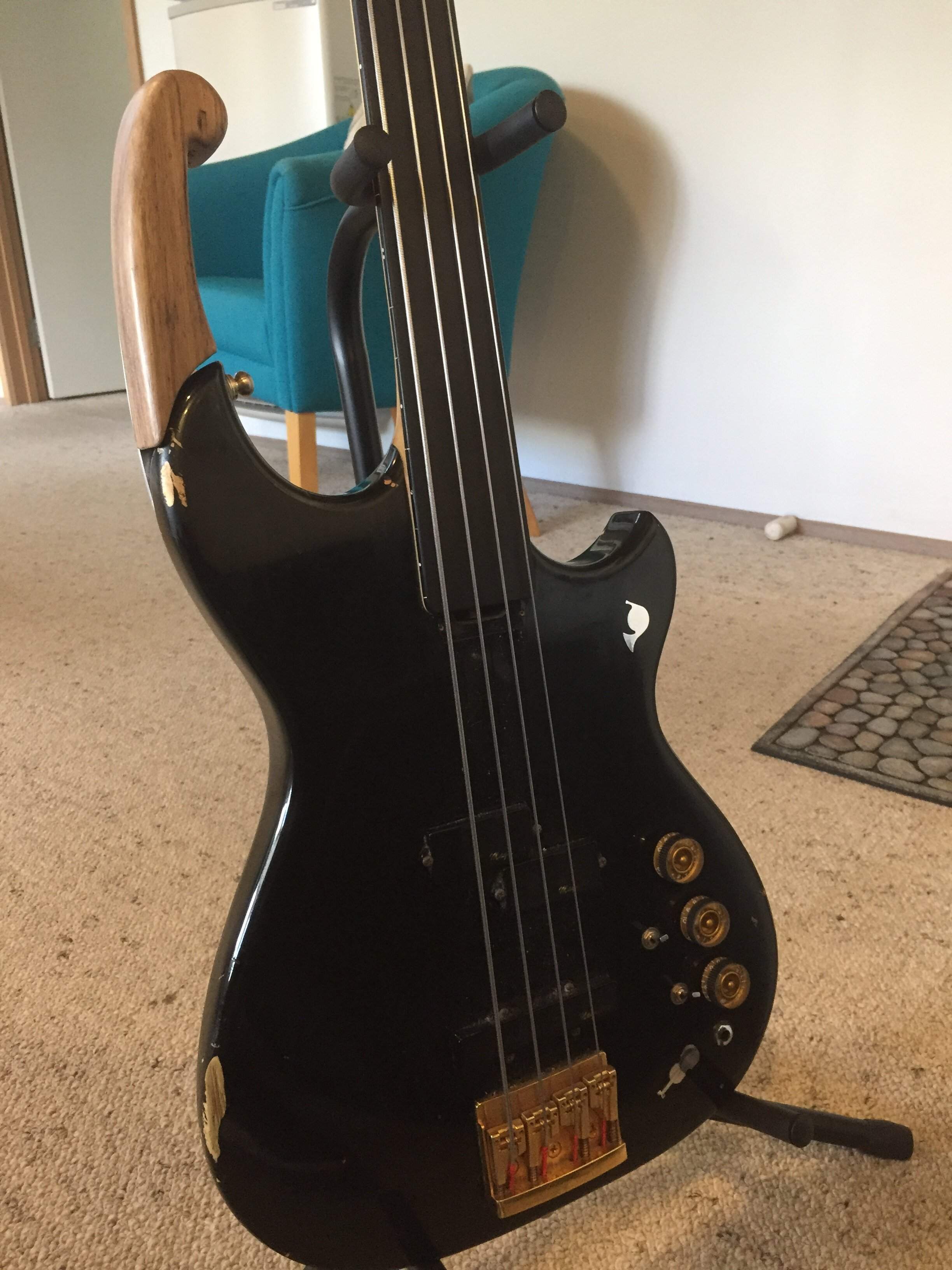

On my 10 lb Maton MGB-4 the strap button on the horn was too close to the centre of gravity, and was carrying a much greater load. I figured that for perfect balance it would have to be in line with the fret 7. That way the two strap buttons would be the same distance apart on either side of the centre of gravity. For a couple of reasons I settled on extending the horn only as far as fret 9 - see pics (waiting for new strap buttons). Balance is not perfect but much improved.



[Matt Salas]

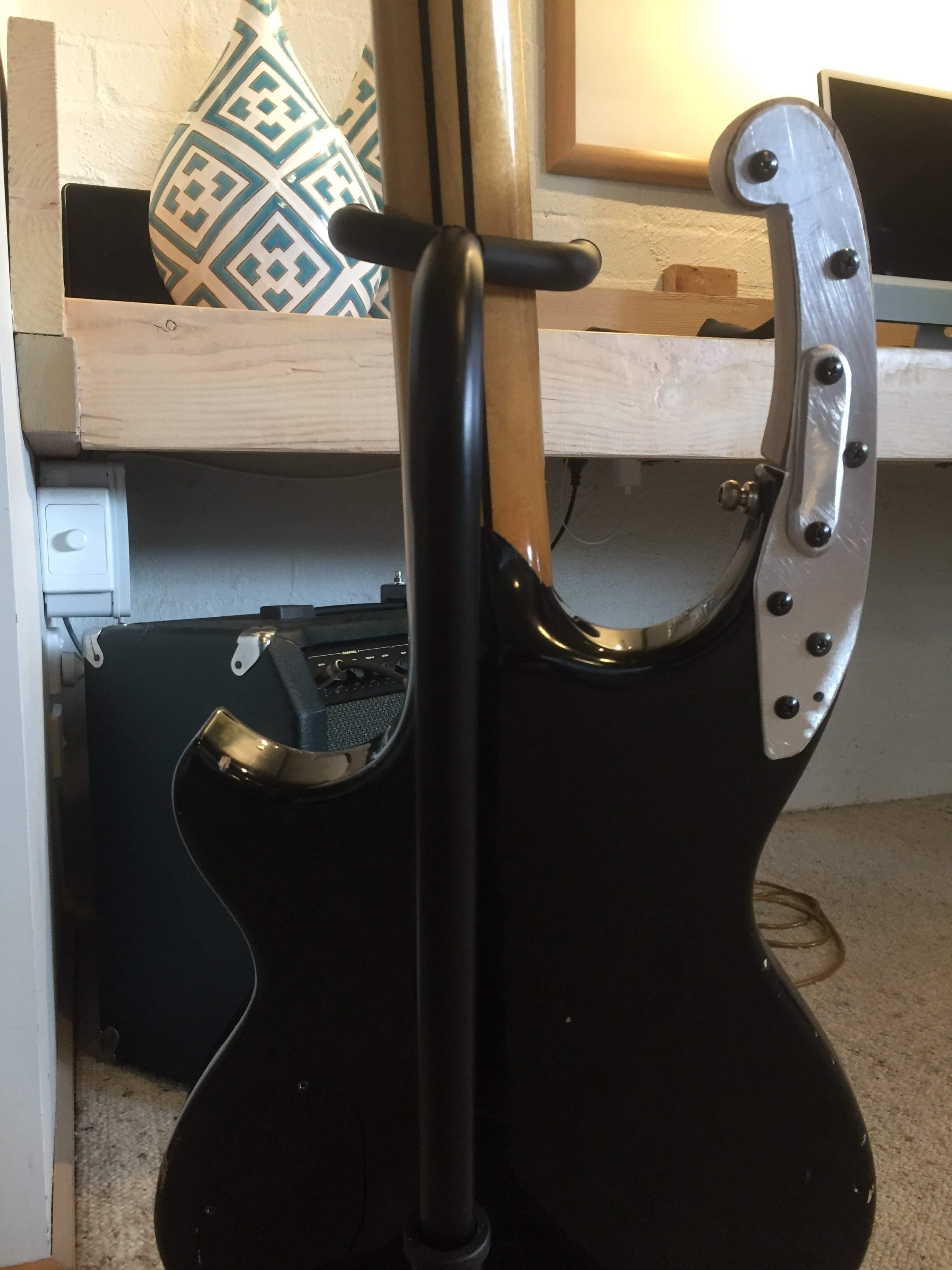

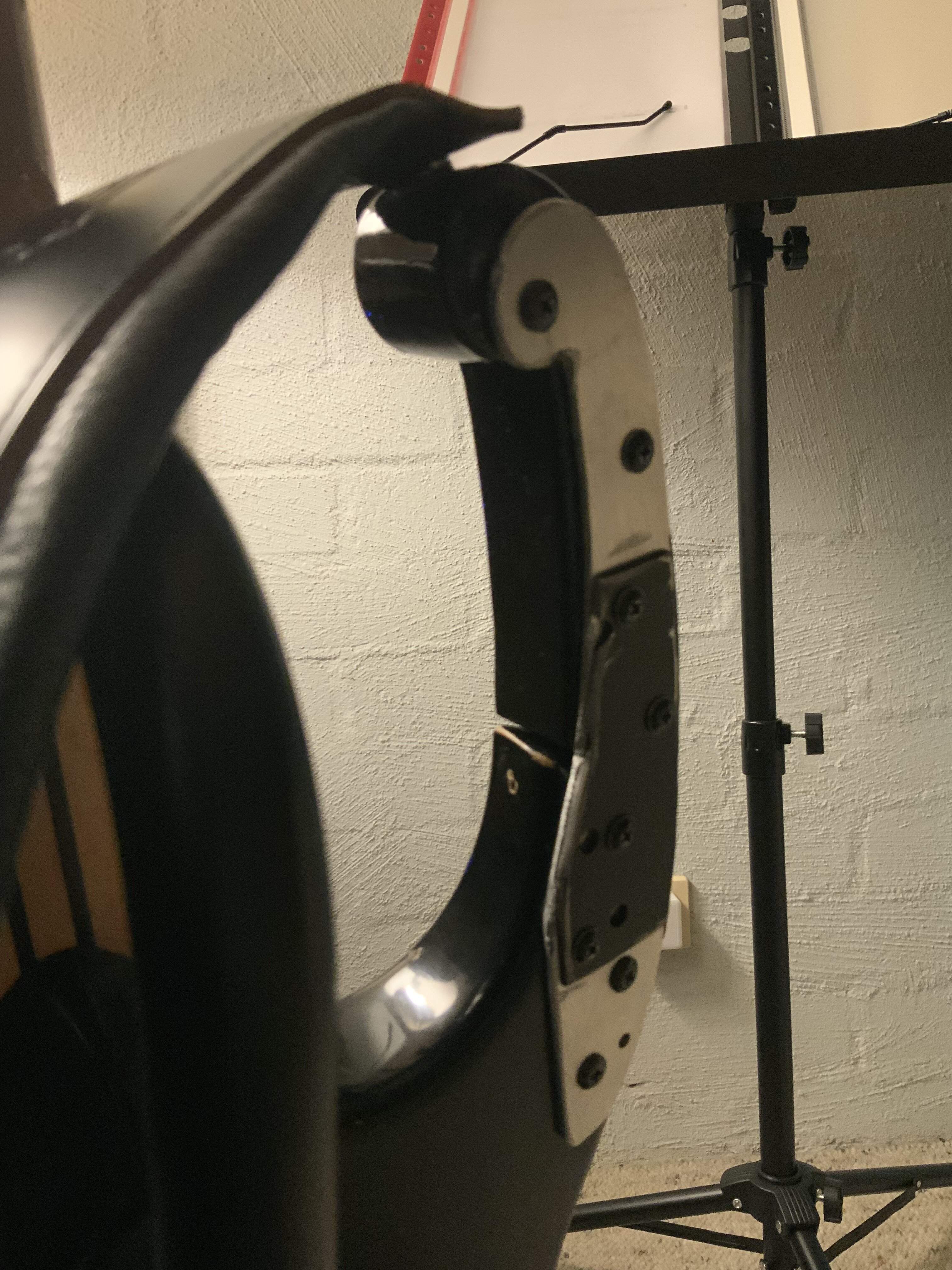

That was the prototype. See V2.0 photos below. Note the beefed up steel bracing over the join (fashioned from a door hinge).



[Watchootognbout]

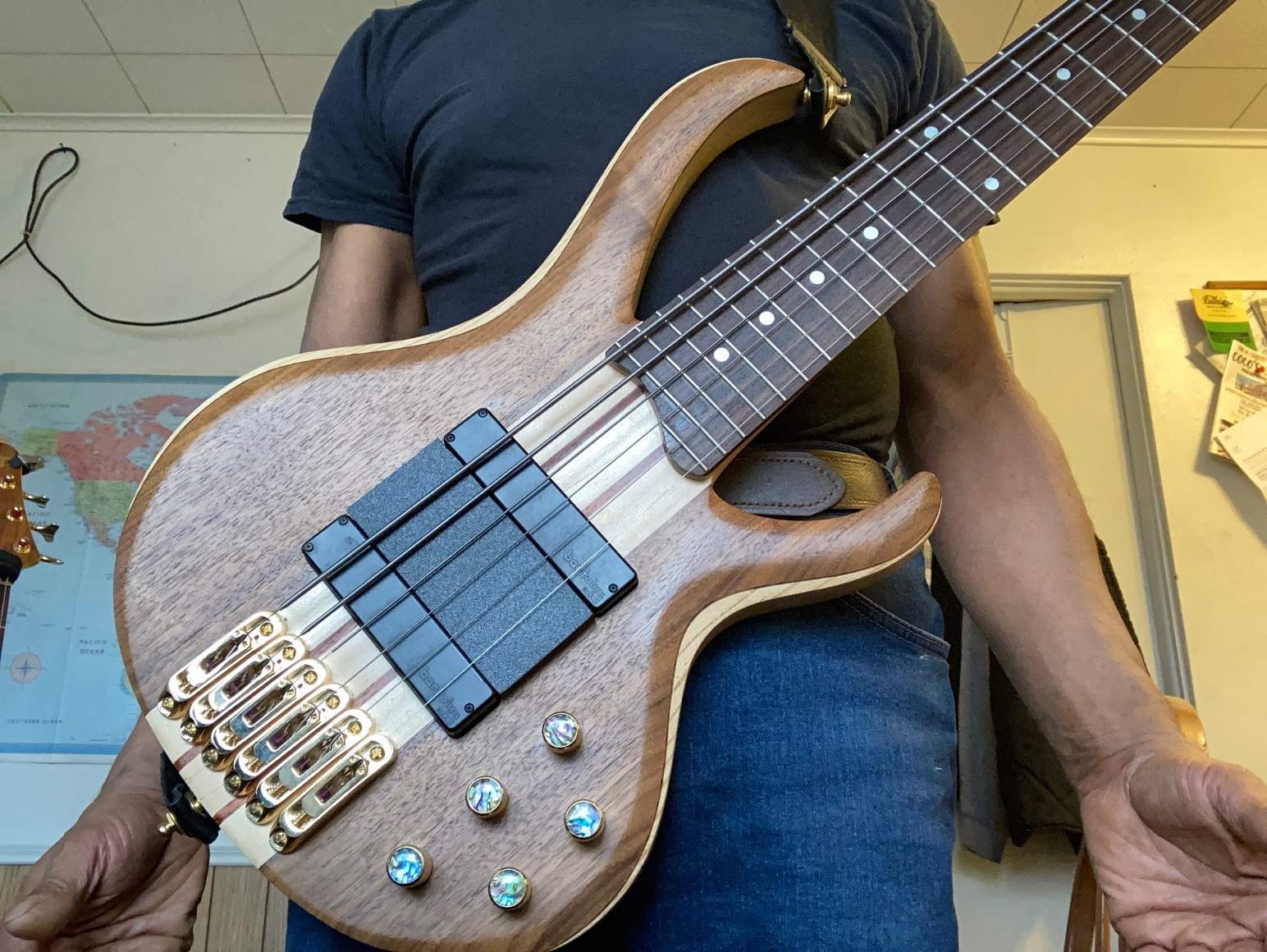

One bass that has absolutely no fret dive.
Straight out of the factory.

My Ibanez BTB676

The upper horn reaches the twelfth fret.
An obvious solution lost to many bass makers.

Ibanez got it right!
