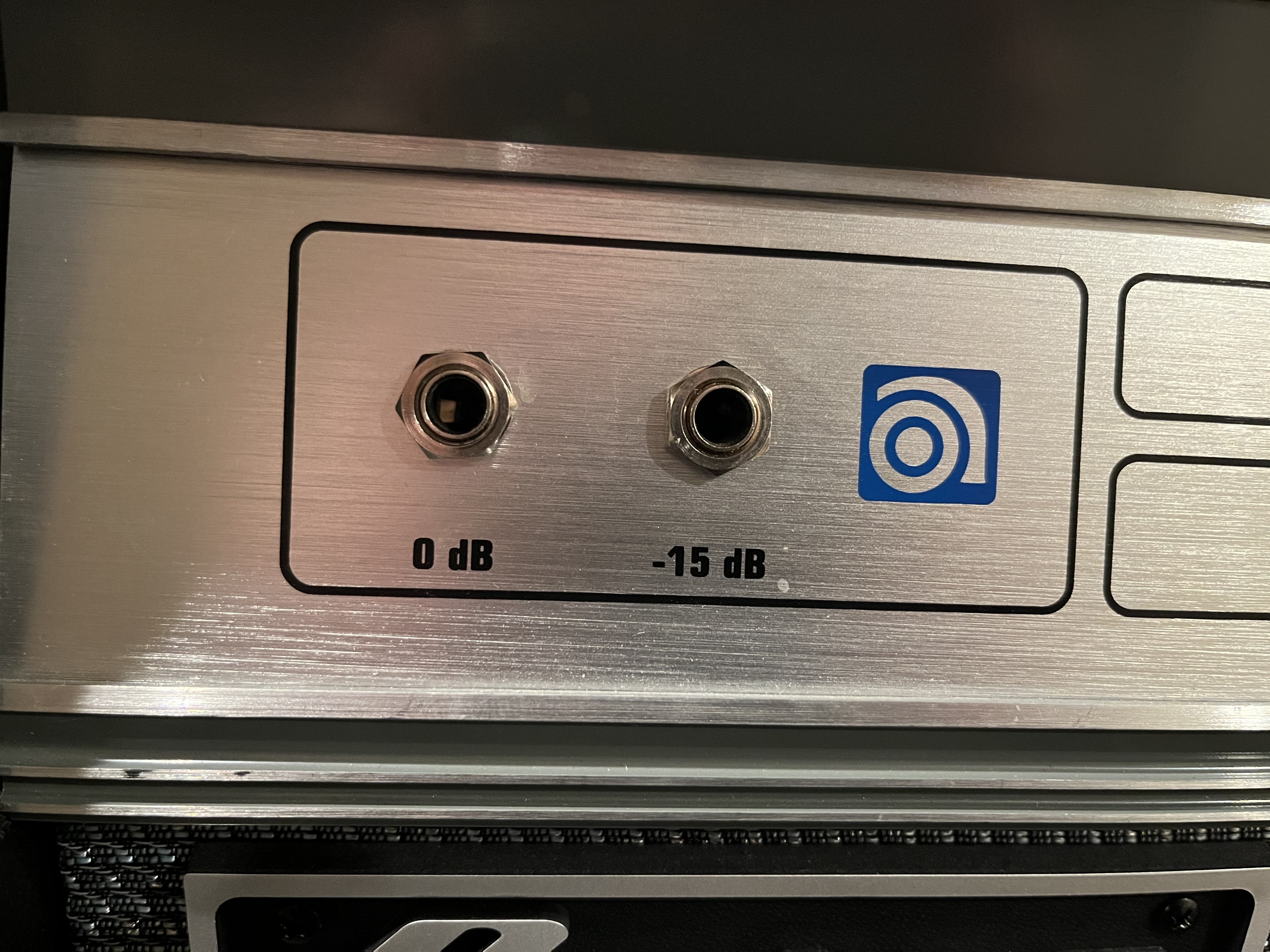

Well, I accidentally stepped on the 1/4 guitar cord at practice tonight, that connected my bass to the Ampeg V4B head and the Jack in the head fell apart into several pieces one of which is lodged deep into input jack. How can I gain access to that area to remove that piece of the 1/4 jack?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
How To Remove Ampeg V4B panel to get to jack
- Thread starter shred
- Start date
You might be able to grab an edge of the broken plug with really thin needle nose pliers. Or not if it is really wedged in there. Probably bent up the Jack too.
maybe pay a tech to fix it properly?
maybe pay a tech to fix it properly?
I remember having that problem...
I took the amp cover off, ended up drilling a small hole in back of the input jack case, putting something real thin in there and punching the broken piece out.
Please don't take anything I've done as good advice.
I took the amp cover off, ended up drilling a small hole in back of the input jack case, putting something real thin in there and punching the broken piece out.
Please don't take anything I've done as good advice.
The right way to do it would be to pull the head chassis out of the head box. It is secured with screws and slides out the back. There is usually a metal shield plate over the internals that needs to come off as well. Then you would have clear access to the jack and could clear the broken part or replace the jack if it is damaged. It would take me about 15 minutes. I don't know what your skill level and tool set is. Also, if you do pull the chassis remember that the guts of the amp board could be electrified (probably not, but you cannot SEE electrons). You can easily check that with a voltmeter.

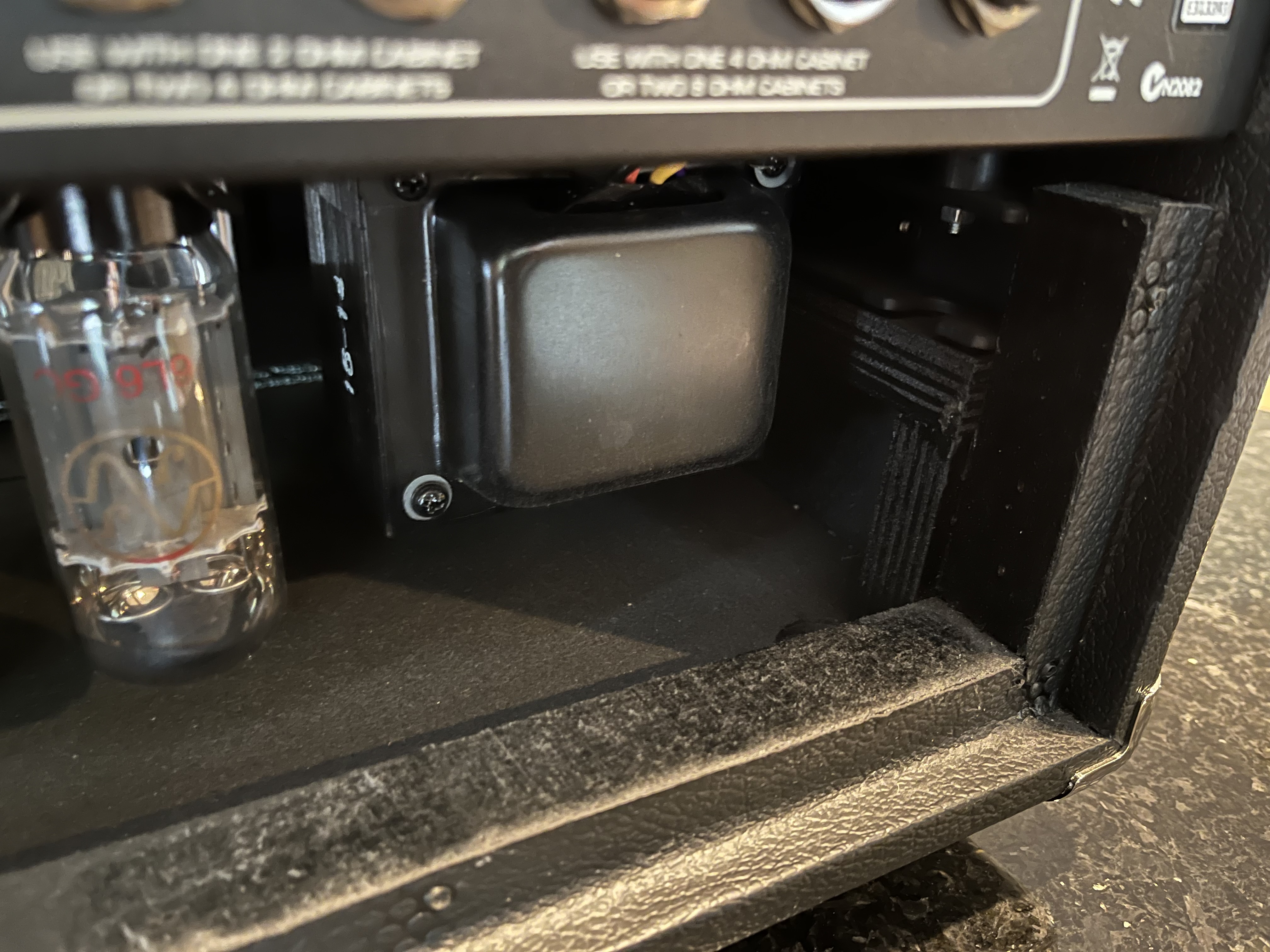

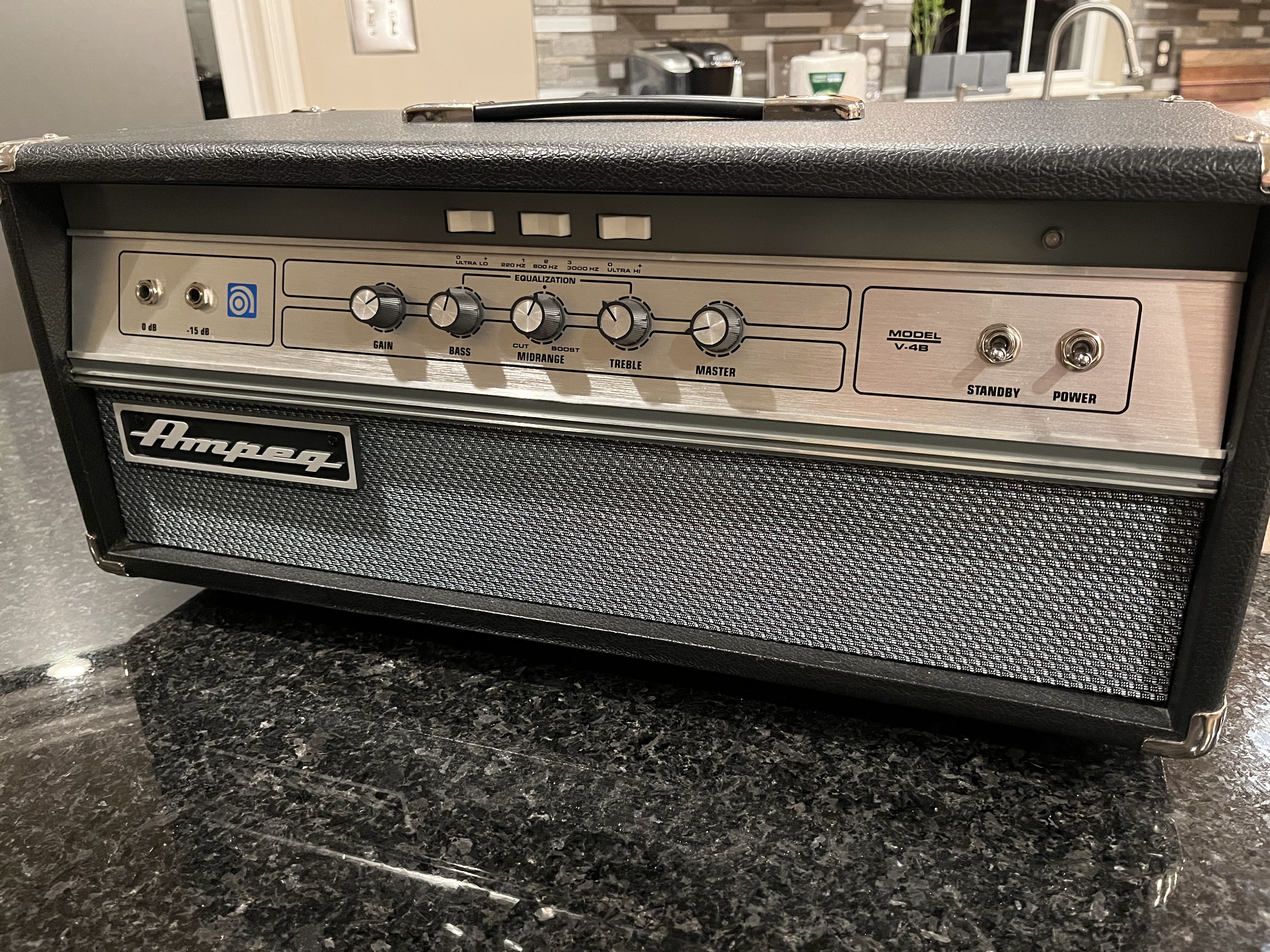

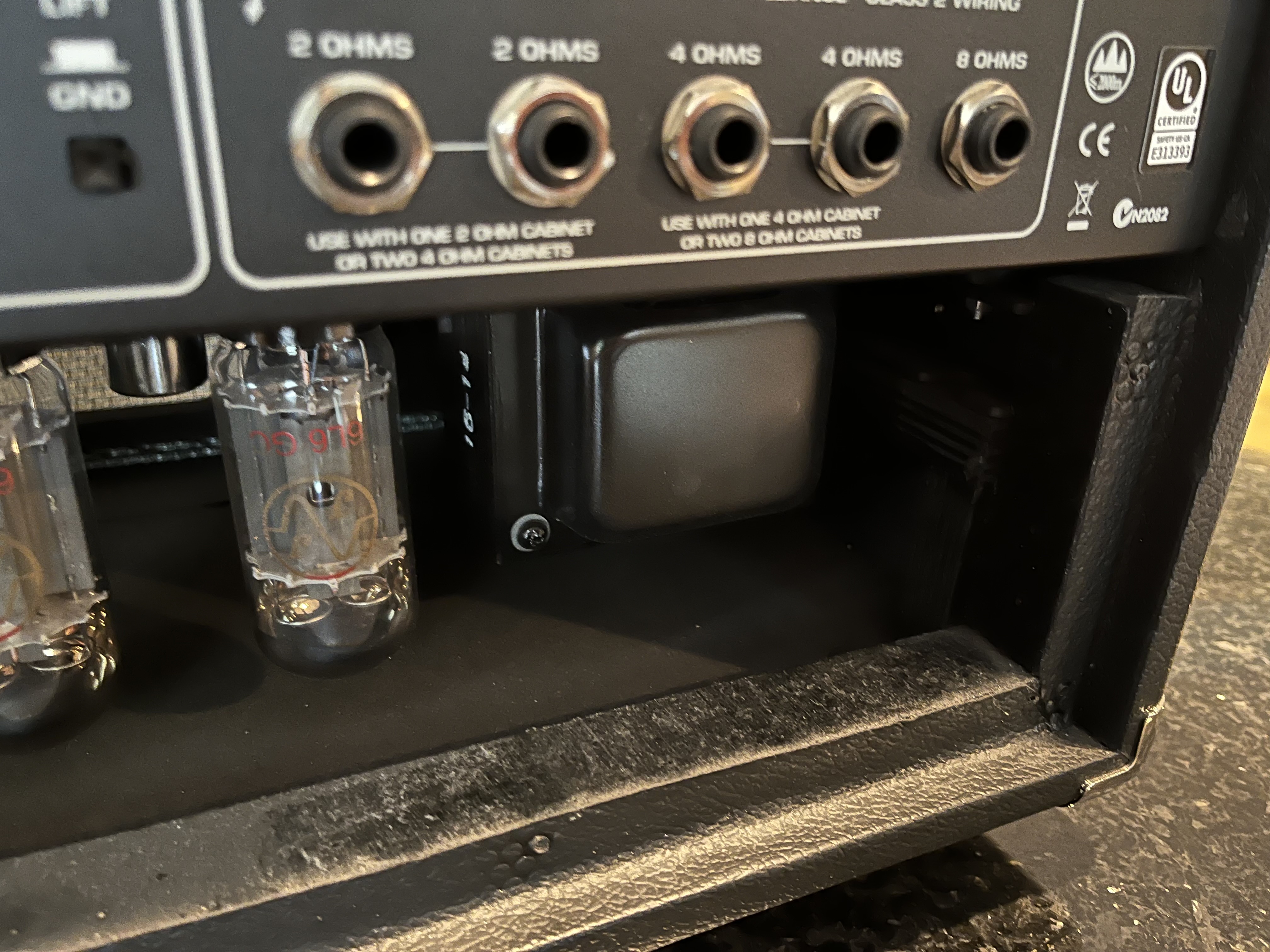

By taking off the side screws, I can see the chassis lifting, however it does not seem able to lift over the internal frame of the head box (hard to tell in the photos, but there is a vertical wood piece that is about 3 inches high in which the chassis is unable to lift over) This is the “newer” V4Bs. It does seem it could feasibly be pushed forward but it appears I need to remove the grill first and not sure how that’s secured.
I can easily see once the chassis is out to go in through the top to get to the input jacks.
I can easily see once the chassis is out to go in through the top to get to the input jacks.
Attachments
Last edited:
Oh and I’ve tried magnets and pliers to no avail.
(How this started was I took old cables that stopped working and put some cheaper ends on them and was testing them out. They sounded fine until I stepped on and pulled the cable at an odd angle. Good news, my soldering held!)
(How this started was I took old cables that stopped working and put some cheaper ends on them and was testing them out. They sounded fine until I stepped on and pulled the cable at an odd angle. Good news, my soldering held!)
Success!!! Once I figured out the front grill panel was just attached to velcro, I removed that and pushed the chassis through the front. I removed the screws holding the top of the chassis and undid the input jack and removed the piece of my 1/4" end piece. Back to making some sound!
