Ibanez SW65 problems!

Gidbo

Gidbo

Oct 30, 2003
30
4
60
Norrtelje, Sweden
www.davidharleyson.com
#1

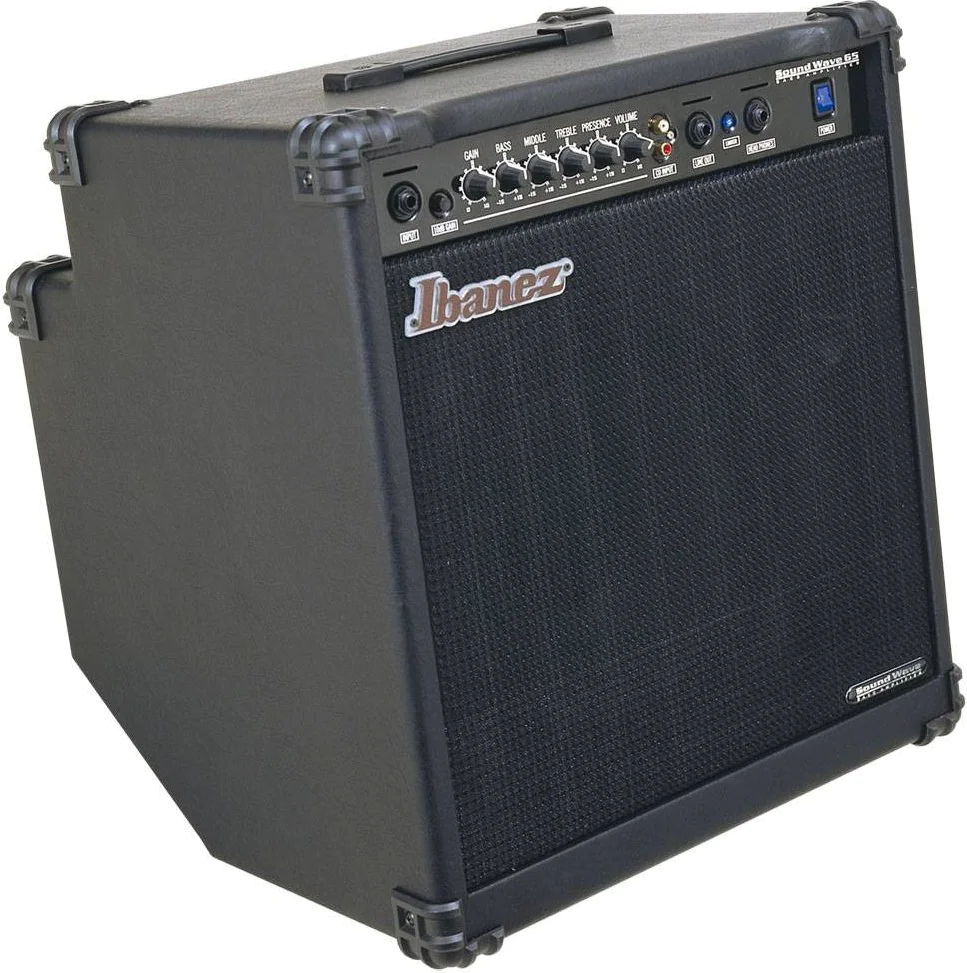

I have a small but versatile combo in my amp collection, a 12" 65w Ibanez SW65 wedge.
It´s not very special, but I like it and use it at a lot of small indoor gigs.

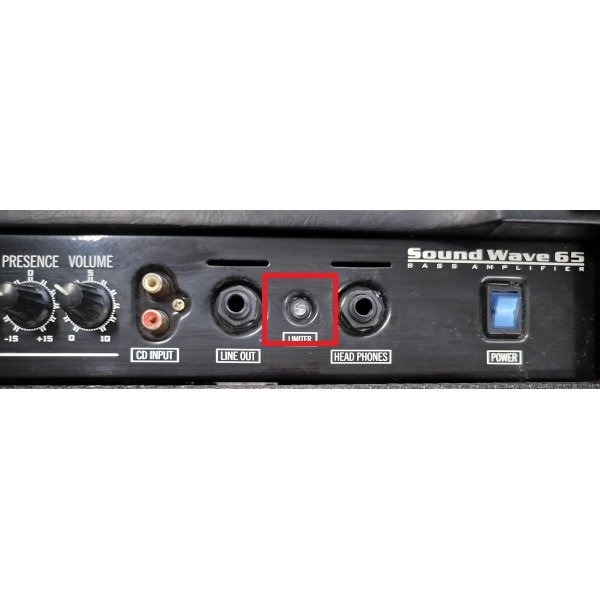

I need to change the input jack and the blue LED diode in the overload protection circuit.
I can´t find these in any parts list available from Sweden, and they seem to be a bit special.
Does anybody have a part list including these or know where I can find one?

NB! It is the old SW65, not the newer SWX65.


Attachments

  • SW65_1.jpg
    60.8 KB · Views: 19
  • SW65_2.webp
    126.8 KB · Views: 24
Last edited:
#6
The jack is almost certainly PCB mount, so you will want the exact replacement. The LED may not be the problem or only problem with the limiter circuit.

When replacing the jack, be careful that you don’t destroy the PCB in the process. Yes, it happens all the time.

  • Like
Reactions: Spidey2112, MaxSpinrun and Bassic_desires
#11
agedhorse said:
The jack is almost certainly PCB mount, so you will want the exact replacement. The LED may not be the problem or only problem with the limiter circuit.

When replacing the jack, be careful that you don’t destroy the PCB in the process. Yes, it happens all the time.
Click to expand...
Yes, it is PCB.
I have already replaced it with a Neutrik jack that is a bit lower and where I had to shift from close to open at one side.
It´s a bit wiggely, so I would really prefere the right one.
The diode got damaged earlier when I did some work, I have managed to carve it out 1mm so I could sold new legs to it.
Both these components seem to be at bit special for Ibanez, I can´t find them at the usual suppliers.
Hence my question for a Ibanez parts list. :)

#13
Gidbo said:
Yes, it is PCB.
I have already replaced it with a Neutrik jack that is a bit lower and where I had to shift from close to open at one side.
It´s a bit wiggely, so I would really prefere the right one.
The diode got damaged earlier when I did some work, I have managed to carve it out 1mm so I could sold new legs to it.
Both these components seem to be at bit special for Ibanez, I can´t find them at the usual suppliers.
Hence my question for a Ibanez parts list. :)
Click to expand...
That’s exactly why I mentioned using exact parts and not creating additional damage in my earlier post, I see this all the time.

#16
Gidbo said:
And that's is also exactly why I'm trying to get those exact parts. Are you able to help me with that?
Click to expand...
No because I don't know the amp. An experienced, qualified service tech should be able to determine the correct part with a little work AND the necessary measurements.

#18
Gidbo said:
Well, I'll keep trying to find the parts then.
Thanks for the lecture. 😊
Click to expand...
It's not a "lecture"... YOU asked a question and I provided answers and ACCURATE information about how to get it resolved as well as how to avoid the problems that apparently you had already created (unknown to me at the time).

"Qualified and experienced" is how those in the industry successfully repair things without breaking them more.

#19
agedhorse said:
It's not a "lecture"... YOU asked a question and I provided answers and ACCURATE information about how to get it resolved as well as how to avoid the problems that apparently you had already created (unknown to me at the time).

"Qualified and experienced" is how those in the industry successfully repair things without breaking them more.
Click to expand...
I try to find the right parts.
Ok?
I think we're done here, thanks for input. 😊👍
