Lakland 55-01 modification (passive)

[elaeolo]

hallo, i write from italy

i want to modify a lakland 55-01 with a set of "nordstrand big fat".
they are two humbuckers splittable.

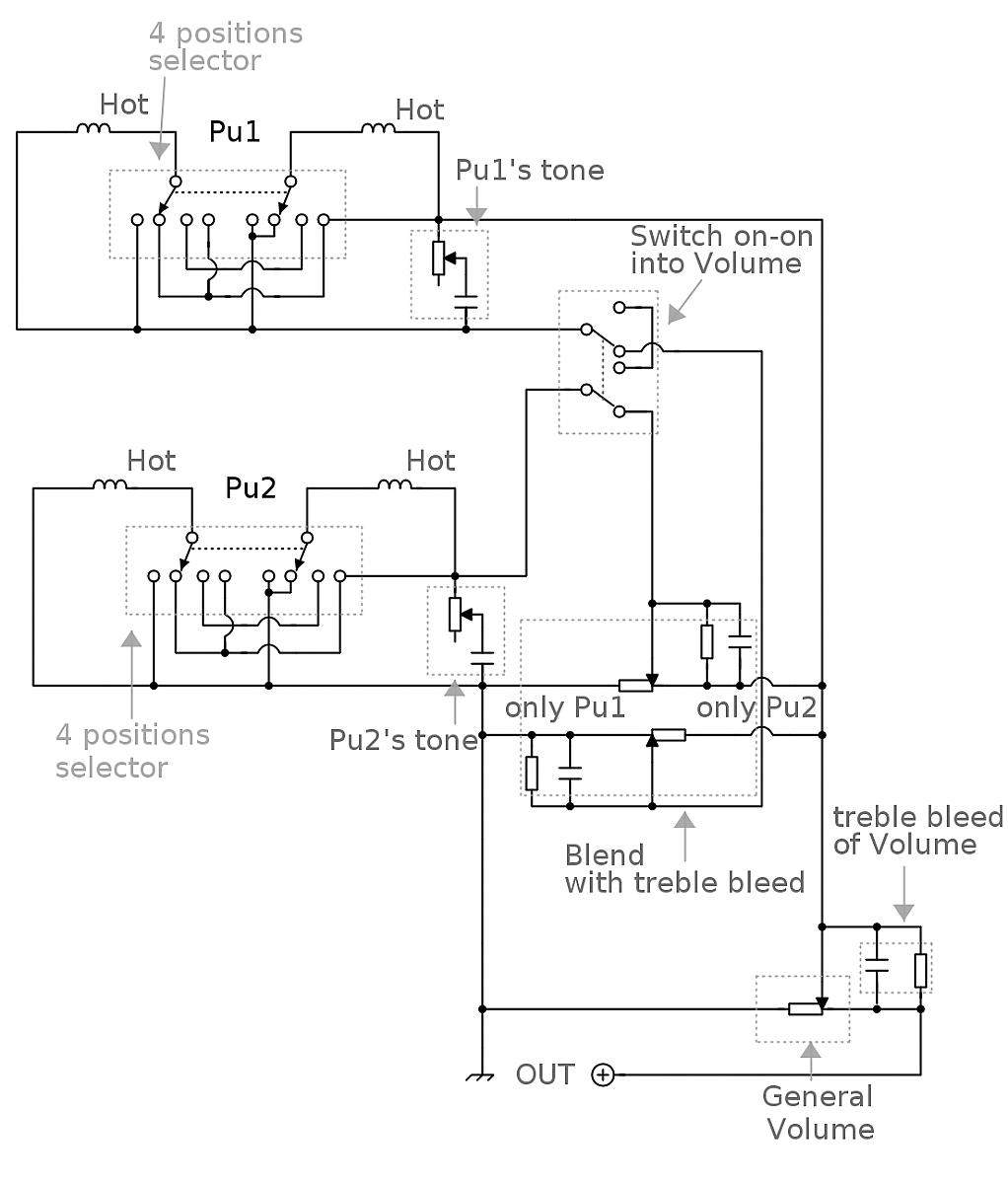

i'm starting with a passive circuit (and i attach my wiring diagram).
i explain: there is 2 rotary switch (for split1/series/parallel/split2 for every pickup), 1 blend, 1 switch in the volume (for series/parallel of the two pickups, and in the series mode the blend is excluding), 1 stacked pot for every passive tone.

the values of my electric components: 250k log for volume, 250k log for every tone, 47nF for every tone, 250k MN for blend, 100kohm+1nF for every treble bleed (1 for volume and 2 for blend).

my question 1) is my wiring diagram correct?

my question 2) what is the mode to insert an Artec SE3P-A with a true bypass (and without battery)?; can you write on the diagram the right position to make in your preamplifier?; how many poles switch it's use for this?; can i use the same blend an volume (that i've already installed)? keep in mind that i will keep my passive tone (perhaps, i will insert a pair of switch to exclude tone both in active or passive mode).

my goal is to make the minimum number of holes...

thanks for your answer, and sorry for my english...

best regards



[mmbongo]

Good lord that seems overly complicated. You've got 5 holes to work with. Why not just use mini toggles for pickup switching, as is the standard? I'd go:

Volume
Volume
Tone
3 way
3 way

Done.



[elaeolo]

cause so is too much simple!!



[elaeolo]

and without every sound i want...
