LDS 8x8 Driver recomendations:

#22
I concur and thanks for the advice. Yeah I'll go with maker's suggestion it seems the most prudent.
ptidwell said:
This is the problem when buying an unloaded cabinet.
You really can't put any 8" in it and expect it to perform no matter how great or expensive the cabinet is. The tuning of the cabinet and its internal cubic ft. are important factors.
I would go with Don's recommendation for the original drivers, although they are not your preference. Cabinets are built around the drivers considering their T/S parameters. Trying to find replacement driver, other than the original for a particular cabinet doesn't usually end well. My comment is more than just in my opinion and it was free lol.
Click to expand...

#23
ptidwell said:
This is the problem when buying an unloaded cabinet.
You really can't put any 8" in it and expect it to perform no matter how great or expensive the cabinet is. The tuning of the cabinet and its internal cubic ft. are important factors.
I would go with Don's recommendation for the original drivers, although they are not your preference. Cabinets are built around the drivers considering their T/S parameters. Trying to find replacement driver, other than the original for a particular cabinet doesn't usually end well. My comment is more than just in my opinion and it was free lol.
Click to expand...

This is definitely true, and especially so with a small cabinet, or a slot ported cab. This 8x8 has 4 big port tubes, which does give some leeway for tuning. A port (or two) could be plugged, or the port tubes could be shortened/legthened to change the tuning. It still may not be ideal, but it could make enough difference to be beneficial.

#24
And the winner is!

Max power 160 watt
Voice coil 2"
Magnet 30 oz
Features:
Rigid die cast frame
Treated paper cone
Treated cloth accordion surround
2" high temperature voice coil
30oz. vented magnet

Specifications:
Sensitivity: 92dB (W/M)
Impedance: 8ohm
Re: 6.8ohm
Le: 0.989mH
Frequency response:
45Hz~6KHz
Fs: 68Hz
Qts: 0.56
Qes: 0.69
Qms: 3.3
Vas: 10.86 liters
Xmax: 5.4mm
Overall frame diameter: 8.27"
Required cutout: 7.17"
Mounting depth: 3.94"

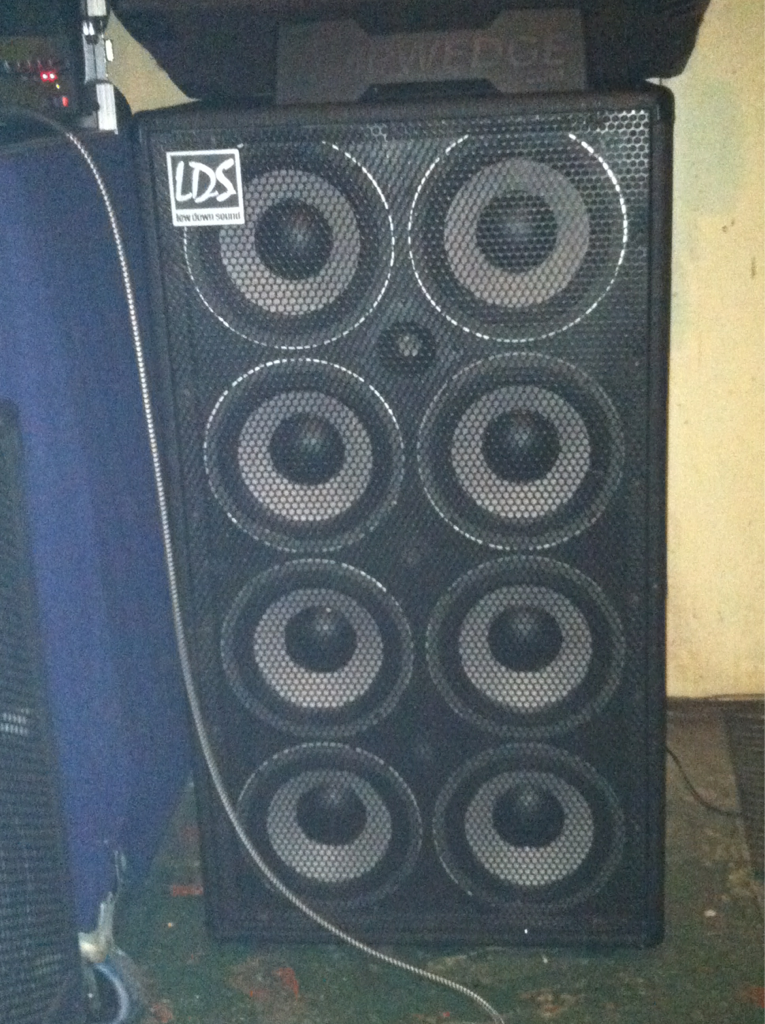

With the ports sealed the cab is very clear. tight and focused. Great low B response! Will get around to trying the cab with the ports open! For now the drivers are now getting broken in and it's really impressive!

Thanks again TB for all the input and advice! Also Don at LDS for doing a lot of the footwork and support during this project.

Can't wait till my next gig in sept to give this beast a test run!

Rap

#26
Rapisme said:
And the winner is!

Max power 160 watt
Voice coil 2"
Magnet 30 oz
Features:
Rigid die cast frame
Treated paper cone
Treated cloth accordion surround
2" high temperature voice coil
30oz. vented magnet

Specifications:
Sensitivity: 92dB (W/M)
Impedance: 8ohm
Re: 6.8ohm
Le: 0.989mH
Frequency response:
45Hz~6KHz
Fs: 68Hz
Qts: 0.56
Qes: 0.69
Qms: 3.3
Vas: 10.86 liters
Xmax: 5.4mm
Overall frame diameter: 8.27"
Required cutout: 7.17"
Mounting depth: 3.94"

With the ports sealed the cab is very clear. tight and focused. Great low B response! Will get around to trying the cab with the ports open! For now the drivers are now getting broken in and it's really impressive!

Thanks again TB for all the input and advice! Also Don at LDS for doing a lot of the footwork and support during this project.

Can't wait till my next gig in sept to give this beast a test run!

Rap
Click to expand...

Actually, when Ralph was submitting the desired speaker specs to Don / LDS, all he wrote was "round and black". The rest was sheer luck.

Glad to hear the finished enclosure is working out well! The "big sister" says hi.

Riis

#27
Zooberwerx said:

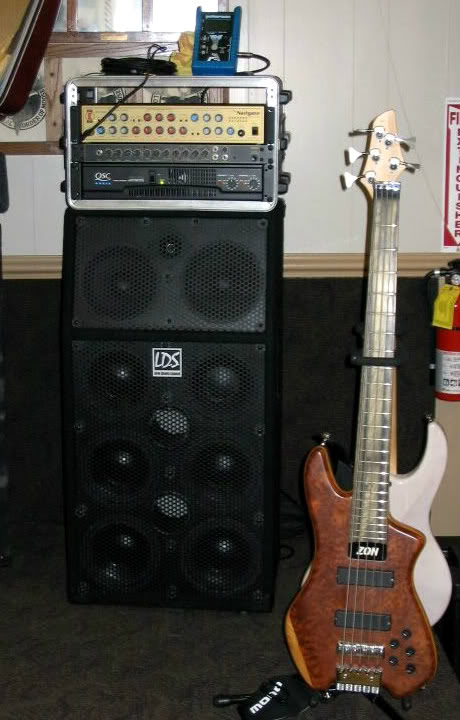

Sorry for butting in but this is the cab Ralph is referencing....es muy bueno!



Neither of us can remember what drivers were used.

Riis
Click to expand...

Hard to tell from the camera flash and grill grates but, the top two drivers in the angled section appear to have an inch smaller dustcaps and are possibly one size bigger....10's?. Maybe just the photo shot and the baffle angle at play there but they look different to me. That's not necessarily a bad thing....especially if they're highpassed guitar drivers.:bassist:

#28
will33 said:
Hard to tell from the camera flash and grill grates but, the top two drivers in the angled section appear to have an inch smaller dustcaps and are possibly one size bigger....10's?. Maybe just the photo shot and the baffle angle at play there but they look different to me. That's not necessarily a bad thing....especially if they're highpassed guitar drivers.:bassist:
Click to expand...

I think you're correct...those are wired up as midrange drivers. Couldn't tell you how but it works so who cares? The lower 6 are some type of long-throw driver. All I care is that the sucker has tilt-back casters. Yeaaah!

Riis

#31
Zooberwerx said:
Actually, when Ralph was submitting the desired speaker specs to Don / LDS, all he wrote was "round and black". The rest was sheer luck.

Glad to hear the finished enclosure is working out well! The "big sister" says hi.

Riis
Click to expand...

Well Riis,
The big sista will always be missed! Little sister fits perfectly in the trunk of the car that got stopped! Lol ( private joke! ).

Yeah casters do come in handy! Oh Btw if you saw the 6x8 that LDS is making you
Might want to inquire!

Thanks for comments Zoob! Always refreshing and fun!

#34
will33 said:
The bottom 6, looking at the dustcaps in relation to the rest of the driver are probably those nice 8's. The top 2 add "flava", which is cool.
Click to expand...

The mid-range drivers point upwards a few degrees although I'm not sure what impact this has on the cab's tone as a whole. The HF driver is a little too brittle for my ears; I may tackle a mod or upgrade in the future. Any suggestions?

BTW, here's the gag on this particular cab: Ralph and I were able to pull off no-charge transport from Queens to Virginia Beach through a series of hand-offs and choreography that rivals that of Mexican drug cartels. All went flawlessly, until...Ralph got popped by the cops in metro New Jersey. PIA but I understand there were no fines or points as the cop "failed to show". I remain indebted!

Riis

#35
BTW, here's the gag on this particular cab: Ralph and I were able to pull off no-charge transport from Queens to Virginia Beach through a series of hand-offs and choreography that rivals that of Mexican drug cartels. All went flawlessly, until...Ralph got popped by the cops in metro New Jersey. PIA but I understand there were no fines or points as the cop "failed to show". I remain indebted!

Riis[/QUOTE]

lOL fUNNY!!! I wasn't able to laugh at the time as I couldn't believe that the NJ cop asked over and over if I was a musician!!! Talk about profiling!!!! But looking back I find it funny. As for some of the threats and questions the officer had asked me just weren't SOP but more a prejudice from where my plates and residence where from. Good thing is if avoidable I'll never go thru that particular area of NJ again. But Zoob folks that I dealt with are by no means a reflection of what they're Police dept thinks and behaves.

Now we both have 8x8 cabs that were happy with! Whew!

#38
bb03 said:
Ralph,

The cab looks great, and I bet it rocks!

Thanks for the message...sorry it took so long to get back to you. :)
Click to expand...

Thanks Seth!
It does! But the cab you have is very rocking!
Kudos to you for letting me have a shot at it! Also it's completely sealed so a very focused tight sound.
Can't wait for the gig to
Put this baby thru its paces! Lol
