Looking for an HPF

#41
red_rhino said:
Yeah, the HPF is subtle but noticeable. Fixed at 40hz I believe. Tightens up the sound nicely.
Click to expand...

Yeah 45hz according to the doc. But I don't know. Its subtle and the hpf is fixed. Subtle unless you go buck wild with the lpf, low eq and the level knob. Level is +/- 20 db- which is substantial. You can kind of mess with the filter slope in cab sim.

"
The combination of the Mid 2 EQ and High EQ with the LPF, allows you to increase or decrease the per octave slope of the filter in the cabinet simulation setting."

I just use my ears. It's very much like an SSL or Neve style EQ. Even the design language and EQ points are similar to certain consoles.

Last edited:
  • Like
Reactions: red_rhino
#42
Hans Gruber said:
Even though FDeck says they aren't meant for speaker protection, I still think it would help than not.

I mostly use mine for upright anyway for feedback reasons.

"I think that I should mention something about Series 3, and high pass filtering in general. My documentation talks about the benefits of high pass filtering in terms of the behavior of speakers. However, I'm hesitant to say that the HPF-Pre is a speaker protection device. You can still blow your speakers. In fact, if the HPF-Pre enables you to achieve higher volume by limiting overexcursion, you will eventually run into the danger of burning out your speakers by thermal overload instead."
Click to expand...

That's why I got the FDeck series 3. Francis is a straight talker. Been using mine in the FX loop but might try it in front of my multi-effects pedal just to see how that works.

BBB

  • Like
Reactions: JOME77
#43
Zbysek said:
What I consider an ideal solution is a combination of two filters - a static one and variable one...like on Broughton HPF-DI or Fdeck version 3.

https://www.broughtonaudio.com/product-page/high-pass-filter-di

"The variable high pass filter ranges from 25 to 190 Hz with a slope of 12 dB/octave. An additional fixed filter is set at 25 Hz at 12 dB/octave to remove subsonic artifacts, which can help protect speakers from over excursion."
Click to expand...

This does that too:

Pedales : Küth

One can always stack two 12dB/per oct filters one after another for a 24dB slope. I have the Broughton High Pass and the Empress Para Deluxe II.

  • Like
Reactions: Zbysek
#44
MYLOWFREQ said:
This does that too:

Pedales : Küth

One can always stack two 12dB/per oct filters one after another for a 24dB slope. I have the Broughton High Pass and the Empress Para Deluxe II.
Click to expand...

This works really well for me -- Broughton HPF/LPF at the start of the chain, HPF on my Genzler Magellan Pre at the end (total 30 dB/per octave slope in this case). They can both be set at a somewhat lower frequency than I would have either alone, and coupled with a bass boost from the Magellan (shelving from 75 Hz) provides a lot of useful bass without mud/boom/speaker damage. As fdeck points out, you still need to watch the volume ...

  • Like
Reactions: Zbysek and MYLOWFREQ
#46
I usually don't use pedals, so I have an Fdeck Mk1 in the fx loop. Battery powered with a couple hundred hours of batt life, don't have to run power to it. When I use pedals I have a Broughton H/LPF at the end, using the LPF to manage my Piezos.

  • Like
Reactions: badinage
#47
Ggaa said:
...a Broughton H/LPF at the end, using the LPF to manage my Piezos.
Click to expand...

I do that with the Broughton HPF/LPF also. Because with just a "tweeter level" control you can change just the volume of whatever tone your tweeter is giving you, and some aren't very sweet sounding. When I can shave the top-end off of it instead of just turning the whole thing down (or mostly off) I can often get a tweeter to do something I like.

  • Like
Reactions: Ggaa
#48
Well I guess I'm looking at the Sine Effect C24 or the Broughton Low + High. Not sure how steep I really need that slope to be. But I thought it might be nice to be able to control the gain there. And a LPF isn't a bad thing to have.

#49
badinage said:
I do that with the Broughton HPF/LPF also. Because with just a "tweeter level" control you can change just the volume of whatever tone your tweeter is giving you, and some aren't very sweet sounding. When I can shave the top-end off of it instead of just turning the whole thing down (or mostly off) I can often get a tweeter to do something I like.
Click to expand...
Mine are either on/off. With LPF I can get the best out of them.

#50
Ggaa said:
Mine are either on/off. With LPF I can get the best out of them.
Click to expand...

Yes indeed. My old (Italian) Markbass 102P kickback sounds fine with the tweeter, but my 121P tweeter sounds very jangly, so it lived it's whole life (recently deceased) with a 3x3 square of black gaff tape over it. ...No adjustment or on/off available on either. I don't know why they sounded so different, maybe different drivers.

My GK 412 Neo has a tweeter and is biamped with a RB700-II so plenty of clean power and easy adjustment, but it's still a tweet that's a little harsh for my liking. With the LPF I can shave off the top end off the tweet and it then IMO becomes pretty useful to the overall sound of the cabinet. (...sidebar: House gets a clean signal from a JDI, sourced before the filters, that's just what I do).

  • Like
Reactions: Zbysek
#51
Nebraska said:
Well I guess I'm looking at the Sine Effect C24 or the Broughton Low + High. Not sure how steep I really need that slope to be. But I thought it might be nice to be able to control the gain there. And a LPF isn't a bad thing to have.
Click to expand...
I was going to say that one benefit of the Broughton Low + High is the gain control. And that LPF can definitely be useful at times, even if you're buying the pedal for the HPF.

  • Like
Reactions: badinage, Ggaa and Zbysek
#53

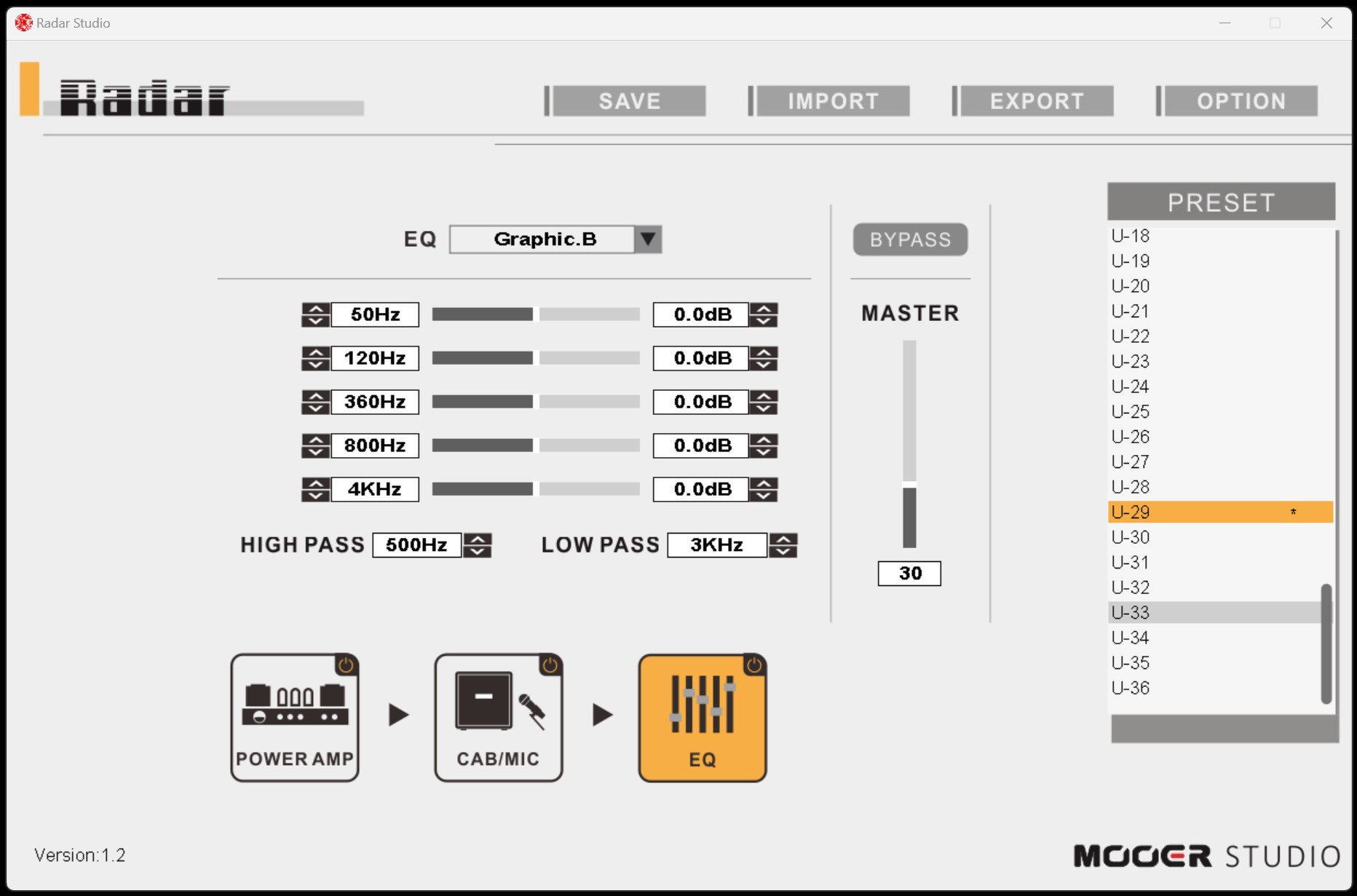

Mooer Radar IR Loader

Bass EQ Section

HPF: 20Hz to 500Hz

LPF: 3KHz to 20KHz

mooer radar.jpg


mooer radar pedal.jpg

  • Like
Reactions: DJ Bebop
