Meatbox reissue TRS problem solved

Discussion in 'Effects [BG]' started by 254 stringer, Apr 30, 2017.


  1. 254 stringer

    254 stringer

    Apr 15, 2010
    Waco Texas
    I'm moving my Meatbox to my utility board so I can run it straight to a DI and not through my effects and amp. My question is if I split the signal with a TRS when the pedal is off is there unaffected signal passed through the the sub part. I would like to be able to kill the sub signal and leave the dry unaffected I'm wondering if I can do this with the pedal or if I need another type of splitter pedal.

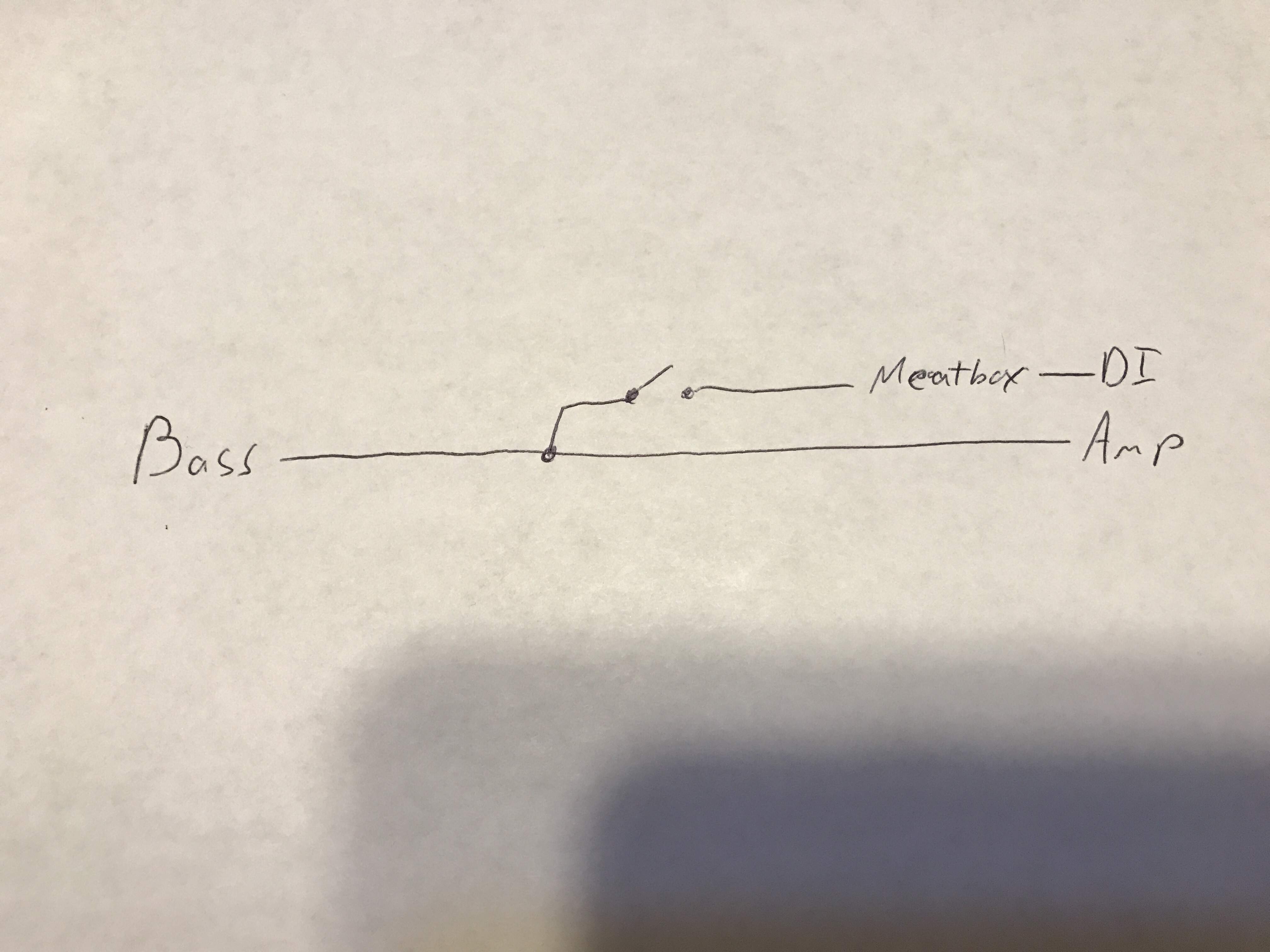

    Basically looking for something like this that splits the signal but one output can be switched off.

  2. 254 stringer

    254 stringer

    Apr 15, 2010
    Waco Texas
    Update in case anyone else was wondering. I bought a cheap 1/4 TRS to RCA cord and two RCA to 1/4 adapters at RadioShack(I don't know why they didn't have 1/4 to 1/4 but anyway). When the Meatbox is off you get unaffected signal on the tip and ring. So I did some more experimenting and solved the problem with a boss LS-2.

    I set the LS-2 to A+B mix plugged bass into input, output to amp. I ran loop B send to the Meatbox and put a jumper from send to return on loop A. I had dry signal only on the output and could switch the pedal on and off to turn the Meatbox signal on or off.
