MM four conductor series/parallel/front coil/rear coil wiring

[therumour]

I believe I've seen (i.e. Nordstrand diagram) the series/parallel wiring with one DPDT switch selecting the dual coils in series or parallel or one coil.

Does anyone know a practical way to include the choice of coil (front or rear) with an alternate switch/pot, etc.

Yeah, I get it that when one coil is selected, series/parallel becomes irrelevant.

If it's out there, my Google/DuckDuckGo skills are failing me.



[eastcoasteddie]

Are you looking for wiring for ALL options? North/south/series/parallel? Or just some thing like North/Parallel/South?

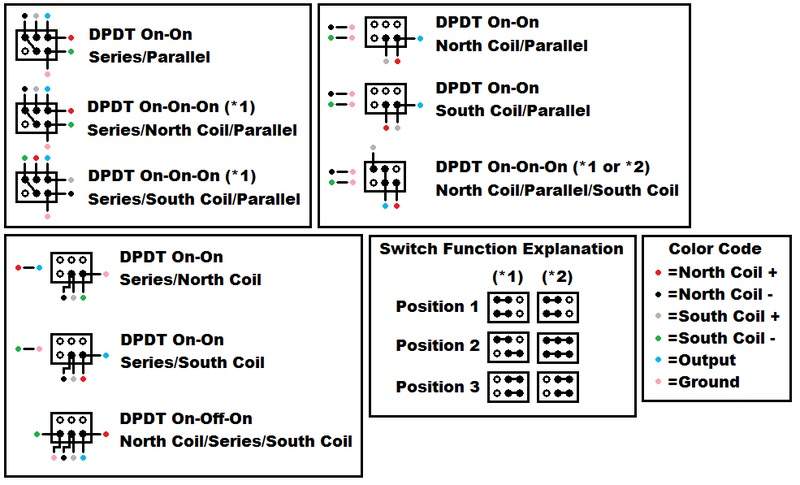

See this switch wiring table:

Note that the color legend does not match to any particular pickup wiring color codes - it is strictly for the table.

I also use this diagram for ALL options, using two 1P2T switches (labeled ABC, DEF in the diagram)



[therumour]

Are you looking for wiring for ALL options? North/south/series/parallel? Or just some thing like North/Parallel/South?

See this switch wiring table:
View attachment 4454476

Note that the color legend does not match to any particular pickup wiring color codes - it is strictly for the table.

I also use this diagram for ALL options, using two 1P2T switches (labeled ABC, DEF in the diagram)
View attachment 4454478

Yes, the former (ALL options).

Can I assume 'A' (in the ALL options diagram) is North Start for my dual coil pickup?



[eastcoasteddie]

Yes, the former (ALL options).

Can I assume 'A' (in the ALL options diagram) is North Start for my dual coil pickup?

Right. I believe North Start is typically the Red wire, South start is typically the Black wire.
But not all manufacturers follow the same color codes, as can be seen in this table:



[therumour]

Understood. Wire color is non-standard and I was ignoring wire color in your last image.

A better question is "can I assume that the wire marked "+" leading from the "A" coil is the north start, and the "A" coil is my front (neck side) coil"?'

Thanks.



[eastcoasteddie]

Understood. Wire color is non-standard and I was ignoring wire color in your last image.

A better question is "can I assume that the wire marked "+" leading from the "A" coil is the north start, and the "A" coil is my front (neck side) coil"?'

Thanks.

I think it would be safe to do so.
