'MXR M80 Bass D.I. Pedal power supply

[Monzo]

Looking to buy a used MXR M80 Bass D.I. and was wondering if it uses a standard power supply. I want to add it to my 1spot daisy chain.
Thanks.



[Kriegs]

Standard 9v, negative center, power supply. Careful if you have several high draw pedals in your chain, as the 1Spot will deliver 1700mA. You'll need to find out the actual draw of the M80 to find out if you can safely add it to your chain or if you need to ditch something else in order to add this one in



[Monzo]

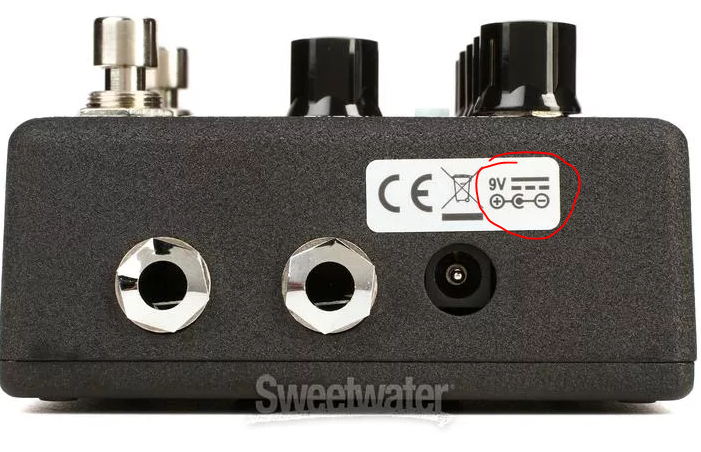

View attachment 3678808

Standard 9v, negative center, power supply. Careful if you have several high draw pedals in your chain, as the 1Spot will deliver 1700mA. You'll need to find out the actual draw of the M80 to find out if you can safely add it to your chain or if you need to ditch something else in order to add this one in

Yes thanks, I appreciate the info. I have already calculated the mA's so I guess my question should be what the barrel size of the adaptor is. (3.5mm or 5.5mm).
Thanks



[Kriegs]

Yes thanks, I appreciate the info. I have already calculated the mA's so I guess my question should be what the barrel size of the adaptor is. (3.5mm or 5.5mm).
Thanks

5.5mm



[Monzo]

Thanks for the quick reply.
cheers!



[danster]

I use the One Spot daisy chain with 4 pedals - MXR Bass compressor., Boss OC2, Boss bass Chorus, MXR M80. Works great.



[Monzo]

I use the One Spot daisy chain with 4 pedals - MXR Bass compressor., Boss OC2, Boss bass Chorus, MXR M80. Works great.

good to know.
Thanks



[John Stephen]

I use the One Spot daisy chain with 4 pedals - MXR Bass compressor., Boss OC2, Boss bass Chorus, MXR M80. Works great.

I just saw this thread, after doing a search on MXR M80. Sounds like you like this DI pedal. Did you list the pedals in the order you have them in your chain, so the M80 is last?



[Al Kraft]

You'll need to find out the actual draw of the M80 to find out if you can safely add it to your chain or if you need to ditch something else in order to add this one in

The MXR M80 current draw is 9 mA according to the user manual - and that makes sense given the operating time I can get on one with a fresh 9 volt battery. IME this is pretty typcial for an all analog pre-amp.



[danster]

I just saw this thread, after doing a search on MXR M80. Sounds like you like this DI pedal. Did you list the pedals in the order you have them in your chain, so the M80 is last?

Yes, in that order.



[John Stephen]

Thanks.
