NBD: 1980 Martin EB-18 (with pics)

bassfiddlesteve

Your first second choice™
Supporting Member
Dec 3, 2003
3,141
5,477

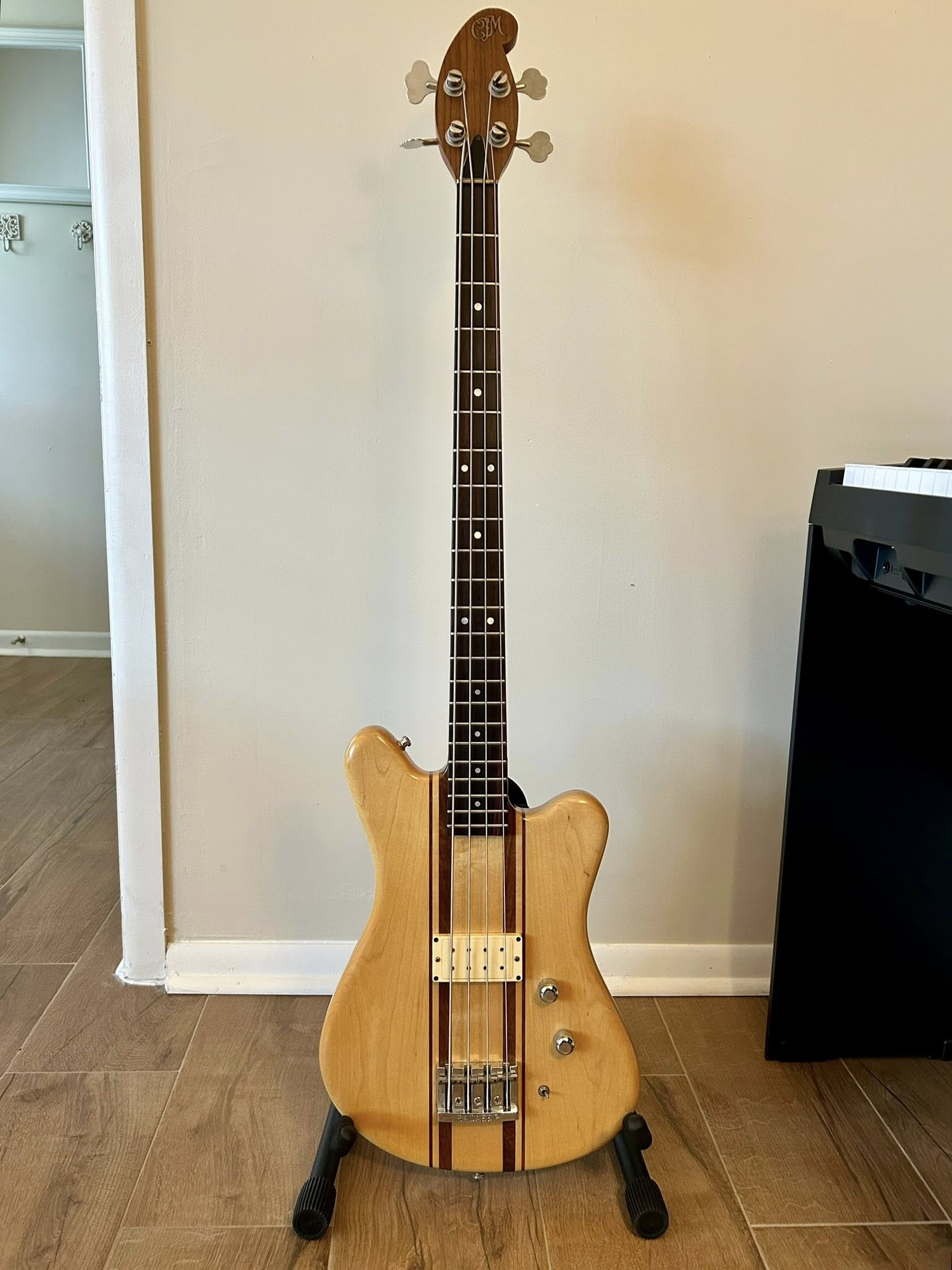

I went to the Tampa Guitar Show last weekend and traded my 1972 Ovation Typhoon V (aka the Danny Partridge bass) for a 1980 Martin EB-18 which was C.F. Martin’s first solid body electric bass.

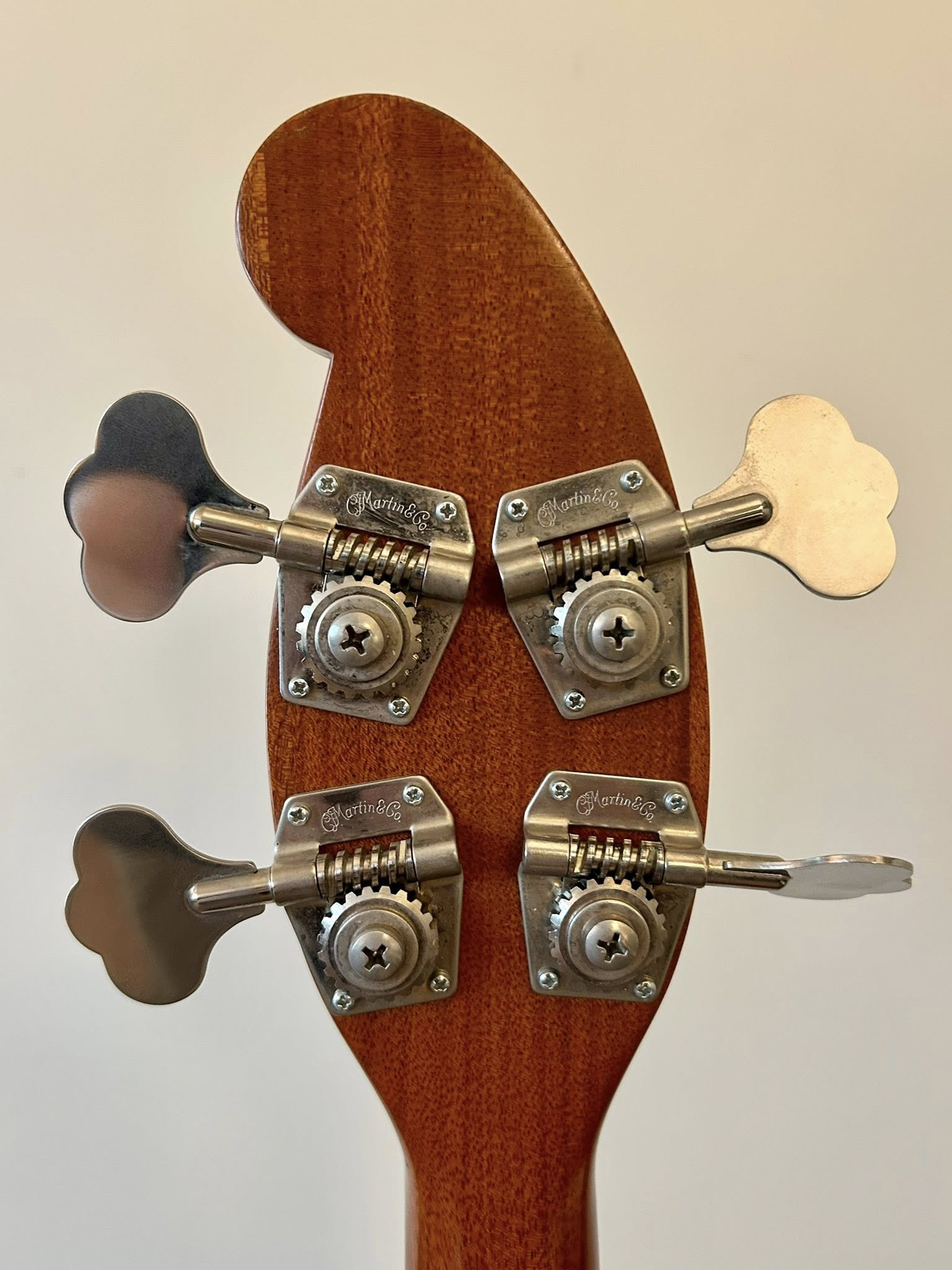

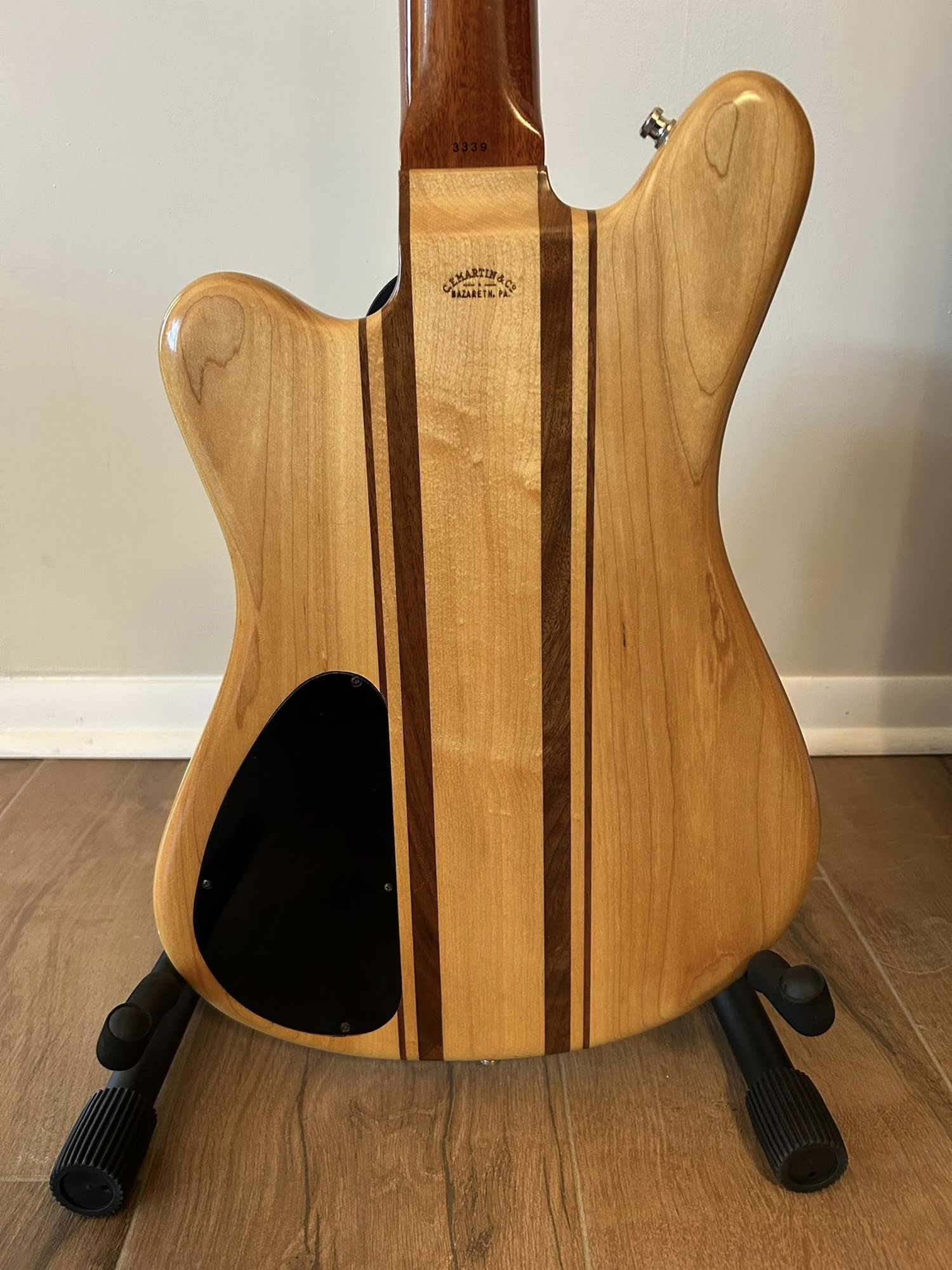

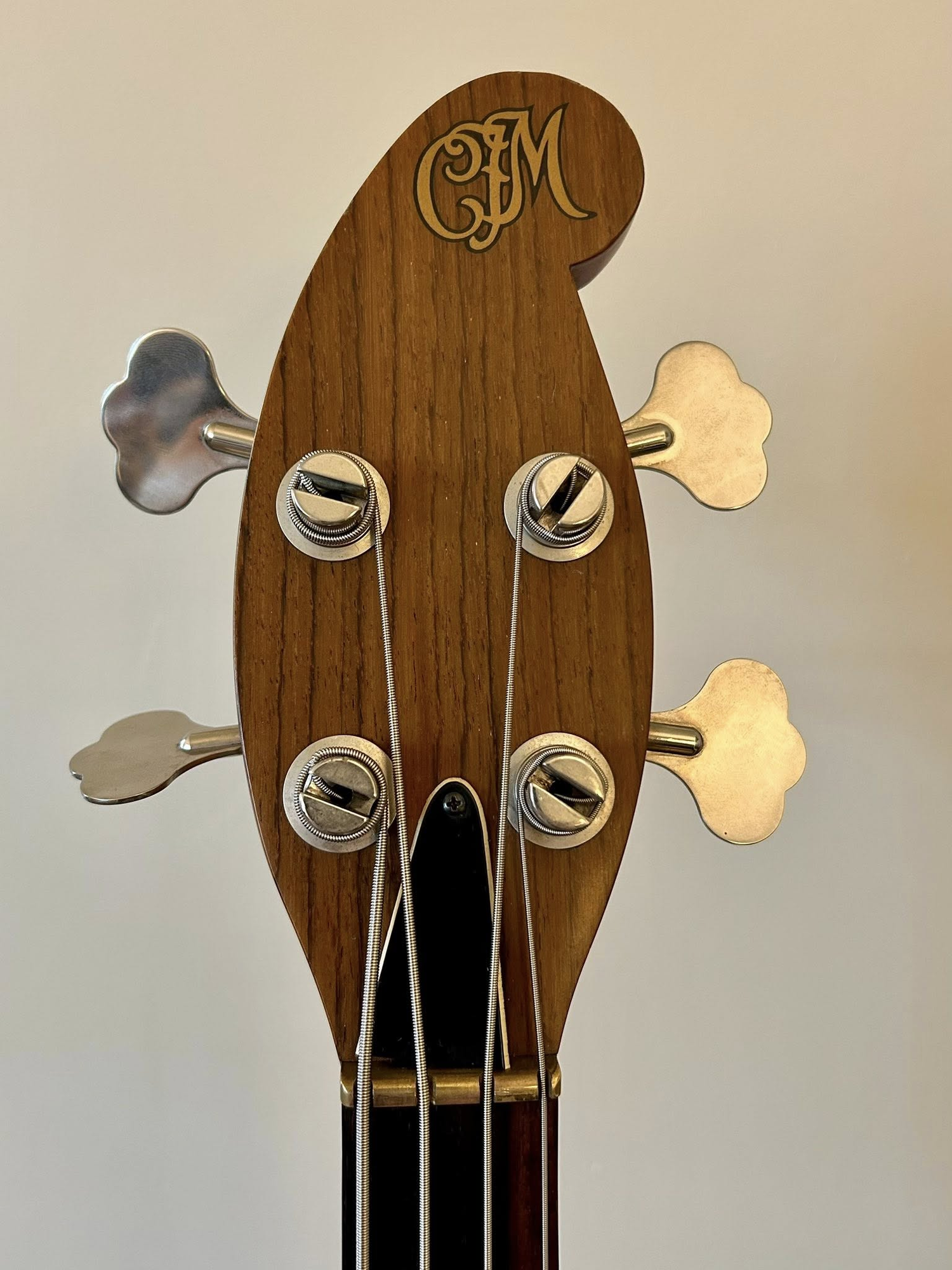

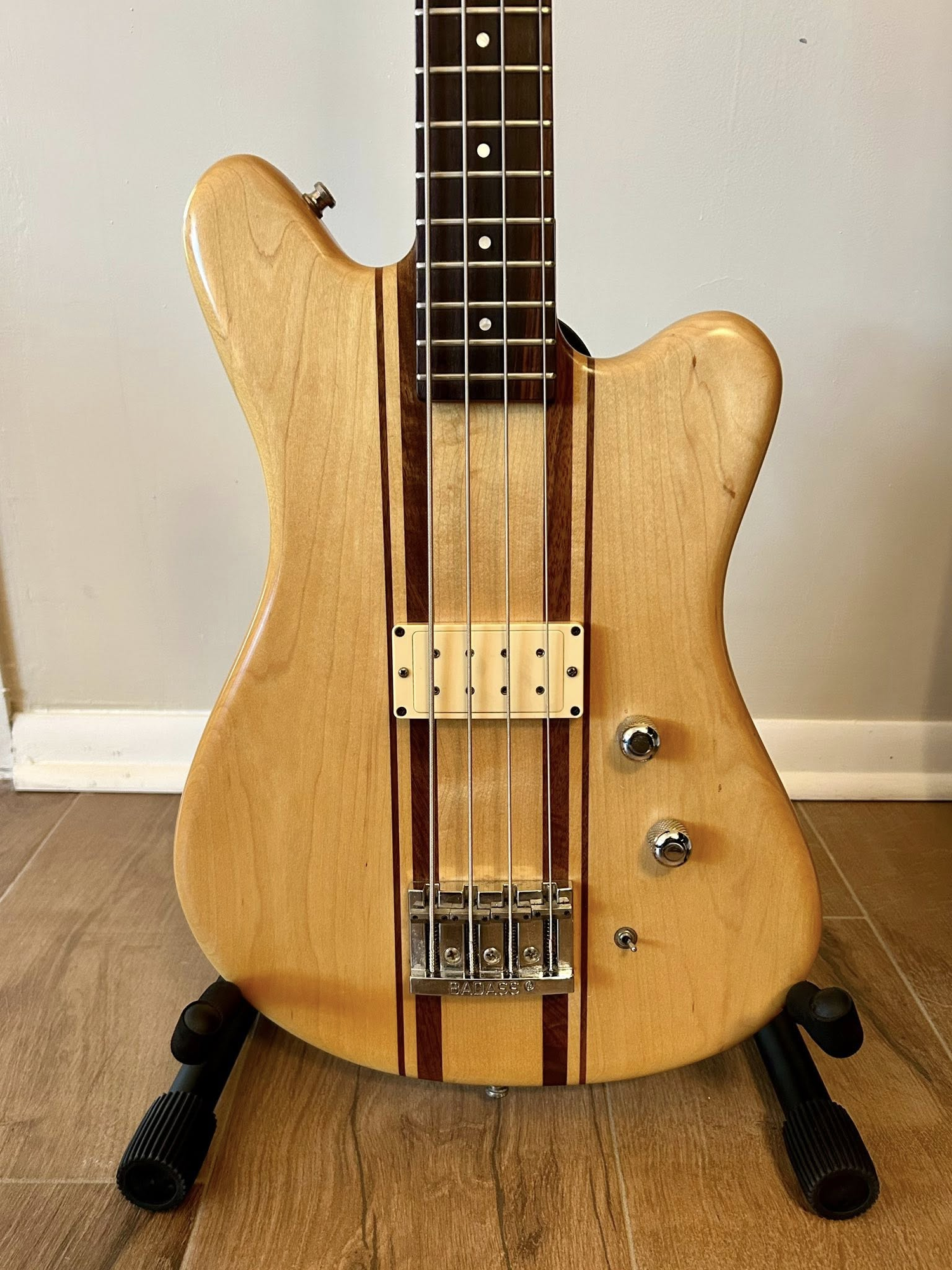

The bass features a maple and walnut body with a mahogany neck and a 22 fret rosewood fingerboard. The neck is set into the body with a mortise design and the headstock features a rosewood overlay and C.F. Martin branded Schaller tuners. The bridge is a Badass I and the pickup is a DiMarzio Model G humbucker. Earlier models featured Grover tuners and a black DiMarzio Model 1 pickup which was located closer to the neck. Apparently the pickup choice and location were changed because the strings would sometimes make contact with the pickup. As expected given the body shape there is some neck dive, but at 9 lbs. 4 oz. it's not too heavy. Based on the serial number, this bass is closer to the end of production in 1980. I think the "C.F. Martin & Co. Nazareth, PA." wood burned into the back of the body is a cool touch.

It took a while to get the setup dialed in. I had to lower the bridge saddles to be almost flush with the bridge plate and I also had to lower the pickup so that it's level with the bezel. The polepieces had to be lowered as well. Now it's at my local guitar shop having the notches in the brass nut lowered. Sound-wise it's in P-Bass territory, but has it's own thing going on. Sonically it actually reminds me of my Yamaha BB1200 which is from the same era.

Less than 900 of these basses were produced, and it’s surprising that an instrument made by a major guitar manufacturer featuring quality components and excellent craftsmanship would be so unsuccessful. I imagine people just didn't think of Martin when it came to electric guitars and basses (there were also two electric guitar models in this series), and perhaps some people didn’t care for the aesthetics, but I like how it looks. I guess I swapped one quirky bass for another.












- Steve


Last edited:
These are absolutely gorgeous. There's 2 for sale not too far from me (small country, high price, slow market), 1 FL 1 FR, so I remember doing some research on em.
IIRC there is a version thats all darker wood (mahogany?), and they're dateable by the color of the pickup casing, IIRC.

I could be wrong, my memory isnt what it used to be.

Anyway, fantastic bass, congratulations!

(edit; also, one of the first production basses to have badass bridge from factory)

You
These are absolutely gorgeous. There's 2 for sale not too far from me (small country, high price, slow market), 1 FL 1 FR, so I remember doing some research on em.
IIRC there is a version thats all darker wood (mahogany?), and they're dateable by the color of the pickup casing, IIRC.

I could be wrong, my memory isnt what it used to be.

Anyway, fantastic bass, congratulations!

(edit; also, one of the first production basses to have badass bridge from factory)
Your memory serves you well!

The earlier EB-18 basses had a black DiMarzio Model 1 pickup (designed as a Gibson EB replacement) that was positioned closer to the fingerboard. Apparently there were issues with the strings coming into contact with the pickup, so they switched to the smaller DiMarzio Model G which is cream colored and has a bezel that let's you adjust the pickup height. They also moved the pickup closer to the bridge which must have affected the sound. It looks centered on the body like a P-Bass, but it's actually a bit further back which almost gives it a sound between a P-Bass and a Stingray, kinda-sorta.

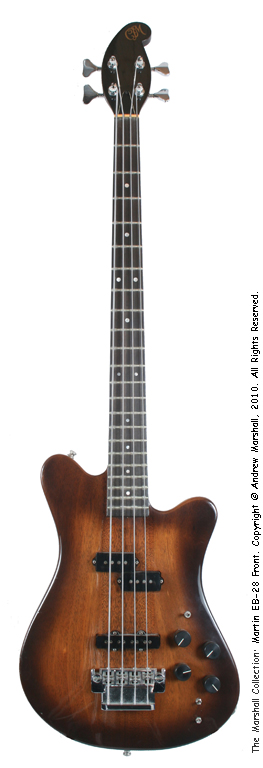

The darker wood model that succeeded the EB-18 was the EB-28 which had neck-though body construction and DiMarzio PJ pickups with an active preamp. These are even more rare and also came in fretless version:



- Steve

Last edited:
News to me. Was this part of their effort to enter the solidbody segment, like with the "Stinger" series?
The Stinger series came later and were basically Asian made Fender copies.

The EB-18 was part of a series of solid body instruments (two guitars and a bass) that were designed by Martin's Dick Boak and produced in Nazareth, PA like the acoustic guitars. Roger@Sadowsky played a role in choosing the hardware for these instruments.

The group "Magnum" from the 1979 Martin electric guitar catalog:



- Steve

Last edited:
You

Your memory serves you well!

The earlier EB-18 basses had a black DiMarzio Model 1 pickup (designed as a Gibson EB replacement) that was positioned closer to the fingerboard. Apparently there were issues with the strings coming into contact with the pickup, so they switched to the smaller DiMarzio Model G which is cream colored and has a bezel that let's you adjust the pickup height. They also moved the pickup closer to the bridge which must have affected the sound. It looks centered on the body like a P-Bas,s but it's actually a bit further back which almost gives it a sound between a P-Bass and a Stingray, kinda-sorta.

The darker wood model that succeeded the EB-18 was the EB-28 which had neck-though body construction and DiMarzio PJ pickups with an active preamp. These are even more rare and also came in fretless version:

View attachment 7357795

- Steve
Eeeey! Nice one!

I pulled up one of the ads now to have a look, and it is indeed this model, 1981 FL. Hardware appears gold tho.

An interesting footnote in Martin history. Few remember they built some F-hole acoustics, and other what-ifs in their long history.

Essentially, no one thought of Martin solid bodies. It's just one of those things. You don't go to Morton's to order a bowl of Pho.

And historic or not, the headstock is just dreadful.

Great find !

A promotion photo from the 60's shows a Martin hollow body bass (see below), but it never went into production.

A friend of mine said the headstock of my bass reminded him of a manatee silhouette. Since I live in Florida I'll go with it.



- Steve
