needs some mesurements help,look

[sofnlo]

im making some templets and need some mesurements.


first, on a standard hardshell case,from the lenght the inside of the case.

second,the nut width on a 5 string and 6 string

third,the width of the fretboard @ the 24th fret on a 5 and 6 string

both 35 inch scale

any help would be nice,thanks



[Rickett Customs]

im making some templets and need some mesurements.


first, on a standard hardshell case,from the lenght the inside of the case.

second,the nut width on a 5 string and 6 string

third,the width of the fretboard @ the 24th fret on a 5 and 6 string

both 35 inch scale

any help would be nice,thanks

Hardshell case, I'd have take a moment and measure it myself.

Naturally, there are varied string widths, from different manufactures. Which one,or "like" which one?

Ditto on the width @ the 24th fret as well.



[sofnlo]

i found some specs on a builders web site that i really like,so i used those,but the case measurement is still needed.i want to make sure my basses fit into standard cases



[sofnlo]

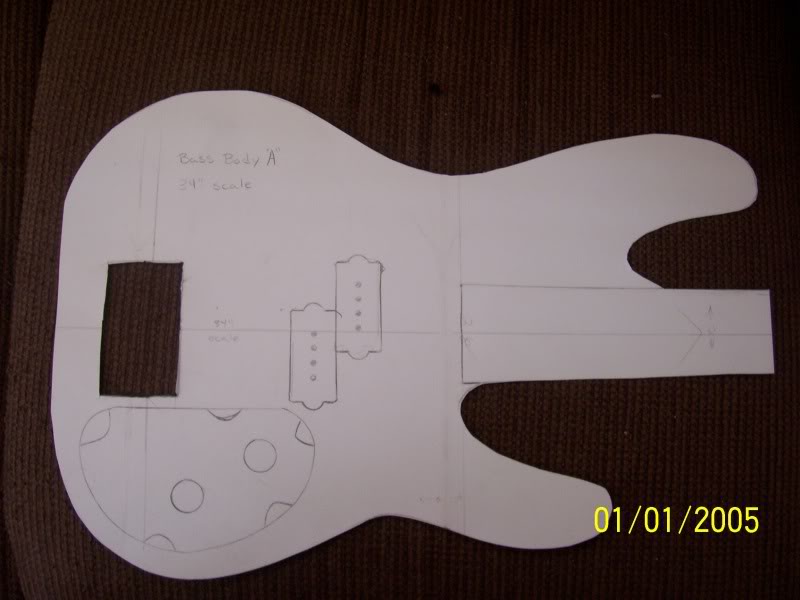

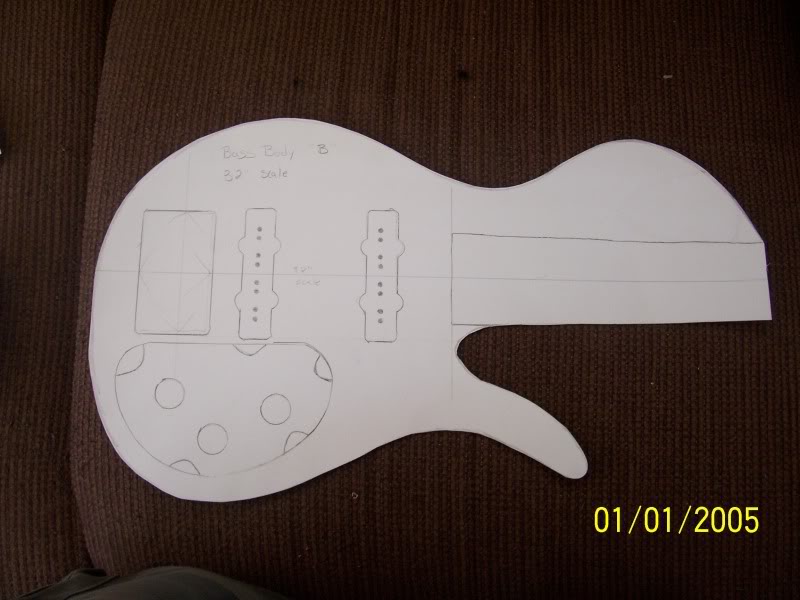

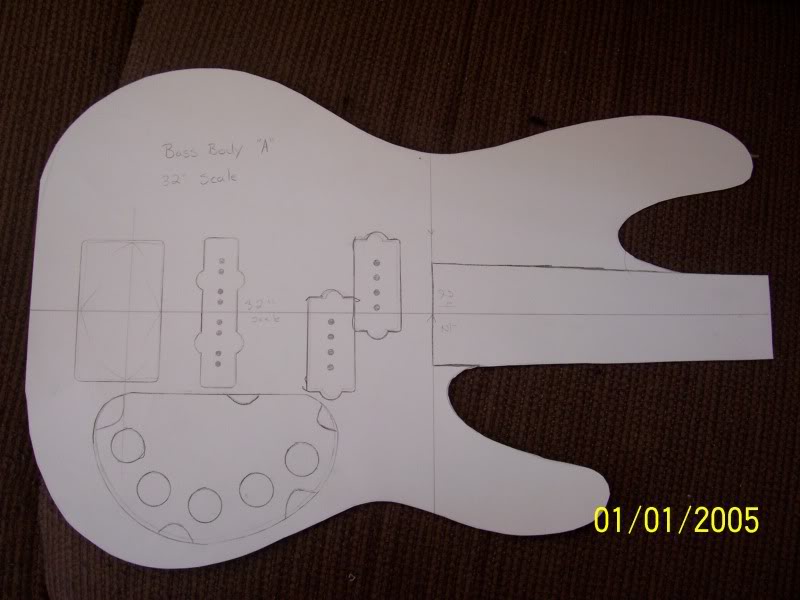

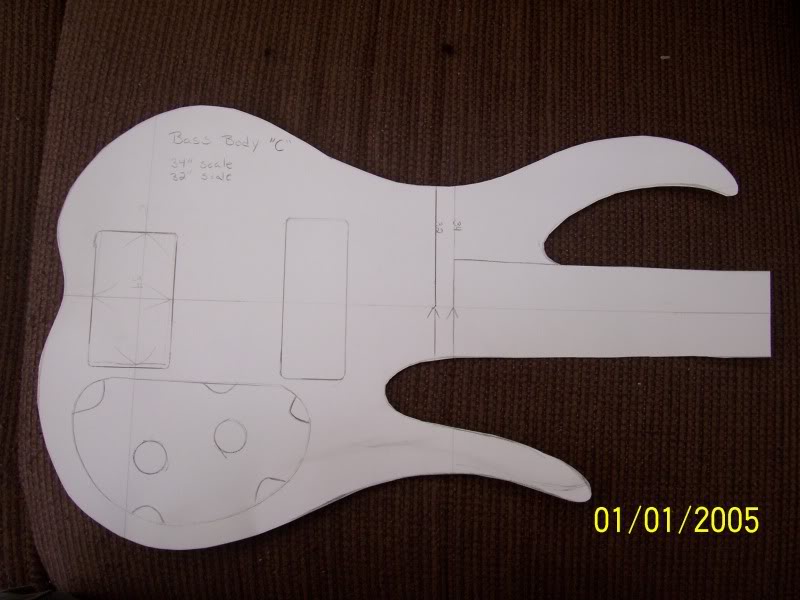

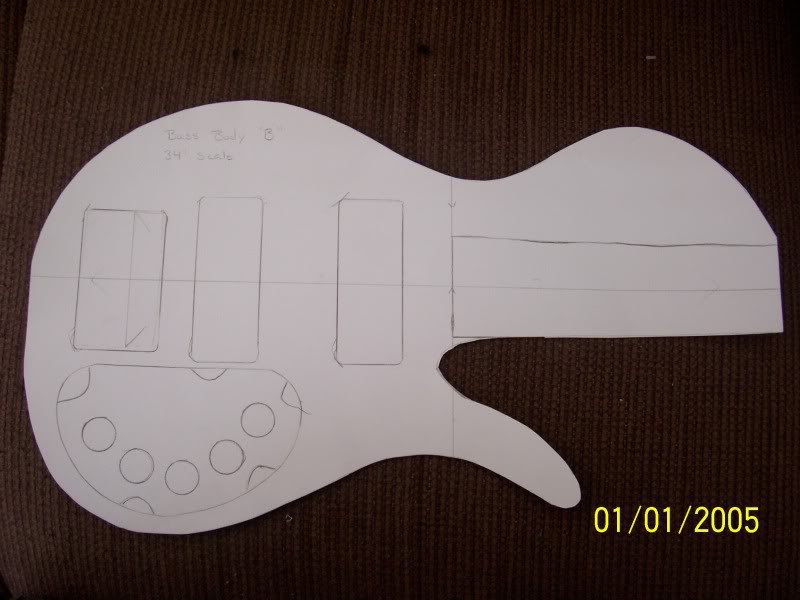

first couple of templets,gonna make a few more and a couple guitar templets and a EUB templet,the transfer them to 1/4" wood.plus pickup templets and control cavity templets



[Rickett Customs]

Now that I think about it, What bridge(s) are you going to use?
This will give you a general idea as well @ the 24th, unless you're using "single" bridges.
