New Cab Day, 70's Ampeg V4-B, Boom!

#21
tbird46553 said:
I bought one out of the Selmer plant back door in Elkhart IN in the late 70's. A demo I was told. Brother of a friend worked there. Story was Gene Simmons tried it out. Anyway it turned out to be a prototype loaded with single 18 in a folded horn. I played it with a V4B in clubs for years. I didn't have a problem hearing myself but I imagine the people in the bathroom got an ear full. Sadly I sold it at a garage sale about 15 years later. For $100. Life happens:woot:
Click to expand...


This cab was aso advertised having one 18" I thought the guy was confused with the Acoustic 316 cabs and I told him that and he took that out of the ad, but now you got me thinking. I think it may be an earlier one though there is not switch on the back so hopefully it's a double 15" cab.

#22
beans-on-toast said:
What’s a BioBrick?

Nice cab. Heavy. Always nice to fulfill a long standing desire..
Click to expand...


Yup, that's the way I figure it too, I once rented one of those for an outside gig and used either a V4-B head or a B-25-B head and it sounded really good, also used one once in a club and it sounded good. If I never use it, well I do have it. I haven't used anything bigger than a 410 now for several years, in fact I haven't used anything bigger than a single 15" since the Plague hit.....in my room at home.

  • Like
Reactions: beans-on-toast
#23
Wasnex said:

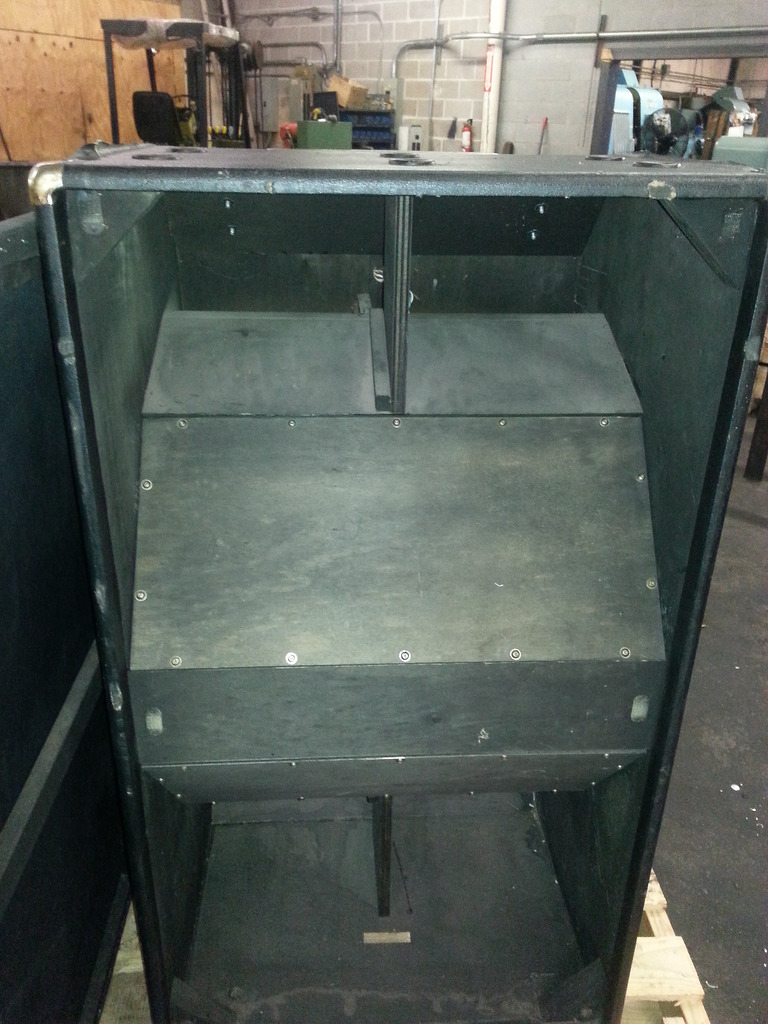

I think you would call this a W Bin, which is a form of folded horn but a very one.

This is probably a cab where an HPF is critical. AFAIK driver excursion will increase drastically as the horn begins to unload. What do you think @Stumbo

Spec sheet is available here: file:///C:/Users/SANDYB~1/AppData/Local/Temp/V4B%20brochure.pdf

No mention of frequency response, but two are recommended for use with an SVT.

The SLM era specsheet is here: Ampeg V4B folded horn cabinet

-3dB is at 80hz, -10dB is at 70hz so once it starts rolling off it's steep. You probably need the HPF pretty close to 80hz if your going to goose it with a lot of power.
Click to expand...


File not available for some reason.

#29
I had one back in the day, and they had Altec's, .... and later, they had EV's

  • Like
Reactions: bobyoung53
#33
bobyoung53 said:
Thanks Beans, do you know anything about the cabs without the impedance switches?
Click to expand...

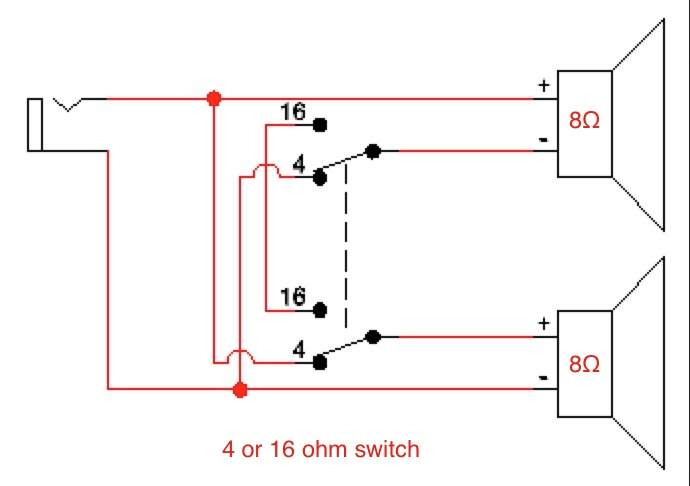

The V4B isn't much of a problem, there is an impedance selector for 2, 4, and 8 ohms. The cabinet selector is more for when other amps are used. The selector being 4 or 16 ohms indicates that the two speakers are 8 ohms each and the switch wires the speakers for either series (16 ohm) or parallel (4 ohm) operation.


4 16 ohm switch.jpg

  • Like
Reactions: Bass 45 and bobyoung53
#34
beans-on-toast said:
The V4B isn't much of a problem, there is an impedance selector for 2, 4, and 8 ohms. The cabinet selector is more for when other amps are used. The selector being 4 or 16 ohms indicates that the two speakers are 8 ohms each and the switch wires the speakers for either series (16 ohm) or parallel (4 ohm) operation.
Click to expand...


No I know, I'm just wondering if this cab is earlier or later than the ones with the switches, it doesn't have one and I've seen them before, I thought they were earlier but I'm not sure.

  • Like
Reactions: beans-on-toast
