New preamp but no space for a volume pot

M

MoMarshallson

Mar 18, 2023
8
1
#1
I recently bought a DKGlass tone capsule for my Warmoth P bass. It has two tone pots and one volume pot. The Tone capsule has 3 tone controls. My question is do I really need a volume control? Can I just use what the Tone capsule came with? I just don't. really want to alter the Tone capsule wiring.

Thanks!

#4
No problem at all!
I've omitted the volume control on several of my basses out of preference - I VERY rarely use them anyway.

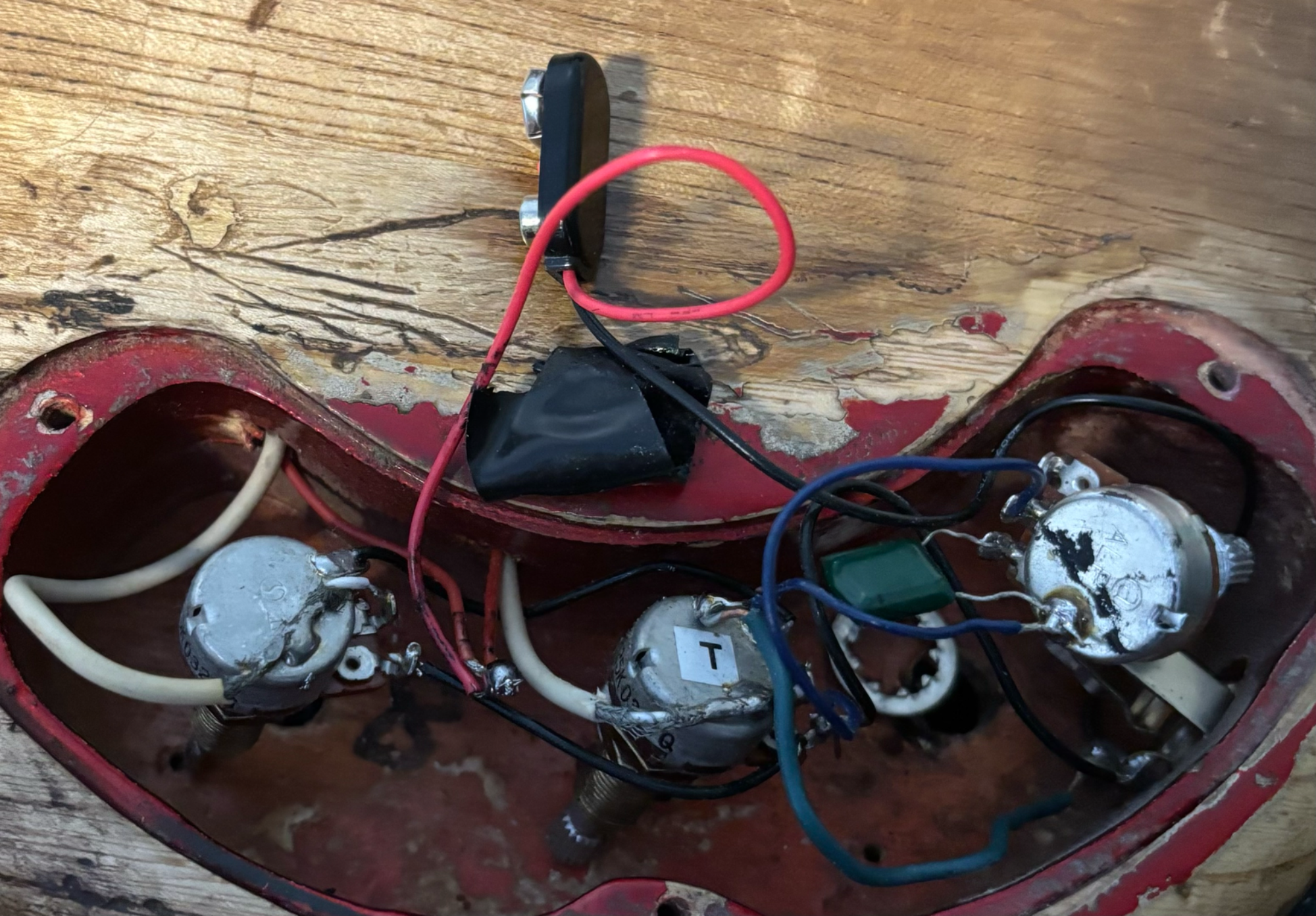

The pic looks like your bass has EMG wiring and pots - which may complicate things.
Also, is your bass a 1 pickup or a 2 pickup bass?

Last edited:
#5
master volume is a convenient way to mute your bass while away from your amp/pedals. I've also needed master volume live several times, when I started playing and then discovered, the bass amp is distorting due to hot signal (those were times I didn't have time for sound check, just plug and go).

if that was my bass, I'd get two of the three EQ pots on a stacked pot and have room for volume.

#6
groovaholic said:
No problem at all!
I've omitted the volume control on several of my basses out of preference - I VERY rarely use them anyway.

The pic looks like your bass has EMG wiring and pots - which may complicate things.
Also, is your bass a 1 pickup or a 2 pickup bass?
Click to expand...
Hey, thanks for the reply! Yes, they are EMGs. The pick up configuration looks like this.


Attachments

  • IMG_0502.jpeg
    374.4 KB · Views: 14
#8
Aloe said:
master volume is a convenient way to mute your bass while away from your amp/pedals. I've also needed master volume live several times, when I started playing and then discovered, the bass amp is distorting due to hot signal (those were times I didn't have time for sound check, just plug and go).

if that was my bass, I'd get two of the three EQ pots on a stacked pot and have room for volume.
Click to expand...
Thanks!

#9
MoMarshallson said:
Thanks for the reply! What do you mean by "top side"?
Click to expand...

Face of the instrument, normal control layout.....volume, hi-mid, low-mid. Secure the bass control / pot and place it in the control cavity. I never touch the instrument's bass EQ...I'll address any issues further downstream via peripheral devices, amp EQ, etc. I suspect the REAL low-end definition resides with the Darkglass's 500 hz low-mid. No way I'm surrendering my volume control.

Riis

#10
Zooberwerx said:
Face of the instrument, normal control layout.....volume, hi-mid, low-mid. Secure the bass control / pot and place it in the control cavity. I never touch the instrument's bass EQ...I'll address any issues further downstream via peripheral devices, amp EQ, etc. I suspect the REAL low-end definition resides with the Darkglass's 500 hz low-mid. No way I'm surrendering my volume control.

Riis
Click to expand...
Ahhh interesting. Good idea thank you!

  • Like
Reactions: Zooberwerx
#11
MoMarshallson said:
Ahhh interesting. Good idea thank you!
Click to expand...

Not a new concept. Preamp designers have been hiding trim pots including gain and mid-freq adjustments on the internal boards for years. I'm puzzled as these are components I'd want readily available / under my fingertips...bass boost / cut not so much. Best example I can think of is the Audere 4 band where the real magic resides with the (2) mid bands.

Riis
