P+J in parallel/series with 4PDT switch

[feacher]

Hello experts!

I am looking for a wiring diagram of the P+J with parallel (VVT)/series (VT) switch. All pickups have four conductors like Bartolini or Nordstrand.

I don't really get how to make P+J working in series with 4PDT ON-ON switch (12 pins). Can anyone help?



[line6man]

What are you trying to do?

Standard series/parallel switching requires only two poles and two throws. There is no need for a 4PDT switch.



[feacher]

Right now I have a parallel mode on my PJ-bass with two volumes and one master tone controls. Main idea is to making P and J p-ups working together like one big pickup with only one volume and one tone knob, in other words - in series with each other.

P-ups is constructed by russian company named Trakhmann. Very well-made pickups except the design. I know that they uses 4DPT to switching between series/parallel configuration with this combination of pickups. And I also have that "special" switch with cables soldered to pins (see attachment).

P p-up have four conductors - two conductors is "transparent" color (soldered together), one red (HOT) and black (GND). J p-up have four conductors too - green and black (soldered together), white (HOT) and red (GND).

line6man, if you can help me with wiring diagram I'll appreciated it very well.



[Zentner]

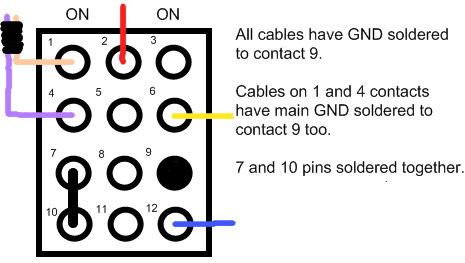

Is the attached picture the way you were able to achieve this? I'm looking to wire this myself!



[feacher]

That's way how they do it. I have that switch but have no instructions how cables must be soldered with standard PJ. So there is no error.
