Pedalboard Power supply dilemma

Lit311

Lit311

Jul 6, 2016
264
232
#1
I am currently using a power strip as a power supply, but looking to add a pedal and maybe more, so that could get ugly.

My board is very simple. It is made from pallet materials, and sprayed with rubberizer.

All I use is a Line 6 G10 and a Zoom b3. I plan to add a boss Lmb-3 to the mix.

The G10 uses usb power, so that makes things interesting.

One thing I looked at was the Voodoo Power Plus 2, because it has a plug on the front. I could just plus the wall wart for the g10 into that.

Another option is this thing:
WARWICK RockBoard Power LT XL - Black

Has 2 9v outs and 1 usb out. It's recharable and tiny. It would be perfect, as long as I don't plan to add anything. I checked power ratings, and it seems to line up with everything, as long as what I found is accurate. Going cordless would be neat, as it also charges while it's plugged in. While all that seems real neat, it runs $50-70, not sure it's worth it to just make thingd a little less annoying.

So what say ye?
Any experience with the Warwick Rockboard Power xl lt?
Should I just live the power strip life?
Are they any other options to power all 3?

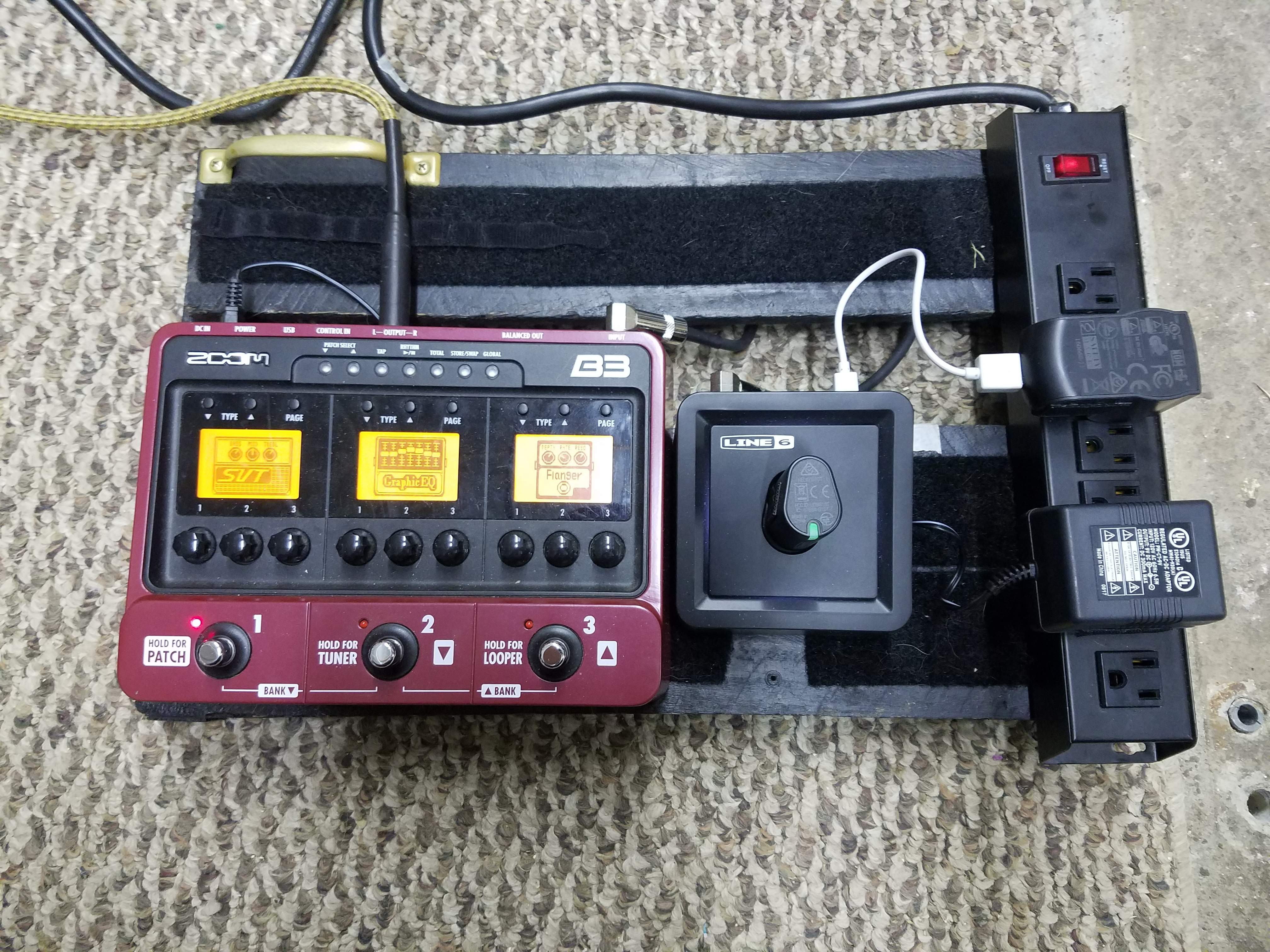

Here is Ghetto Board 1.0


  • Like
Reactions: basscapes
#8
I don't know about the Rockboard but I'm currently using an Harley Benton powerbank and it's really practical. I have no complains about it.
I use to power a small board with a SA Soundblox 2 Multiwave Bass Distortion, a Line 6 M5 and a Mesaboogie Subway DI, and I plays 3 hours gigs and there's still power left for about 1 to 2 hours.
I like that I don't need to bring a big power extention to the gigs, that I can minimize the amount of cables and this way I can power my pedals independently of the power of the bar or venue.
And right now I'm using it to charge my phone.

  • Like
Reactions: egarcia
#9
FWIW: I decided to throw caution to the wind, and picked up a USB-Barrel adapter (https://smile.amazon.com/gp/product/B01G3ERI42), a reverse polarity adapter (https://smile.amazon.com/gp/product/B004EBG5QE/ref=oh_aui_detailpage_o09_s00?ie=UTF8&psc=1) and a daisy chain cable (https://smile.amazon.com/gp/product/B00WITO1J2/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1) and was able to power my board with a regular power brick (I tried a couple). For under $25 this was a pretty cheap experiment.

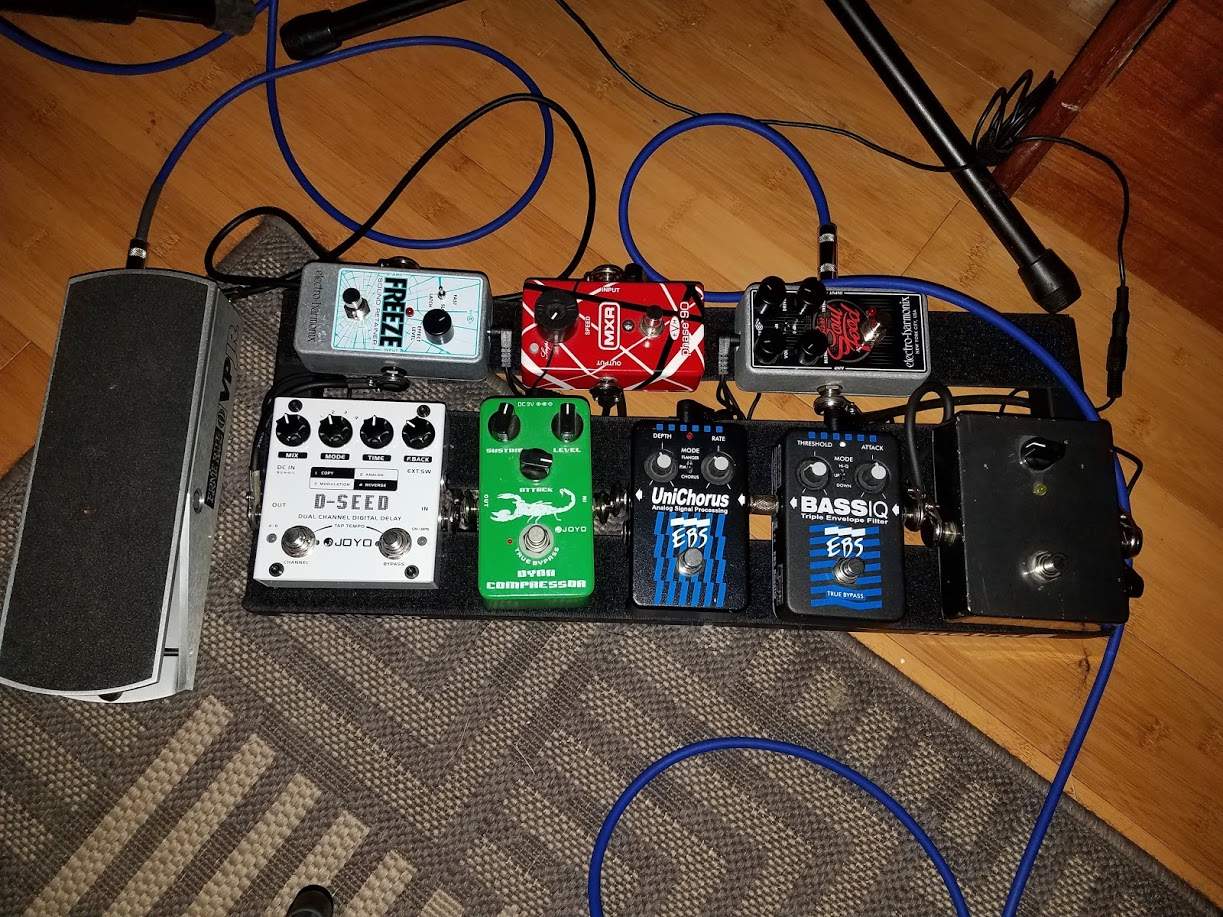

After I was able to play for a 2 hour practice without making a dent in powerbrick's power, I decided to try it at a gig. Talk about easy setup! The brick fit under my board, so I just velcro'd it there, making it easy to take of and charge. I do disconnect the power when I'm not using it, but I am happy with the solution. The board I powered (it's plugged into a traditional wall wart in this picture):

20180903_120823 (1).jpg

  • Like
Reactions: Nunovsky
#10
I have a Rockboard LT XL and use it for my SpectraDrive, Polytune and G10 (but don't charge it from the Rockboard). If I add more pedals (or more consuming ones), it's draining really fast. Not sure how much consumes your Zoom unit.

Rockboard LT XL is bad with those scenarios:
1. recharging battery while powering your pedals
2. providing isolated power outlets (9v outputs are not isolated and when you use both, noise is added)

It's possible though to add a 5v USB outlet to a regular 9v power supply (like Strymon Ojai). You'll need the Bright Switch pedal and the current doubler cable (Voodoo Lab makes ones).

#11
As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
#13
Lit311 said:
I am currently using a power strip as a power supply, but looking to add a pedal and maybe more, so that could get ugly.

My board is very simple. It is made from pallet materials, and sprayed with rubberizer.

All I use is a Line 6 G10 and a Zoom b3. I plan to add a boss Lmb-3 to the mix.

The G10 uses usb power, so that makes things interesting.

One thing I looked at was the Voodoo Power Plus 2, because it has a plug on the front. I could just plus the wall wart for the g10 into that.

Another option is this thing:
WARWICK RockBoard Power LT XL - Black

Has 2 9v outs and 1 usb out. It's recharable and tiny. It would be perfect, as long as I don't plan to add anything. I checked power ratings, and it seems to line up with everything, as long as what I found is accurate. Going cordless would be neat, as it also charges while it's plugged in. While all that seems real neat, it runs $50-70, not sure it's worth it to just make thingd a little less annoying.

So what say ye?
Any experience with the Warwick Rockboard Power xl lt?
Should I just live the power strip life?
Are they any other options to power all 3?

Here is Ghetto Board 1.0

View attachment 2974398
Click to expand...

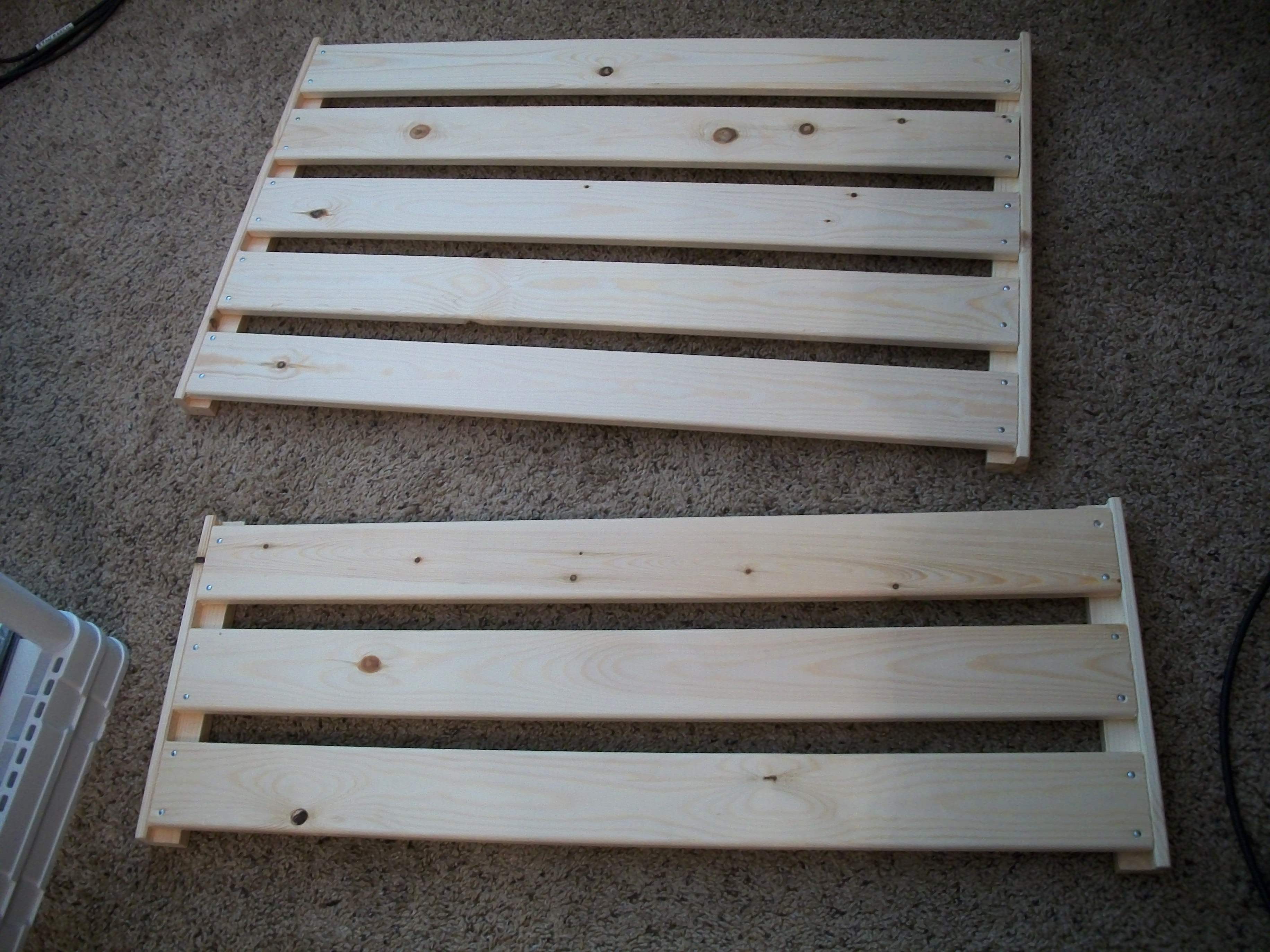

What kind of "rubberizer" did you use? I have a bunch of Ikea "pallets" just waiting for a touch of paint and "road-worthy-ing"...

pedalboard 1.JPG

  • Like
Reactions: egarcia
#16
Lit311 said:
All I use is a Line 6 G10 and a Zoom b3. I plan to add a boss Lmb-3 to the mix.
Click to expand...

For a couple bucks from Ebay (or whatever) you can buy a Y cable that'll take the end of your current wallwart and split it into two ends.

This one has three, but then I didn't really search very hard because it's not my problem. :)

Put the power strip across the top, and suddenly all the room in the world for your LMB2.


(oh, the start of this thread is from April, so I assume you've long since moved on; sorry)

As an eBay Associate, TalkBass may earn a commission from qualifying purchases.
  • Like
Reactions: Lit311
