I am thinking of installing the Dimarzio DP126 PJ set on my bass. What I want is to have a kill switch for each of the pickups and a tone cap. No tone or volume controls. Anyone know how this should be wired to work optimally? Where do I put the tone cap?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
PJ wiring no volume/tone, only kill switch
- Thread starter rubenaxe
- Start date

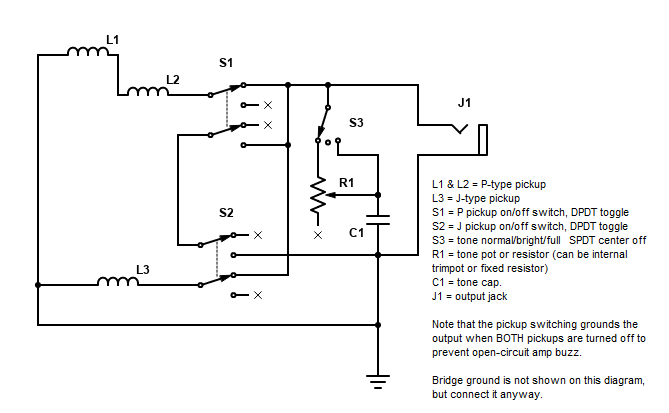

Just replace each pot with a switch. Otherwise follow the standard wiring diagrams.
Pickup ground wires run as per normal.
P Pickup Signal >>> Switch >>> Jack Output
J Pickup Signal >>> Switch >>> Jack Output
Output >>> Switch >>> Cap >>> Ground
If you don't want full tone cut with the cap, wire a trim pot between the cap and ground. Then you have some 'set it and forget it' adjustment.
Pickup ground wires run as per normal.
P Pickup Signal >>> Switch >>> Jack Output
J Pickup Signal >>> Switch >>> Jack Output
Output >>> Switch >>> Cap >>> Ground
If you don't want full tone cut with the cap, wire a trim pot between the cap and ground. Then you have some 'set it and forget it' adjustment.
Hey OP, thanks for starting the topic. I want the exact same thing.

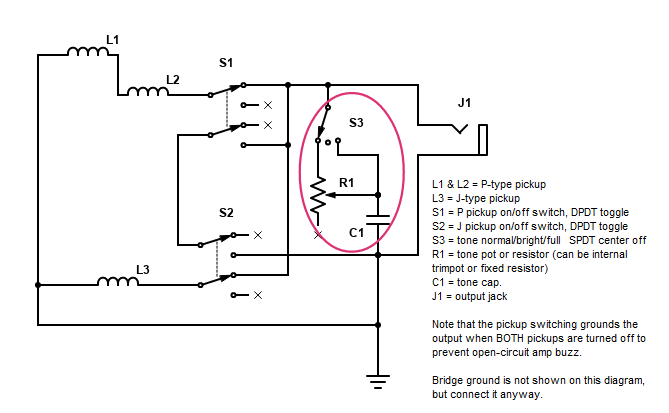

Can this be done without the capacitor? What happens if I just leave out the part I've circled?
Can this be done without the capacitor? What happens if I just leave out the part I've circled?
That's a standard passive treble-cut tone control, and can be omitted from the circuit if you wish.
