Please help me understand the USB audio interface on Warwick Gnome iPro v2

Appogee

Appogee

Jan 18, 2018
494
890
#1
Hi Fellow Bassbros,

I have connected my bass to my Warwick Gnome iPro V2, and then the Warwick Gnome iPro V2 to a speaker cab. So far so, good it works exactly as I'd expect an amplifer and bass cabinet to work.

Now I want to record my bass into an audio recording program (e.g. Audacity, or a DAW) via the "iPro" audio interface of the Gnome. So I've plugged a USB-B cable into the back of the Warwick iPro V2 (where it says "Output") and the other end of that cable (USB-A) into a spare USB port on my PC.

Windows installed some drivers, and two new audio devices showed up on my PC: "Microphone-4 USB Audio Device" and "Speakers 4 Microphone USB Audio Device".

I played my bass, expecting to be able to hear and record it in Audacity. However, Audacity can't hear my bass playing. Instead, whatever sounds are being made by my PC (e.g. system sounds, YouTube videos etc) are being played back through my bass cabinet!

So it seems like, instead of my Warwick iPro V2 acting as an audio input device to my PC, it's acting as an audio output device from the PC.

Is this what's supposed to happen? Have I completely misunderstanding the purpose of the iPro interface? Is it not supposed to take your bass signal from the Warwick Gnome and feed it into your PC? Or is my original understanding correct, and something is broken?

Here's what I done so far to try and fix the problem:
  • Ensured Audacity is set to use Microphone 4 (the new input that showed up on the PC) as the input device, and my usual speakers as the Output device.
  • Tried the other device listed in Audacity as the input.
  • Disabled, uninstalled and reinstalled Microphone 4 and Speakers 4.
  • Tried different USB ports on the PC.
  • Tried a different USB cable.
There's nothing in the Gnome iPro documentation that's of help. It just says it has a PC audio interface and nothing more. There are no instruction videos or other material from Warwick that seem to address the problem I'm experiencing.

I'd appreciate any help you can offer, thanks!

  • Like
Reactions: Ethix4
#3
Thanks. Here's the output from "Help" -> "Diagnostics" -> "Audio Device Info".


==============================
Default recording device number: 1
Default playback device number: 3
==============================
Device ID: 0
Device name: Microsoft Sound Mapper - Input
Host name: MME
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Capture Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 1
Device name: Microphone (4- USB Audio Device
Host name: MME
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Capture Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 2
Device name: Microsoft Sound Mapper - Output
Host name: MME
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 3
Device name: Speakers (4- USB Audio Device)
Host name: MME
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 4
Device name: Speakers (Realtek(R) Audio)
Host name: MME
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 5
Device name: KAMN34FXQULA (NVIDIA High Defin
Host name: MME
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 6
Device name: Realtek Digital Output (Realtek
Host name: MME
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0.09
Low Playback Latency: 0.09
High Recording Latency: 0.18
High Playback Latency: 0.18
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
352800
384000
==============================
Device ID: 7
Device name: Primary Sound Capture Driver
Host name: Windows DirectSound
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.12
Low Playback Latency: 0
High Recording Latency: 0.24
High Playback Latency: 0
Supported Capture Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 8
Device name: Microphone (4- USB Audio Device)
Host name: Windows DirectSound
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.12
Low Playback Latency: 0
High Recording Latency: 0.24
High Playback Latency: 0
Supported Capture Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 9
Device name: Primary Sound Driver
Host name: Windows DirectSound
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.12
High Recording Latency: 0
High Playback Latency: 0.24
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 10
Device name: Speakers (4- USB Audio Device)
Host name: Windows DirectSound
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.12
High Recording Latency: 0
High Playback Latency: 0.24
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 11
Device name: Speakers (Realtek(R) Audio)
Host name: Windows DirectSound
Recording channels: 0
Playback channels: 6
Low Recording Latency: 0
Low Playback Latency: 0.12
High Recording Latency: 0
High Playback Latency: 0.24
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 12
Device name: KAMN34FXQULA (NVIDIA High Definition Audio)
Host name: Windows DirectSound
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.12
High Recording Latency: 0
High Playback Latency: 0.24
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 13
Device name: Realtek Digital Output (Realtek(R) Audio)
Host name: Windows DirectSound
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.12
High Recording Latency: 0
High Playback Latency: 0.24
Supported Playback Rates:
8000
9600
11025
12000
15000
16000
22050
24000
32000
44100
48000
88200
96000
176400
192000
==============================
Device ID: 14
Device name: Speakers (Realtek(R) Audio)
Host name: Windows WASAPI
Recording channels: 0
Playback channels: 6
Low Recording Latency: 0
Low Playback Latency: 0.003
High Recording Latency: 0
High Playback Latency: 0.01
Supported Playback Rates:
48000
==============================
Device ID: 15
Device name: Speakers (Realtek(R) Audio) (loopback)
Host name: Windows WASAPI
Recording channels: 6
Playback channels: 0
Low Recording Latency: 0.003
Low Playback Latency: 0
High Recording Latency: 0.01
High Playback Latency: 0
Supported Capture Rates:
48000
==============================
Device ID: 16
Device name: KAMN34FXQULA (NVIDIA High Definition Audio)
Host name: Windows WASAPI
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.003
High Recording Latency: 0
High Playback Latency: 0.01
Supported Playback Rates:
48000
==============================
Device ID: 17
Device name: KAMN34FXQULA (NVIDIA High Definition Audio) (loopback)
Host name: Windows WASAPI
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.003
Low Playback Latency: 0
High Recording Latency: 0.01
High Playback Latency: 0
Supported Capture Rates:
48000
==============================
Device ID: 18
Device name: Speakers (4- USB Audio Device)
Host name: Windows WASAPI
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.003
High Recording Latency: 0
High Playback Latency: 0.01
Supported Playback Rates:
48000
==============================
Device ID: 19
Device name: Speakers (4- USB Audio Device) (loopback)
Host name: Windows WASAPI
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.003
Low Playback Latency: 0
High Recording Latency: 0.01
High Playback Latency: 0
Supported Capture Rates:
48000
==============================
Device ID: 20
Device name: Realtek Digital Output (Realtek(R) Audio)
Host name: Windows WASAPI
Recording channels: 0
Playback channels: 2
Low Recording Latency: 0
Low Playback Latency: 0.003
High Recording Latency: 0
High Playback Latency: 0.01
Supported Playback Rates:
48000
==============================
Device ID: 21
Device name: Realtek Digital Output (Realtek(R) Audio) (loopback)
Host name: Windows WASAPI
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.003
Low Playback Latency: 0
High Recording Latency: 0.01
High Playback Latency: 0
Supported Capture Rates:
48000
==============================
Device ID: 22
Device name: Microphone (4- USB Audio Device)
Host name: Windows WASAPI
Recording channels: 2
Playback channels: 0
Low Recording Latency: 0.003
Low Playback Latency: 0
High Recording Latency: 0.01
High Playback Latency: 0
Supported Capture Rates:
48000
==============================
Selected recording device: 22 - Microphone (4- USB Audio Device)
Selected playback device: 9 - Primary Sound Driver
Supported Rates:
48000
==============================
Available mixers:
==============================
Available recording sources:
0 - Master
==============================
Available playback volumes:
0 - PCM
==============================
Recording volume is native

#5

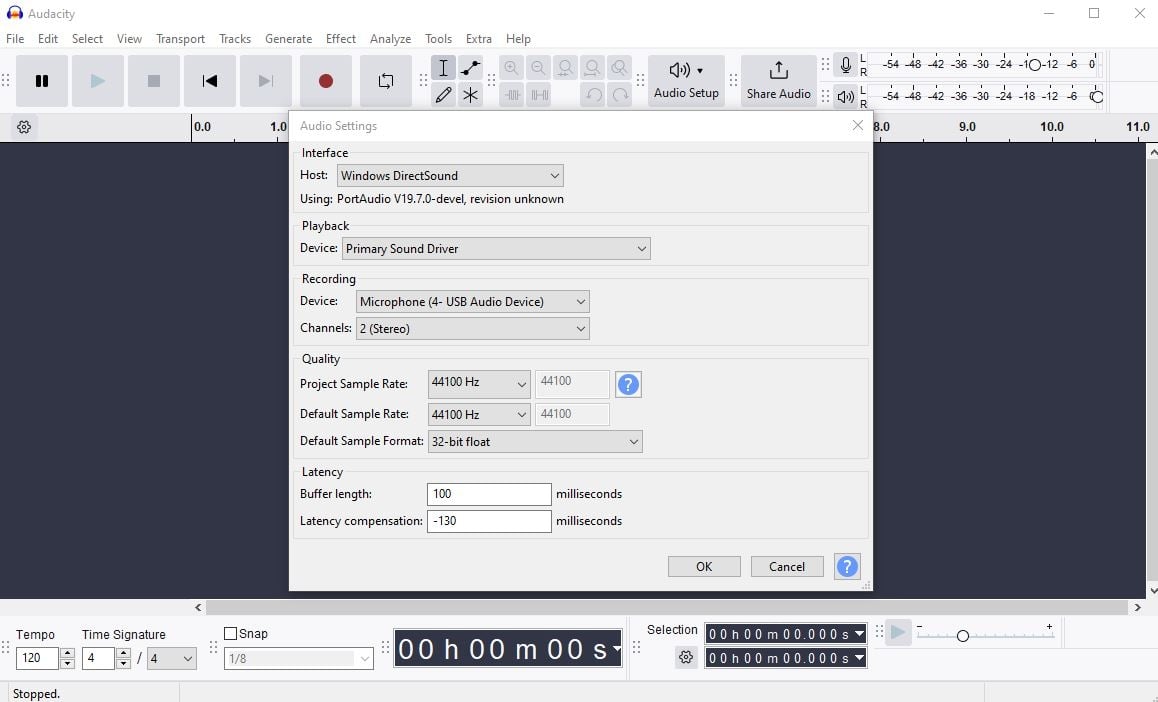

Apologies. Is this the screen you mean?
Audacity Settings.JPG

#6
Apologies, it's 3am where I am and I have a medical appointment tomorrow (today!) that I'll need to be awake for soon! :)

Thanks for your advice so far - I will check back on this thread when I get back tomorrow afternoon.

  • Like
Reactions: Passinwind
#7
Appogee said:
Apologies, it's 3am where I am and I have a medical appointment tomorrow (today!) that I'll need to be awake for soon! :)

Thanks for your advice so far - I will check back on this thread when I get back tomorrow afternoon.
Click to expand...
Cool. Since we now know the USB interface appears to function as expected I'm going to ask a Mod to move this to the Recording Gear and Equipment forum, where you'll likely get more informed input on making it do what you need it to. I do have Audacity on my Windows box, but only really use it for capturing YouTube audio, and even that was way more convoluted to set up than I expected.

#8
EDIT: I reread the original post and I think this might be an issue with the Warwick product’s routing. Unfortunately I’ve never heard of it before and I don’t use audacity so my suggestion might bot be what you need to resolve the issue. But I’ll leave it here all the same in case it becomes useful to you or someone else in the future. Good luck! 👍

ORIGINAL REPLY:
It seems like what you need is a “loop back” program that can route the audio being played on your device back to itself. This is how streamers are able to capture the incoming audio from their video games or whatever whilst simultaneously capturing the voiceovers that they’re recording. This is also sometimes called “passthrough.”

While I haven’t used it in a long time, I used to use “Virtual Audio Cable” for this on my old windows machine. IIRC, it wasn’t too difficult to set up. I just followed the instructions on the website and get it set up.

I just did a search and it looks like the program is still available for download. Check it out here: Virtual Audio Cable

Last edited:
  • Like
Reactions: Appogee
#11
Try device 19. It may be labeled speakers but according to the windows device info it also does recording with loop back.

That is probably what you’re after.

Windows can give things misleading names at times. Kinda cool you can play back as well as record if that’s the case.

  • Like
Reactions: Appogee

Latest posts

Top Bottom
Back
