Question about Pickup wiring

[proud_of_scar]

Hello, I'm looking to switch the pickup on my starter bass. Its a dean edge E 09, with the stock dean pickup, which is real stale and crappy sounding. So im thinking about replacing pickup with this one http://www.bestbassgear.com/basslines-pickups-sjb1.htm

Now, whats confusing me is that it has two wires going out in the picture.

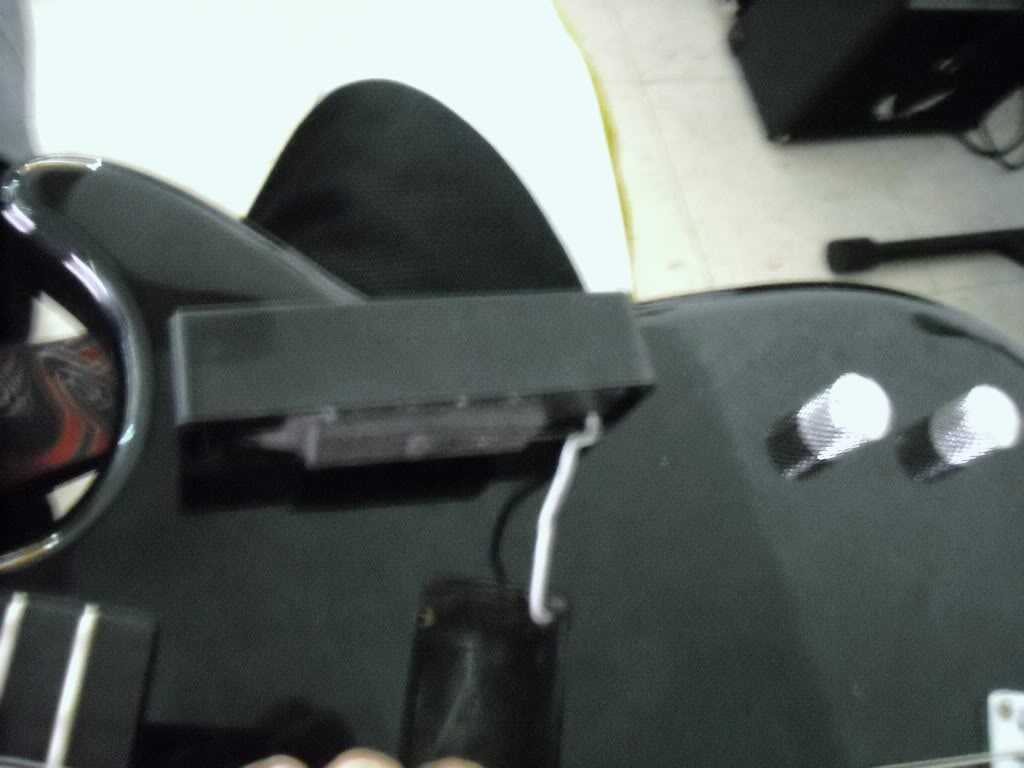

heres how mines looks like

Theres only one cable.

What do I attach the extra cable to? or do I just leave it out?



[ldervish]

Look at the other end of the 'cable' - it should have either two insulated wires inside or a single insulated wire with a bare-wire braided shield that connects to a grounding point (often the back of a pot).

The two wires on the new pup connect at those same points.



[line6man]

Why are you trying to put a Jazz pickup in a soapbar route?

You need two conductors to complete the circuit.
The pickup you have appears to have a single conductor shielded lead. The shielding around the wire is the ground.

The pickup you linked has separate hot and ground leads.



[i_got_a_mohawk]

You do have two cables inside there. As has been stated, you'll have a grounded shield and the hot in the middle.

Not exactly the same, this is standard coax, but it gives you an idea:

[Invalid or Expired Link Removed]


Also, you should look at getting a pickup that'll fit in your pickup route.



[proud_of_scar]

Why are you trying to put a Jazz pickup in a soapbar route?

I thought it didn't really make a difference, and that if there was a problem with the placement i could just make something to bring it up.

Guess not...

Now im not sure what kind of soapbar pickup to get

Any recommendations?
