Questions on ibanez sr 1200 controls

[sgtdemeo]

ok, so I just got an Ibanez sr 1200. The only questions I have are about the controls. I got it that there is a volume, a pickup selector pot, and a stacked bass/treble pot. there is one other pot, which I cannot figure out what it is. anyone have any ideas???? Thanks!



[danomite64]

The 1200's from the 90's had a Vari-Mid preamp, which had a second stack knob for mid range frequency and boost/cut.

The way you describe your bass is that the 4th knob isn't stacked, however.



[Standalone]

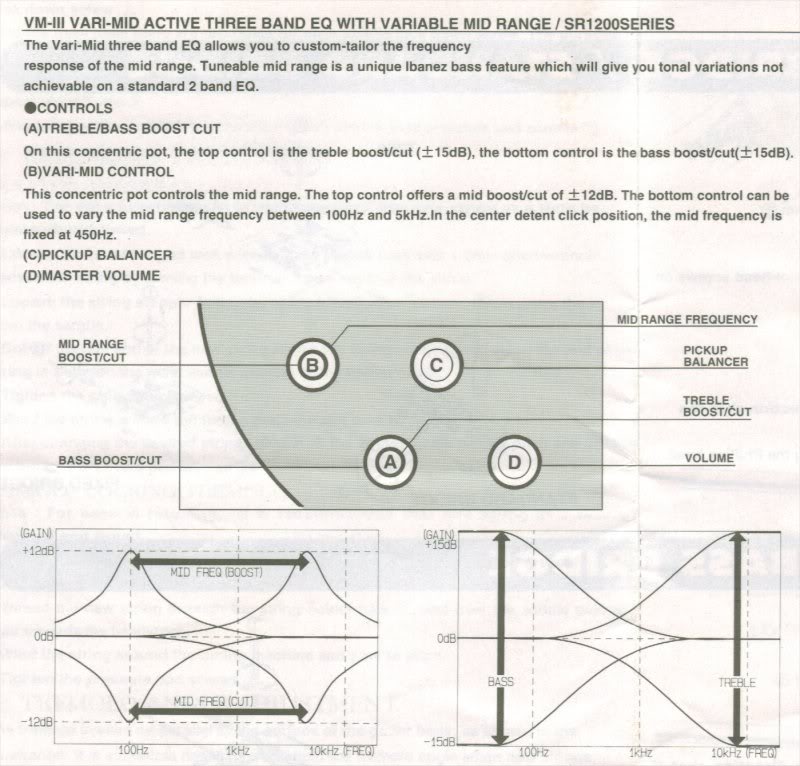

Looks like that's a lefty diagram, though...



[JazzyJames]

Im assuming Mid. Thats what its like on a Stingray.



[Standalone]

top knob is mid boost/cut. outer ring chooses what particular frequency is being affected.
