SBO 24 Acoust O'Sonic #2 Single Cut

[2groggy]

This may be what you answered but I meant the angle in between the individual blocks. They look like they could be different going around the inside corner but it could be the camera too.

All the same angle.



[2groggy]

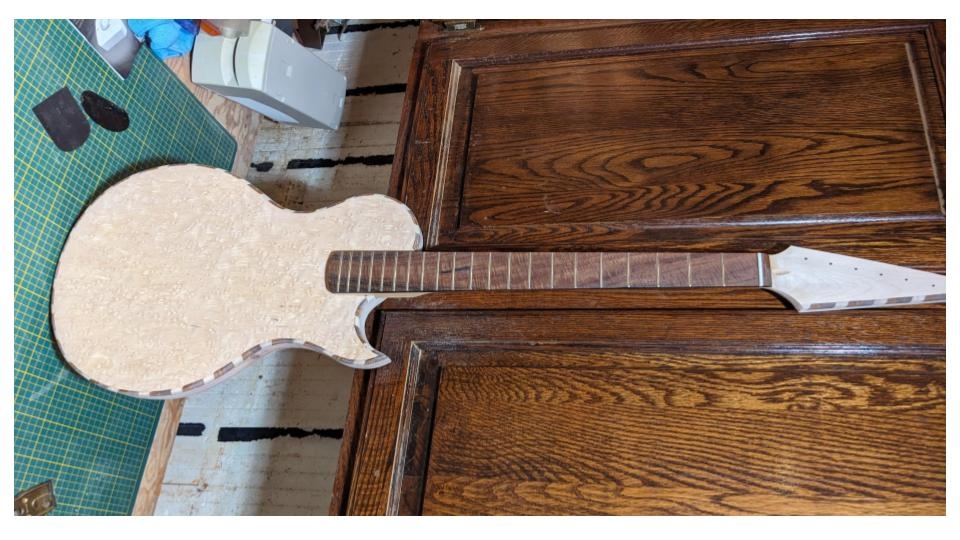

Tomorrow I will sand and get the first coat of tru oil applied.



[2groggy]

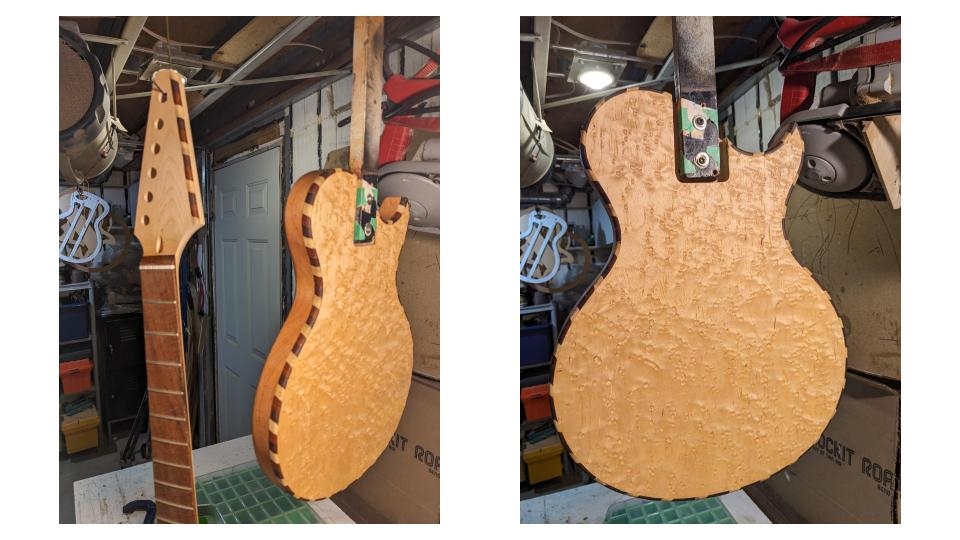

Grain Pop Day



[ctmullins]

Wow!



[2groggy]

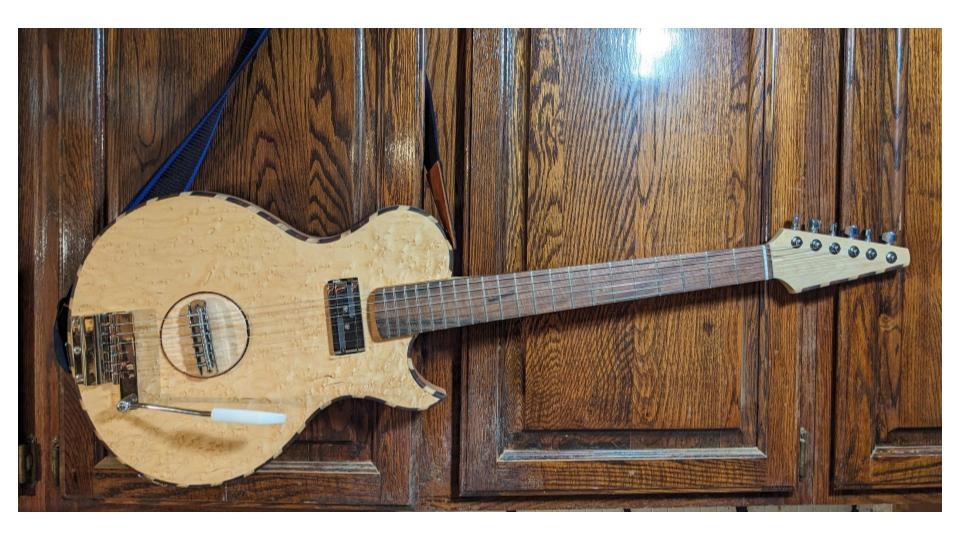

Assembled,but in need of a set-up.



[Matt Liebenau]

Assembled,but in need of a set-up.

View attachment 7028462

Looking good! Ship it on over. I’ll get the setup done for you.



[2groggy]

This is my official entry in SBO 2024 Non-Bass category

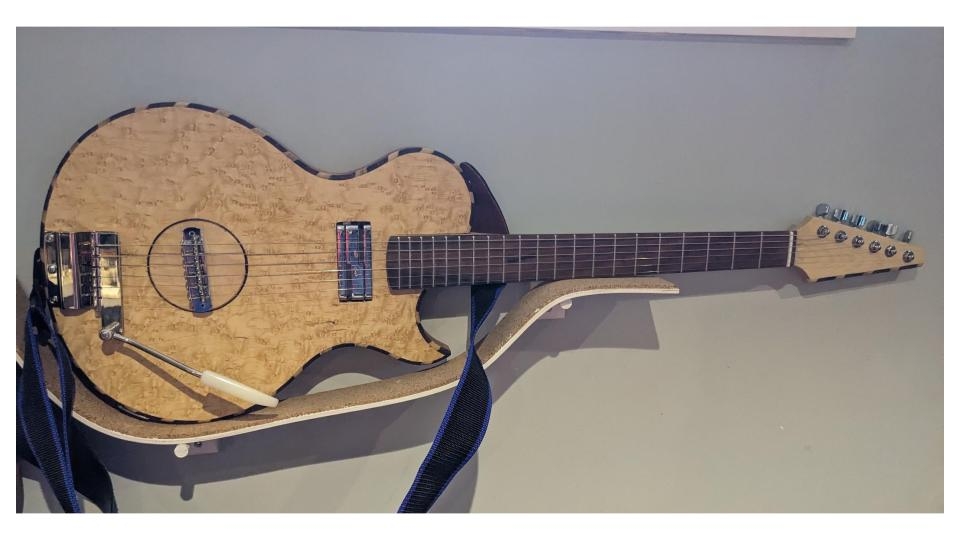

Acoust O'Sonic #2 Single Cut Guitar​

This is a hollow flat-top guitar. The body was purchased and then hollowed out and capped. The neck was a purchased.

Specifications:
Body: Solid 3-piece mystery wood, capped with laminated birdseye maple top.
Top: The top is trimmed with three tone rope binding
Neck: 25-1/2" scale length, Fender specifications, 6-inline locking tuners, matching rope binding along lower edge
Magnetic Pick-up: Lace Aluma P90, wired directly to the jack (no controls)
Piezo Pick-ups: Schaller piezo system with two transducers wired to an end-pin jack (no controls)
Bridge: Jazz Master type bridge on custom fabricated base.
Tailpiece: Epiphone type short-base vibrola



[Mark Knapp]

Ever consider making a Bajo Quinto or sexto? Your builds this time remind me of one courtesy of the binding.



[2groggy]

Ever consider making a Bajo Quinto or sexto? Your builds this time remind me of one courtesy of the binding.

Yes, check out my avatar. That is a hollow archtop with 18" lower bout. It was originally a 30" scale bass VI, but I later changed it to a 4 string. I've made a couple of bases on a 16" width archtop frame, one with rope binding.

The Bajo 5 and 6 are where I got the rope binding idea.
