Show your pedal guts.

[bigchiefbc]

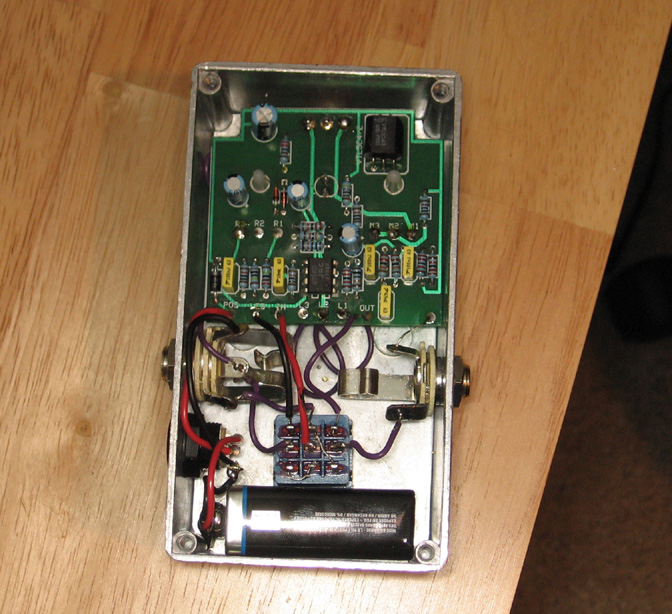

BYOC DOD 440 clone that I built last year:



[grygrx]

<Personal rant>
I personally can't find a thing wrong with posting gut shots, and do it all the time unless specifically requested not to.
<Personal rant>

<Mod Hat>
Please treat everyone with respect, even (and epically if) their viewpoints differ from yours. Do not turn this into a thread about if it's ok or not.
</Mod Hat>



[grygrx]

Clean up off-topic uncouth business



[SmittyPedals]

Clean up off-topic uncouth business

Thanks for nipping that in the bud!



[no1000]

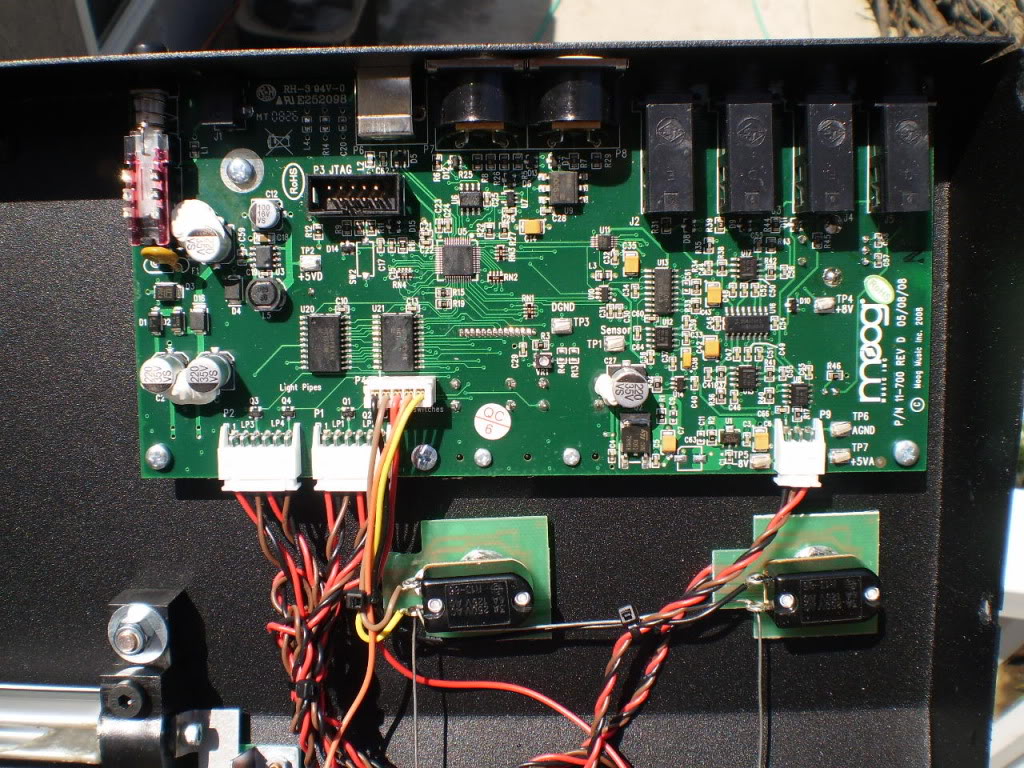

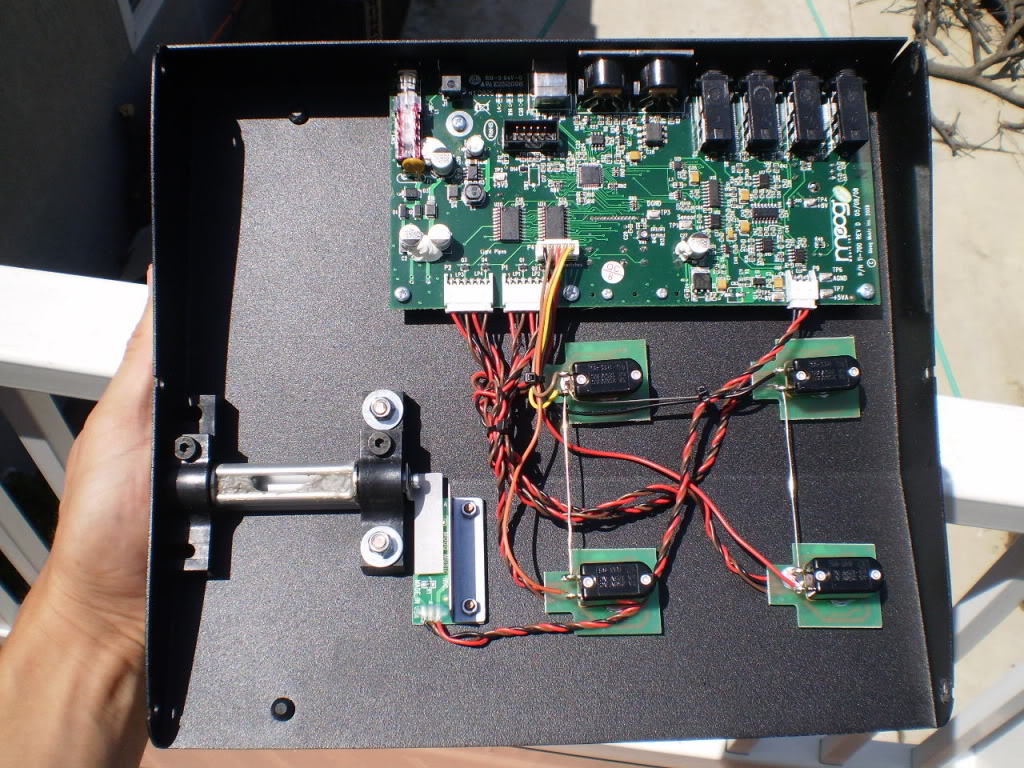

mp-201



[rcubed]

mp-201

Nice! I need to get one of those with my 4th Moogerfooger on the way.



[no1000]

You should have bought the mp-201 after your first moogerfooger.



[Darkglass]

Here are my Gut pis for both Microtubes B3K and B7K

Invalid Link Removed Invalid Link Removed

Regards

Doug



[iamdenialNJ]

Thread...must...live...



[cheapbasslovin]

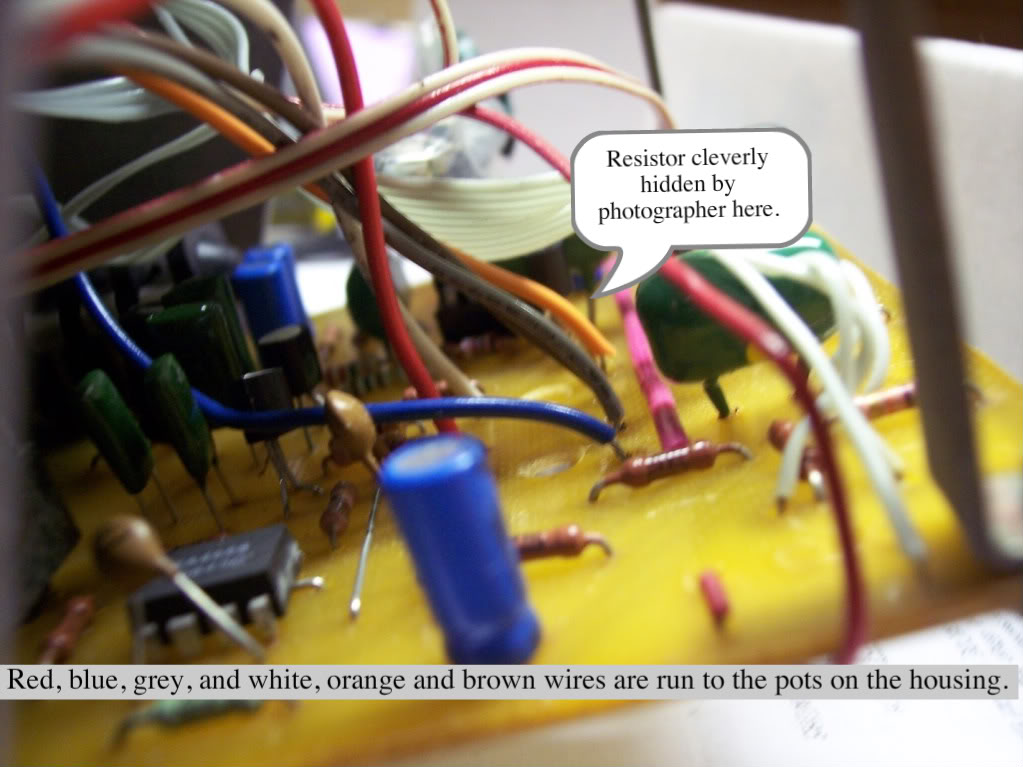

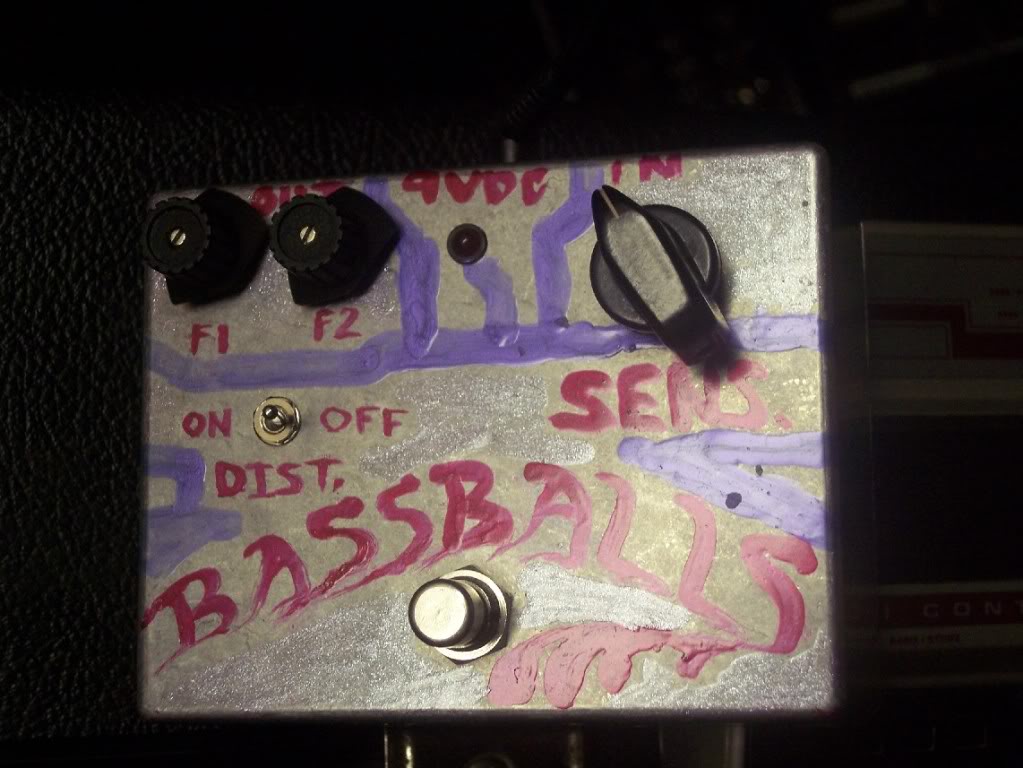

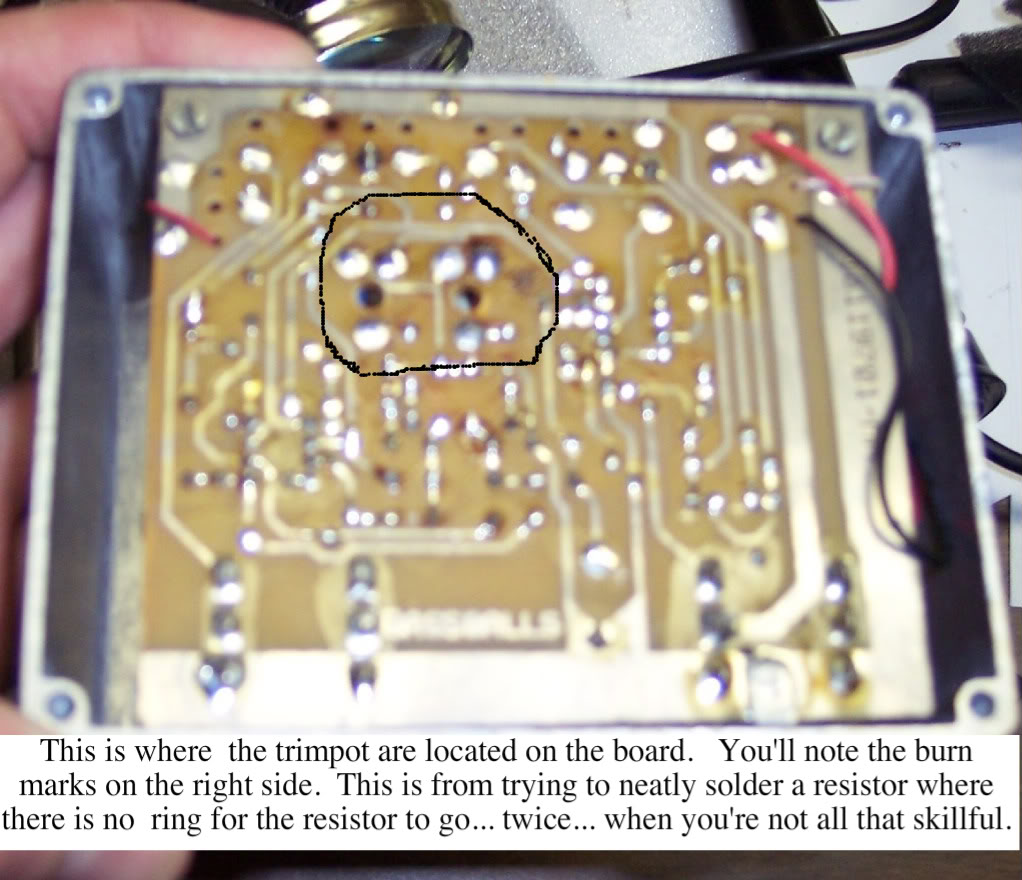

I'll help out. Rehoused Russian Bassballs with external trimpots. Complete with lame explanations.



[DannDubblewe]

I would LOVE to see the inside of the BugBrand BugCrusher Micro!! and that MP-201 seems so scant. I guess with such a big box I just expected circuits to just fall out everywhere!



[G.Bisson]

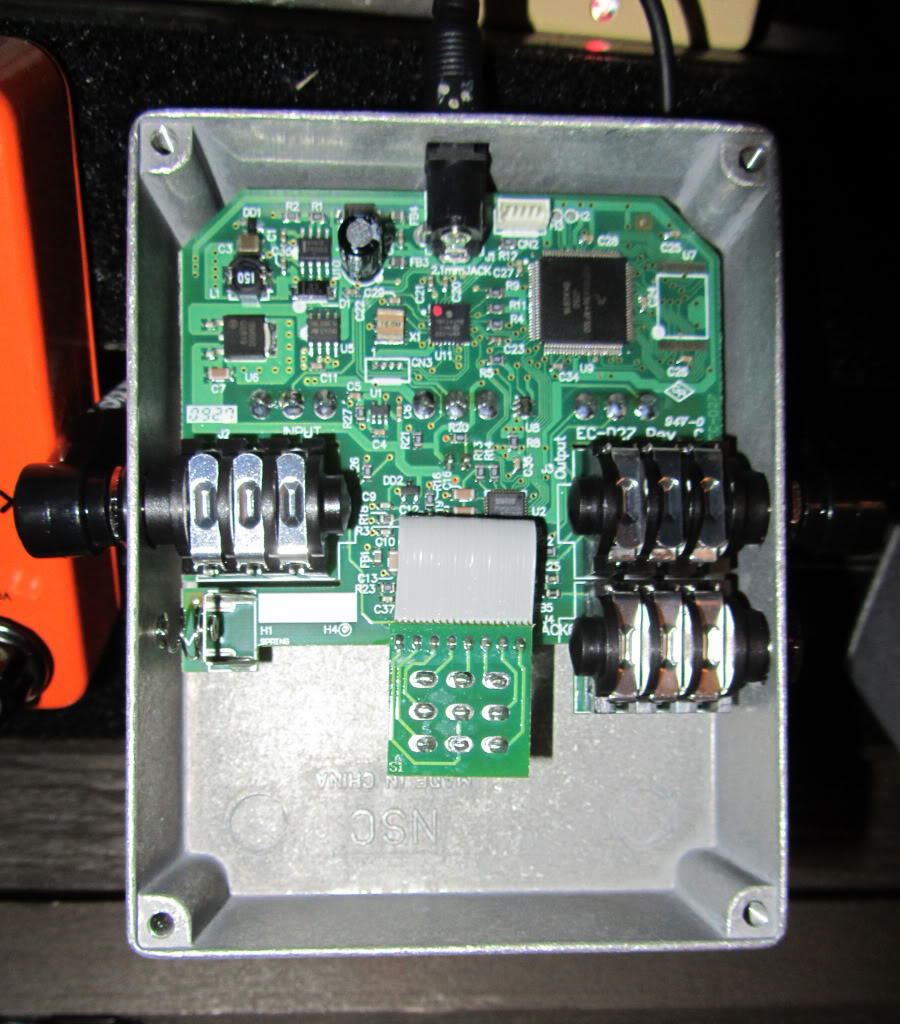

EHX MicroPOG

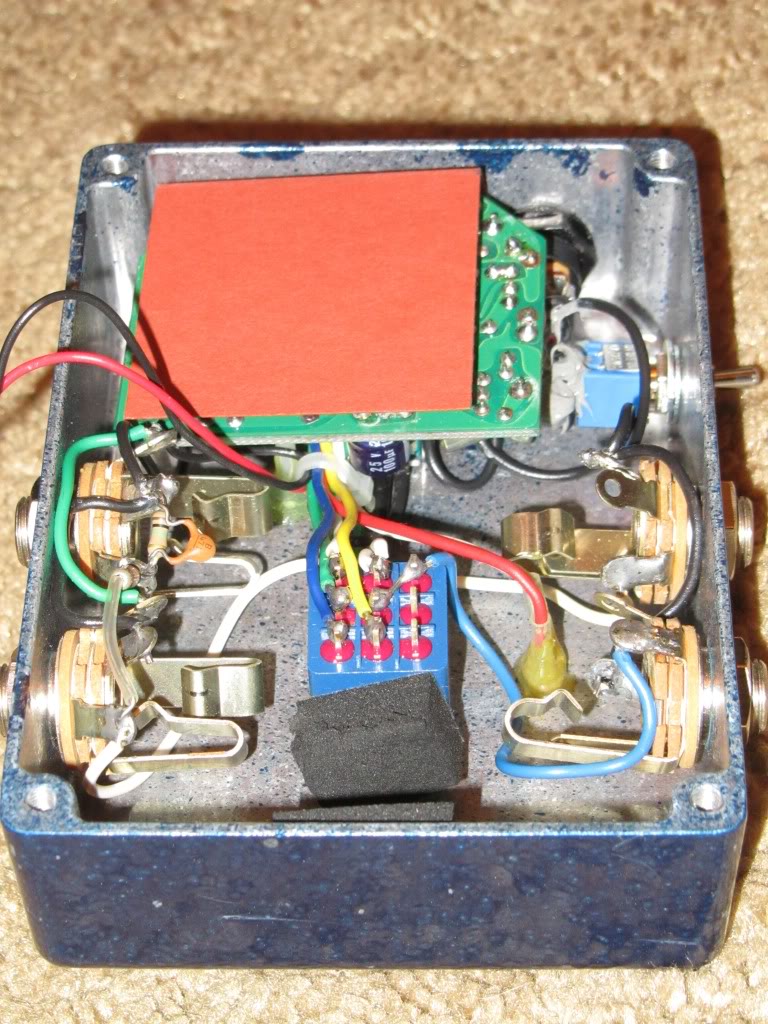

HAO Rust Ride
That orange thing blocking the view is a piece of very stiff cardboard gooped to the back of the board. More gooping is visible on the side-mounted toogle switch leads.

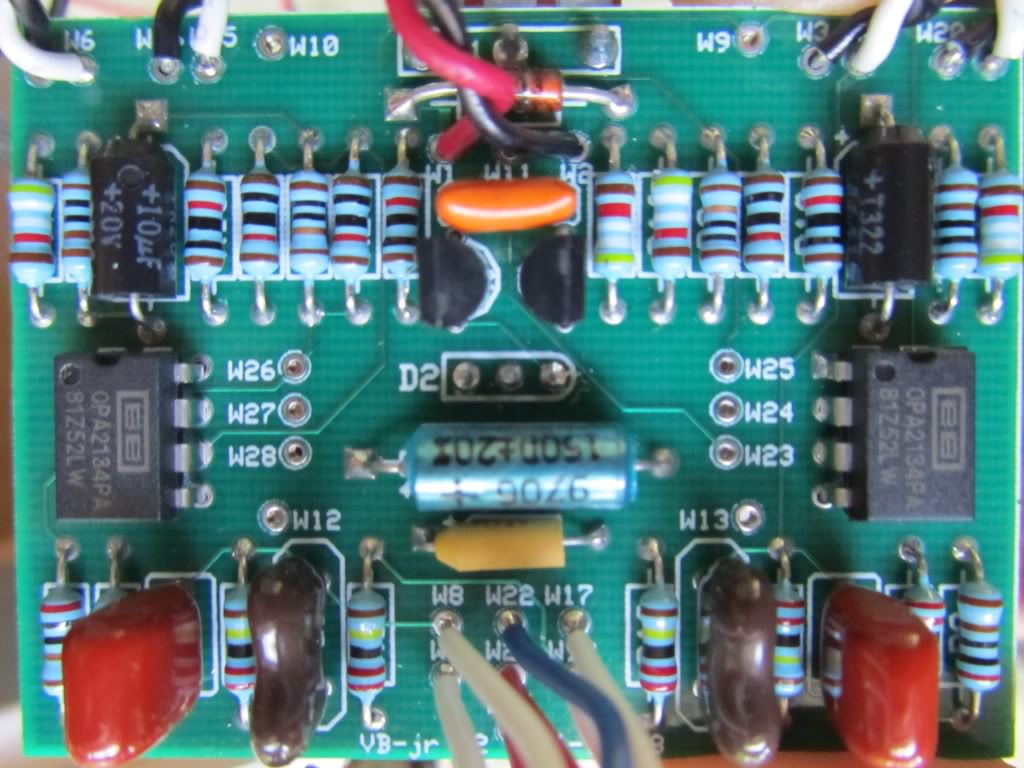

Barge Concepts VBjr
If anyone is interested, I've made a trace out of this circuit. It is mostly complete and badly in need of being redrawn neatly.



[G.Bisson]

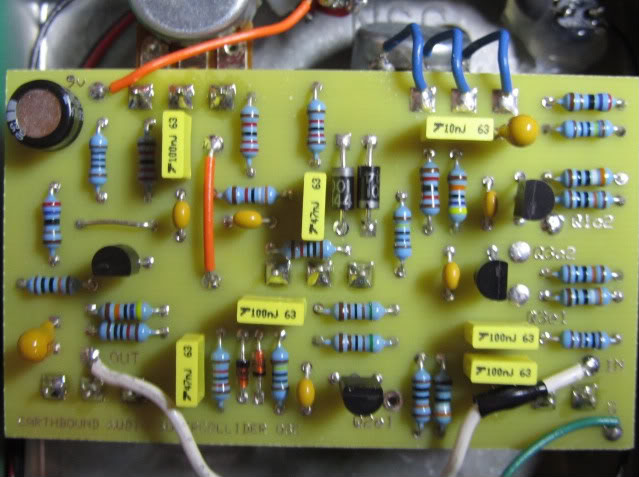

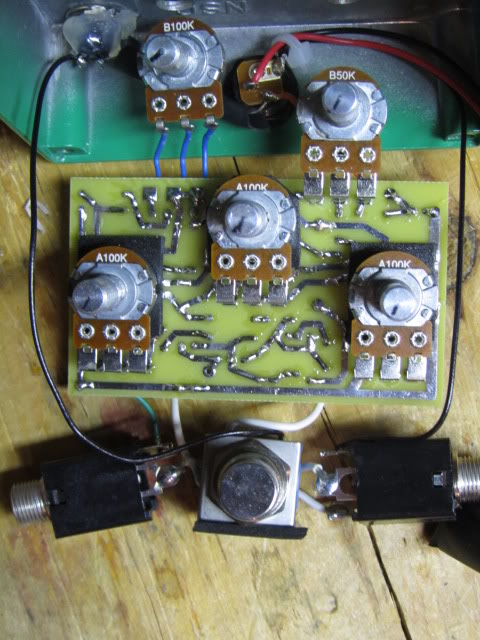

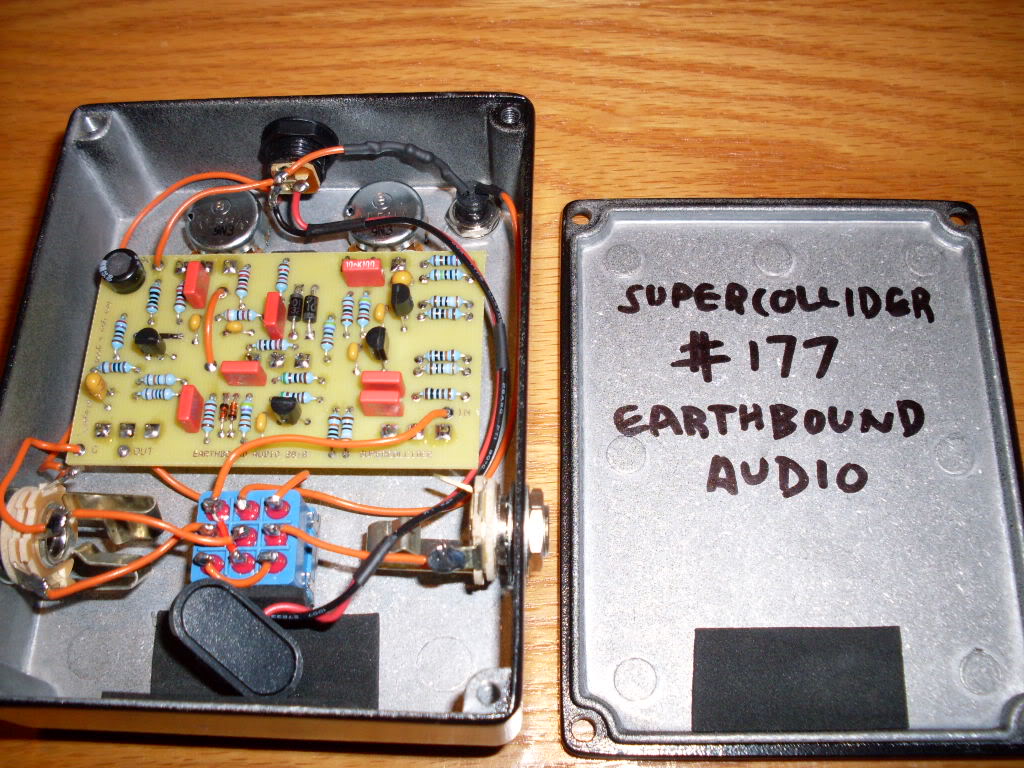

compare to #177 posted above ^



[TheMutt]

That's it? I wanna rehouse it! Slimmer = better

Couldn't be bothered at 2am removing the switch to show the other side of the board though...

You both apparently missed my thread some months ago.

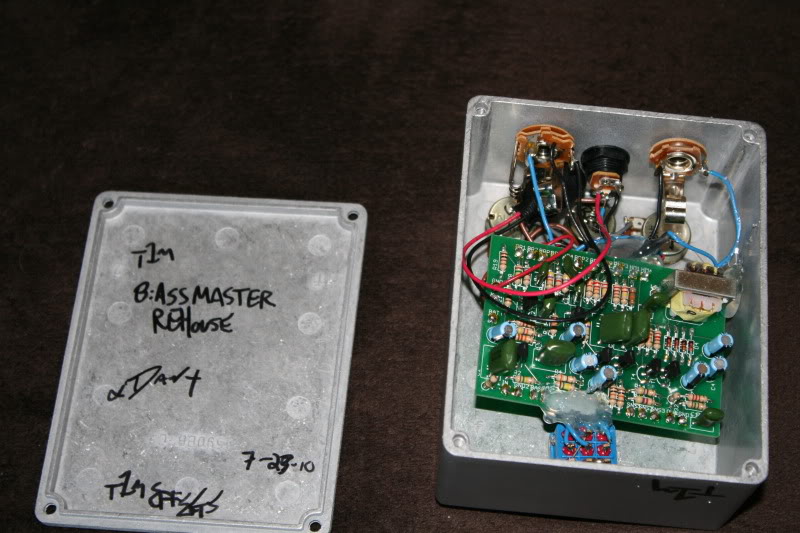

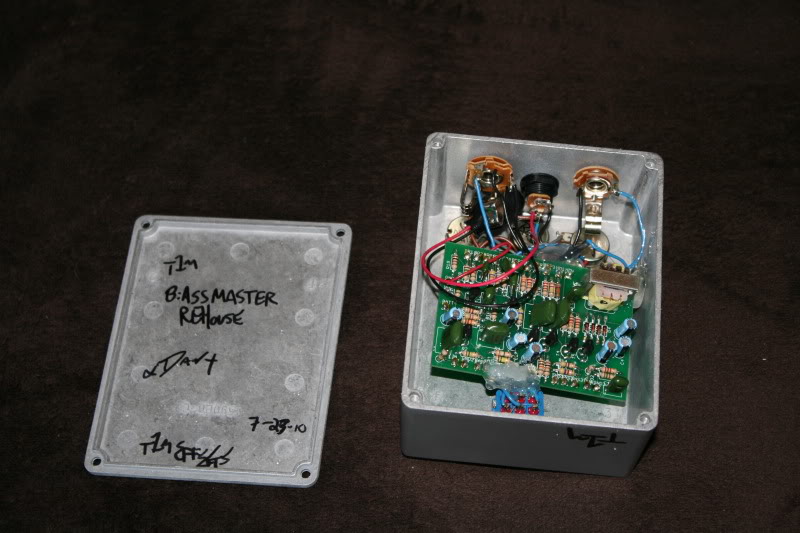

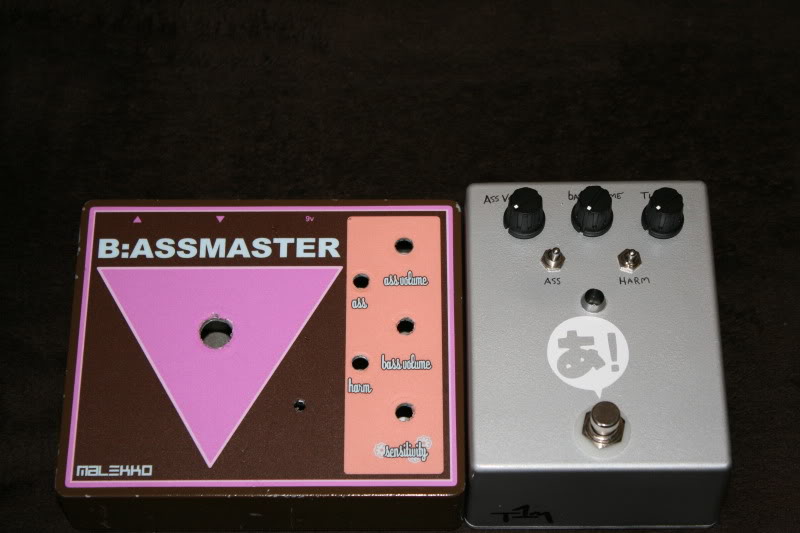

This is a B:Assmaster that was rehoused by Dan at This1smyne into a much much smaller enclosure, and the board was flipped around so as to fit everything in there. It's a taller enclosure, but fits everything nicely.

Since these pictures, I had to add in some more hot glue to keep the board from wiggling, and wired in a violet LED in place of the standard clear one that was scratched in the rehouse process.

Edit: obviously, mine is a silicon version, not the germanium.



[Norwoodrules]

weird, i was just posting this on its own and I saw this thread.

See the hyperion (super clean) guts here:
http://www.talkbass.com/forum/showthread.php?t=721432



[Hutzbordello]

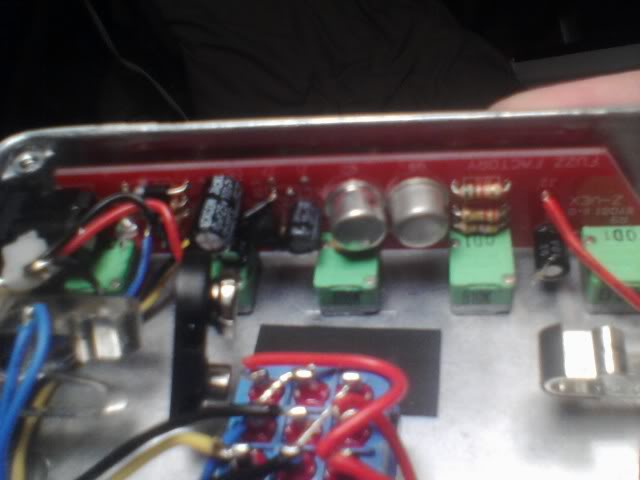

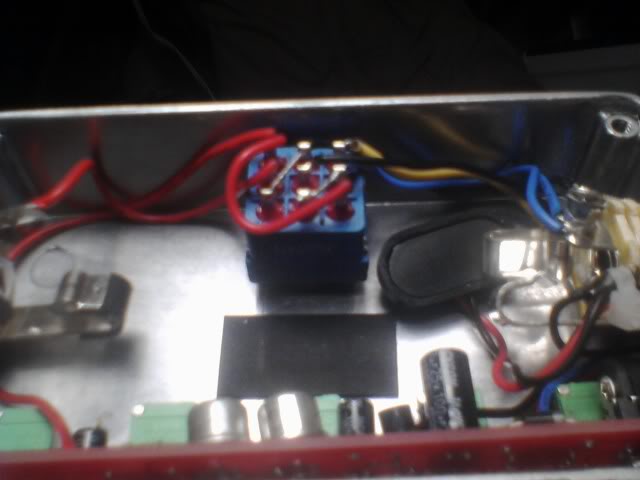

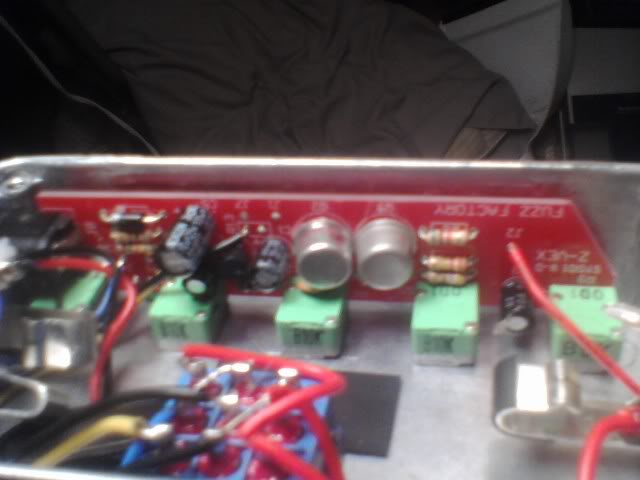

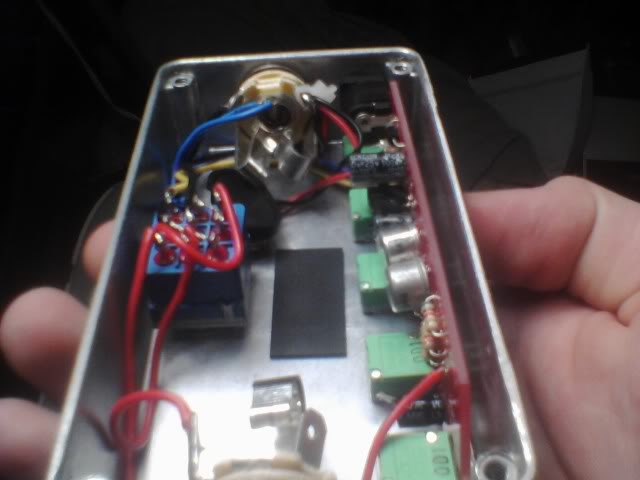

Heres my Fuzz Factory, I took these on my phone. I dont know how well they came out or if they are helpful for any reason but here they are...



[Hutzbordello]



[G.Bisson]

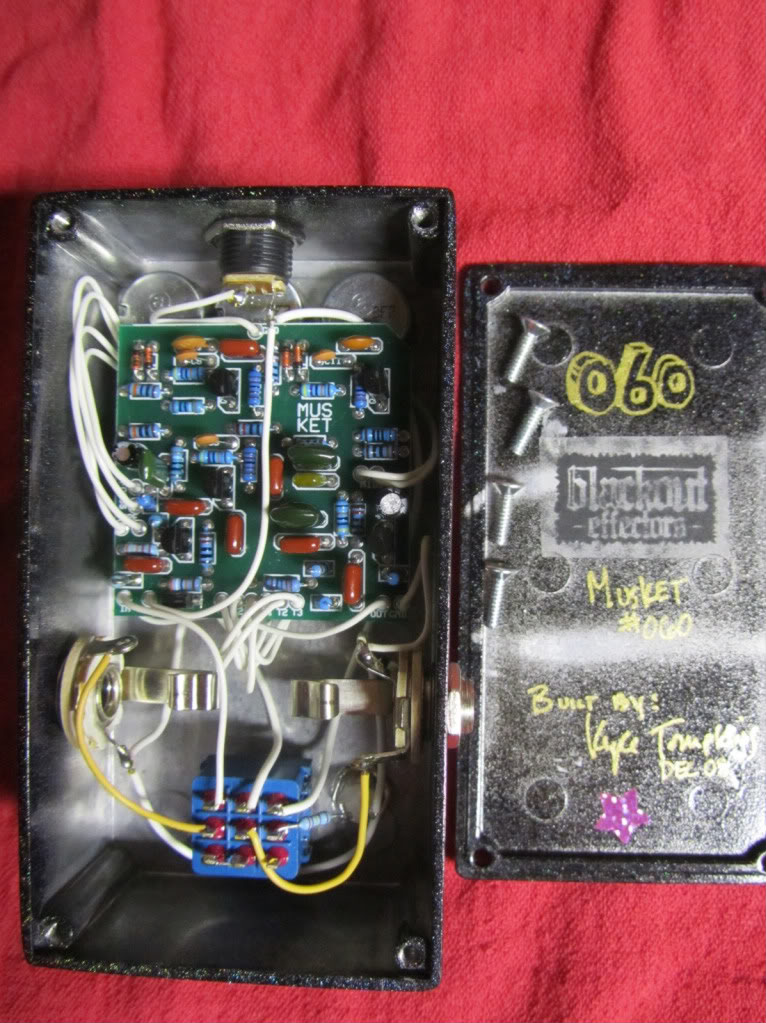

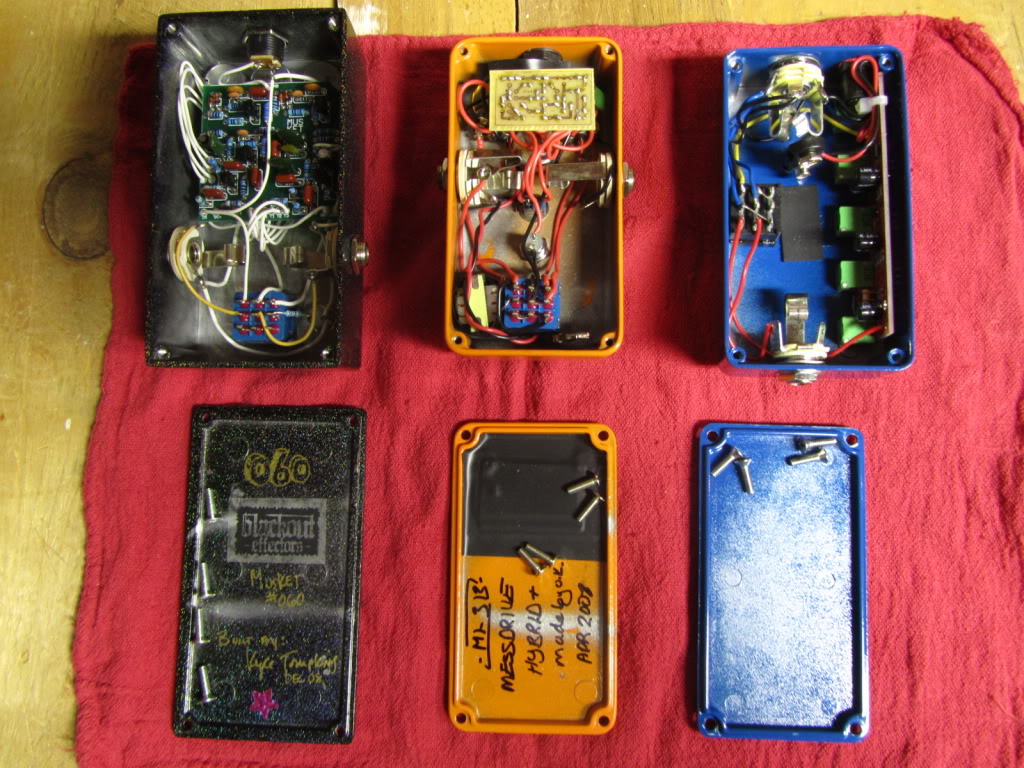

Blackout Effectors Musket fuzz v.1

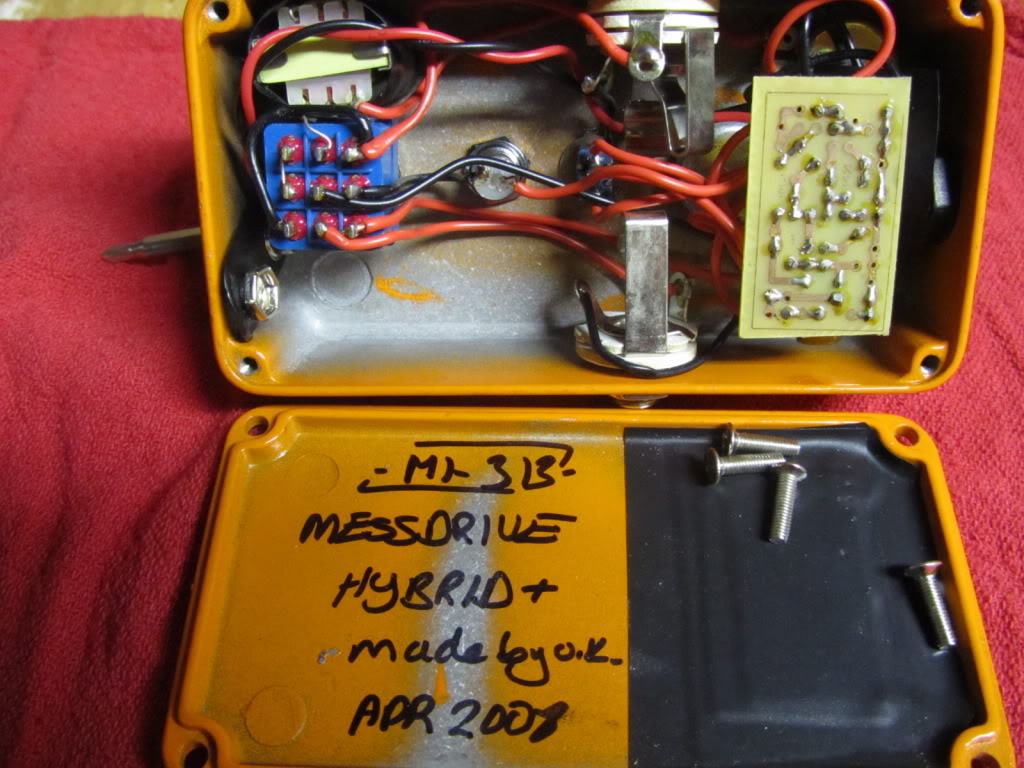

ElectroniX MessDrive Hybrid+

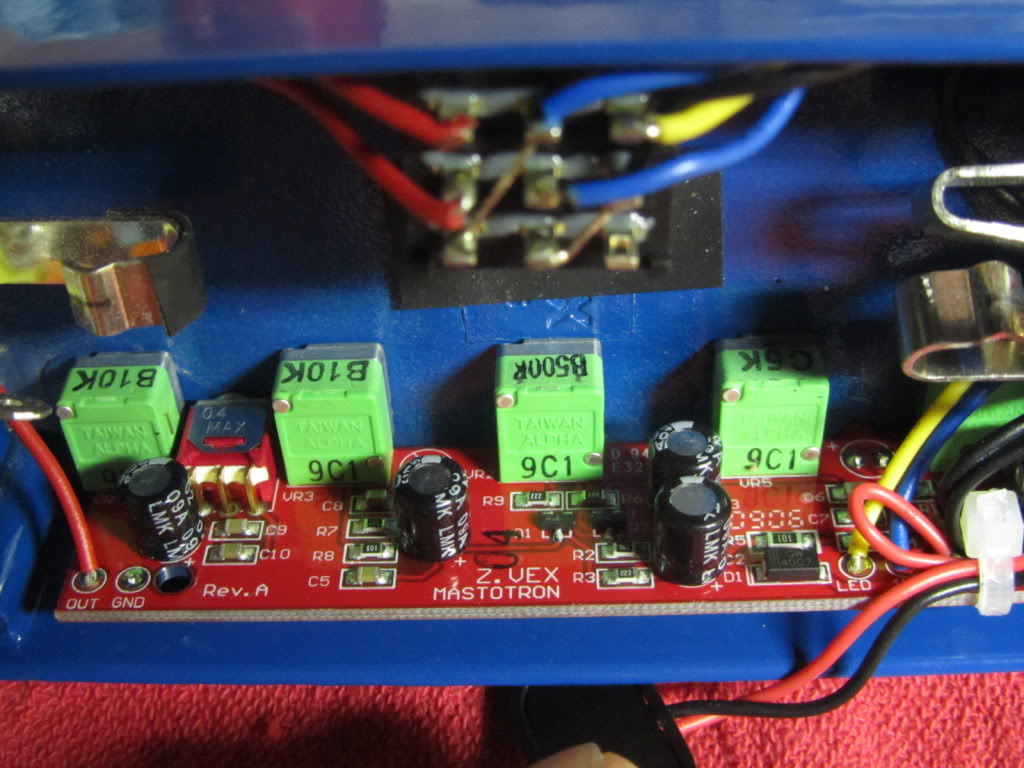

ZVex Mastotron

Blackout Effectors Musket fuzz v.1 #60

ElectroniX MessDrive Hybrid+

ZVex Mastotron



[grygrx]

D*A*M Fuzz Sound
Invalid Link Removed



[dehgrinder]

so thats what a zvex pedal looks like on the inside =0
