Show your pedal guts.

[G.Bisson]

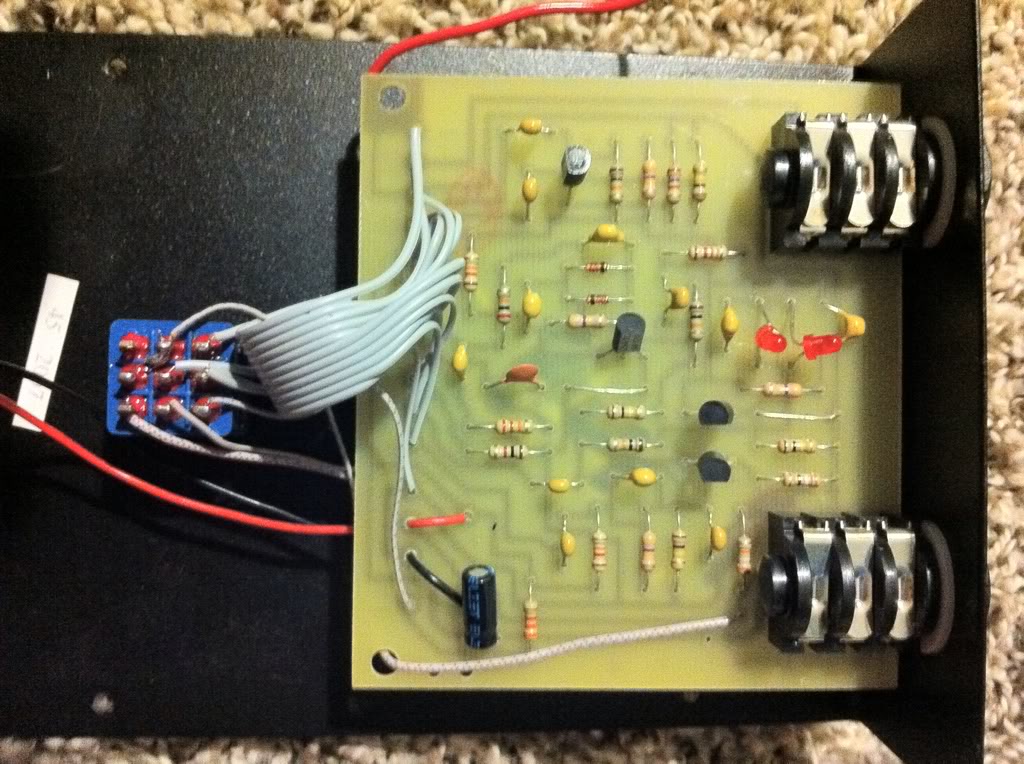

Dave Hall Amps - Fuzzy Feeling Bass (Fuzz Face clone)



[G.Bisson]

Chunk Systems - Brown Dog



[MuthaFunk]

Awesome thread! Subscribed! I should be able to add a few.



[gastric]

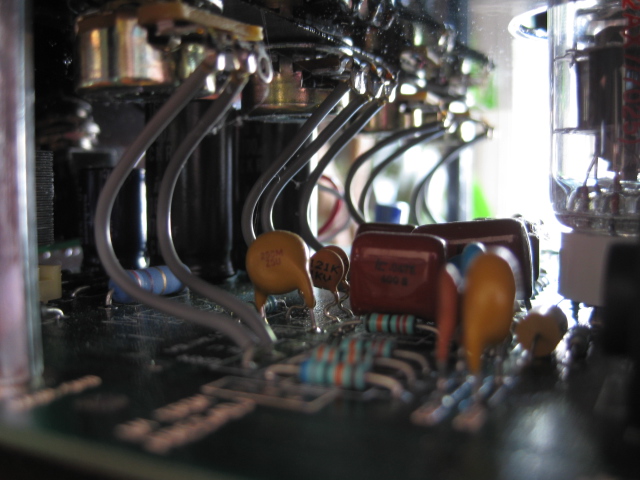

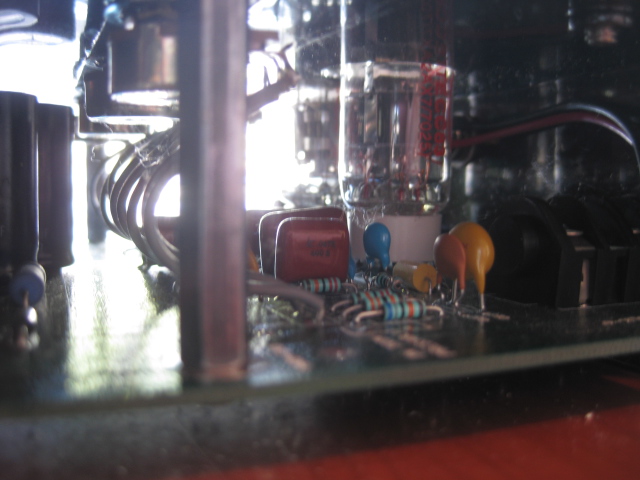

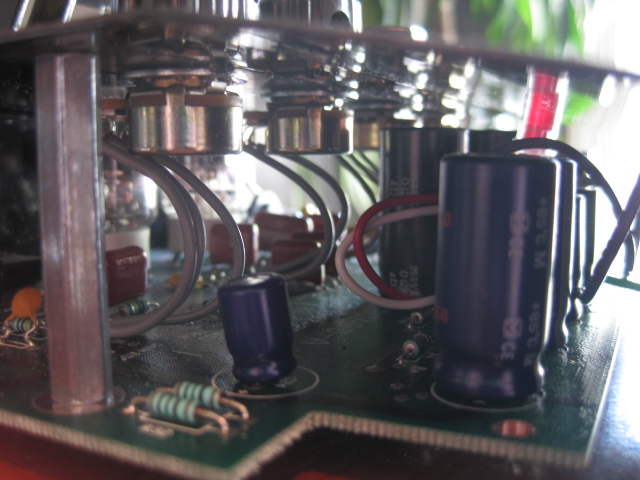

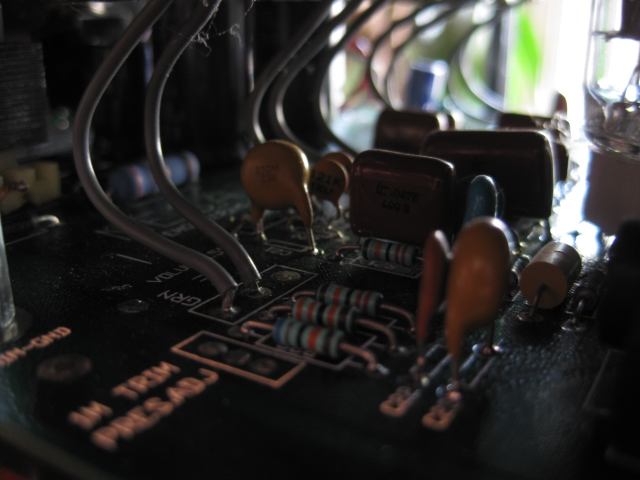

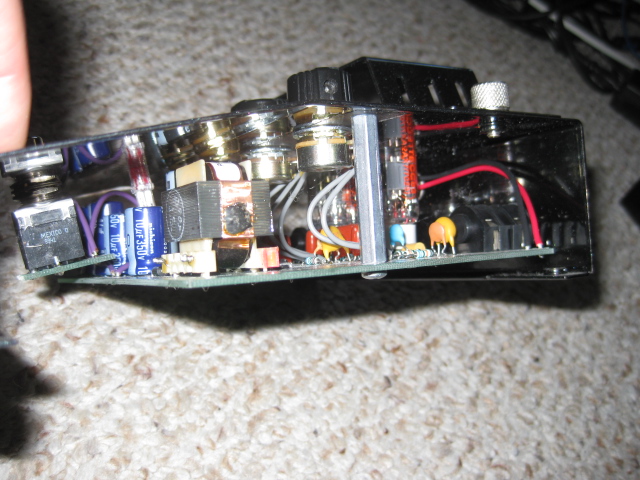

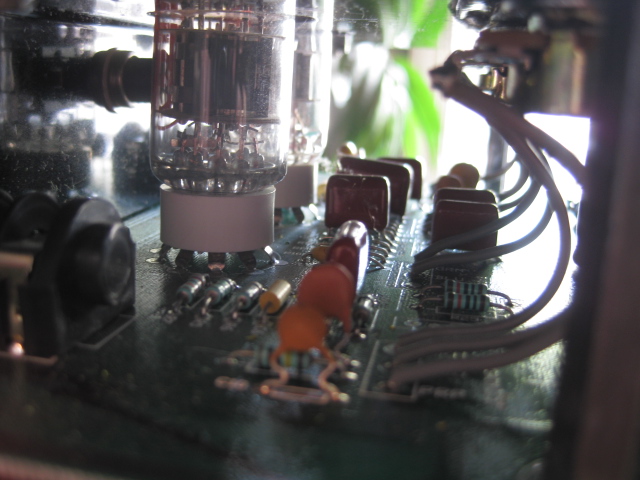

Best I could do of my MESA V1 Bottle Rocket without totally disassembling everything, which wasn't going to happen. Note the unused presence section on the PCB.



[gastric]

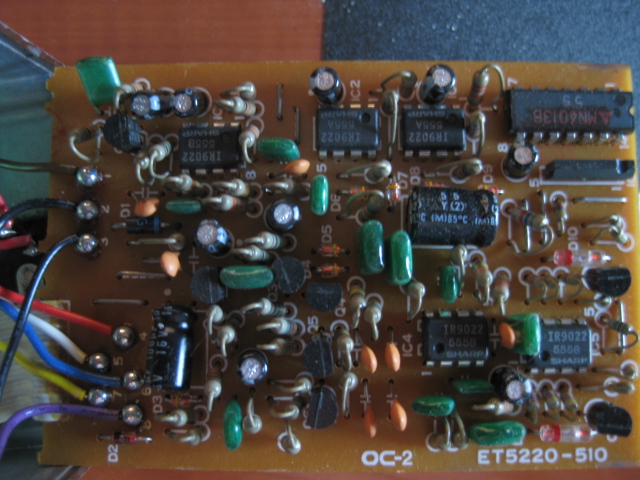

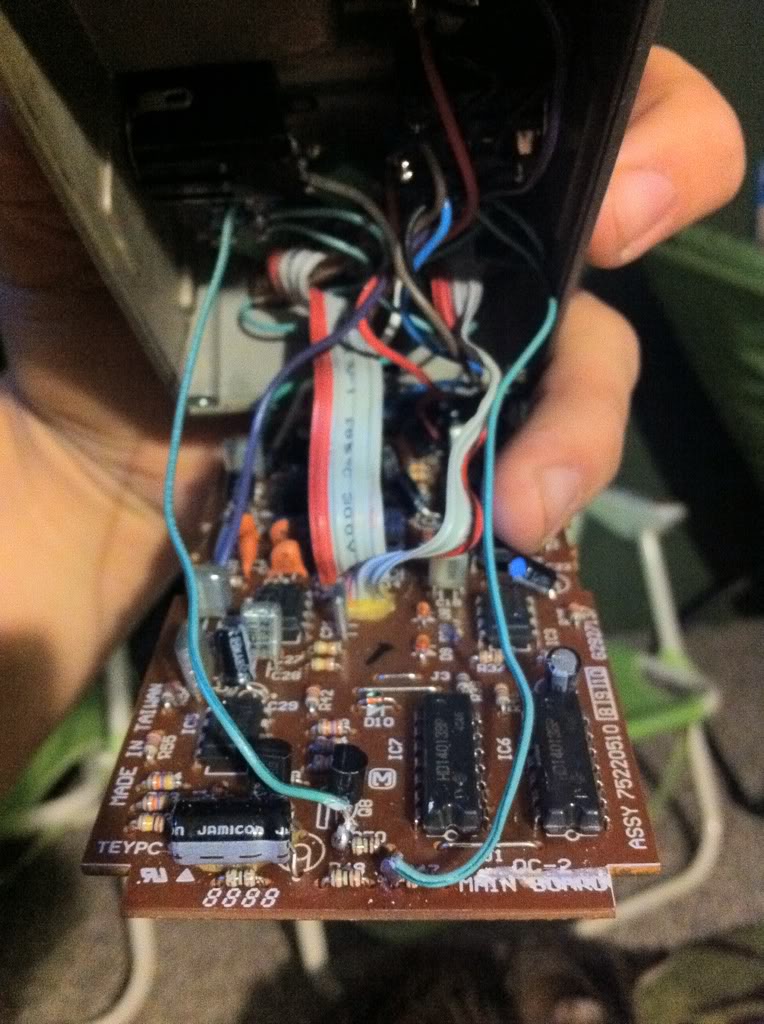

Japanese BOSS OC-2



[dharmashawn]

If Rusty says so, you probably should listen



[G.Bisson]

Aguilar AGRO

These Aguilar pedals are a little tricky to take apart. Here's the sequence to safely open them up:
1. remove knobs
2. remove retaining nuts on footswitch and pots
3. remove side chassis screws
4. lift off top chassis
5. remove plastic retaining nuts on input and output jack
6. lift out PCB

The chassis inside;

top of pcb;

bottom of pcb;

points of interest;
1. block of 11 transistors around the 'saturation' pot.
2. that black cover hiding the mojo behind the 'contour' portion. appears there are only a few components hiding beneath it.
3. Korean writing on the pcb. thought these were made in America?



[Spencer!]

2. that black cover hiding the mojo behind the 'contour' portion. appears there are only a few components hiding beneath it.

Most likely the relay bypass circuit.



[CC7]

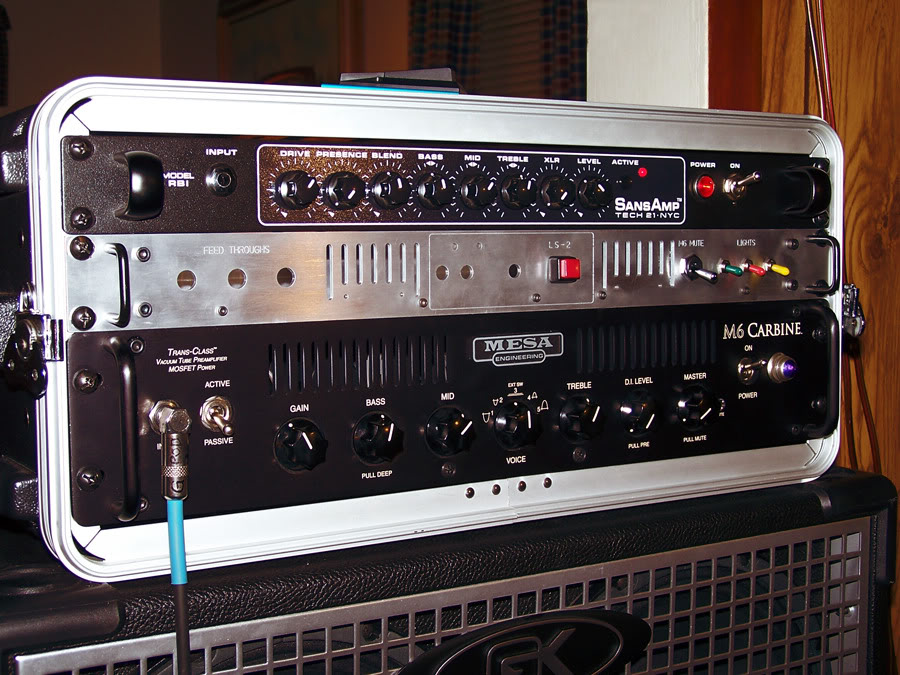

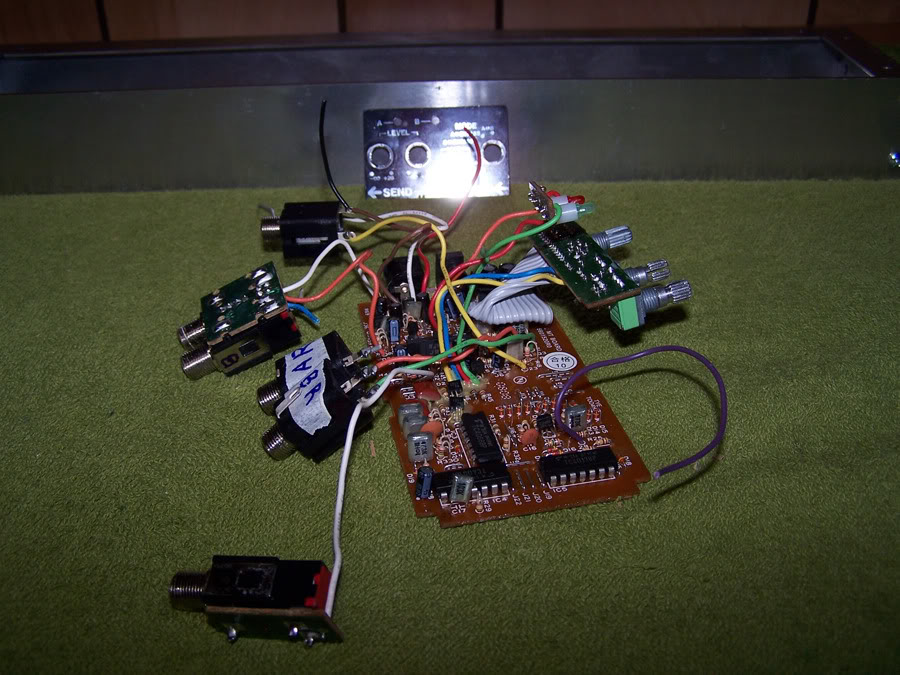

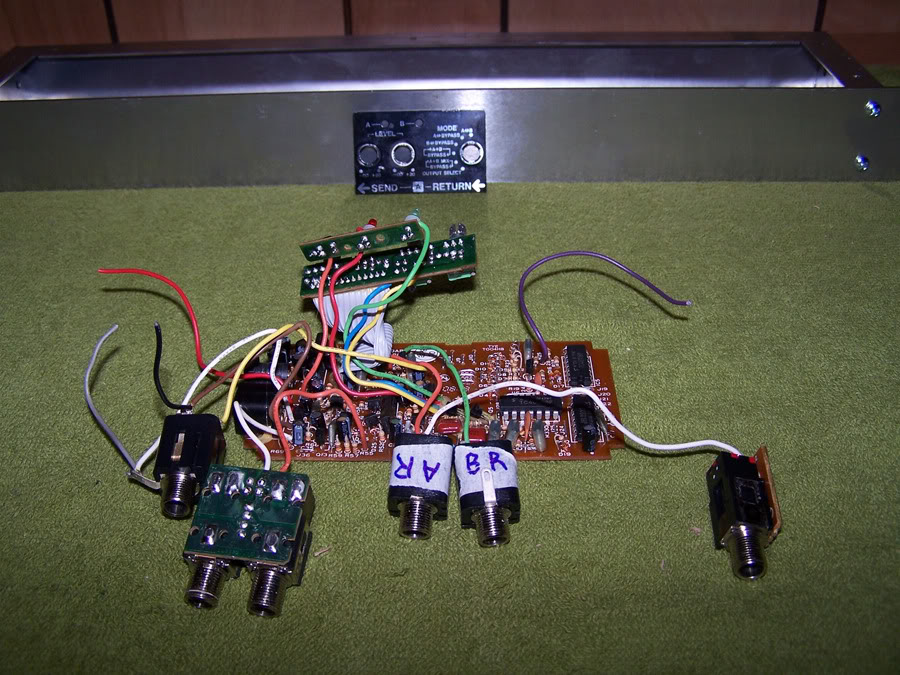

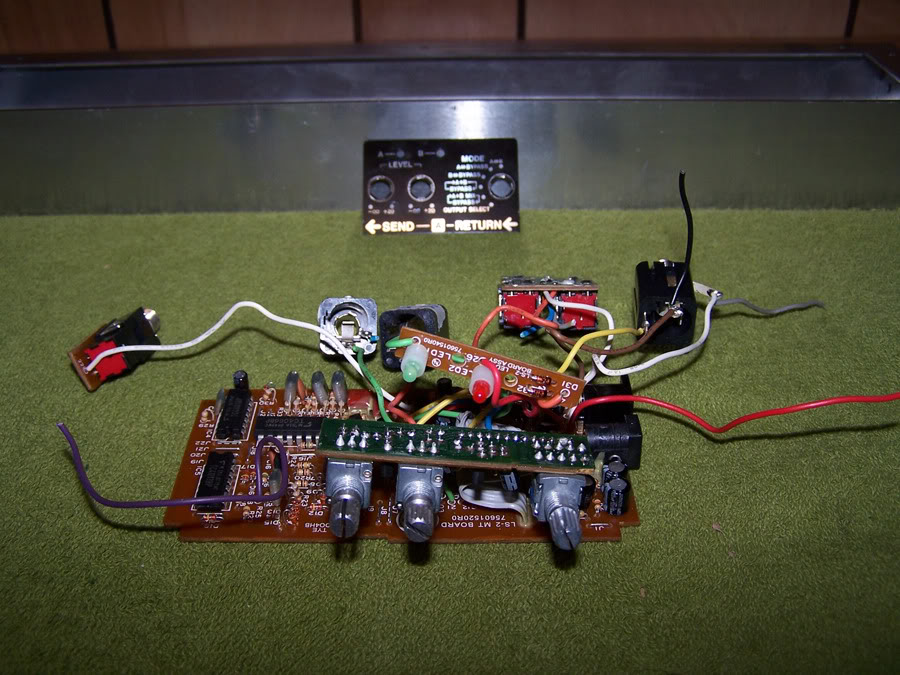

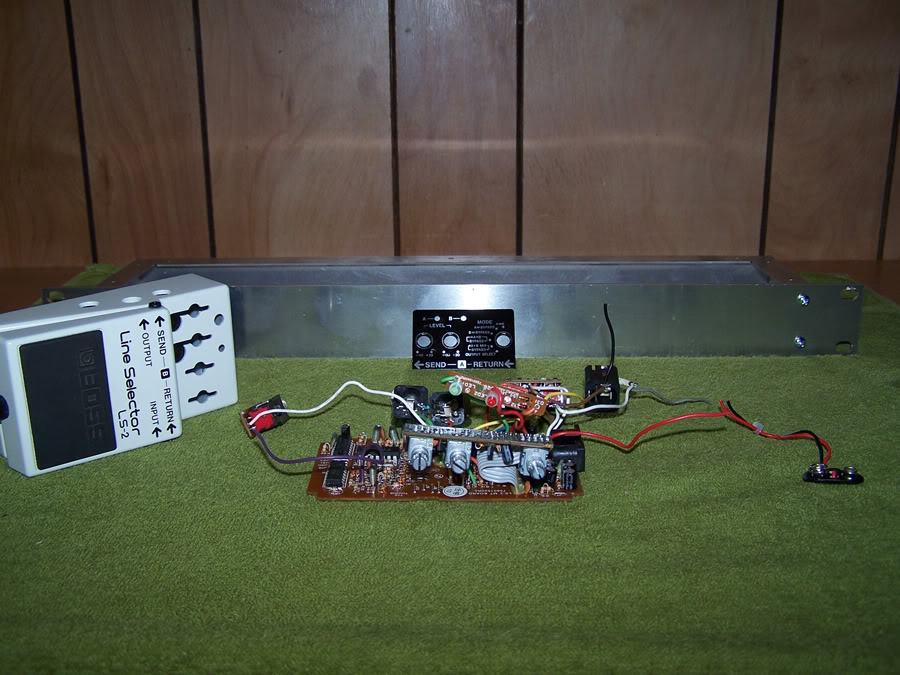

Soon to be rehoused in this.



[iamdenialNJ]



[netface]



[MuthaFunk]

Soon to be rehoused in this.

That rack chassis looks sweet!!! Very Nice!

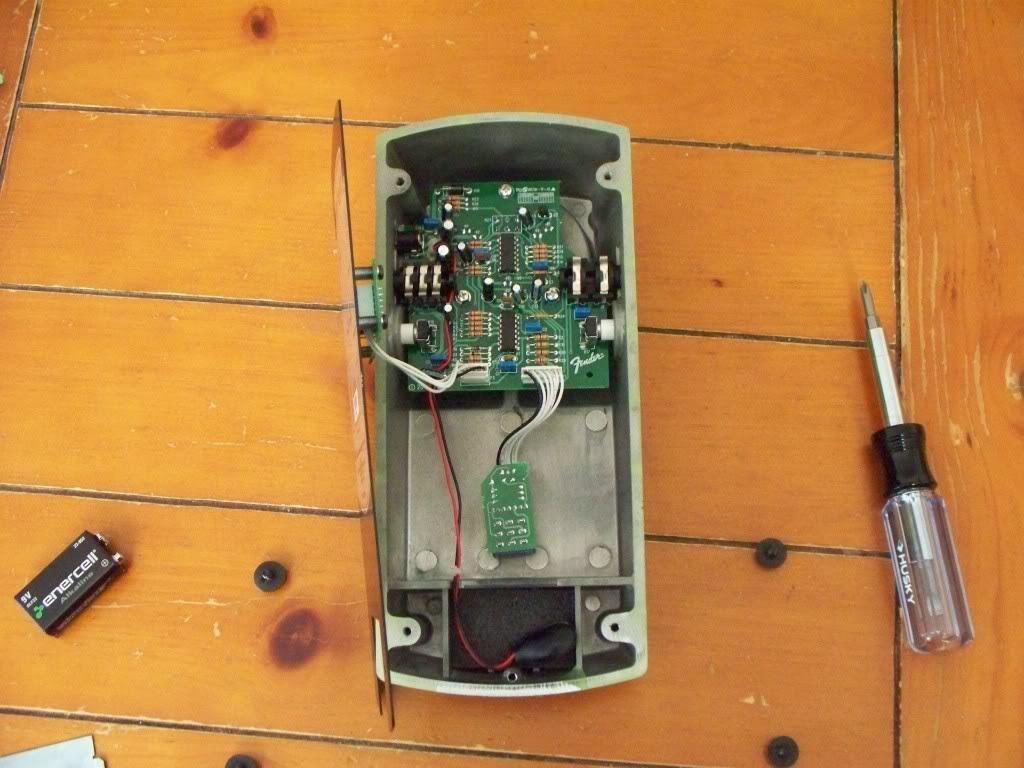

Fender sub lime?



[netface]

ya, sorry



[iamdenialNJ]

Why they did not use a bigger housing is



[Eric!]

#cantrememberifpostedandtoolazytolook

megacustom year4545, affectionately named "Eric's Special Year"



[G.Bisson]

Wren & Cuff Phat Phuk B



[G.Bisson]

Catalinbread Teaser Stallion

"I can't get no relief"

This pcb was even more difficult to take out than the Agro.



[sillyfabe]

Boss LS-2

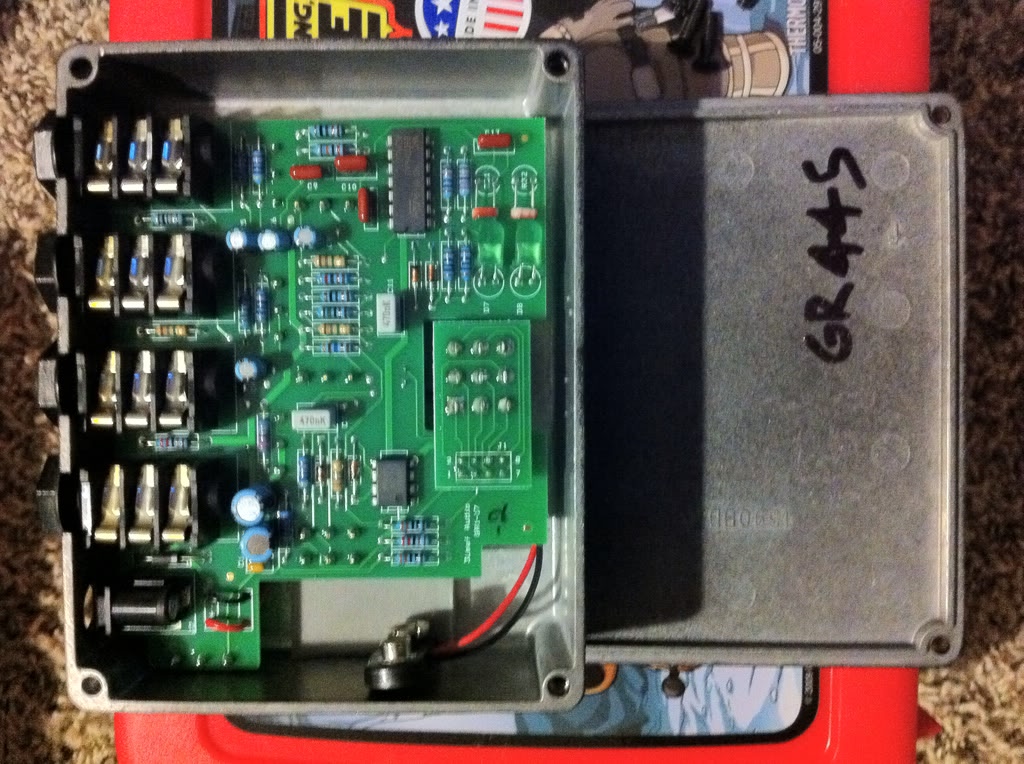

3-Leaf Audio Groove Regulator MK-I

Boss OC-2 Octave MIT Modded with 2 SPDT switches (synth mod)

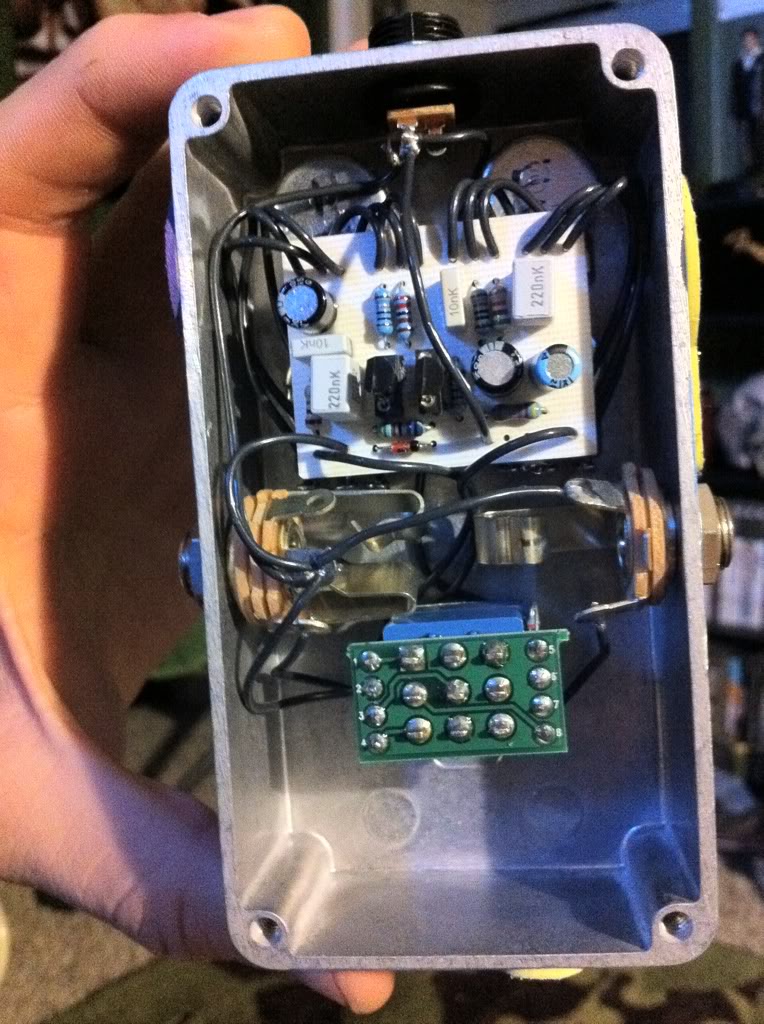

Wooly Mammoth Clone (fuzzy elephant)

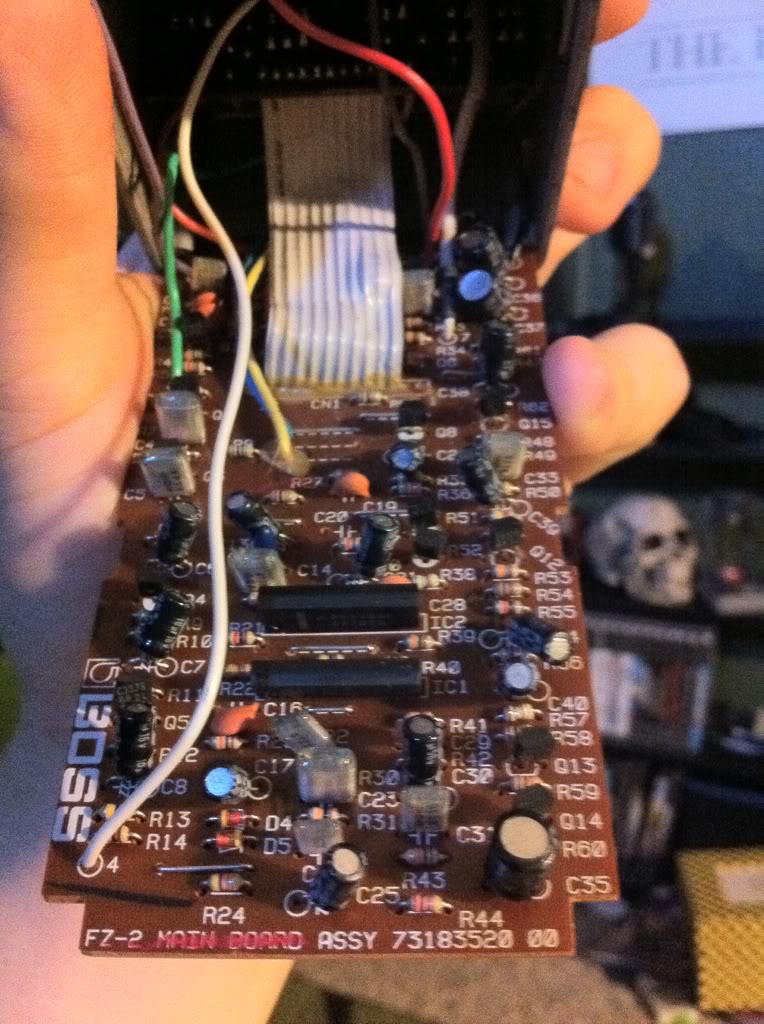

Boss FZ-2 Hyper Fuzz

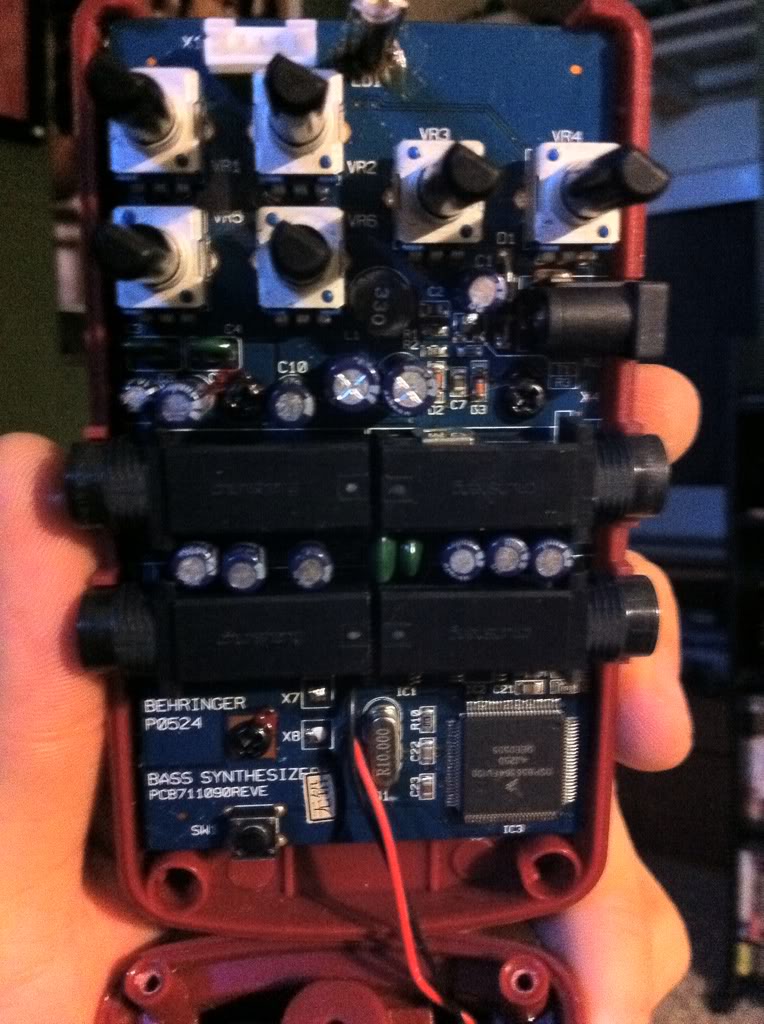

Behringer BSY-600 Bass Synthesizer

EHX Bass Micro Synth XO

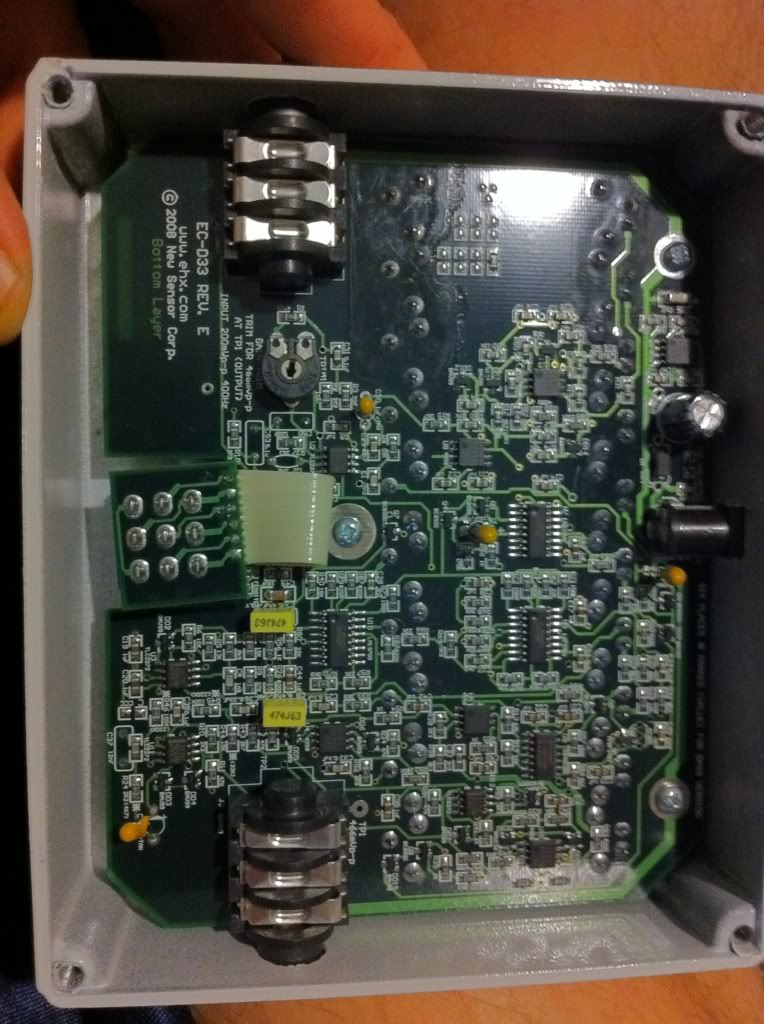

EHX POG2 Polyphonic Octave Generator

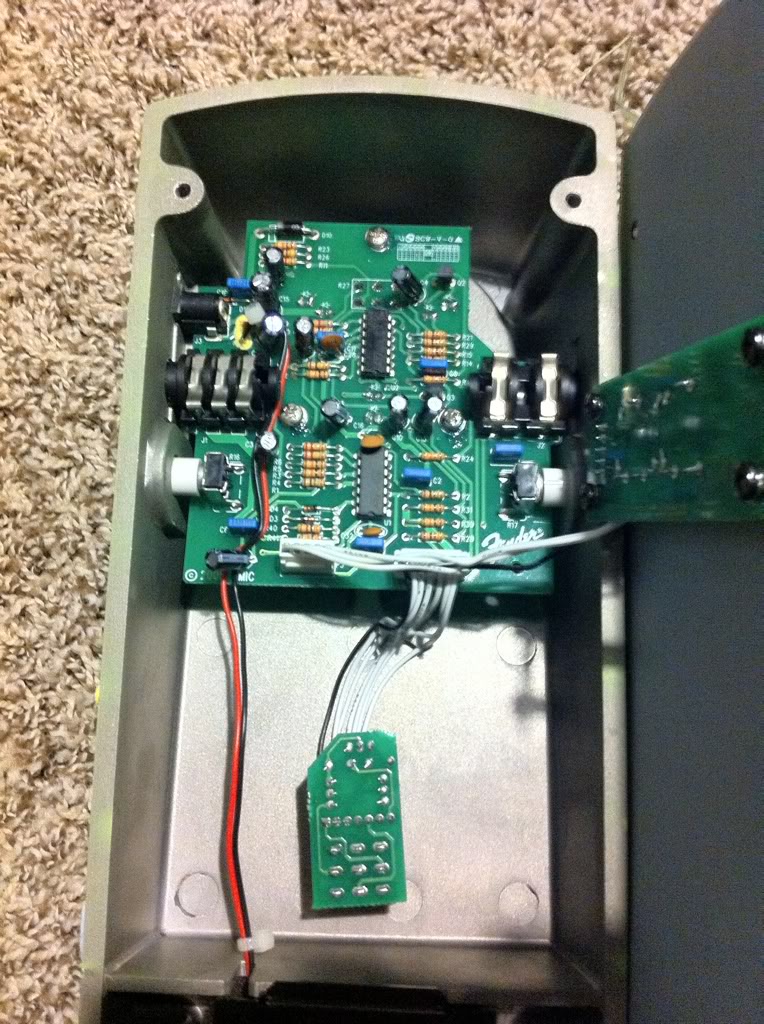

Fender Sub-Lime Bass Fuzz

Dunlop 105Q Bass Wah-Wah

Way Huge Swollen Pickle

EHX/Sovtek Russian Big Muff (modded with a gate,voltage knob, oscillation switch and bigger caps

Tech 21 Red Ripper

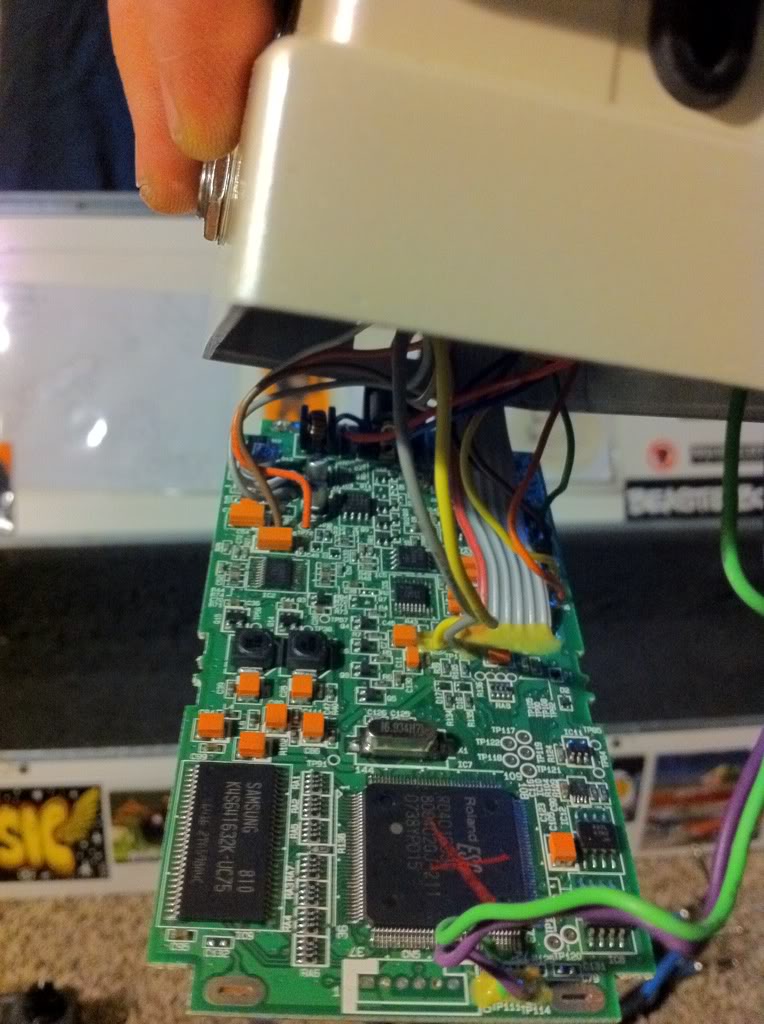

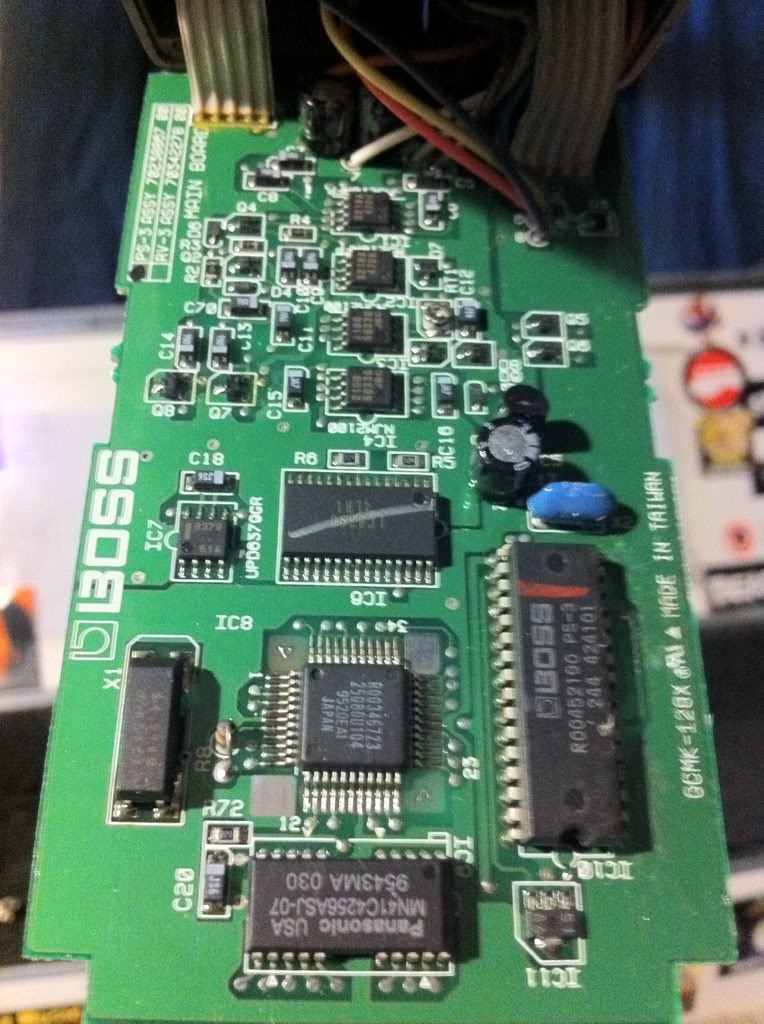

Boss PS-3 Digital Pitch Shifter/Delay

Boss DD-7 Digital Delay

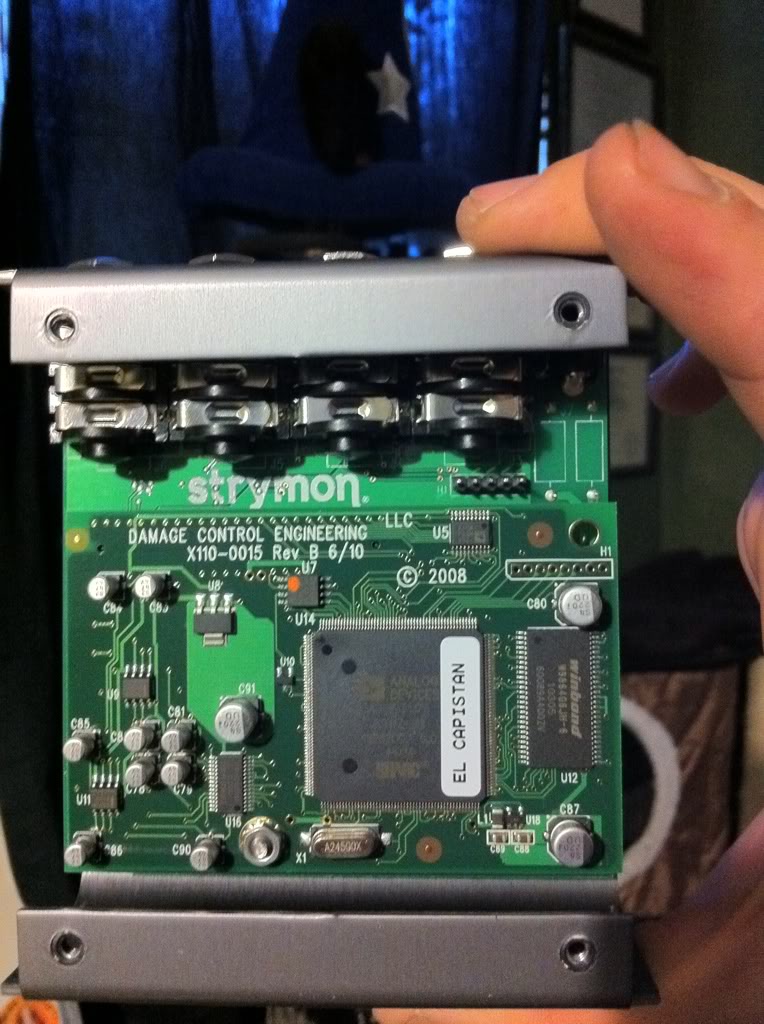

Strymon El Capistan

Awaiting the arrival of my T-Rex Bass Juice and I'll post some Danish guts!

ENOUGH GUTS!?



[G.Bisson]

ENOUGH GUTS!?

Whoa!! that satisfied my daily fetish for pedal upskirts
think I just spilt solder resin all over my keyboard.



[sillyfabe]

Whoa!! that satisfied my daily fetish for pedal upskirts
think I just spilt solder resin all over my keyboard.

I do what I can.....
